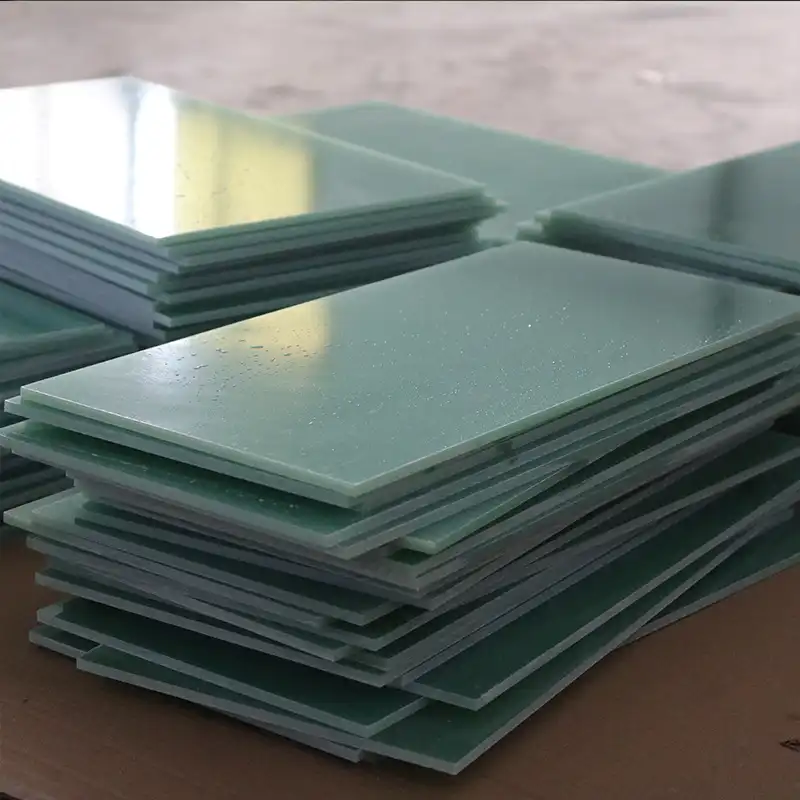

What is FR4 Epoxy Fiberglass Board?

FR4 epoxy fiberglass board, also known as FR4 epoxy fiberglass sheet or FR4 epoxy glass sheet, is a versatile and widely used material in various industries. This high-performance composite material combines the strength of fiberglass with the excellent electrical and thermal properties of epoxy resin. In this comprehensive guide, we'll explore the characteristics, applications, and benefits of FR4 epoxy fiberglass sheet, shedding light on why it has become an indispensable material in modern manufacturing.

Understanding FR4 Epoxy Fiberglass Board

Composition and Manufacturing Process

FR4 epoxy fiberglass sheet is a composite material composed of woven fiberglass cloth impregnated with epoxy resin. The manufacturing process involves layering multiple sheets of fiberglass fabric and saturating them with epoxy resin. These layers are then subjected to heat and pressure, resulting in a rigid, flame-resistant board with exceptional mechanical and electrical properties.

The "FR" in FR4 stands for "Flame Retardant," indicating that the material has been formulated to resist combustion and meet specific fire safety standards. The "4" designates the material's composition and performance characteristics, which include a high glass transition temperature and superior electrical insulation properties.

Key Properties of FR4 Epoxy Fiberglass Board

FR4 epoxy fiberglass sheet boasts an impressive array of properties that make it suitable for a wide range of applications:

- Excellent electrical insulation

- High mechanical strength and rigidity

- Low moisture absorption

- Good dimensional stability

- Flame retardant properties

- High heat resistance

- Low thermal expansion

- Good machinability

These properties contribute to the material's versatility and reliability in various industrial and electronic applications.

Grades and Variations

FR4 epoxy fiberglass sheet is available in several grades and variations to meet specific application requirements. Some common variations include:

- Standard FR4: The most commonly used grade for general-purpose applications

- High-Tg FR4: Featuring a higher glass transition temperature for improved thermal performance

- Halogen-free FR4: Environmentally friendly version without halogenated flame retardants

- Lead-free FR4: Designed for lead-free soldering processes

- Ultra-thin FR4: Specialized grade for applications requiring minimal thickness

Each variation offers unique properties tailored to specific industry needs, ensuring that FR4 epoxy fiberglass sheet remains a versatile and adaptable material across various sectors.

Applications of FR4 Epoxy Fiberglass Board

Electronics and Printed Circuit Boards (PCBs)

The primary application of FR4 epoxy fiberglass sheet is in the electronics industry, particularly in the manufacture of printed circuit boards (PCBs). Its excellent electrical insulation properties, combined with its mechanical strength and thermal stability, make it an ideal substrate for PCBs used in computers, smartphones, televisions, and countless other electronic devices.

In PCB manufacturing, FR4 sheets serve as the base material onto which copper traces are etched or printed. The material's low dielectric constant and loss tangent contribute to improved signal integrity, while its flame-retardant properties enhance the safety of electronic devices.

Industrial and Mechanical Applications

Beyond electronics, FR4 epoxy fiberglass sheet finds applications in various industrial and mechanical settings. Its high strength-to-weight ratio, dimensional stability, and resistance to moisture make it suitable for:

- Electrical switchgear and insulation components

- Industrial control panels

- Automotive parts and components

- Aerospace structural components

- Machine guards and safety shields

- Tooling and fixtures for manufacturing processes

In these applications, FR4 epoxy fiberglass sheet offers a combination of electrical insulation, mechanical strength, and thermal stability that few other materials can match.

Specialized and Emerging Applications

As technology advances, new applications for FR4 epoxy glass sheet continue to emerge. Some specialized and cutting-edge uses include:

- 3D printing support structures and prototyping

- Microwave and RF circuit boards for high-frequency applications

- Flexible and rigid-flex PCBs for wearable technology

- Thermal management solutions in LED lighting systems

- Insulation components in renewable energy systems

These emerging applications showcase the adaptability and ongoing relevance of FR4 epoxy fiberglass sheet in modern technology and industry.

Benefits and Considerations of Using FR4 Epoxy Fiberglass Board

Advantages in Manufacturing and Design

FR4 epoxy fiberglass sheet offers numerous benefits to manufacturers and designers across various industries:

- Consistency and reliability: The standardized manufacturing process ensures uniform properties and performance across batches.

- Design flexibility: Available in various thicknesses and sizes, FR4 can be easily customized to meet specific design requirements.

- Cost-effectiveness: While not the cheapest material, FR4 offers an excellent balance of performance and cost for many applications.

- Compatibility: FR4 is compatible with most soldering and assembly processes used in electronics manufacturing.

- Durability: The material's resistance to moisture, chemicals, and temperature fluctuations contributes to the longevity of products made with FR4.

These advantages make FR4 epoxy fiberglass sheet a preferred choice for many manufacturers seeking a reliable and versatile material.

Environmental and Safety Considerations

While FR4 epoxy fiberglass sheet offers many benefits, it's essential to consider its environmental and safety aspects:

- Recyclability: FR4 is challenging to recycle due to its composite nature, but efforts are underway to develop more efficient recycling processes.

- Flame retardants: Traditional FR4 contains brominated flame retardants, which have raised environmental concerns. Halogen-free alternatives are available for environmentally sensitive applications.

- Dust generation: Machining FR4 can produce fine dust, requiring proper safety measures and ventilation in manufacturing environments.

- End-of-life disposal: Proper disposal of FR4 products is crucial to minimize environmental impact and comply with regulations.

Manufacturers and users of FR4 epoxy fiberglass sheet should be aware of these considerations and take appropriate measures to address them.

Future Trends and Innovations

The FR4 epoxy fiberglass sheet industry continues to evolve, with several trends and innovations on the horizon:

- Development of more environmentally friendly formulations

- Advancements in high-frequency and high-speed materials for next-generation electronics

- Integration of nanomaterials to enhance specific properties

- Improved fire resistance and thermal management capabilities

- Exploration of bio-based alternatives to traditional epoxy resins

These developments promise to expand the capabilities and applications of FR4 epoxy fiberglass sheet, ensuring its continued relevance in the face of evolving technological and environmental demands.

Conclusion

FR4 epoxy fiberglass sheet stands as a cornerstone material in modern manufacturing, particularly in the electronics industry. Its unique combination of electrical, mechanical, and thermal properties makes it an indispensable component in countless products that shape our technological landscape. From the printed circuit boards in our smartphones to critical components in industrial machinery, FR4 epoxy fiberglass sheet plays a crucial role in enabling the devices and systems we rely on daily.
