Epoxy Laminate Sheet
Basic Information:
Brand: Hongda
Materials: Epoxy Resin, Phenolic Resin
Nature Color: Yellow
Thickness: 0.3mm --- 100mm
Size: 1020mm*2020mm (Regular)
Packaging: Regular packing, Protect by Pallet
Productivity: 13000 Tons per year
Transportation: Ocean, Land, Air
Payment:T/T
MOQ:500KG
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Epoxy Laminate Sheet Production Description
Epoxy laminate sheet is a kind of laminated board formed through heat pressing after the electric industry alkali-free cloth dips into epoxy resin. After curing the epoxy resin, it has excellent mechanical properties and high strength. Electrical stability is good under high humidity condition. Also, it has high dielectric properties, resistance to surface leakage and excellent resistance to arc insulation material.

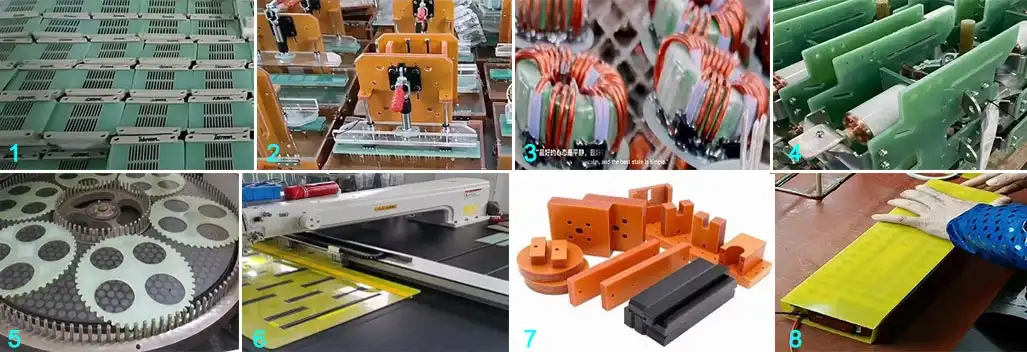

1. Test Jig
2. Fixture PCB Testing Jig
3. Insulation Plate
4. Switch insulation Plate
5. Polish Gear
6. Mould in Cloth and Shoes
7. Insulation Part of Bakelite Sheet
8. Lithium Battery Pack
Meaning of the 3240
3240 is accordance with the China standards. According to JB-T 2197-1996 electrical insulation material product classification, naming and model compilation method, each number of 3240 represent four different meaning. The first 3 represents laminated products, winding products, vacuum pressure dipping products. The second place 2 represents inorganic substrate laminate. The third place 4 represents the temperature index level. The fourth digit 0 represents the product variety code. The full name of 3240 is Grade 3240 Epoxy Glass Insulating Laminated Board or Epoxy Laminate Sheet.
Technical Data for 3240 Grade A
|
NO |
TEST ITEMS |
UNIT |
TEST RESULT |
TEST METHOD |
|
1 |
Bending Strength Perpendicular to Laminations (A) |
MPa |
484 |
GB/T 1303.4-2009 |
|
2 |
Bending Strength Perpendicular to Laminations (B) |
MPa |
338 |
|
|
3 |
Apparent Bending Elastic Modulus (A) |
MPa |
2.19*104 |
|
|
4 |
Apparent Bending Elastic Modulus (B) |
MPa |
1.99*104 |
|
|
5 |
Compressive Strength Perpendicular to Laminations compressive |
MPa |
401 |
|
|
6 |
Parallel layer shear strength |
MPa |
31.5 |
|
|
7 |
Tensile Strength (A) |
MPa |
368 |
|
|
8 |
Tensile Strength (B) |
MPa |
187 |
|
|
9 |
Parallel Layer Impact Strength (Simply Supported Beam, Gap) |
KJ/m² |
59.4 |
|
|
10 |
Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system) |
kV/mm |
15.5 |
|
|
11 |
Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system) |
KV |
90.0 |
|
|
12 |
Relative Permittivity (50Hz) |
- |
4.90 |
|
|
13 |
Insulation Resistance after Soaking |
Ω |
4.1*1013 |
|
|
14 |
Density |
g/cm3 |
1.96 |
|
|
15 |
Flammability |
Grade |
V-0 |
|
|
16 |
Water Absorption |
mg |
39.9 |
|
|
REMARK: 1. NO.5 the sample height is (10.32~10.39) mm; 2. NO.10 the sample thickness is (2.09~2.11) mm; 3. NO.11 the sample size is (100.01~100.07) mm*(25.20~25.31) mm*(5.06~5.20) mm thickness, the electrode spacing is (25.20~25.31) mm; 4. NO.15 the sample size is (18.87~12.99) mm*(4.23~4.28) mm; 5. NO.16 the sample size is (50.39~50.51)mm*(50.37~50.50)mm * (4.24~4.27) mm . |
||||
Technical Data for 3240 GradeB
|
NO |
TEST ITEMS |
UNIT |
TEST RESULT |
TEST METHOD |
|
|
1 |
Density |
g/cm3 |
2.07 |
GB/T 1303.2-2009 |
|
|
2 |
Water Absorption |
mg |
6.0 |
||
|
3 |
Bending Strength Perpendicular to Laminations |
A |
MPa |
203 |
|
|
B |
192 |
||||
|
4 |
Modulus of Elasticity in Flexure |
A |
MPa |
2.12*104 |
|
|
B |
2.38*104 |
||||
|
5 |
Parallel Layer Impact Strength (Simply Supported Beam, Gap) |
A |
KJ/m² |
47.4 |
|
|
B |
35.8 |
||||
|
6 |
Parallel Layer Shear Strength |
A |
MPa |
49.8 |
|
|
B |
52.7 |
||||
|
7 |
Tensile Strength |
A |
MPa |
147 |
|
|
B |
121 |
||||
|
8 |
Compressive Strength Perpendicular to Laminations compressive |
MPa |
438 |
||
|
9 |
Insulation Resistance after Soaking |
Ω |
2.0*109 |
||
|
10 |
Vertical Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost) |
MV/m |
8.6 |
||
|
11 |
Parallel Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost) |
kV |
28.0 |
||
|
12 |
Flammability |
- |
V-1 |
||
|
13 |
Deflection Temperature under Load |
A |
℃ |
＞140 |
|
|
B |
＞140 |
||||
|
14 |
Adhesive Strength |
N |
6324 |
GB/T 1303.6-2009 |
|
|
REMARK: 1. NO.2 the sample size is 50mm*50mm*50mm; 2. NO.8 the sample height is (9.05~9.56) mm; 3. NO.10 the sample thickness is (2.91~2.95)mm; 4. NO.11 the sample size is 100.00mm*5.08mm*24.10mm; |
|||||
Factory

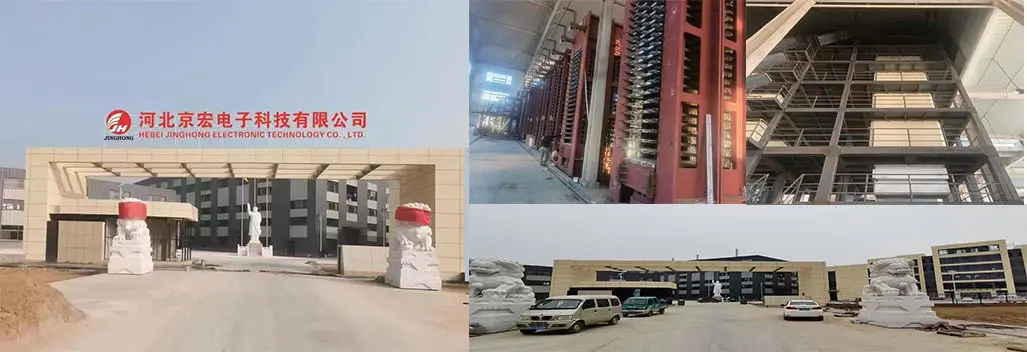

J&Q Insulation Material Co., Ltd is a foreign trade company controlled by Hebei JingHong Electronic Technology Co., Ltd., which is responsible for the export business of Hebei JingHong Electronic Technology Co., Ltd. The new factory of Hebei JingHong Electronics Co., Ltd. will be officially put into production in October 2022. Mainly produce FR4 sheet, 3240 epoxy sheet, Bakelite sheet, and 3026 phenolic cotton sheet. The total annual output of the new and old two factory reaches 43,000 tons, which will be the largest insulation board factory in China.
One of our greatest advantage is the orders which are directly from us has the priority to produce first. Also, we have our own logistics company, so it can provide safe and fast service to you. What we are trying to do is providing our customers one-stop service from production to delivery.
Our strength
1. The annual production capacity of the factory is 43,000 tons, which is one of the largest insulation board manufacturers in China
2. Fully automated production workshop, product quality is stable
3. We have more than 20 years of experience in producing and selling insulating sheet, Cooperate with a number of domestic and foreign trading companies for many years.
4. Professional foreign trade team can provide perfect services
5. Have our own logistics company, provide one-stop service
Certification
|
|
Packaging and Shipping
Regular Packing, Protect by Pallet
