Epoxy Glass Cloth Laminated Tube
Materials: Epoxy Resin
Nature Color: yellow
Wall thickness: At least 0.5mm
Custom Size: Inner diameter φ5mm~φ1500mm
Outer diameter φ6mm~φ2000mm
The longest tube length is 2m
Packaging: Regular packing
Productivity: 100 tons per year
Transportation: Ocean, Land, Air
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Production Description
Epoxy Glass Cloth Laminated Tube is a fiberglass cloth tube made of Wolan treated fiberglass cloth tape impregnated with epoxy resin, wound by wet method, and cured by far-infrared heating.
The heat resistance grade of the product is F grade, which has good air tightness, moisture resistance, electrical properties, and good mechanical processing and heat resistance.
Application
Epoxy Glass Cloth Laminated Tube is suitable for making insulating cylinders, insulating rods, etc. in high-voltage electrical equipment
Instructions
1) After the laminated pipe is processed, it is easy to absorb moisture. It is best to impregnate the insulating paint for moisture-proof treatment.
2) When processing insulating parts, alloy turning tools should be used.
3) The original package is stored in a dry, cool, smoke-free, ventilated room or under a shed. The storage period is 12 months from the date of delivery.
Technical Data
|
No |
Indicator name |
Unit |
Index value |
TEST METHOD |
|
1 |
Density |
g/cm3 |
≥1.6 |
GB/T 5132 |
|
2 |
Bending strength |
MPa |
≥180 |
JB/T 3172 |
|
3 |
Compressive strength |
MPa |
≥98 |
GB/T 5132 |
|
4 |
Shear strength |
MPa |
≥25 |
JB/T 8150 |
|
5 |
Dielectric loss factor (50Hz) |
- |
≤0.005 |
JB/T 3172 |
|
6 |
Parallel layer direction withstand voltage |
kV |
30 |
GB/T 5132 |
|
Remarks: Items 6 in the table are carried out in the environment of 90℃±2℃/5min in transformer oil. |
||||
Special Note
Our company strictly controls product quality in accordance with relevant product standards. Due to the diversity and variability of application conditions and many other factors, it does not rule out the need for users to conduct experiments on their own. Legally, certain properties of the product are not guaranteed to be fully applicable to a specific purpose, and the right to modify the information is reserved.

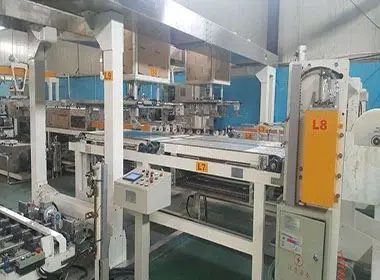

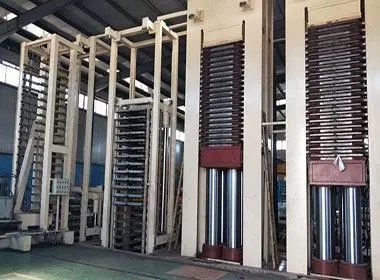

Picture of Factory
|
|
|
