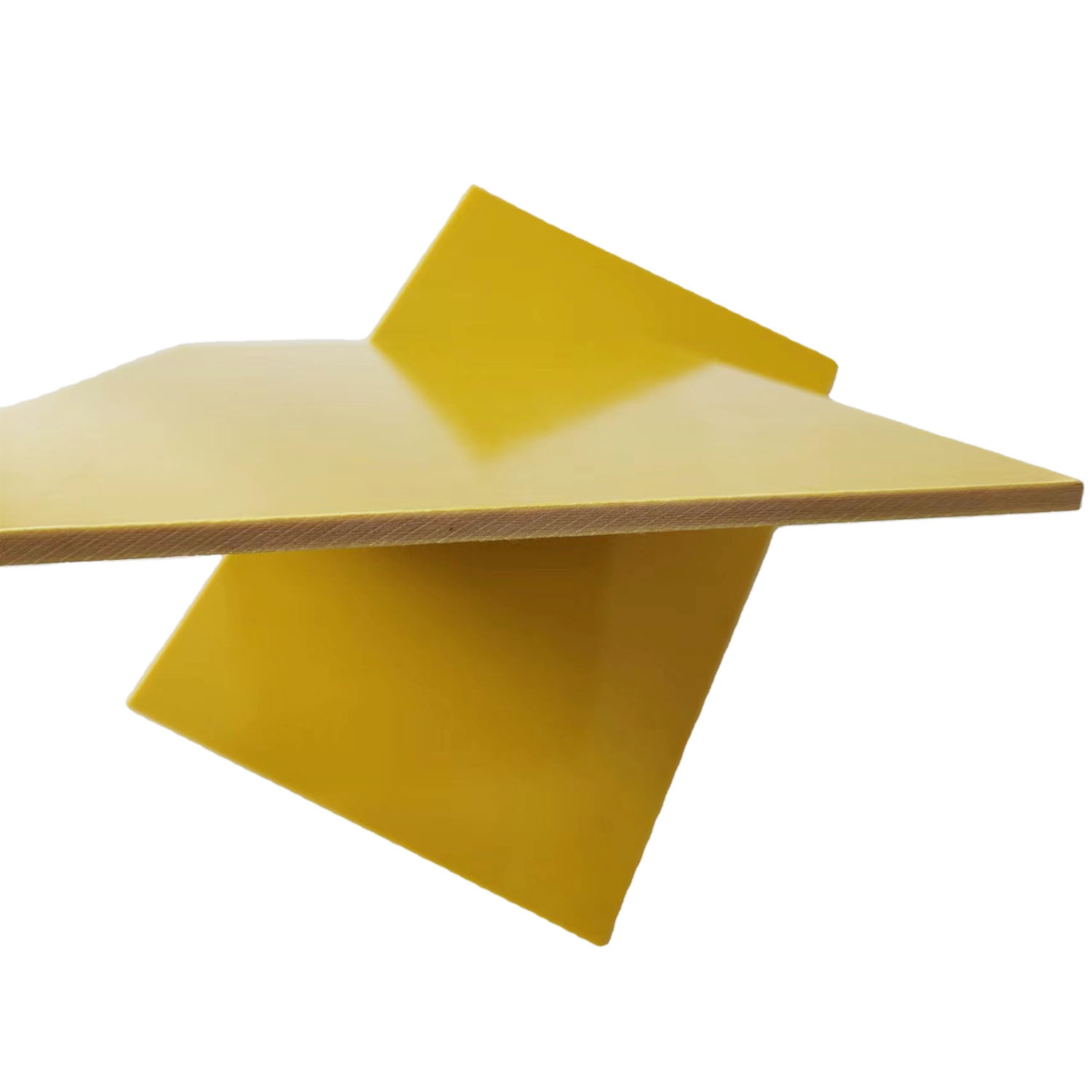

3240 Epoxy Sheet

Brand: Hongda
Materials: Epoxy Resin, Phenolic Resin
Nature Color: Yellow
Thickness: 0.3mm --- 100mm
Size: 1020mm*2020mm (Regular)
Packaging: Regular packing, Protect by Pallet
Productivity: 13000 Tons per year
Transportation: Ocean, Land, Air
Payment:T/T
MOQ:500KG

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

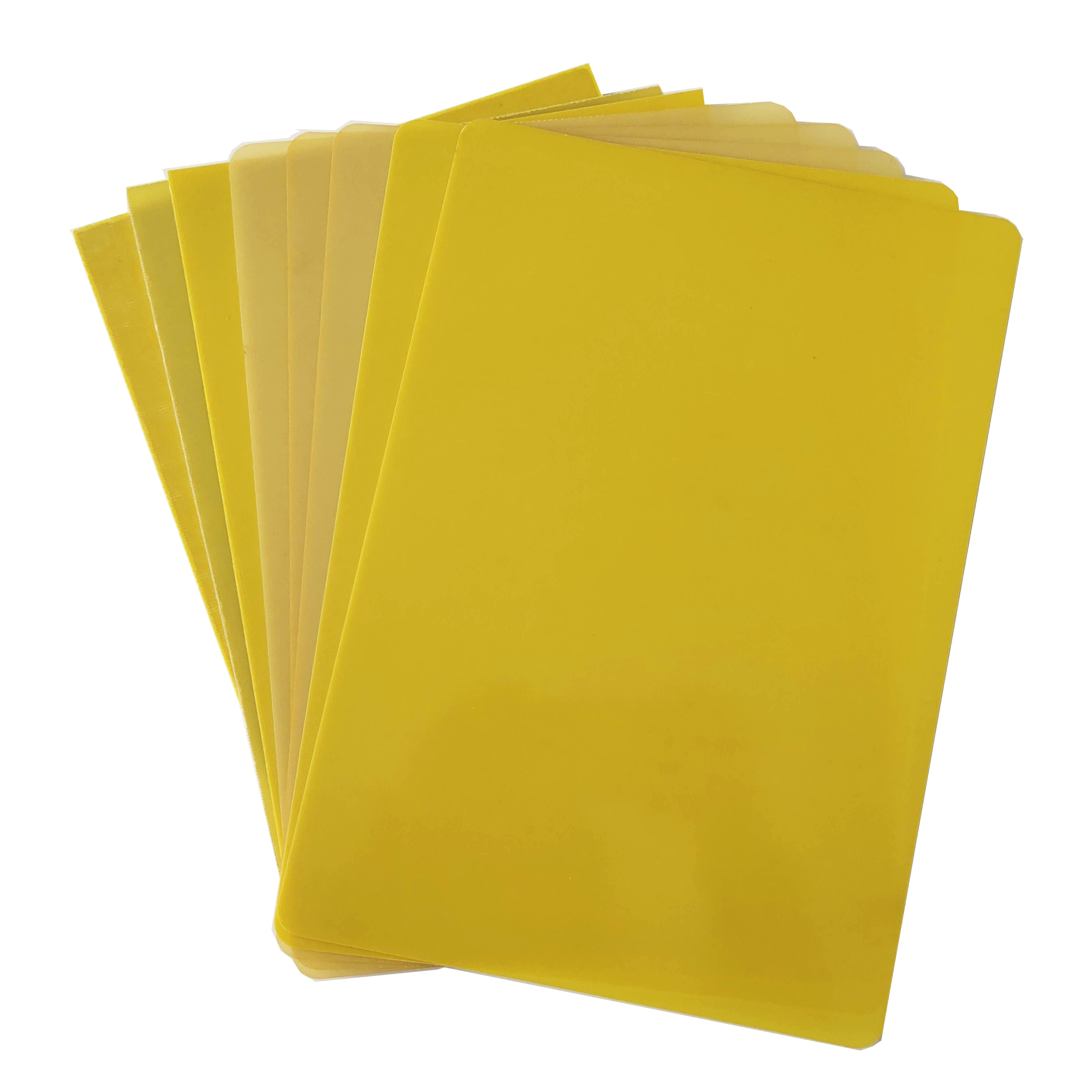

Product Introduction

3240 Epoxy Sheet Production Description


  3240 Epoxy Sheet is a combination of alkali-free glass fiber, epoxy resin and phenolic resin with the process of laminating, heat and pressure. It could be used for insulating structural parts in electrical and other industries. Also, Insulation Board 3240 is a good choice for Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Switch Baseplate.



Properties


  Insulating Material 3240 Epoxy Sheet has high mechanical and electrical strength, excellent rigidity, good dimensional stability, great dielectric property, low water absorption, stable electric insulation performance. All the amazing properties make the material to be one of the most popular materials in various industries.

  It can be machined to various shapes as insulation parts in which the mechanical and electrical properties is required.

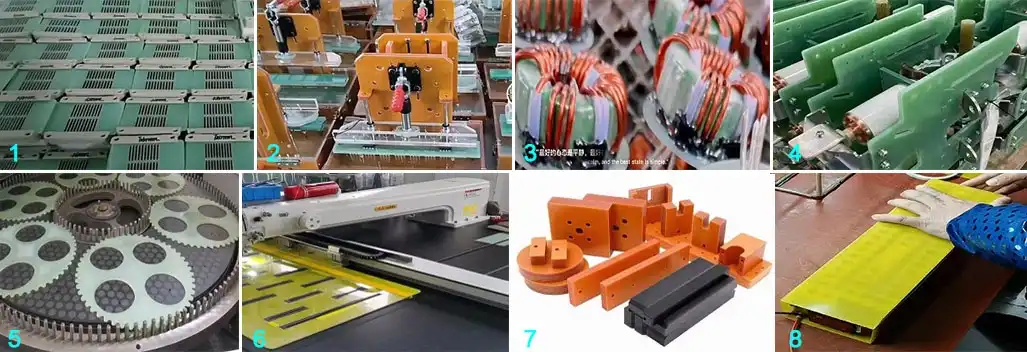

Test Jig

Fixture PCB Testing Jig

Insulation Plate

Switch insulation Plate

Polish Gear

Mould in Cloth and Shoes

Insulation Part of Bakelite Sheet

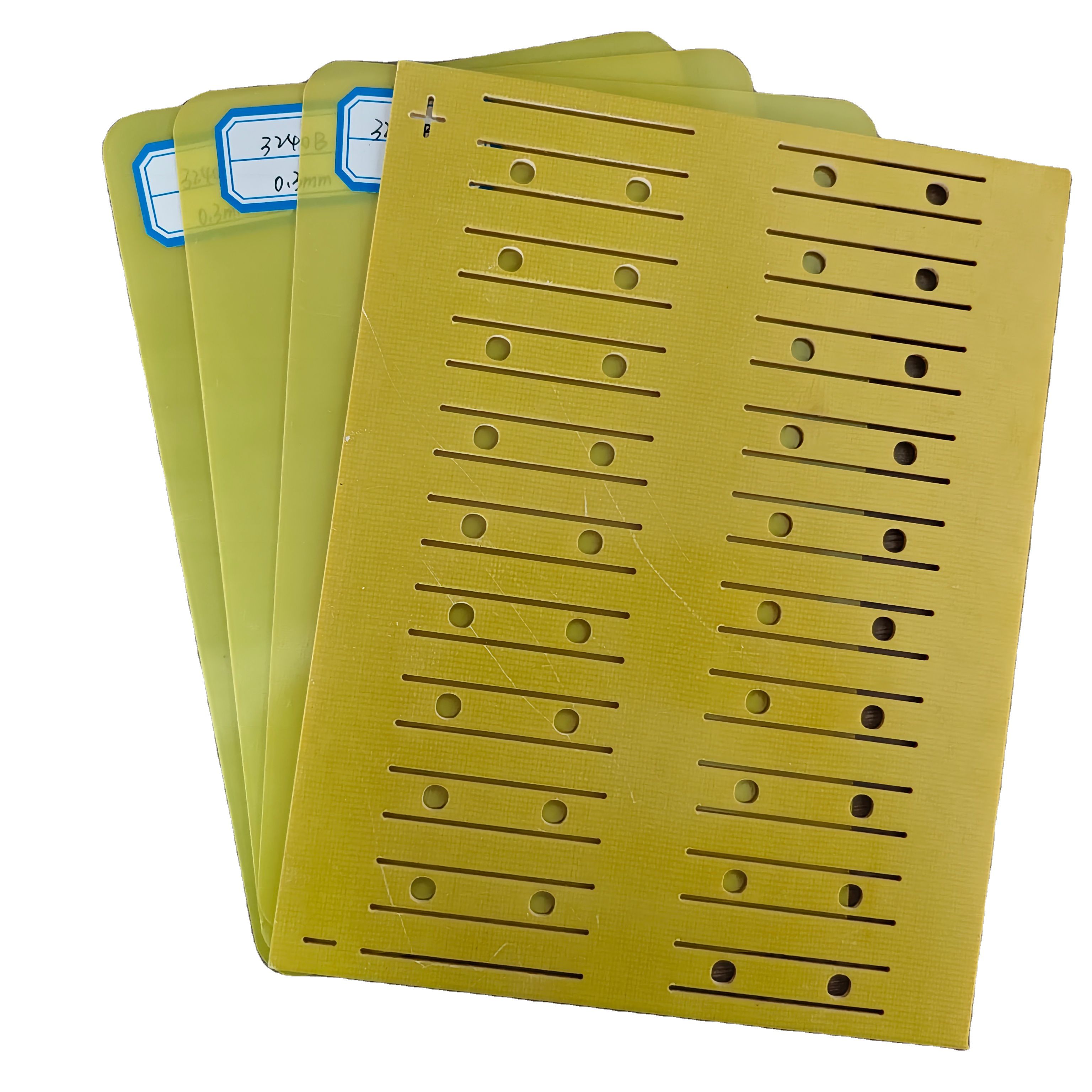

Lithium Battery Pack

3240 Epoxy Sheet



Technical Data for 3240 Grade A


NO

TEST ITEMS

UNIT

TEST RESULT

TEST METHOD

1

Bending Strength Perpendicular to Laminations (A)

MPa

484

GB/T 1303.4-2009

2

Bending Strength Perpendicular to Laminations (B)

MPa

338

3

Apparent Bending Elastic Modulus (A)

MPa

2.19*104

4

Apparent Bending Elastic Modulus (B)

MPa

1.99*104

5

Compressive Strength Perpendicular to Laminations compressive

MPa

401

6

Parallel layer shear strength

MPa

31.5

7

Tensile Strength (A)

MPa

368

8

Tensile Strength (B)

MPa

187

9

Parallel Layer Impact Strength

(Simply Supported Beam, Gap)

KJ/m²

59.4

10

Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system)

kV/mm

15.5

11

Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system)

KV

90.0

12

Relative Permittivity (50Hz)

-

4.90

13

Insulation Resistance after Soaking

Ω

4.1*1013

14

Density

g/cm3

1.96

15

Flammability

Grade

V-0

16

Water Absorption

mg

39.9

REMARK:

1. NO.5 the sample height is (10.32~10.39) mm;

2. NO.10 the sample thickness is (2.09~2.11) mm;

3. NO.11 the sample size is (100.01~100.07) mm*(25.20~25.31) mm*(5.06~5.20) mm thickness, the electrode spacing is (25.20~25.31) mm;

4. NO.15 the sample size is (18.87~12.99) mm*(4.23~4.28) mm;

5. NO.16 the sample size is (50.39~50.51)mm*(50.37~50.50)mm * (4.24~4.27) mm .



Technical Data for 3240 GradeB


NO

TEST ITEMS

UNIT

TEST RESULT

TEST METHOD

1

Density

g/cm3

2.07

GB/T 1303.2-2009

2

Water Absorption

mg

6.0

3

Bending Strength Perpendicular to Laminations

A

MPa

203

B

192

4

Modulus of Elasticity in Flexure

A

MPa

2.12*104

B

2.38*104

5

Parallel Layer Impact Strength

(Simply Supported Beam, Gap)

A

KJ/m²

47.4

B

35.8

6

Parallel Layer Shear Strength

A

MPa

49.8

B

52.7

7

Tensile Strength

A

MPa

147

B

121 o

8

Compressive Strength Perpendicular to Laminations compressive

MPa

438

9

Insulation Resistance after Soaking

Ω

2.0*109

10

Vertical Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost)

MV/m

8.6

11

Parallel Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost)

kV

28.0

12

Flammability

-

V-1

13

Deflection Temperature under Load

A

>140

B

>140

14

Adhesive Strength

N

6324

GB/T 1303.6-2009

REMARK:

1. NO.2 the sample size is 50mm*50mm*50mm;

2. NO.8 the sample height is (9.05~9.56) mm;

3. NO.10 the sample thickness is (2.91~2.95)mm;

4. NO.11 the sample size is 100.00mm*5.08mm*24.10mm;



Factory

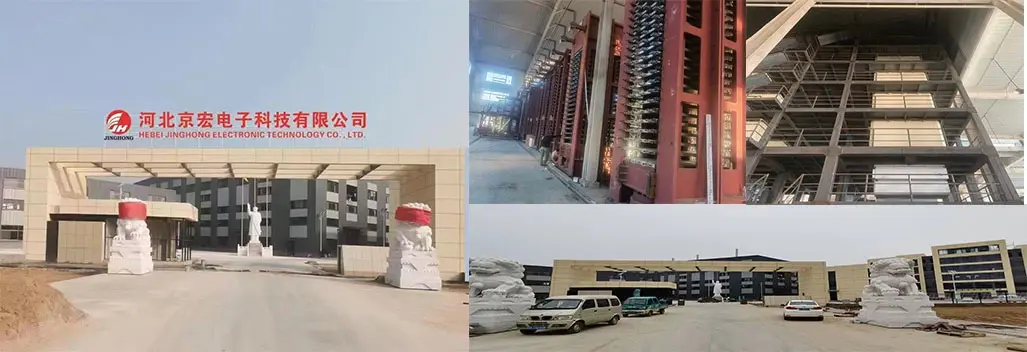

  J&Q New Composite Materials Company is a foreign trade company controlled by Hebei JingHong Electronic Technology Co., Ltd., which is responsible for the export business of Hebei JingHong Electronic Technology Co., Ltd. The new factory of Hebei JingHong Electronics Co., Ltd. will be officially put into production in October 2022. Mainly produce FR4 sheet, 3240 epoxy sheet, Bakelite sheet, and 3026 phenolic cotton sheet. The total annual output of the new and old two factory reaches 43,000 tons, which will be the largest insulation board factory in China.

3240 Epoxy Sheet

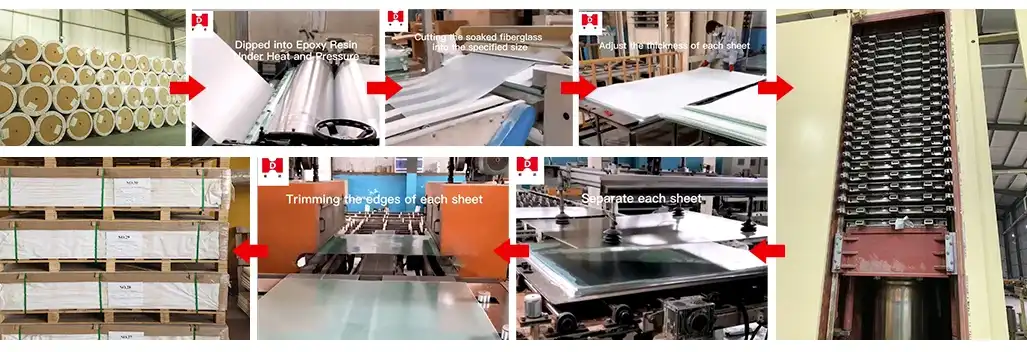

Production Process


3240 Epoxy Sheet

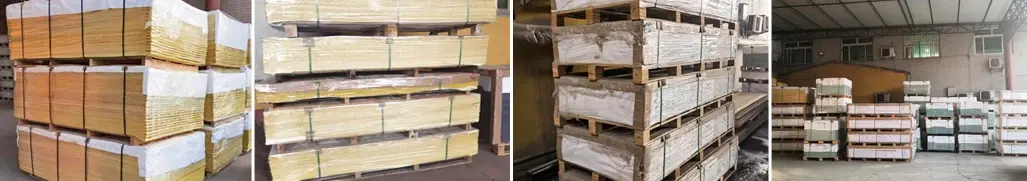

Packaging and Shipping


3240 Epoxy Sheet

Regular packing, Protect by Pallet
