POM Rod

Production Description

---

  POM rod is a kind of side chain free, high-density, high crystalline copolymer with excellent comprehensive properties.

  POM board is a hard and dense material with smooth surface and luster, black or white, which can be used for a long time in the temperature range of - 40 - 106 ° C. Its wear resistance and self lubrication are also superior to most engineering plastics, and it has good oil resistance and peroxide resistance. Very resistant to acid, alkali and ultraviolet radiation.

  POM is a crystalline plastic with obvious melting point. Once it reaches the melting point, the melt viscosity drops rapidly. When the temperature exceeds a certain limit or the melt is heated for a long time, it will cause decomposition.

  POM has good comprehensive properties. It is the hardest among thermoplastics. It is one of the varieties of plastic materials whose mechanical properties are closest to metals. Its tensile strength, bending strength, fatigue strength, wear resistance and electrical properties are very good. It can be used for a long time between - 40 ° C and 100 ° C.



Property

---

  Polyoxymethylene rod has high mechanical strength, high rigidity, high hardness, excellent elasticity, sliding and abrasion resistance, good creep resistance, even at low temperatures, high impact strength, excellent dimensional stability, excellent mechanical performance, physiological inertia, suitable for contact with food. Ordinary epoxy resin AB adhesive cannot be used for bonding.

  POM-C/H (black and white): they represent POM copolymer and POM homopolymer respectively. POM copolymer has low melting point, thermal stability, chemical corrosion resistance, flow characteristics, hydrolysis resistance, strong alkali resistance and thermal oxidation degradation, and its processability is better than homoformaldehyde. POM homopolymer has higher crystallinity, creep, lower thermal expansion, wear resistance, mechanical strength, rigidity and thermal deformation temperature than copolymer formaldehyde. (At present, POM-C copolymerization is widely used for POM semi-finished products on the market)

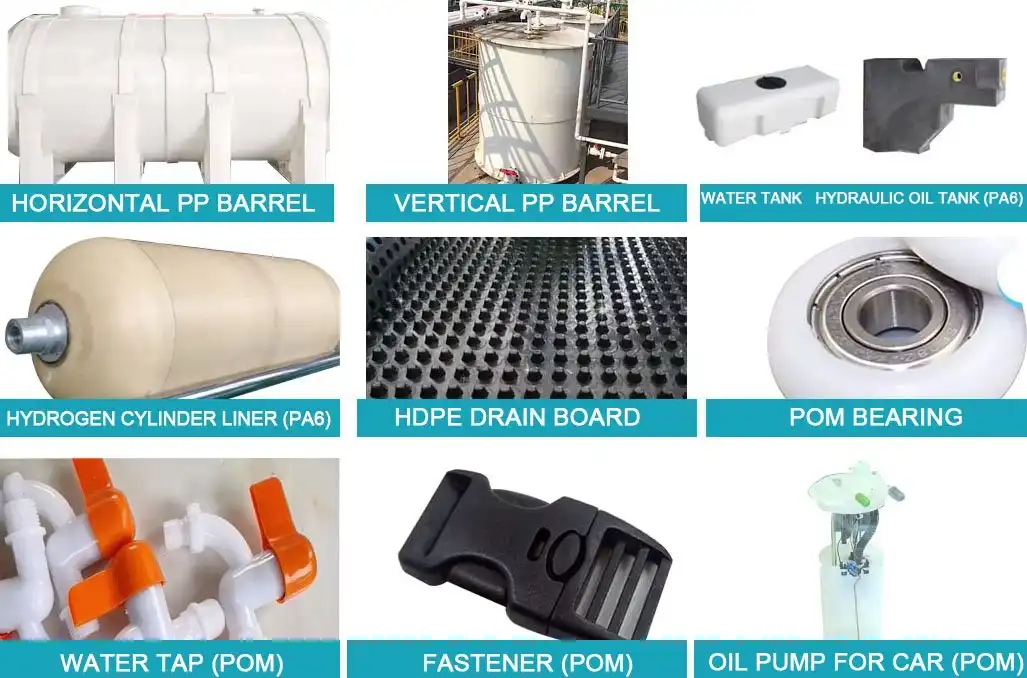

Application

---

  POM rod is widely used to manufacture various sliding rotating machinery, precision parts, gears, bearings, etc. The use industry covers automobile, electronics, clothing, medical, machinery, sports equipment and other fields.



Technical Data for POM Rod

---

No	Test Item	Unit	Test Result	Test Method
1	Density	g/cm³	1.413	GB/T 1033.1-2008
2	Tensile Strength	MPa	66.6	GB/T 1040.2/1B-2006
3	Elongation at Break	%	24	GB/T 9341-2008
4	Bending Strength	MPa	102	GB/T 9341-2008
5	Flexural Modulus of Elasticity	MPa	2820	GB/T 1043.1/1eA-2008
6	Charpy Notched Impact Strength	kJ/m²	7.8	GB/T 13520-1992
7	Ball Impact Strength	/	No Cracking	GB/T 1633-2000
8	Vicat Heat Resistance (1kg, 50 ℃/h)	℃	163	GB/T 22789.1-2008
9	Heating Size Change Rate (longitudinal)	%	0.08	GB/T 22789.1-2008
10	Heating Size Change Rate (transverse)	%	0.04	GB/T 22789.1-2008
11	Rockwell Hardness (R)	/	118	GB/T 3398.2-2008
12	Surface Resistance Coefficient	Ω	8.5×10 12	GB/T 31838.2-2019
13	Volume Resistance Coefficient	Ω·m	1.3×10 12	GB/T 31838.2-2019
14	Dielectric Constant (1MHz)	/	3.7	GB/T 1409-2006
15	Dielectric Loss (1MHz)	/	0.055	GB/T 1409-2006
16	Dielectric Strength	kV/mm	6.93	GB/T 1408.1-2016
17	Friction Coefficient	/	0.18	GB/T 3960-2016

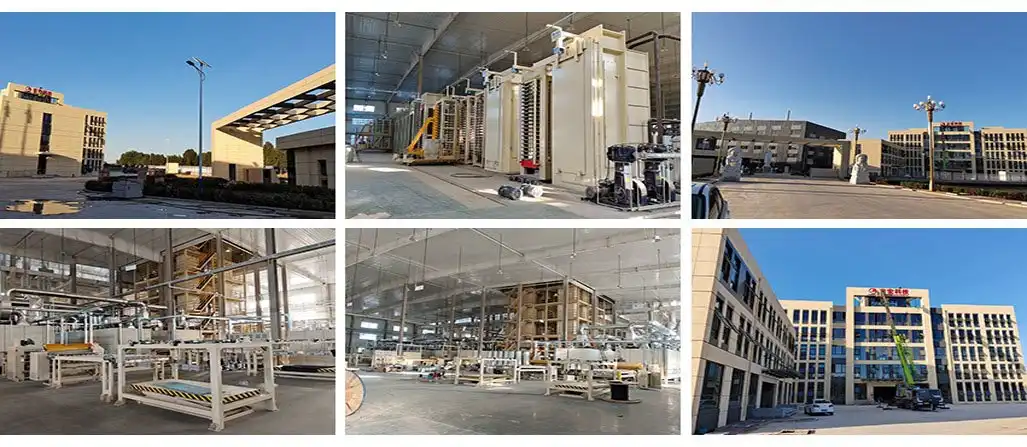

Factory

---

J&Q New Composite Material Group Co., Ltd is a national manufacturer of insulation materials and Epoxy Resin, Engineered Plastic. We have two factories. They are located in Heibei Province. One is Hongda Insulation Materials Factory was founded in 2000. Covering an area of 30000 square meters. Advanced process equipment, complete testing equipment. All of our equipment is fully automated production workshop. Mainly production is 3420 epoxy sheet grade B, Annual output of more than 13000 tons. it is the largest Grade B sheet manufacturer in China. And get honest and trustworthy unit and Consumer Satisfaction Trust Units and other honors issued by the government. we passed the ISO 9001quality management system certification.

The other is Hebei JingHong Electronic Technology Co., Ltd Covering an area of 66667 square meters. A total investment of 200 million CNY, annual output is 30,000 tons. JingHong is a new material company integrating scientific research, development, production, sales, and service. The main products are FR4 sheet,3240 epoxy sheet grade A, phenolic cotton sheet, Bakelite sheet, copper clad laminate, Epoxy Resin, and Engineered Plastic, which have strong insulation products development and production capacity. JingHong has the most advanced glue machine, thermal compressor, and a vertical upper glue machine specially equipped for FR4 sheets can ensure the best and most stable product quality.

We uphold quality first, integrity. Meanwhile, we have more than 20 years of experience in producing and selling insulating sheets and more than 10 years of export experience. Products are exported to Russia, Southeast Asia, the United States, Europe, and other countries, and the annual export volume accounts for 40% of the total export volume in China. What’s more, we have our own logistics company, so we can provide one-stop service. Look forward to long-team cooperation.

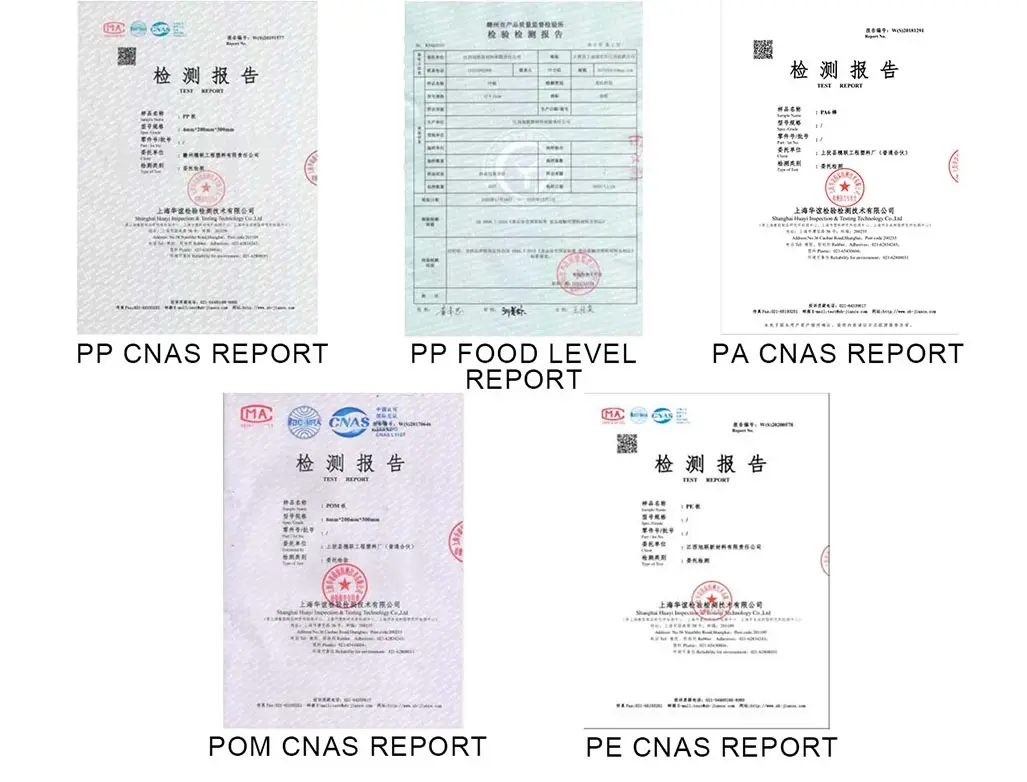

Certification

---



Exhibition

---

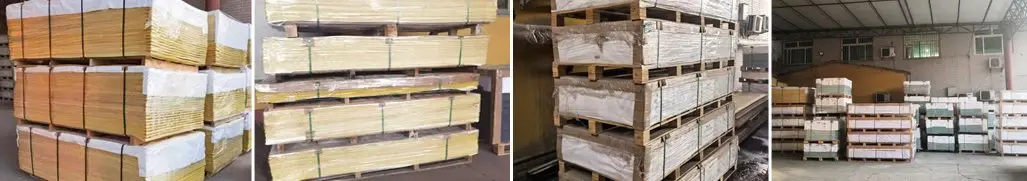

Packaging and Shipping

---



FAQ

---

Q: Are you a trading company or manufacturer?

A: We are a manufacturer.



Q: Can you give me a discount price?

A: It is depending on the quantity.



Q: Which certification do you have?

A: Our factory has passed the certificate of ISO 9001 quality system certification;

The products have passed ROHS test.



Q: Can I get a free sample?

A: Free samples are available.



Q: How long is the delivery time?

A: Generally it is 10-15 days if the goods are in stock, or it is 5-10 days.



Q: What's the payment?

A:Payment<=1000USD, 100% in advance

Payment>=1000USD 30% TT advance, 70% TT before shipping.
