PA Sheet

Production Description

---

PA sheet, Nylon 6 (white) This material has the most superior comprehensive properties, including high mechanical strength, stiffness, hardness, toughness, good aging resistance, good machining performance, mechanical shock absorption and wear resistance. These characteristics, together with good electrical insulation capacity, dimensional stability and chemical resistance, make nylon 6 a "universal" material for the manufacture of mechanical structural parts and maintainable parts.

Widely used in chemical machinery, anti-corrosion equipment gear and parts of bad material. Wear resistant parts, transmission structure parts, household appliances parts, automobile manufacturing parts, screw rod textile machinery parts, chemical machinery parts, chemical equipment, etc.

Property

---

1. Nylon 6 sheet has excellent heat resistance and weather resistance.

2. It has excellent self lubrication and good friction resistance. Nylon has good self lubrication and low friction coefficient.

3. It has excellent electrical insulation performance. With high volume resistance and high voltage, nylon is an excellent electrical and electrical insulation material.

4. It has water absorption, and nylon has large water absorption, which is easy to lead to changes in product size and performance. However, the end of the main chain of polyamide macromolecule contains terminal amino and carboxyl groups, which has certain reactivity under certain conditions. Therefore, chemical and physical modification can be carried out by means of block, grafting, blending, reinforcement and filling to overcome the large water absorption and performance changes.

5. It has excellent mechanical properties, high mechanical strength and good toughness. As a synthetic fiber, the most outstanding advantage of nylon is that its abrasion resistance is higher than that of all other fibers, 10 times higher than that of cotton and 20 times higher than that of wool. The abrasion resistance of nylon can be greatly improved by adding some polyamide fibers to the blended fabric; When stretching to 3-6%, the elastic recovery rate can reach 100%; It can withstand thousands of times of bending without breaking.

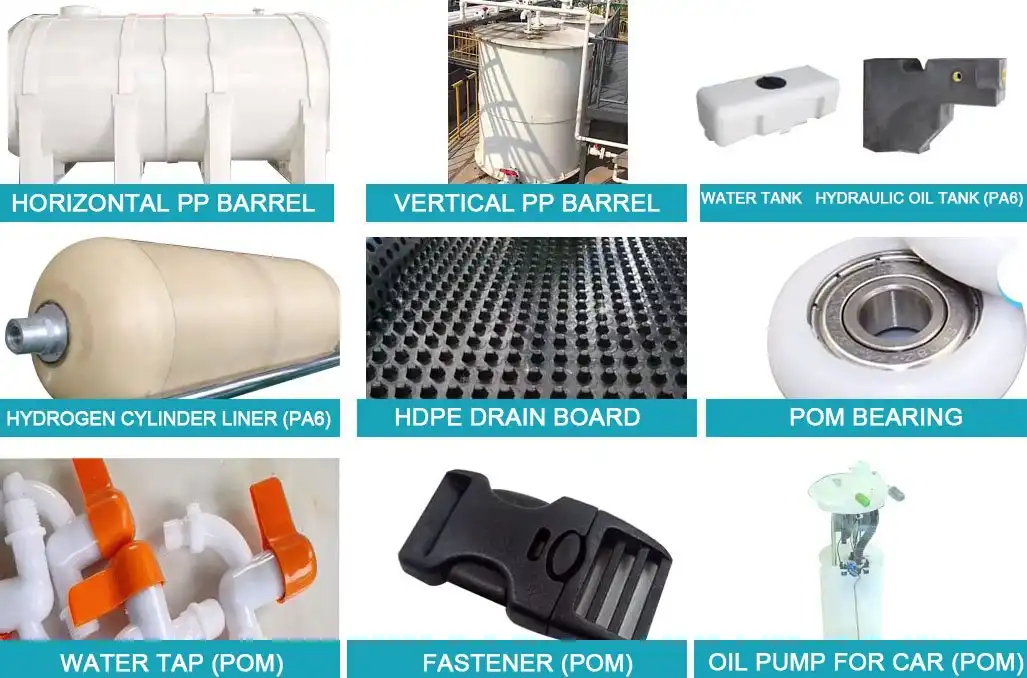

Application

---

Because polyamide 6 sheet not only has the characteristics of non-toxic and light weight, but also has excellent mechanical strength, good wear resistance and good corrosion resistance. So nylon was used to make engineering plastics to replace steel, iron, copper and other materials in the early 1950s. Therefore, nylon engineering plastics are often used to make wear-resistant parts, transmission structure parts, household electrical appliances parts, automobile manufacturing parts, screw rod prevention machinery parts, chemical machinery parts, and chemical equipment. Such as turbine, gear, bearing, impeller, crank, instrument panel, drive shaft, valve, blade, screw rod, high-pressure washer, screw, nut, seal ring, shuttle, shaft sleeve connector, etc.



Technical Data for PA Sheet

---

No	Test Item	Unit	Test Result	Test Method
1	Density	g/cm³	1.12	ASTM D792-2013
2	Viscosity Number	cm³/g	188	ISO 307:2007 /Amd.1:2013
3	Water Content	%	0.7	GB/T 6284-2006
4	Tensile Strength	MPa	73.8	ASTM D638-2014
5	Elongation at Break	%	241	ASTM D638-2014
6	Bending Strength	MPa	56.6	ASTM D790-AI-17
7	Rockwell Hardness (R)	/	116.8	ASTM D785-2008(2015)
8	Notch Impact Strength of Cantilever Beam	J/m	47	ASTM D256-2010el
9	Thermal Deformation Temperature (1.82MPa)	℃	52	ASTM D648-2016
10	Melt Mass Flow Rate (260℃, 2.16kg)	g/10min	12.7	ASTM D1238-2013
11	Flame Retardancy (Vertical method)	/	V-2	UL94-2013
12	Dielectric Constant (1MHz)	/	3.4	ASTM D150-2011
13	Dielectric Loss (1MHz)	/	0.023	ASTM D150-2011

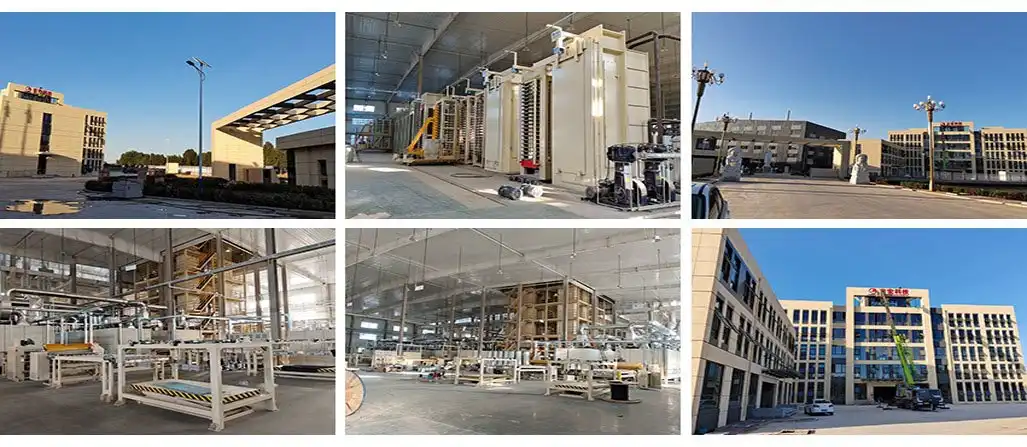

Factory

---

J&Q New Composite Material Group Co., Ltd is a national manufacturer of insulation materials and Epoxy Resin, Engineered Plastic. We have two factories. They are located in Heibei Province. One is Hongda Insulation Materials Factory was founded in 2000. Covering an area of 30000 square meters. Advanced process equipment, complete testing equipment. All of our equipment is fully automated production workshop. Mainly production is 3420 epoxy sheet grade B, Annual output of more than 13000 tons. it is the largest Grade B sheet manufacturer in China. And get honest and trustworthy unit and Consumer Satisfaction Trust Units and other honors issued by the government. we passed the ISO 9001quality management system certification.

The other is Hebei JingHong Electronic Technology Co., Ltd Covering an area of 66667 square meters. A total investment of 200 million CNY, annual output is 30,000 tons. JingHong is a new material company integrating scientific research, development, production, sales, and service. The main products are FR4 sheet,3240 epoxy sheet grade A, phenolic cotton sheet, Bakelite sheet, copper clad laminate, Epoxy Resin, and Engineered Plastic, which have strong insulation products development and production capacity. JingHong has the most advanced glue machine, thermal compressor, and a vertical upper glue machine specially equipped for FR4 sheets can ensure the best and most stable product quality.

We uphold quality first, integrity. Meanwhile, we have more than 20 years of experience in producing and selling insulating sheets and more than 10 years of export experience. Products are exported to Russia, Southeast Asia, the United States, Europe, and other countries, and the annual export volume accounts for 40% of the total export volume in China. What’s more, we have our own logistics company, so we can provide one-stop service. Look forward to long-team cooperation.

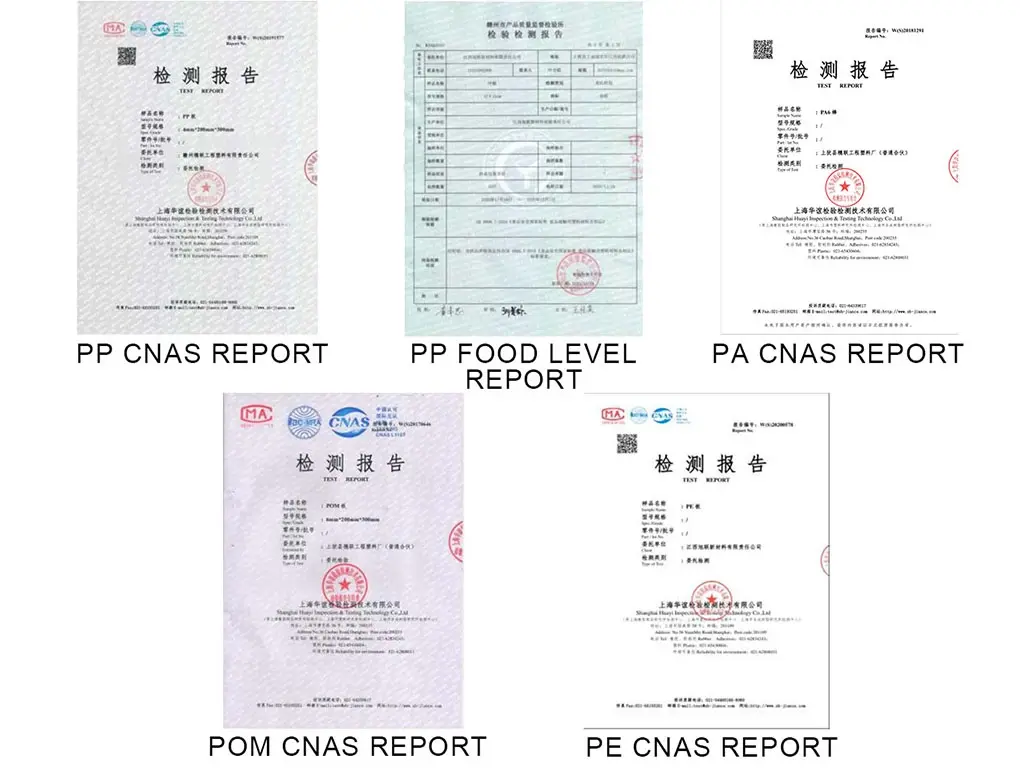

Certification

---



Exhibition

---

Packaging and Shipping

---

FAQ

---

Q: Are you a trading company or manufacturer?

A: We are a manufacturer.



Q: Can you give me a discount price?

A: It is depending on the quantity.



Q: Which certification do you have?

A: Our factory has passed the certificate of ISO 9001 quality system certification;

The products have passed ROHS test.



Q: Can I get a free sample?

A: Free samples are available.



Q: How long is the delivery time?

A: Generally it is 10-15 days if the goods are in stock, or it is 5-10 days.



Q: What's the payment?

A:Payment<=1000USD, 100% in advance

Payment>=1000USD 30% TT advance, 70% TT before shipping.
