Phenolic Cotton Cloth Laminated Tube



Production Description

Phenolic Cotton Cloth Laminated Tube is a 3126 laminated product made of cotton cloth impregnated with phenolic resin and baked by hot rolling. It has high radial tensile strength.



Application

Phenolic Cotton Cloth Laminated Tube can be used as a cage for high-speed bearings.



Instructions

1) After the laminated pipe is processed, it is easy to absorb moisture. It is best to dip-coated insulating paint for moisture-proof treatment.

2) Store in the original package in a dry, cool, ventilated room or under a shed that is strictly forbidden to smoke or fire. The storage period is twelve months from the date of leaving the factory.



Technical Data

No	Indicator name	Unit	Index value	TEST METHOD
1	Density	g/cm3	≥1.2	GB/T 5132
2	Radial stretch length	MPa	≥50	Q/JBQP8

9371 Phenolic Cloth Laminated Tube

9371 Phenolic cloth laminated tube is also known as the cloth clip tube, which is made of thin white cloth impregnated with phenolic resin, baked, dried, and processed by rolling paper hot mold.

Application

The product has a heat-resistance grade E, with high mechanical strength, and is suitable for high-speed sealing gaskets for diesel oil pumps and water pumps.



Instructions

1) The reference temperature index of this product is 120

2) After the laminated pipe is processed, it is easy to absorb moisture. It is best to impregnate the insulating paint for moisture-proof treatment.

3) The original package is stored in a dry, cool, smoke-free, ventilated room or under a shed. The storage period is 12 months from the date of delivery.



Technical Data

Table 1 unit(mm)

Nominal outer diameter	Nominal inner diameter	Allowable outer diameter tolerance	Allowable inner diameter tolerance
30	14	＋2.0 -1.0	±0.5	30
35	14	＋2.0 -1.0	±0.5	35
40	18	＋2.0 -1.0	±0.5	40
55	18	＋2.0 -1.0	±0.5	55

Table 2

No	Indicator name	Unit	Index value	TEST METHOD
1	Curvature	%	≤0.5	GB/T 5132
2	Density	g/cm3	1.25~1.40
3	Water absorption	%	≤1.5
4	Bending strength	MPa	≥250
5	Oil resistance（105℃/4h）	-
6	Boiling water resistance （105℃/6h）	-
7	Thermal stability （105℃/24h）	-	No bulging and cracks, resin can not fall off, no delamination, expansion, bulging, cracks
8	Bending strength	MPa	≥80
9	Compressive strength	MPa	≥80
10	Tensile Strength	MPa	≥35
Note: The surface of the product is flat, free of bubbles, impurities, wrinkles, no cracks on the end of the tube, and the width of the suture shall not exceed 3mm.



9372 Phenolic cloth laminated tube

This product, also known as the cloth clip tube, is made of white muslin cloth impregnated with phenolic resin, then baked, rolled, and molded.



Application

The product has a heat-resistant grade of E, with high mechanical properties, and is suitable for the manufacture of aircraft parts.



Instructions

1) The reference temperature index of this product is 120

2) After the laminated pipe is processed, it is easy to absorb moisture. It is best to impregnate the insulating paint for moisture-proof treatment.

3) The original package is stored in a dry, cool, smoke-free, ventilated room or under a shed. The storage period is 12 months from the date of delivery.

Technical Data

Table 1 unit(mm)

Nominal outer diameter	Nominal inner diameter	Allowable outer diameter tolerance	Allowable inner diameter tolerance
135	90	＋2.5	±2.3
115	60	＋2.5	±2.0
85	50	＋2.3	±2.0

Table 2

No	Indicator name		Unit	Index value	TEST METHOD
1	Density		g/cm3	≥1.3	GB/T 5132
2	Water absorption		%	Record
3	Bending strength		MPa	≥220
4	Impact strength		KJ/m2	≥1.5
5	Compressive strength before oil immersion	Parallel to the cloth layer	-	≥120
		Perpendicular to the cloth layer		≥220
6	Compressive strength after immersion in oil	Parallel to the cloth layer	-	≥120
		Perpendicular to the cloth layer		≥200



Special Note

The company strictly controls product quality in accordance with relevant product standards. Due to the diversity and variability of application conditions and many other factors, it does not rule out the need for users to conduct experiments on their own. Legally, certain properties of the product are not guaranteed to be fully applicable to a specific purpose, and the right to modify the information is reserved.

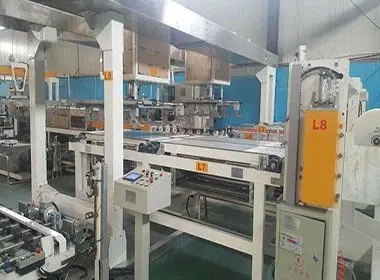

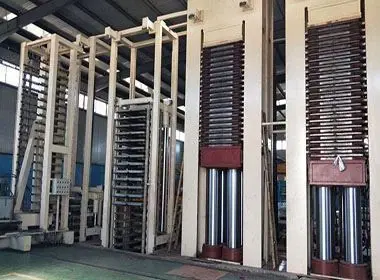

Picture of Factory
