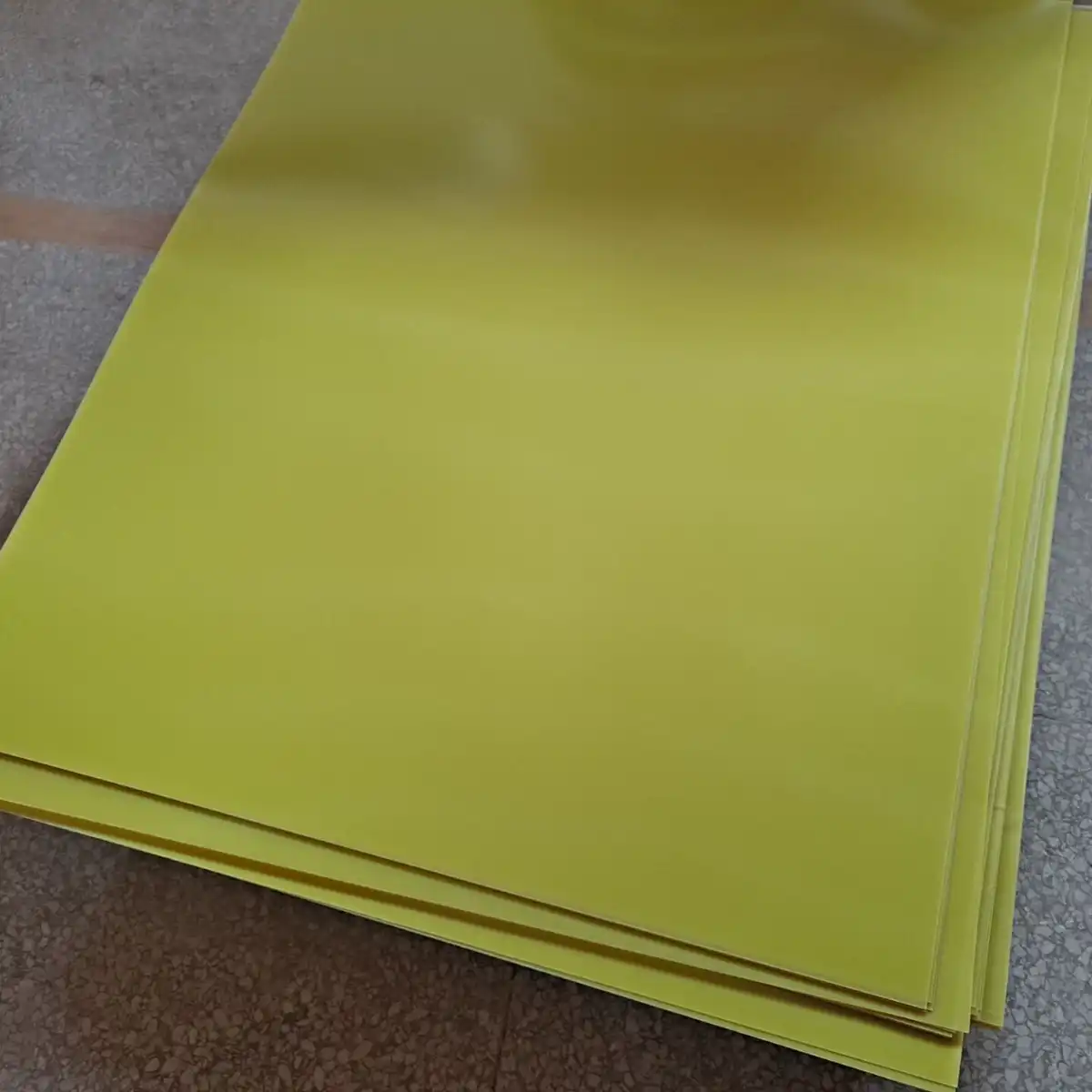

What Are the Thermal Conductivity Properties of 3240 Epoxy Sheets?

Introduction

Due to their excellent mechanical and electrical properties, 3240 epoxy sheets are utilized in numerous industrial applications. The thermal conductivity properties of these materials are an essential factor to take into account when choosing them for particular applications. Warm conductivity decides how well the material can direct intensity, which is fundamental for applications including warm administration. In this blog, we will investigate the warm conductivity properties of 3240 epoxy sheet, looking at their sythesis, execution under various circumstances, and commonsense applications.

What Factors Affect the Thermal Conductivity of 3240 Epoxy Sheets?

1.Material Composition

The composition of the material has an effect on the thermal conductivity of 3240 epoxy sheets. Epoxy resin and woven glass fabric are used to create these sheets, each contributing to the sheets' overall thermal properties.

• Resin of Epoxy: Epoxy tar is a thermosetting polymer known for its magnificent mechanical and electrical protection properties. However, compared to metals and other conductive materials, its inherent thermal conductivity is relatively low. The thermal conductivity of the epoxy resin can be affected by its particular formulation, as well as by the presence of any fillers or additives.
• Woven Glass Texture: The composite's thermal properties are enhanced and structural reinforcement is provided by the woven glass fabric. Glass fibers have a low thermal conductivity, but how they are arranged in the composite can affect the overall characteristics of heat transfer.

2. Fillers and Additives

By incorporating a variety of fillers and additives into the epoxy resin, manufacturers can alter the thermal conductivity of 3240 epoxy sheet. Normal fillers used to improve warm conductivity include:

• Particulate Metals: The thermal conductivity of the composite can be significantly improved by adding metallic particles like copper or aluminum. The overall thermal performance is enhanced by the conductive pathways these particles provide for heat transfer.
• Artistic Fillers: Thermal conductivity can also be improved by using ceramic materials like boron nitride or aluminum oxide. These fillers maintain their electrical insulation properties while also maintaining their high thermal conductivity.
• Nanotubes of carbon and graphite: Due to their high intrinsic thermal conductivity, graphite and carbon nanotubes are effective at increasing thermal conductivity. Heat transfer is made easier by the networks created by these materials within the epoxy matrix.

3.Manufacturing Interaction

The assembling system of 3240 epoxy sheets can likewise influence their warm conductivity. The material's final properties can be affected by things like curing temperature, pressure, and how fillers and additives are added. The optimal thermal performance and uniform distribution of fillers are guaranteed by controlling these parameters appropriately.

4.Thickness and Direction

The thickness and direction of the 3240 epoxy sheets can influence their warm conductivity. Due to their shorter heat transfer pathways, thinner sheets typically have a higher thermal conductivity. Also, the direction of the woven glass texture inside the composite can influence heat move, with specific directions giving more effective warm pathways.

The warm conductivity of 3240 epoxy sheets is impacted by different elements, including material sythesis, fillers and added substances, fabricating interaction, and sheet thickness and direction. Choosing the right 3240 epoxy sheets for specific applications that require effective thermal management is made easier when these factors are understood.

How Do 3240 Epoxy Sheets Perform in Thermal Management Applications?

1.Thermal Conductivity Values

The warm conductivity of 3240 epoxy sheets commonly runs between 0.2 to 0.4 W/m·K, contingent upon the particular detailing and the presence of any fillers or added substances. Even though this value is lower than that of metals, it is sufficient for many applications that require moderate heat transfer or thermal insulation.

2.Heat Dispersal

In applications where heat dispersal is basic, it give dependable execution because of their capacity to oversee moderate warm loads. For instance:

• Insulation for electricity: It help dissipate heat generated by electrical components in electrical insulation applications, preventing overheating and ensuring reliable operation. The sheets' low thermal conductivity helps to preserve thermal stability and safeguard delicate electronic components.
• Heat Sinks and Spreaders: In electronic devices, it can be utilized as heat spreaders. In spite of the fact that they don't lead heat as productively as metals, their warm properties are adequate for applications with moderate intensity dissemination prerequisites. They may perform better in these situations if fillers that conduct heat are used.

3.Thermal Strength

It show superb warm strength, keeping up with their mechanical and electrical properties over many temperatures. This makes them reasonable for applications where openness to high temperatures is normal. For example:

• Car Parts: In car applications, It is utilized in parts, for example, motor covers and electronic lodgings. They can withstand the engine's and other heat sources' high temperatures because of their thermal stability.
• The Aerospace Sector: It is utilized in a variety of electronic and structural components in the aerospace sector. Aerospace systems' safety and dependability depend on their capacity to perform under extreme temperature conditions.

4.Thermal Protection

Notwithstanding their utilization in warm administration applications, it additionally give powerful warm protection. Their low warm conductivity makes them appropriate for applications requiring warm obstructions. Some examples are:

• Building Materials: In the development business, epoxy sheet is utilized in building boards and protection materials. Their warm protection properties help in keeping up with indoor temperature dependability and further developing energy productivity.
• Industrial Tools: In order to shield machinery and equipment from heat damage and ensure safe operation, It is utilized in industrial settings.

5. Case Studies and Practical Applications

(1) Electronic Devices

Effective thermal management is necessary for electronic devices to avoid overheating and maintain optimal performance. 3240 epoxy sheets are utilized in applications, for example：

• Printed Circuit Boards (PCBs): PCBs frequently require materials that can disperse heat created by electronic parts. 3240 epoxy sheets, with upgraded warm conductivity, are utilized as substrates for PCBs, guaranteeing dependable intensity scattering and safeguarding touchy parts.
• Light from LEDs: It is used as heat spreaders in LED lighting applications to control the LEDs' heat. The LEDs' performance and lifespan are preserved as a result of this.

（2）Automotive Industry

In the auto business, viable warm administration is basic for the exhibition and life span of different parts. Epoxy sheet in the 3240 range are used for:

• Battery Fenced in areas: During operation, the batteries in electric cars produce a lot of heat. In order to prevent overheating and provide thermal insulation, battery enclosures use it.
• Parts of the Engine: High temperatures are encountered by engine housings and covers. These parts can withstand heat and continue to function because of the thermal stability and insulation properties of 3240 epoxy sheets.

What Are the Advantages and Limitations of Using 3240 Epoxy Sheets for Thermal Management?

1.Advantages

• Adaptability: One of the fundamental benefits of it is their adaptability. By incorporating various fillers and additives, they can be modified to meet specific thermal management requirements. As a result, they are suitable for a wide range of uses, including thermal barriers, heat spreaders, and electrical insulation.
• Temperature Stability: It have excellent thermal stability, preserving their properties across a wide temperature range. As a result, they are ideal for use in environments where high temperatures are frequently encountered, such as the aerospace and automotive industries.
• Insulation for electricity: It in the 3240 series are excellent electrical insulation in addition to having excellent thermal properties. This mix of properties makes them reasonable for applications where both warm administration and electrical protection are required, like in electronic gadgets and electrical hardware.
• Customizability: The thermal conductivity of 3240 epoxy sheets can be altered by incorporating specific fillers and additives. This considers the advancement of warm properties to meet the particular requirements of various applications. For instance, adding metallic or clay fillers can upgrade the warm conductivity for applications requiring productive intensity dissemination.

2.Limitations

• Lower Warm Conductivity Contrasted with Metals: While it offer adequate warm conductivity for some applications, their warm conductivity is lower contrasted with metals. This prevents them from being used in situations where heat transfer must be extremely effective. Metals or other materials with a high conductivity might be better for these kinds of applications.
• Cost: The price of 3240 epoxy sheets can rise when high-performance fillers and additives are added to improve thermal conductivity. This may be a constraint for applications with a tight budget. But the advantages of better thermal management and overall performance frequently make the investment worthwhile.
• Handling and Assembling: The handling and assembling of it with improved warm properties require exact command over different boundaries. It can be difficult to ensure a uniform distribution of fillers and achieve optimal thermal performance. High level assembling procedures and quality control measures are crucial for produce steady and excellent materials.

The versatility, thermal stability, electrical insulation, and customizability of 3240 epoxy sheet make them ideal for thermal management. However, when selecting materials for specific applications, their lower thermal conductivity in comparison to metals and the potential cost implications should be taken into account. Understanding the benefits and limits of 3240 epoxy sheets helps in going with informed choices for effective warm administration.

References

1. DuPont. "Epoxy Resins Technical Data." DuPont. https://www.dupont.com/epoxy-resins.html
2. 3M. "Thermal Conductive Materials." 3M. https://www.3m.com/thermal-conductive-materials
3. Siemens. "Insulating Materials in Electrical Equipment." Siemens. https://www.siemens.com/insulating-materials
4. BASF. "Thermal Conductivity of Epoxy Resins." BASF. https://www.basf.com/thermal-conductivity-epoxy
5. Chevron Phillips. "Materials for Thermal Management." Chevron Phillips.
