What are the properties of Flame Resistance FR4 Fiber Glass Laminate Sheets?

Introduction

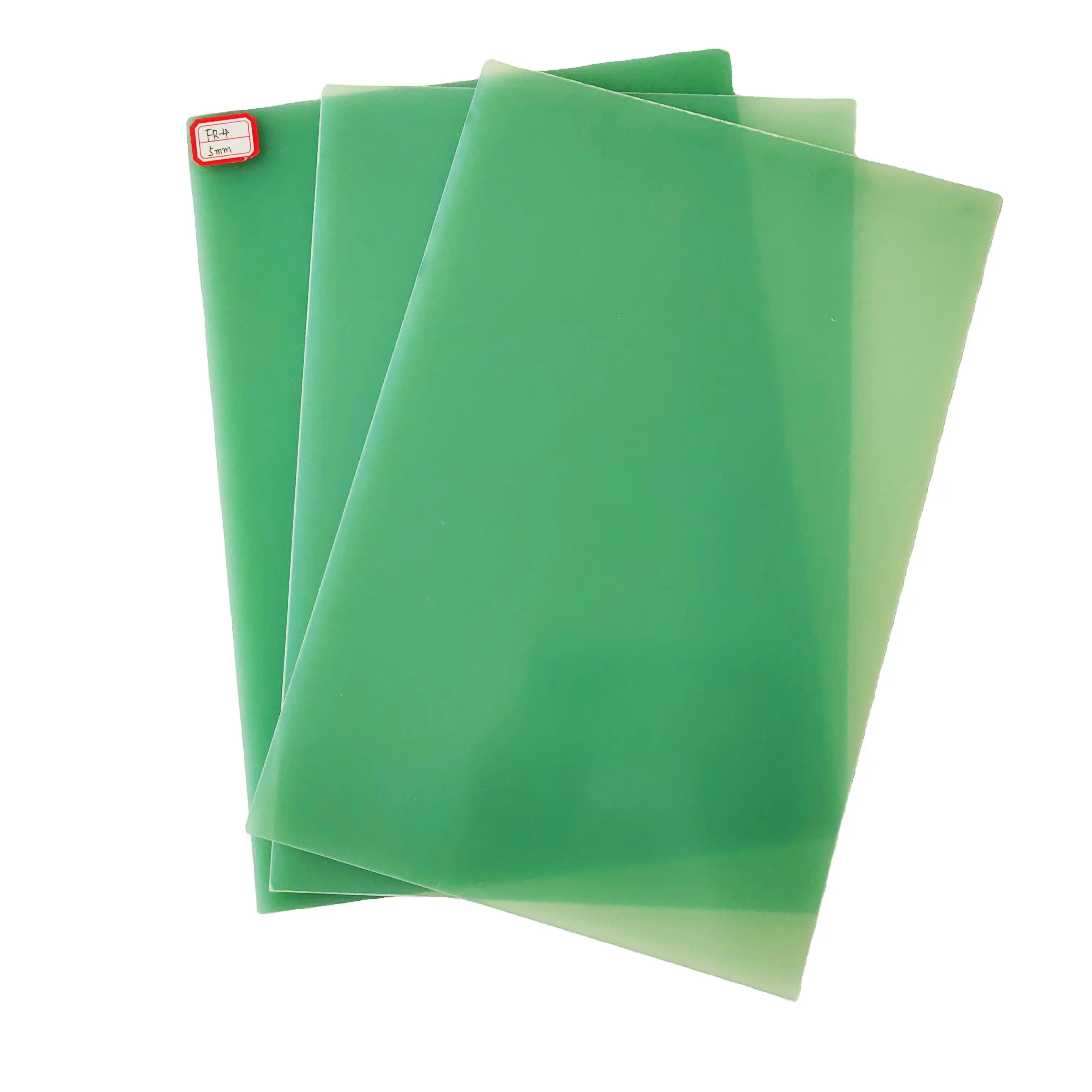

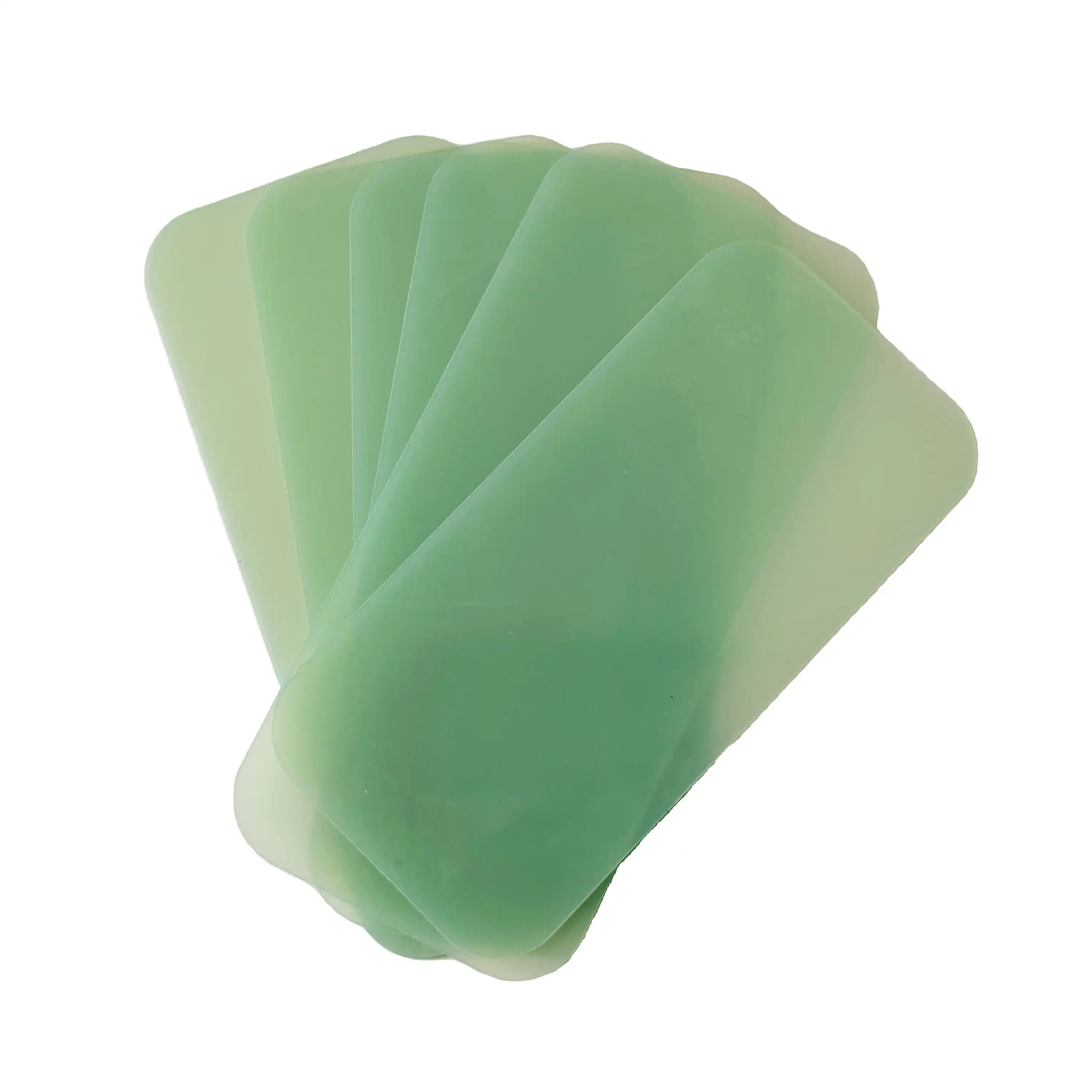

  Flame Resistance FR4 fiberglass laminate sheets represent a critical component in various industries, where safety, reliability, and durability are paramount. These sheets, composed of fiberglass reinforcement embedded in an epoxy resin matrix, offer a unique combination of properties that make them indispensable for applications requiring stringent flame resistance and high-performance insulation.

  In this article, we delve into the properties of  FR4 fiberglass laminate sheets, exploring their composition, mechanical strength, electrical insulation, thermal stability, chemical resistance, and flame-retardant characteristics. By understanding these properties, engineers and designers can make informed decisions regarding material selection, ensuring the optimal performance and safety of their products and systems.

  Throughout this exploration, we will examine the key properties of  FR4 fiberglass laminate sheets, shedding light on their significance in various industries and applications. From electronic circuit boards to aerospace components, these sheets play a vital role in ensuring the integrity and reliability of critical systems. Let's delve into the properties that make FR4 fiberglass laminate sheets a preferred choice for demanding applications.

Mechanical and Physical Properties

• Tensile Strength: FR4 fiberglass laminate sheets possess high tensile strength, allowing them to withstand significant pulling forces without deformation or failure. This property ensures the structural integrity of components subjected to tension, such as structural supports and load-bearing elements.
• Flexural Strength: The flexural strength of FR4 fiberglass laminate sheets determines their ability to resist bending or flexing without fracturing. This property is essential for components subjected to bending loads, such as circuit boards, where dimensional stability is crucial for reliable performance.
• Compressive Strength: FR4 fiberglass laminate sheets exhibit excellent compressive strength, enabling them to withstand compressive forces without collapsing or deforming. This property is essential for components subjected to compression, such as insulating barriers in high-pressure environments.
• Impact Resistance: The impact resistance of FR4 fiberglass laminate sheets ensures their ability to withstand sudden impacts or shock loads without fracturing or delaminating. This property is critical for components exposed to mechanical impacts during handling, transportation, or operation.
• Hardness: FR4 fiberglass laminate sheets typically exhibit high hardness, providing resistance to surface indentation or scratching. This property enhances their durability and resistance to wear, contributing to their long-term performance in demanding environments.
• Density: FR4 fiberglass laminate sheets have a moderate to high density, depending on their composition and thickness. This property influences their weight and overall structural characteristics, impacting factors such as load-bearing capacity and buoyancy.
• Thermal Expansion: FR4 fiberglass laminate sheets demonstrate low thermal expansion coefficients, meaning they expand minimally when exposed to temperature variations. This property ensures dimensional stability and prevents warping or distortion of components due to thermal cycling.
• Moisture Absorption: FR4 fiberglass laminate sheets exhibit low moisture absorption rates, making them resistant to swelling or dimensional changes in humid environments. This property ensures their stability and reliability in moisture-prone applications.
• Chemical Resistance: FR4 fiberglass laminate sheets offer excellent resistance to a wide range of chemicals, solvents, and corrosive agents. This property ensures their durability and longevity in harsh chemical environments, where exposure to corrosive substances is a concern.
• Flame Resistance: As their name suggests, FR4 fiberglass laminate sheets are inherently flame-resistant, exhibiting low flammability and self-extinguishing properties. This property ensures their compliance with stringent fire safety regulations and enhances the safety of components in fire-prone environments.

  In summary, the mechanical and physical properties of Flame Resistance FR4 fiberglass laminate sheets play a crucial role in determining their suitability for various applications. From high tensile and flexural strength to excellent impact resistance and flame retardancy, these properties make FR4 sheets an ideal choice for critical components requiring reliability, durability, and safety in demanding environments.



Thermal Properties

  FR4 stands out for its ability to retain its integrity at elevated temperatures, a critical feature for materials used in high-heat environments like engine compartments or industrial ovens. Its thermal conductivity, though not exceptionally high, is sufficient to facilitate heat dissipation in electronic applications, enhancing device safety and performance​ (Wikipedia)​​ (Curbell Plastics)​.



Electrical Properties

  One of the hallmark features of FR4 is its superior electrical insulation capabilities. It has a high dielectric strength, which prevents electrical leakage and ensures the integrity of electronic circuits. The low dielectric constant and dissipation factor of FR4 make it suitable for high-frequency electronic applications, where minimizing signal loss is crucial​ (Wikipedia)​​ (FR4 Material)​.



Flame Retardancy and Chemical Resistance

  The "FR" in FR4 stands for "Flame Retardant," indicating its ability to resist combustion and slow the spread of fire. This makes FR4 an excellent material for applications where fire safety is paramount. Additionally, FR4 sheets are resistant to a variety of chemicals and solvents, enhancing their utility in harsh environments​ (Atlas Fibre)​​ (Jaco Products, Inc.)​.



Versatility and Applications

  FR4's versatility is evident in its wide range of applications. It is predominantly used in the manufacturing of printed circuit boards (PCBs) for various electronic devices, from consumer electronics to aerospace components. Beyond electronics, FR4 is used in structural components, insulating materials, and even in high-performance automotive and aerospace parts due to its robustness and durability​ (FR4 Material)​​ (Jaco Products, Inc.)​.

Conclusion

  In conclusion, FR4 fiber glass laminate sheets are indispensable in modern engineering due to their mechanical strength, thermal stability, electrical insulation properties, and flame retardancy. Their ability to perform under extreme conditions makes them a preferred choice across various industries.

  As a professional manufacturer and supplier with GMP-certified facilities, large stock availability, complete certifications, and support for OEM, fast deliveries, secure packaging, and testing capabilities, we invite you to contact us for your FR4 material needs. Our expertise and resources are at your disposal for developing high-quality, reliable solutions tailored to your requirements.
