What are the available sizes and thicknesses of 3240 laminate sheets?

When it comes to electrical insulation and mechanical applications, 3240 laminate sheets stand out as a versatile and reliable material. These glass-reinforced epoxy laminates offer exceptional thermal and electrical properties, making them ideal for various industrial uses. In this comprehensive guide, we'll explore the available sizes and thicknesses of 3240 laminate sheets, including the popular glass yellow 3240 laminate sheet variant.

Understanding 3240 Laminate Sheets

Composition and Properties

3240 laminate sheets are composed of woven glass fabric impregnated with epoxy resin. This combination results in a material with outstanding mechanical strength, excellent electrical insulation, and remarkable heat resistance. The glass reinforcement provides dimensional stability, while the epoxy resin ensures chemical resistance and durability.

Applications in Industry

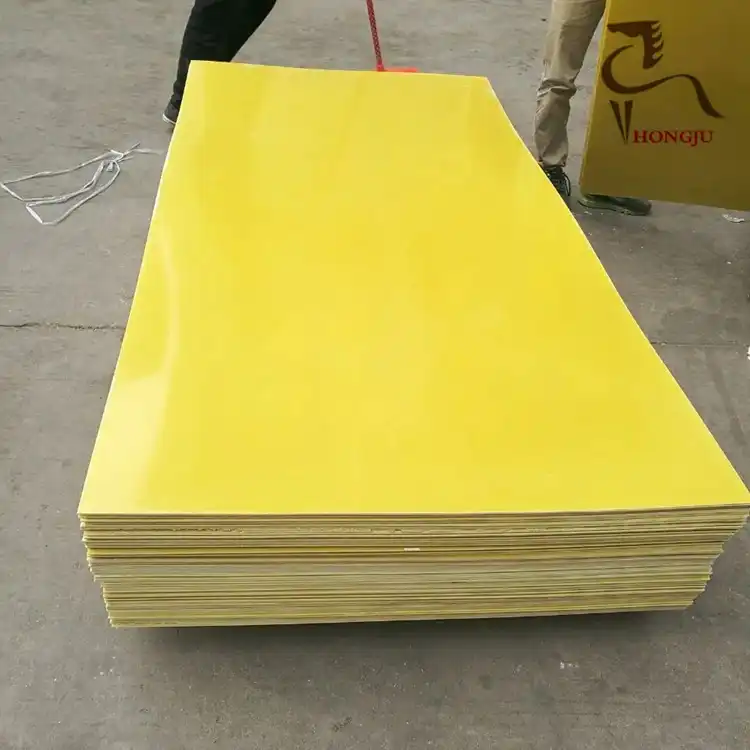

These versatile sheets find applications in numerous industries, including electrical equipment manufacturing, automotive, aerospace, and telecommunications. They are commonly used for switchgear components, transformer parts, circuit boards, and insulating bushings. The Glass Yellow 3240 Laminate Sheet, in particular, is favored for its distinct color and enhanced visibility in certain applications.

Advantages of 3240 Laminate Sheets

3240 laminate sheets offer several advantages, such as high dielectric strength, low moisture absorption, and excellent machinability. These properties make them suitable for both high-voltage and high-temperature environments. Additionally, their resistance to tracking and arc erosion contributes to their longevity in electrical applications.

Available Sizes of 3240 Laminate Sheets

Standard Sheet Dimensions

3240 laminate sheets are typically available in standard sizes to accommodate various manufacturing needs. Common dimensions include: 1000mm x 2000mm; 1220mm x 2440mm; 1250mm x 2500mm.

These sizes allow for efficient cutting and minimal waste during fabrication processes. The Glass Yellow 3240 Laminate Sheet is usually offered in these standard dimensions as well, providing consistency across different color variants.

Custom Sizes

Many manufacturers offer custom sizing options for 3240 laminate sheets to meet specific project requirements. These can range from smaller panels for intricate components to larger sheets for expansive applications. Custom sizes are particularly beneficial for reducing material waste and optimizing production efficiency.

Tolerance Specifications

When considering the available sizes of 3240 laminate sheets, it's crucial to account for manufacturing tolerances. Typical tolerance ranges for length and width are ±5mm to ±10mm, depending on the manufacturer and specific product line. These tolerances ensure that the sheets meet industry standards and fit precisely into their intended applications.

Thicknesses of 3240 Laminate Sheets

Standard Thickness Range

3240 laminate sheets, including the glass yellow 3240 laminate sheet variant, are available in a wide range of thicknesses to suit diverse application needs. The standard thickness range typically includes: 0.5mm to 1.0mm (thin sheets); 1.5mm to 3.0mm (medium sheets); 4.0mm to 8.0mm (thick sheets); 10.0mm to 50.0mm (extra thick sheets).

These thickness options allow engineers and designers to select the most appropriate material for their specific insulation or structural requirements.

Thickness Tolerances

Manufacturers adhere to strict thickness tolerances to ensure consistency and reliability in their 3240 laminate sheets. Typical thickness tolerances range from ±0.05mm for thinner sheets to ±0.5mm for thicker variants. These precise tolerances are crucial for applications where dimensional accuracy is paramount, such as in precision electrical components or tightly specified mechanical parts.

Customized Thickness Options

For projects that require unique specifications, many suppliers offer customized thickness options for 3240 laminate sheets. This flexibility allows for tailored solutions in specialized applications, such as high-voltage insulators or aerospace components where exact thickness specifications are critical for performance and safety.

Factors Influencing Size and Thickness Selection

Application Requirements

The choice of size and thickness for 3240 laminate sheets, including the glass yellow 3240 laminate sheet, is primarily driven by the specific application requirements. Factors such as electrical insulation needs, mechanical stress, and environmental conditions play a significant role in determining the optimal dimensions.

Manufacturing Processes

The manufacturing processes used in the production of components from 3240 laminate sheets can influence size and thickness selection. For instance, processes like CNC machining or die-cutting may have specific size requirements to ensure efficient production and minimal material waste.

Industry Standards and Regulations

Various industry standards and regulations may dictate the acceptable sizes and thicknesses of 3240 laminate sheets for certain applications. Compliance with these standards is crucial for ensuring product quality, safety, and performance in regulated industries such as aerospace and electrical equipment manufacturing.

Conclusion

The availability of diverse sizes and thicknesses in 3240 laminate sheets, including the specialized glass yellow 3240 laminate sheet, demonstrates the versatility and adaptability of this material in meeting various industrial needs. From standard dimensions to custom solutions, these sheets offer a wide range of options for engineers and manufacturers across multiple sectors. Understanding the available sizes and thicknesses is crucial for selecting the right 3240 laminate sheet for your specific application. Whether you require thin sheets for flexible components or thick panels for robust insulation, there's likely a suitable option within the 3240 laminate sheet range.
