G10 Vs Glass Filled Nylon

In the realm of insulating materials, two contenders stand out: G10 Epoxy Sheet and Glass Filled Nylon. Both offer unique properties that make them valuable in various applications, but which one reigns supreme? This comprehensive guide will delve into the intricacies of these materials, comparing their strengths, weaknesses, and ideal use cases. By the end, you'll have a clear understanding of which insulating sheet best suits your needs.

Understanding G10: The Powerhouse of Insulation

Composition and Manufacturing Process

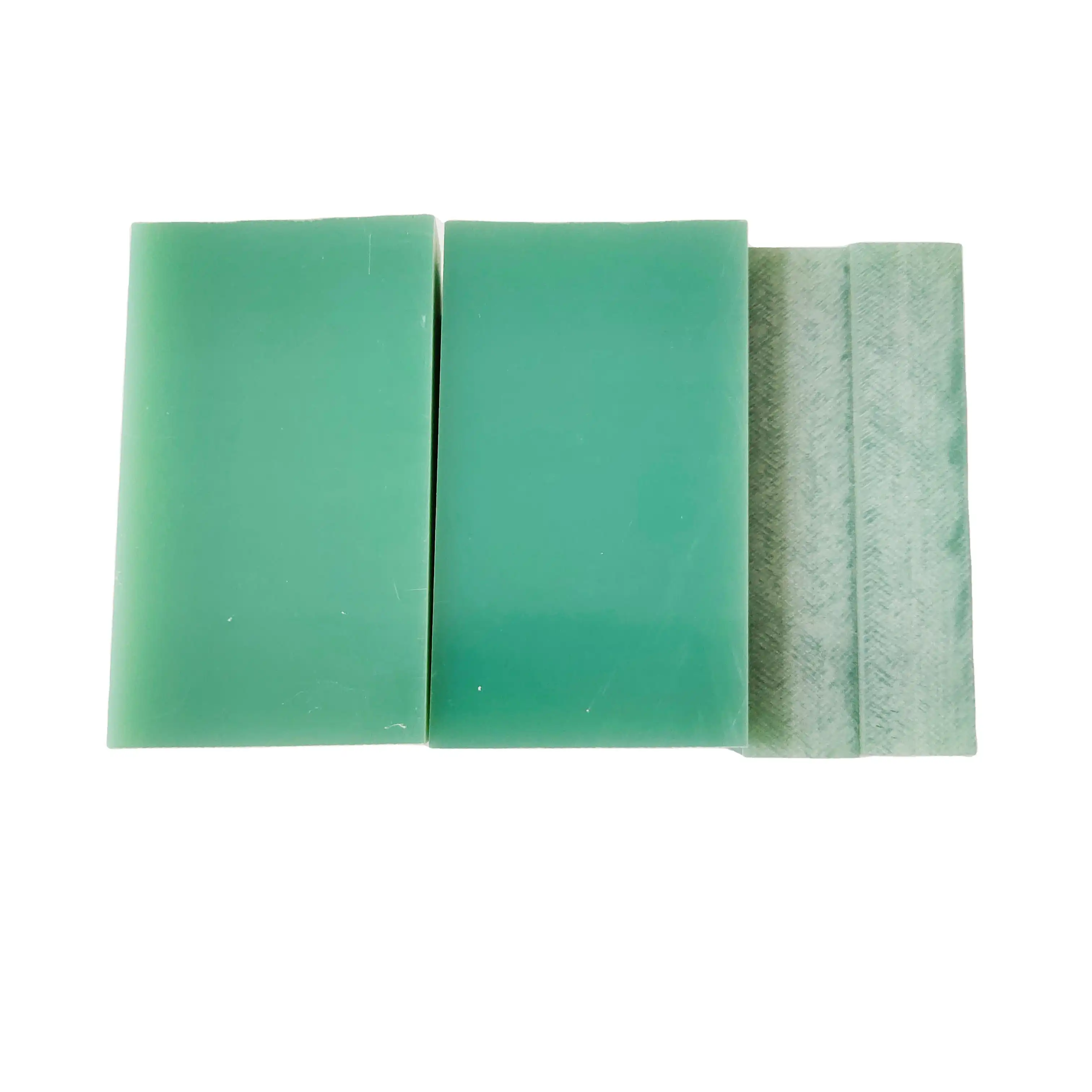

G10 Epoxy Sheet, commonly referred to as FR-4, is a durable thermoset laminate made by combining woven glass fabric with epoxy resin. The production process includes layering several sheets of glass cloth, which are thoroughly saturated with resin and then compressed under high pressure and temperature. This creates a solid, dense material with outstanding electrical insulation properties and high mechanical strength. G10’s unique structure also makes it resistant to environmental factors, ensuring reliable performance in demanding applications.

Electrical Insulation Properties

G10 epoxy Sheet is widely recognized for its exceptional electrical insulation properties, particularly in high-voltage environments. With a dielectric strength ranging between 500 and 700 volts per mil, it provides reliable resistance to electrical leakage and breakdown, even under challenging conditions. This makes it an ideal material for critical applications in aerospace, telecommunications, and power distribution, where maintaining electrical integrity is essential for safety, performance, and longevity of components.

Mechanical Strength and Durability

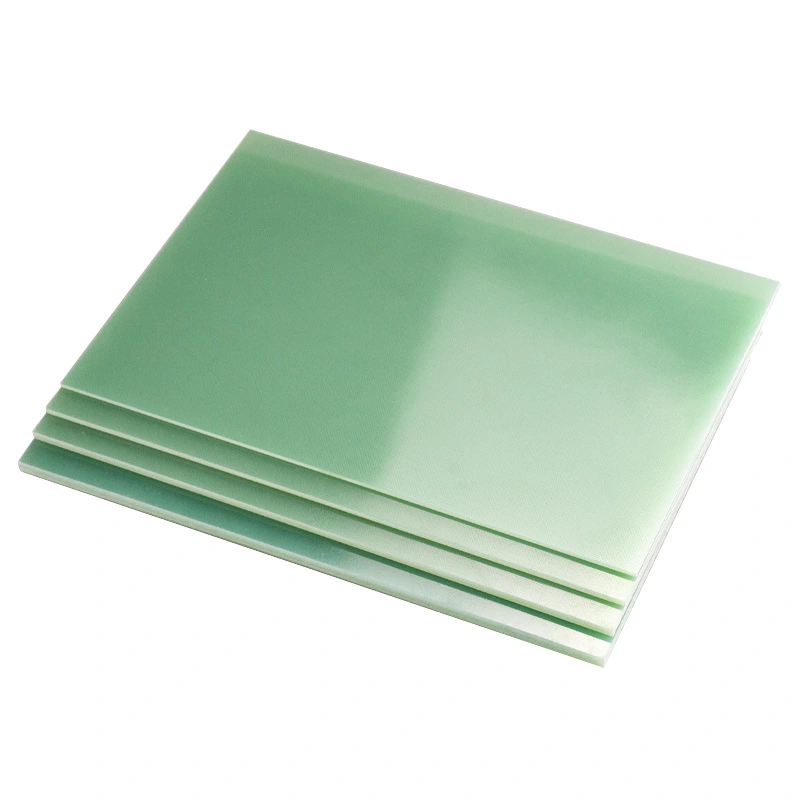

G10 epoxy Sheet is renowned for its exceptional mechanical strength, with a tensile strength of about 40,000 psi and a flexural strength of approximately 65,000 psi. These properties allow it to endure substantial physical stress without compromising its shape or functionality. This high durability makes G10 an ideal choice for demanding applications, including industrial machinery, marine environments, and automotive components, where maintaining structural integrity under heavy loads and harsh conditions is critical.

Glass Filled Nylon: The Versatile Contender

Composition and Manufacturing Techniques

Glass Filled Nylon is a versatile thermoplastic composite made by combining nylon resin with glass fibers for enhanced strength and durability. During the manufacturing process, the nylon is melted and mixed with glass fibers, then injected into molds to form specific shapes. The glass fiber content typically ranges from 15% to 50%, which directly affects the material's mechanical properties, such as stiffness, tensile strength, and heat resistance, making it suitable for a variety of applications in engineering and manufacturing.

Thermal and Chemical Resistance

Glass Filled Nylon offers outstanding thermal stability, retaining its mechanical and electrical properties across a broad temperature range. Depending on the specific formulation, it can handle continuous service temperatures up to 180°C (356°F) without degradation. In addition to its thermal resilience, it provides excellent chemical resistance, effectively withstanding exposure to oils, greases, solvents, and other corrosive substances. These qualities make it ideal for use in harsh environments, including automotive, industrial, and chemical processing applications.

Weight and Cost Considerations

One of the key benefits of Glass Filled Nylon is its relatively low density, typically between 1.3 and 1.6 g/cm³, making it significantly lighter than many other engineering materials. This lightweight characteristic is particularly valuable in industries like automotive and aerospace, where reducing weight is crucial for improving fuel efficiency and performance. Additionally, Glass Filled Nylon is often more cost-effective than G10, especially in high-volume production, making it an attractive option for large-scale manufacturing.

Comparative Analysis: G10 vs Glass Filled Nylon

Electrical Performance in Extreme Conditions

G10 Epoxy Sheet is widely regarded as a superior choice for electrical insulation in demanding environments due to its stability and reliability. Its consistent dielectric strength across varying temperatures, humidity levels, and mechanical stresses makes it ideal for high-performance applications in electronics. In contrast, Glass Filled Nylon, although effective for general insulation, can experience changes in its electrical and mechanical properties under extreme conditions, leading to potential performance degradation. This makes G10 the more robust option for critical electrical components where long-term reliability is essential.

Machinability and Fabrication Ease

Glass Filled Nylon excels in machinability, making it a preferred choice for projects that require intricate designs or quick adjustments. Its thermoplastic nature allows for easy molding into complex shapes and enables efficient post-processing, such as drilling or trimming. In contrast, G10, being a thermoset material, is more rigid and requires specialized equipment for machining. While it offers superior insulation, G10's fabrication process can be more time-consuming and costly, especially for custom or detailed components.

Long-term Performance and Aging Characteristics

G10 epoxy Sheet outperforms Glass Filled Nylon in long-term stability, offering superior resistance to environmental factors such as moisture, UV radiation, and chemical exposure. The epoxy matrix in G10 ensures it retains its electrical, mechanical, and dimensional properties over extended periods, making it highly reliable in harsh conditions. On the other hand, Glass Filled Nylon, while strong and durable, is more prone to moisture absorption and UV degradation. These factors can gradually weaken its structural integrity and affect performance, especially in outdoor or moisture-rich environments.

Conclusion

The choice between G10 Epoxy Sheet and Glass Filled Nylon ultimately depends on the specific requirements of your application. G10 epoxy Sheet excels in high-performance electrical insulation and long-term stability, making it ideal for critical components in aerospace, electrical infrastructure, and high-precision instruments. Glass Filled Nylon shines in applications requiring a balance of mechanical properties, chemical resistance, and cost-effectiveness, particularly in automotive, consumer goods, and general industrial use. By carefully considering the unique properties and trade-offs of each material, you can make an informed decision that optimizes performance and value in your insulating sheet applications.

Contact Us

Ready to explore the right insulating sheet for your needs? Contact our team of experts at info@jhd-material.com for personalized guidance and high-quality solutions tailored to your specific requirements.

References

1. Composite Materials Handbook: Polymer Matrix Composites, Volume 3. U.S. Department of Defense, 2002.

2. Electrical Insulation for Rotating Machines: Design, Evaluation, Aging, Testing, and Repair. G. C. Stone, et al. IEEE Press, 2014.

3. Engineering Plastics Handbook. J. M. Margolis. McGraw-Hill, 2006.

4. Handbook of Plastics Technologies: The Complete Guide to Properties and Performance. C. A. Harper. McGraw-Hill, 2006.

5. Polymer-Matrix Composites: Types, Applications and Performance. S. F. M. de Almeida, et al. Woodhead Publishing, 2018.

6. Thermoplastic Composites: Materials, Manufacturing, and Engineering. F. L. Matthews and R. D. Rawlings. CRC Press, 1999.
