flexural strength explained

Flexural strength, also known as bending strength or fracture strength, is a crucial material property that measures a material's ability to resist deformation under load. It represents the highest stress experienced within a material at its moment of yield or rupture. This property is particularly significant in engineering applications where materials are subject to bending forces. Flexural strength is determined through standardized testing methods, typically involving a three-point or four-point bending test. Understanding flexural strength is essential for selecting appropriate materials in various industries, including electrical and electronics manufacturing, automotive, aerospace, and medical equipment production. It helps engineers and designers ensure that components can withstand operational stresses and maintain structural integrity throughout their intended lifespan.

Understanding Flexural Strength

Material Behavior Under Bending Loads

When a material is subjected to bending loads, it experiences complex stress distributions. The side of the material facing the applied force undergoes compression, while the opposite side experiences tension. This stress distribution is not uniform throughout the material's cross-section, with the maximum stress occurring at the outer surfaces and decreasing towards the neutral axis. The ability of a material to withstand these bending stresses without permanent deformation or failure is quantified by its flexural strength.

Factors Influencing Flexural Strength

Several factors influence a material's flexural strength. The chemical composition and microstructure play significant roles in determining the material's resistance to bending. For instance, in polymers, the degree of crystallinity and molecular weight can affect flexural properties. In composites, the fiber orientation, volume fraction, and matrix properties are crucial determinants. Environmental conditions, such as temperature and humidity, can also impact flexural strength. For example, some polymers may exhibit reduced flexural strength at elevated temperatures due to increased molecular mobility.

Measurement and Testing Methods

Flexural strength is typically measured using standardized testing methods, such as ASTM D790 for plastics or ASTM C1161 for advanced ceramics. These tests involve applying a load to a beam-shaped specimen supported at two points and measuring the force required to cause failure. The three-point bending test is commonly used, where the load is applied at the midpoint between the supports. Alternatively, the four-point bending test distributes the load over a larger area, providing a more uniform stress distribution. The flexural strength is calculated using the maximum load, specimen dimensions, and support span.

Applications in Various Industries

Electrical and Electronics Manufacturing

In the electrical and electronics industry, flexural strength is a critical consideration for insulating sheets and components. These materials must withstand mechanical stresses during assembly and operation while maintaining their insulating properties. For instance, circuit boards need to resist bending during installation and thermal cycling. High-performance polymers with excellent flexural strength, such as polyimides or epoxy resins, are often used in these applications. The ability to withstand bending forces without cracking or delamination is crucial for ensuring the long-term reliability of electronic devices.

Automotive Industry Applications

The automotive sector relies heavily on materials with optimized flexural strength, particularly in the era of electric vehicles (EVs). Battery casings and structural components in EVs must possess high flexural strength to protect sensitive electronics and maintain vehicle integrity during impacts. Composite materials, such as carbon fiber-reinforced polymers, are increasingly used in automotive applications due to their excellent strength-to-weight ratio and customizable flexural properties. These materials allow for the design of lightweight yet structurally robust vehicle components, contributing to improved fuel efficiency and performance.

Aerospace and Medical Equipment Considerations

In aerospace applications, materials with high flexural strength are essential for aircraft structural components, such as wing panels and fuselage sections. These materials must withstand the complex loading conditions experienced during flight while minimizing weight. Advanced composites and high-performance alloys are often employed to meet these demanding requirements. Similarly, in medical equipment manufacturing, flexural strength is crucial for devices like surgical instruments and implants. Materials used in these applications must not only possess adequate strength but also comply with biocompatibility standards and sterilization requirements.

Design Considerations and Material Selection

Optimizing Component Design for Flexural Strength

When designing components that will be subjected to bending loads, engineers must consider several factors to optimize flexural strength. The cross-sectional geometry of the component plays a crucial role in its bending resistance. I-beams and box sections, for example, offer superior flexural strength compared to solid rectangular sections of the same weight. Designers can also incorporate ribs or corrugations to enhance stiffness and flexural strength without significantly increasing weight. Additionally, the orientation of anisotropic materials, such as fiber-reinforced composites, can be tailored to maximize flexural properties in the direction of applied loads.

Material Selection Criteria

Selecting materials with appropriate flexural strength involves balancing various factors, including performance requirements, cost, and manufacturability. Engineers must consider not only the maximum flexural strength but also the material's behavior throughout the elastic and plastic deformation ranges. The flexural modulus, which describes the material's stiffness under bending loads, is often as important as the ultimate flexural strength. For applications involving cyclic loading, fatigue resistance and creep behavior under sustained loads must also be evaluated. Environmental factors, such as temperature extremes, chemical exposure, and UV radiation, can significantly impact a material's long-term flexural performance and must be accounted for in the selection process.

Emerging Materials and Technologies

Advancements in materials science continue to yield new options for engineers seeking to optimize flexural strength in their designs. Nanocomposites, which incorporate nanoscale reinforcements into traditional materials, offer the potential for significant improvements in flexural properties. For instance, graphene-reinforced polymers have shown remarkable enhancements in both strength and stiffness. Additive manufacturing techniques, such as 3D printing, allow for the creation of complex geometries and lattice structures that can be optimized for flexural performance while minimizing weight. Biomimetic materials, inspired by naturally occurring structures like bone or bamboo, are also being developed to achieve exceptional combinations of strength, toughness, and lightweight characteristics.

Contact Us

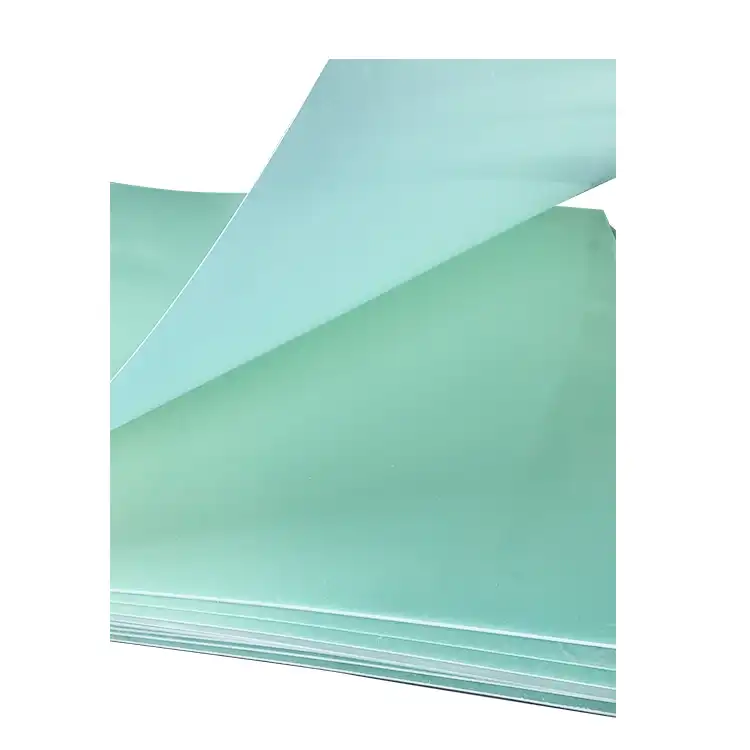

For more information about our high-quality insulating sheet products (FR4 sheet, G10 sheet, 3240 Epoxy sheet), please contact us at info@jhd-material.com. Our team of experts is ready to assist you in finding the perfect solution for your electronic manufacturing needs.

References

1. ASTM International. (2021). Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials. ASTM D790-21.

2. Mallick, P. K. (2021). Fiber-Reinforced Composites: Materials, Manufacturing, and Design. CRC Press.

3. Gibson, R. F. (2016). Principles of Composite Material Mechanics. CRC Press.

4. Ashby, M. F. (2022). Materials Selection in Mechanical Design. Butterworth-Heinemann.

5. Chawla, K. K. (2019). Composite Materials: Science and Engineering. Springer.

6. Soutis, C., & Beaumont, P. W. R. (Eds.). (2020). Structural Integrity and Durability of Advanced Composites: Innovative Modelling Methods and Intelligent Design. Woodhead Publishing.
