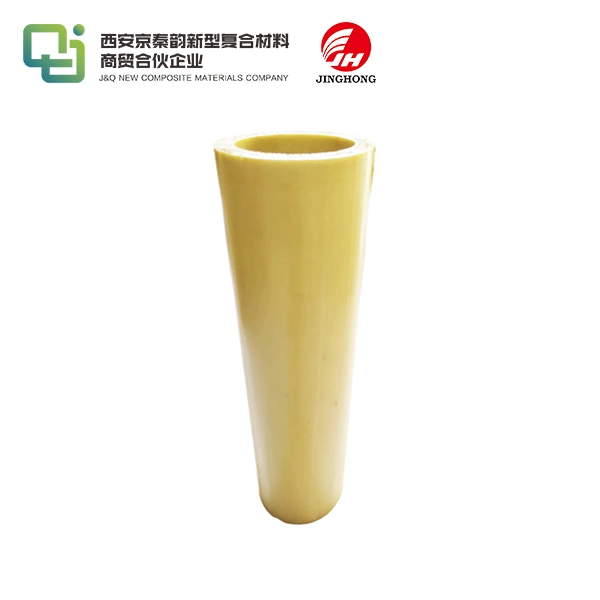

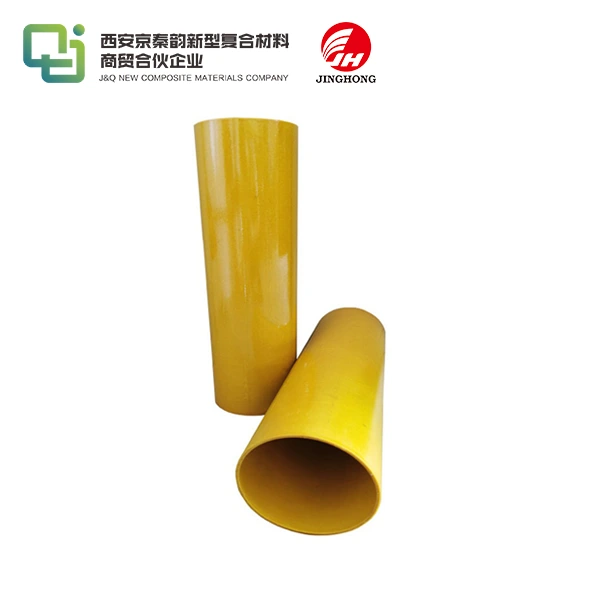

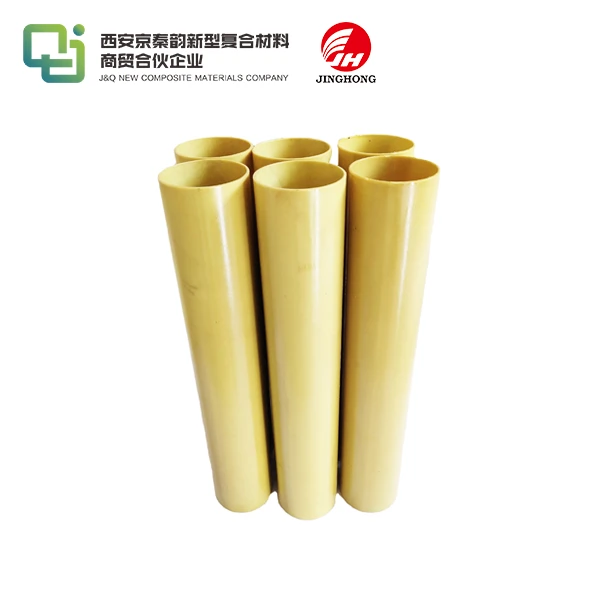

3641 Epoxy Glass Fiber Cloth Laminated Tube



Production Description

3641 Epoxy Glass Cloth Laminated Tube is made of epoxy phenolic resin impregnated with alkali-free glass fiber cloth, dried, heated and pressurized, baked and cured.



Application

3641 Epoxy Glass Cloth Laminated Tube has a grade B heat resistance, compact structure, low water absorption, high mechanical and electrical properties, and is suitable for insulating structural parts in electrical equipment.



Instructions

1) The laminated tube can withstand mechanical processing such as sawing, drilling, turning, milling, and planing.

2) After the laminated pipe is processed, it is easy to absorb moisture. It is best to impregnate the insulating paint for moisture-proof treatment.

3）Store in the original package in a dry, cool, ventilated room or under a shed that is strictly forbidden to smoke or fire. The storage period is 12 months from the date of leaving the factory.

4) Dust and odor are easily generated during mechanical processing of laminated pipes, so ventilation and dust removal and labor protection of workers should be strengthened.



Technical Data

Table 1

No	Indicator name	Unit	Index value	TEST METHOD
1	Density: inner diameter 6~13mm	g/cm3	≥1.65	GB/T 5132
	inner diameter＞13~200mm		≥1.70
2	Compressive strength（Axial）	MPa	≥138
3	Vertical layer direction electric strength: wall thickness 1.5mm	MPa	≥14
	＞1.5~3mm		≥10
	＞3~6mm		≥8
	＞6~13mm		≥6
4	Water absorption	%	See table 2
5	Shear strength	MPa	≥14.7	JB/T 8150

Table 2

Wall thickness/mm	1.5	＞1.5~2	＞2~3	＞3~5	＞5~6	＞6
Water absorption	≤1.0	≤0.8	≤0.7	≤0.6	≤0.5	≤0.4

Special Note

The company strictly controls product quality in accordance with relevant product standards. Due to the diversity and variability of application conditions and many other factors, it does not rule out the need for users to conduct experiments on their own. Legally, certain properties of the product are not guaranteed to be fully applicable to a specific purpose, and the right to modify the information is reserved.

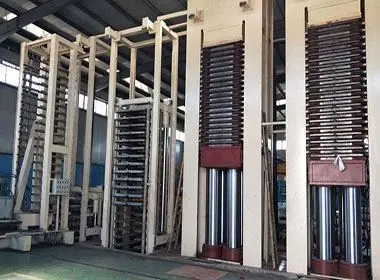

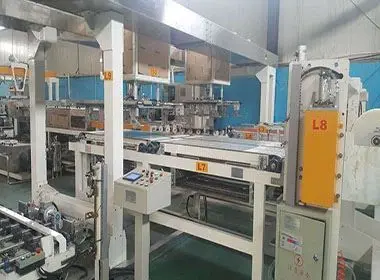

Picture of Factory
