What thicknesses and sizes are available for Electrical Insulation Epoxy Board FR4 Fiberglass Sheets?

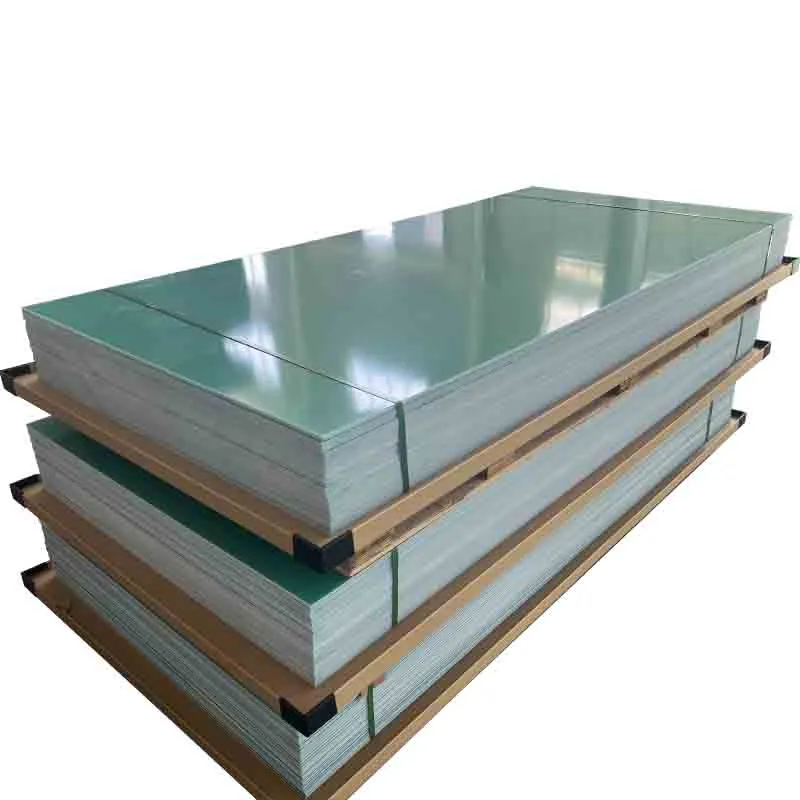

When selecting materials for electrical insulation, understanding the available thicknesses and sizes of electrical insulation epoxy board FR4 fiberglass sheets is essential. These sheets typically range in thickness from 0.2mm to 50mm, catering to various applications. Standard sizes often include 1020mm x 1220mm, 1020mm x 2040mm, and 1220mm x 2440mm, though custom dimensions can be requested based on project needs. Electrical insulation epoxy resin fiberglass sheet FR4 is known for its durability and versatility, making it suitable for industries requiring precise insulation solutions. Whether you need thin sheets for compact designs or thicker options for robust applications, FR4 fiberglass sheets offer flexibility to meet global manufacturing standards.

Understanding the Basics of Electrical Insulation Epoxy Board FR4 Fiberglass Sheets

Electrical insulation epoxy board FR4 fiberglass sheets are a cornerstone in industries requiring reliable insulation materials. Known for their exceptional strength and thermal resistance, these sheets play a vital role in protecting electrical components.

What Makes FR4 Fiberglass Sheets Unique?

FR4 fiberglass sheets are crafted from woven fiberglass cloth impregnated with epoxy resin. This combination results in a material that is both lightweight and robust. The epoxy resin enhances the sheet's resistance to moisture and chemicals, while the fiberglass provides mechanical strength. This synergy makes electrical insulation epoxy resin fiberglass sheet FR4 ideal for applications where durability is paramount. Industries such as electronics, automotive, and aerospace rely on these sheets for their ability to withstand high temperatures and electrical stress.

Key Properties of Electrical Insulation Epoxy Board FR4

The properties of FR4 fiberglass sheets set them apart from other insulation materials. They exhibit excellent dielectric strength, ensuring effective insulation against electrical currents. Their flame-retardant nature, classified under UL94 V-0, adds an extra layer of safety. Additionally, FR4 sheets maintain dimensional stability under varying environmental conditions, making them suitable for global markets. Manufacturers value their low water absorption rate, which prevents degradation over time. These attributes make electrical insulation epoxy board FR4 fiberglass sheets a versatile choice for diverse applications.

Why Manufacturers Choose FR4 Fiberglass Sheets?

Manufacturers worldwide opt for FR4 fiberglass sheets due to their adaptability and reliability. These sheets can be easily machined, cut, or drilled to meet specific design requirements. Their compatibility with various fabrication processes allows for seamless integration into production lines. Moreover, FR4 sheets comply with international standards, ensuring consistency in quality. For businesses seeking materials that balance performance and cost-effectiveness, electrical insulation epoxy resin fiberglass sheet FR4 stands out as a practical solution. Its widespread use underscores its importance in modern manufacturing.

Exploring Thicknesses and Sizes of FR4 Fiberglass Sheets

The thicknesses and sizes of electrical insulation epoxy board FR4 fiberglass sheets are critical factors in determining their suitability for specific projects. Understanding the available options and how they align with application needs can streamline decision-making for manufacturers.

Range of Thicknesses for FR4 Fiberglass Sheets

FR4 fiberglass sheets come in a broad spectrum of thicknesses, typically spanning from 0.2mm to 50mm. Thin sheets, such as those around 0.2mm to 2mm, are often used in compact electronic devices where space is limited. Thicker sheets, ranging from 10mm to 50mm, are preferred for heavy-duty applications requiring enhanced mechanical strength. Electrical insulation epoxy resin fiberglass sheet FR4 offers flexibility in thickness, allowing manufacturers to select the most appropriate option for their insulation needs. This range ensures that both lightweight and robust requirements are met.

Standard Sizes Available in the Market

Standard sizes of FR4 fiberglass sheets are designed to accommodate common industry needs. Common dimensions include 1020mm x 1220mm, 1020mm x 2040mm, and 1220mm x 2440mm. These sizes are widely available and cater to a variety of manufacturing processes. Electrical insulation epoxy board FR4 fiberglass sheets in these dimensions are suitable for large-scale production, minimizing waste and optimizing efficiency. Manufacturers benefit from the consistency of standard sizes, which simplify procurement and inventory management. These dimensions are recognized globally, ensuring compatibility across different markets.

Customization Options for Specific Applications

While standard sizes and thicknesses are convenient, some projects demand tailored solutions. Customization options for FR4 fiberglass sheets allow manufacturers to specify dimensions that align with unique requirements. Whether it's a non-standard thickness for specialized insulation or custom-cut sizes for intricate designs, electrical insulation epoxy resin fiberglass sheet FR4 can be adapted. Manufacturers often collaborate with suppliers to define precise specifications, ensuring the material fits seamlessly into their production processes. This flexibility enhances the applicability of FR4 sheets, making them a go-to choice for bespoke projects.

Applications and Benefits of FR4 Fiberglass Sheets in Various Industries

Electrical insulation epoxy board FR4 fiberglass sheets are integral to numerous industries, offering unmatched performance and reliability. Their versatility extends across electronics, automotive, aerospace, and more.

Common Applications of FR4 Fiberglass Sheets

FR4 fiberglass sheets are widely used in printed circuit boards (PCBs), serving as a foundational material for electronic components. Their insulating properties prevent short circuits, ensuring device functionality. In the automotive sector, electrical insulation epoxy resin fiberglass sheet FR4 is employed in battery management systems and control units. Aerospace applications leverage FR4 sheets for their lightweight yet durable characteristics, supporting critical systems. These sheets also find use in transformers, switchgear, and insulation barriers, highlighting their adaptability. Manufacturers value their ability to meet diverse application needs with consistent performance.

Benefits of Using FR4 Fiberglass Sheets in Manufacturing

The benefits of FR4 fiberglass sheets extend beyond their technical properties. Their cost-effectiveness makes them an attractive option for manufacturers seeking quality without breaking the bank. Electrical insulation epoxy board FR4 fiberglass sheets are easy to process, reducing production time and costs. Their longevity minimizes the need for frequent replacements, enhancing operational efficiency. The material’s compliance with environmental and safety standards aligns with global regulations, fostering trust among stakeholders. Manufacturers appreciate the balance of performance and practicality that FR4 sheets offer, making them a staple in modern production.

How FR4 Fiberglass Sheets Support Global Industries?

Global industries rely on FR4 fiberglass sheets for their ability to meet stringent requirements. In electronics, these sheets enable the development of compact, high-performance devices. The automotive industry benefits from their thermal stability, supporting advancements in electric vehicles. Aerospace manufacturers value their lightweight nature, contributing to fuel efficiency. Electrical insulation epoxy resin fiberglass sheet FR4 plays a pivotal role in ensuring safety and reliability across these sectors. Its global availability and consistent quality make it a trusted material for manufacturers worldwide. By supporting diverse applications, FR4 sheets drive innovation and progress in key industries.

Conclusion

Electrical insulation epoxy board FR4 fiberglass sheets offer a versatile solution for manufacturers, with thicknesses ranging from 0.2mm to 50mm and standard sizes like 1020mm x 1220mm and 1220mm x 2440mm. Their adaptability, durability, and compliance with global standards make them essential in electronics, automotive, and aerospace industries. Customization options further enhance their applicability, ensuring they meet specific project needs. By understanding the available thicknesses, sizes, and benefits, manufacturers can make informed decisions, optimizing performance and efficiency. FR4 fiberglass sheets remain a reliable choice for insulation needs worldwide.
