What is the strength of G10 FR4?

When it comes to high-performance materials in the electrical and mechanical industries, G10 FR4 sheet stands out as a versatile and robust option. This glass-reinforced epoxy laminate boasts impressive strength characteristics that make it a go-to choose for various applications. In this article, we'll dive deep into the strength of G10 FR4, exploring its properties, applications, and why it's such a popular material in today's manufacturing landscape.

What Is the Composition and Properties of G10 FR4?

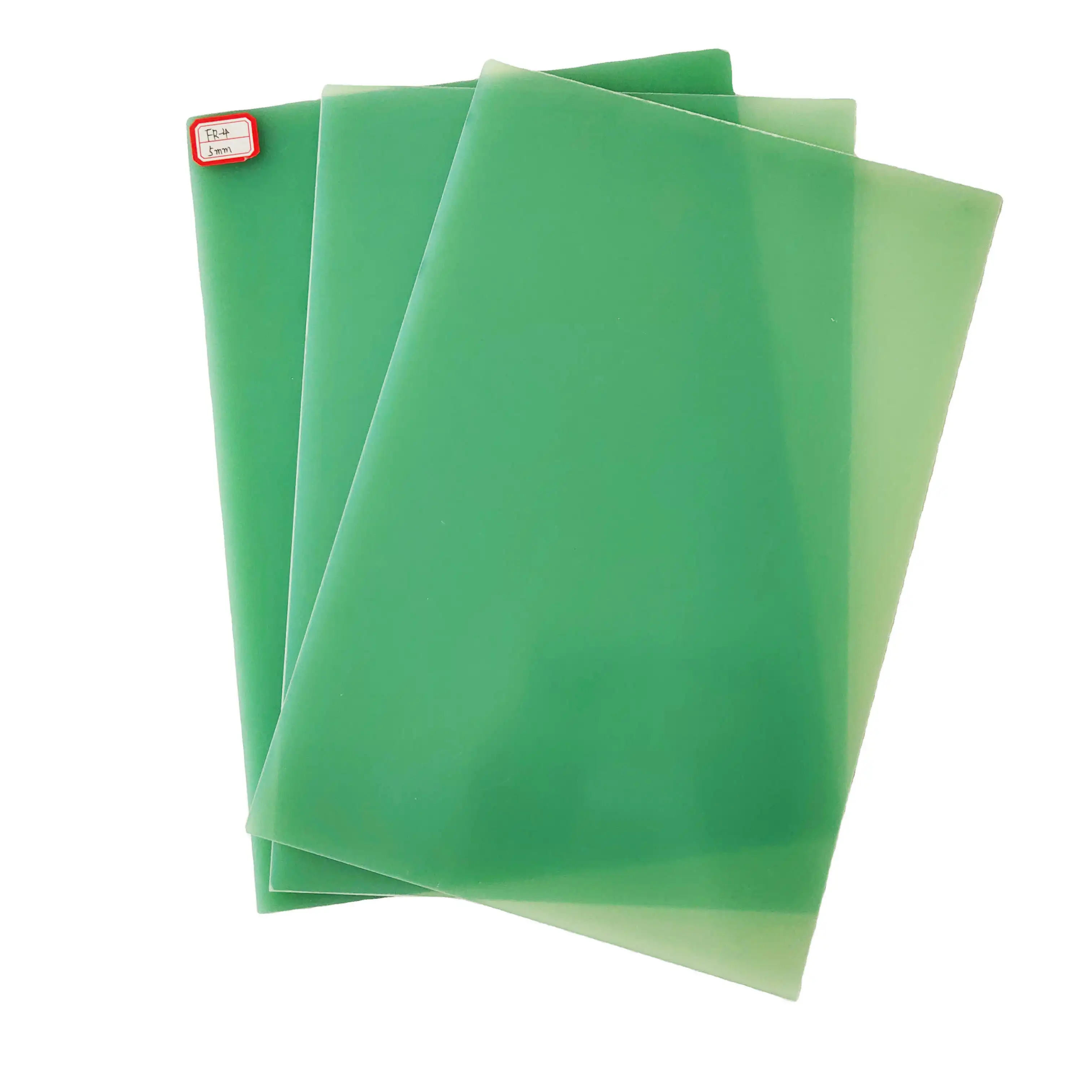

G10 FR4 sheet is a high-performance composite material widely used in various industrial applications due to its impressive mechanical and electrical properties.

Composition of G10 FR4

- Woven Glass Fiber: The primary component of G10 FR4 is woven glass fiber, which provides exceptional strength and rigidity. Glass fibers are known for their high tensile strength and resistance to deformation, making them an excellent reinforcement material.

- Epoxy Resin System: The glass fibers are bonded together with an epoxy resin system, which acts as a matrix to hold the fibers in place. They create a tough, durable bond with the glass fibers, resulting in a composite material that can withstand significant mechanical stress and harsh environmental conditions.

Properties of G10 FR4

- High Mechanical Strength: One of the standout features of G10 FR4 is its high mechanical strength. The combination of glass fibers and epoxy resin gives it a high tensile strength and excellent impact resistance.

- Excellent Electrical Insulation: G10 FR4 sheet is highly regarded for its electrical insulation properties. The epoxy resin matrix provides excellent dielectric strength, making it an ideal material for insulating electrical components and preventing electrical leakage.

- Low Moisture Absorption: The low moisture absorption rate of G10 FR4 ensures that its electrical and mechanical properties remain stable even in humid environments.

- Good Chemical Resistance: G10 FR4 exhibits good resistance to a wide range of chemicals, including solvents, acids, and bases.

- Dimensional Stability: The dimensional stability of G10 FR4 is another key advantage. It maintains its shape and size over a wide temperature range, making it suitable for use in both high-temperature and low-temperature applications.

How Does G10 FR4's Strength Break Down?

The strength of G10 FR4 is multifaceted, encompassing several types of strength that make it suitable for various applications:

Tensile Strength

G10 FR4 sheet boasts impressive tensile strength, typically ranging from 40,000 to 65,000 psi (275 to 448 MPa). This high tensile strength means it can withstand significant pulling forces without breaking, making it ideal for applications where structural integrity is crucial.

Compressive Strength

The material also exhibits excellent compressive strength, often exceeding 60,000 psi (414 MPa). This property allows G10 FR4 to withstand high pressure and loads without deforming or failing, making it suitable for load-bearing applications.

Flexural Strength

G10 FR4 sheet demonstrates superior flexural strength, typically around 65,000 psi (448 MPa). This means it can resist bending forces effectively, maintaining its shape and integrity even under significant stress.

Impact Strength

With its glass fiber reinforcement, G10 FR4 offers good impact resistance. It can absorb and dissipate energy from sudden impacts without cracking or shattering, enhancing its durability in various applications.

How Is the Strength of G10 FR4 Leveraged in Various Applications?

The impressive strength characteristics of G10 FR4 sheet make it a versatile material used in numerous industries:

Electrical and Electronics

- Printed Circuit Boards (PCBs): G10 FR4 sheet excellent electrical insulation properties and mechanical strength make it ideal for supporting and insulating the intricate circuitry found in electronic devices. The material's dimensional stability ensures that PCBs maintain their shape and performance even in varying environmental conditions.

- Insulators and Terminal Blocks: G10 FR4 sheet high dielectric strength prevents electrical leakage and short circuits, while its mechanical robustness ensures that these components withstand physical stresses and vibrations.

Aerospace

- Structural Components: G10 FR4 sheet is employed in parts like panels and supports where both mechanical integrity and lightweight characteristics are crucial for aircraft performance.

- Radomes and Antenna Supports: G10 FR4's ability to withstand extreme temperatures and environmental conditions while maintaining its strength and electrical properties makes it a reliable choice for these applications.

Automotive

- Electrical Components: G10 FR4 is used in automotive electrical components such as connectors and insulators. Its durability under high temperatures and its resistance to moisture make it suitable for components that operate in the challenging environment of an automotive engine compartment.

- Underhood Applications: G10 FR4's thermal stability and resistance to chemicals and oils contribute to its use in various parts such as sensor housings, spacers, and brackets.

Industrial

- Gears and Bearings: G10 FR4's high mechanical strength and low friction properties make it an excellent material for manufacturing gears and bearings used in industrial machinery.

- Washers and Spacers: In industrial settings, G10 FR4 is also used for washers and spacers, where its dimensional stability and resistance to deformation are beneficial.

Sports Equipment

- Archery Bows: G10 FR4's strength and flexibility make it an ideal material for archery bows, where it provides the necessary durability and performance.

- Ski Components: In sports equipment like skis, G10 FR4 is used to create components that withstand the stresses and impacts encountered during use.

Marine

- Hull Reinforcements: G10 FR4 is used in marine applications for hull reinforcements due to its resistance to moisture and corrosion.

- Electrical Panels: In marine environments, G10 FR4 is employed for electrical panels where its excellent electrical insulation properties and resistance to environmental conditions are critical.

Conclusion

G10 FR4 sheet stands out as a superior material due to its impressive strength and versatility. Its high tensile, compressive, and flexural strengths, combined with excellent impact resistance, make it an ideal choice for a broad range of applications across various industries. Whether it's used in printed circuit boards, aerospace components, automotive parts, industrial machinery, sports equipment, or marine environments, G10 FR4 demonstrates exceptional performance, durability, and reliability.

If you're interested in learning more about G10 FR4 sheet and how it can benefit your projects, we invite you to reach out to us at info@jhd-material.com.
