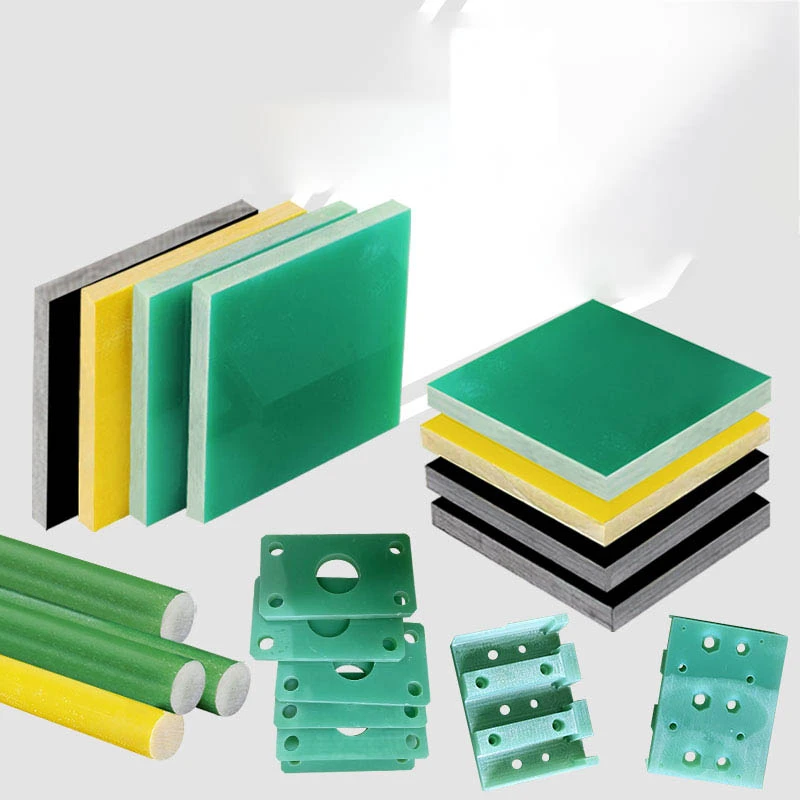

G10 Epoxy Sheet

Production Description

---

  G10 Epoxy Sheet has excellent chemical resistance and can be used in applications where exposure to harsh chemicals is a concern. It is resistant to a wide range of chemicals, including acids, alkalis, solvents and oils. This chemical resistance prevents the material from degrading or deteriorating when exposed to these substances, ensuring its long-term durability and reliability in challenging environments.G10's chemical resistance makes it the material of choice for many industries where corrosion is a concern, including chemical processing, marine and automotive.

What are the key differences between G10 and FR-4?

The difference between and FR4 is that G10 plus a flame retardant is FR4. Typically, the flame retardant is a brominated flame retardant, so FR4 contains bromides. FR4 is used if the application scenario requires flame retardancy, and FR4 meets UL94-V0.

Product Features

---

The surface of G10 Epoxy Sheet is very flat and smooth with no pit. It has low water absorption, good moisture resistance and good dielectric properties. Also FR4 insulation board has very high mechanical strength, good process ability, so that we can machine and cut it into any sizes and ships we want. What’s more, flame resistance reach to UL94-V0 is the most important features of the board.

1. Test Jig

2. Fixture PCB Testing Jig

3. Insulation Plate

4. Switch insulation Plate

5. Polish Gear

6. Mould in Cloth and Shoes

7. Insulation Part of Bakelite Sheet

8. Lithium Battery Pack

Technical Data for G10

---



NO	TEST ITEMS	UNIT	TEST RESULT	TEST METHOD
1	Bending Strength Perpendicular to Laminations	MPa	571	GB/T 1303.4-2009
2	Compressive Strength Perpendicular to Laminations compressive	MPa	548
3	Parallel Layer Impact Strength (Simply Supported Beam, Gap)	KJ/m²	57.3
4	Tensile Strength	MPa	282
5	Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ25mm/φ75mm cylinder electrode system)	kV/mm	16.7
6	Parallel Layer Breakdown Voltage (90℃ + 2℃, 25# transformer oil, 20s step by step boost, φ130mm/φ130mm flat plate electrode system)	kV	＞100
7	Relative Permittivity (50HZ)	-	5.40
8	Dielectric Dissipation Factor (50HZ)		7.2*10-3
9	Insulation Resistance after Soaking	Ω	2.2*1013
10	Density	g/cm3	2.01
11	Water Absorption	mg	5.3
12	Barcol Hardness	-	76	GB/T 3854-2005
13	Flammability	Grade	V-1	GB/T 2408-2008
REMARK: 1. NO.2 the sample height is (5.00~5.04) mm; 2. NO.5 the sample thickness is (2.02~2.06) mm; 3. NO.6 the sample size is (100.50~100.52)mm*(25.10~25.15)mm*(5.02~5.06)mm thickness, The electrode spacing is (25.10~25.15)mm; 4. NO.11 the sample size is (49.86~49.90)mm*(49.60~49.63)mm*(2.53~2.65)mm; 5. NO.13 the sample size is (13.04~13.22)mm*(3.04~3.12)mm thickness.
