What is NEMA Grade L Phenolic Cotton Board?

2025-03-26 17:04:09

NEMA Grade L Phenolic Cotton Board is a high-performance insulating material widely used in electrical and industrial applications. This specialized composite consists of layers of cotton fabric impregnated with phenolic resin, resulting in a robust and versatile insulation solution. Known for its excellent electrical properties, mechanical strength, and heat resistance, NEMA Grade L boards are essential components in various electrical systems, switchgear, and transformers. These boards offer superior dimensional stability, low moisture absorption, and exceptional machinability, making them indispensable in applications requiring reliable electrical insulation and structural integrity.

Composition and Manufacturing Process of NEMA Grade L Phenolic Cotton Board

Raw Materials Used in Production

The production of NEMA Grade L Phenolic Cotton Board involves carefully selected raw materials to ensure optimal performance. The primary components include high-quality cotton fabric and phenolic resin. The cotton fabric serves as the reinforcing material, providing strength and flexibility to the final product. Phenolic resin, a thermosetting polymer, acts as the binding agent and imparts excellent electrical and thermal properties to the board.

Manufacturing Techniques

The manufacturing process of NEMA Grade L boards is a meticulous operation that requires precision and expertise. It begins with the impregnation of cotton fabric layers with phenolic resin. These impregnated layers are then stacked and subjected to high pressure and temperature in a controlled environment. This process, known as compression molding, ensures thorough resin penetration and uniform distribution throughout the fabric layers.

Quality Control Measures

Rigorous quality control measures are implemented throughout the manufacturing process to maintain the high standards of NEMA Grade L Phenolic Cotton Boards. These include continuous monitoring of resin-to-fabric ratios, temperature and pressure control during molding, and post-production testing for electrical and mechanical properties. Advanced techniques such as ultrasonic inspection and thermal imaging are often employed to detect any internal defects or inconsistencies in the finished boards.

Properties and Characteristics of NEMA Grade L Phenolic Cotton Board

Electrical Insulation Properties

NEMA Grade L Phenolic Cotton Board excels in its primary function as an electrical insulator. It boasts impressive dielectric strength, typically ranging from 15 to 20 kV/mm, which allows it to effectively prevent current flow between conductors. The material also exhibits low dielectric loss, making it suitable for high-frequency applications. Its volume resistivity, often exceeding 10^12 ohm-cm, ensures minimal current leakage, contributing to the overall efficiency and safety of electrical systems.

Mechanical Strength and Durability

The composite nature of NEMA Grade L boards imparts exceptional mechanical properties. These boards demonstrate high flexural strength, often surpassing 100 MPa, which allows them to withstand substantial mechanical stress without deformation. Their compressive strength, typically around 170 MPa, makes them resistant to crushing forces. The material's impact resistance is also noteworthy, with Izod impact values usually exceeding 500 J/m, ensuring durability in demanding industrial environments.

Thermal and Chemical Resistance

NEMA Grade L Phenolic Cotton Board exhibits remarkable thermal stability, maintaining its properties at temperatures up to 130°C for continuous operation. This heat resistance is crucial in applications where electrical components generate significant thermal energy. The material also demonstrates good chemical resistance, particularly against oils, mild acids, and solvents commonly encountered in industrial settings. This resistance to chemical degradation contributes to the longevity and reliability of the insulation in various operating conditions.

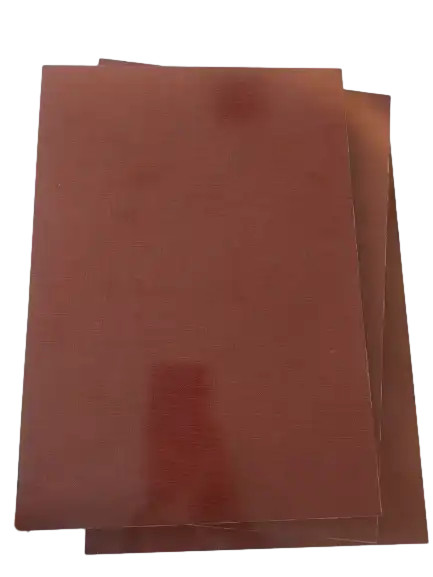

NEMA Grade L Phenolic Cotton Board

Applications and Uses of NEMA Grade L Phenolic Cotton Board

Electrical and Power Distribution Systems

In the realm of electrical and power distribution, NEMA Grade L Phenolic Cotton Board plays a pivotal role. It is extensively used in the construction of switchgear, where it serves as insulation between live parts and ground. The material's high dielectric strength and arc resistance make it ideal for use in circuit breakers, ensuring safe and reliable operation. In transformers, these boards are utilized for coil insulation and as structural components, leveraging their excellent electrical and mechanical properties to enhance overall system performance and longevity.

Industrial Machinery and Equipment

The industrial sector greatly benefits from the versatility of NEMA Grade L boards. They are commonly employed in the fabrication of industrial control panels, where their insulating properties and mechanical strength are crucial. In large motors and generators, these boards find application as slot liners and phase separators, contributing to the efficient and safe operation of these machines. The material's machinability allows for precise cutting and shaping, making it suitable for custom components in specialized industrial equipment.

Transportation and Aerospace Industries

The transportation and aerospace industries have embraced NEMA Grade L Phenolic Cotton Board for its unique combination of properties. In railway applications, these boards are used in traction motor insulation and switchgear components, where they must withstand high voltages and vibrations. The aerospace sector utilizes these materials in avionics and electrical systems, valuing their lightweight nature and reliability under extreme conditions. The boards' fire-retardant properties, conforming to stringent safety standards, make them particularly suitable for these critical applications.

Conclusion

NEMA Grade L Phenolic Cotton Board stands as a testament to the ingenuity in materials science, offering a unique blend of electrical insulation, mechanical robustness, and thermal stability. Its versatility across various industries underscores its significance in modern electrical and industrial applications. As technology advances, this material continues to evolve, adapting to new challenges and requirements. The enduring popularity of NEMA Grade L boards in critical applications highlights their reliability and effectiveness in ensuring the safety and efficiency of electrical systems worldwide.
