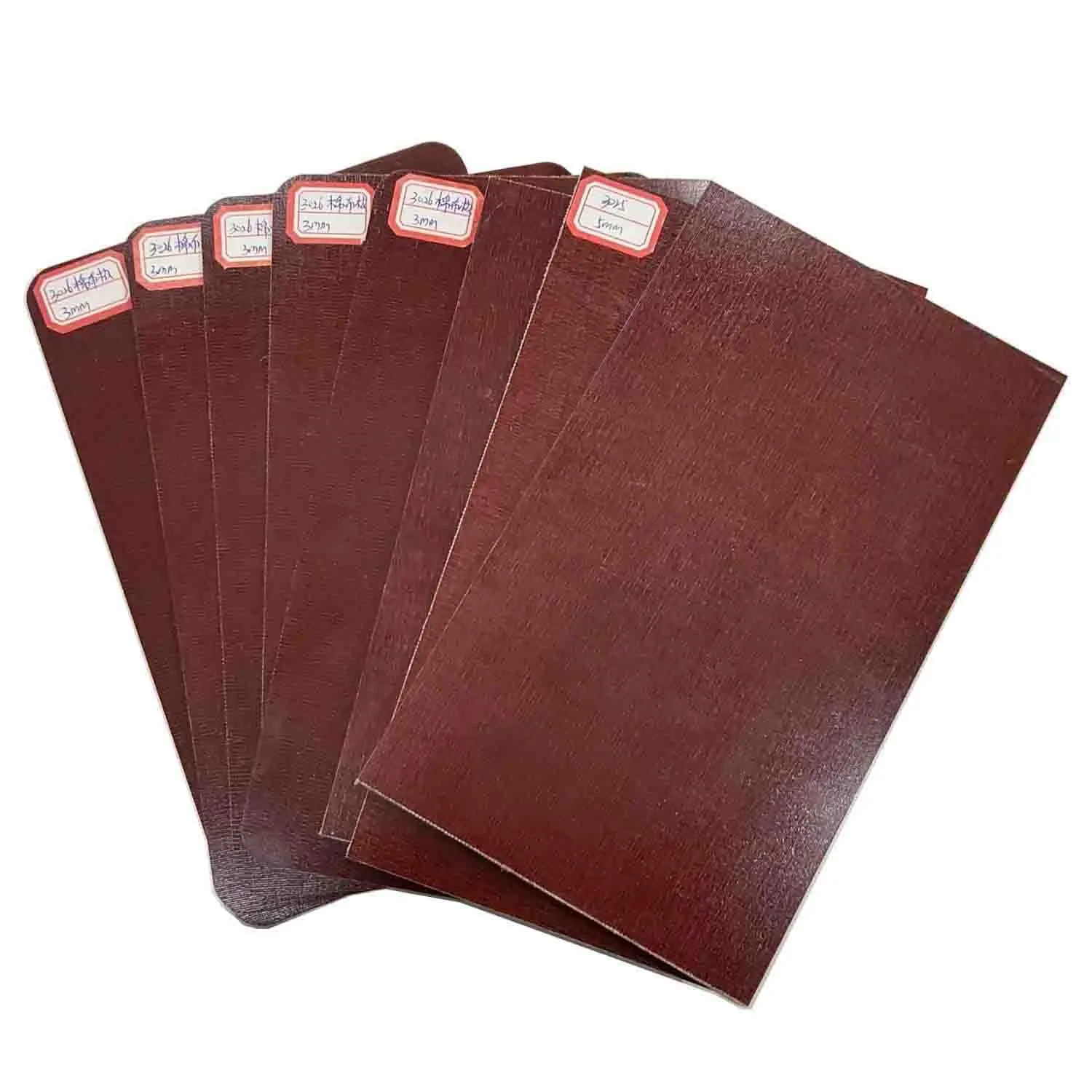

Electrical Insulation Phenolic Resin Cotton Fabric Durability Secrets Revealed

Unraveling the mystery behind the exceptional durability of electrical insulation phenolic resin cotton fabric unveils a fascinating interplay of advanced materials science and precision engineering. This remarkable composite material combines the inherent strength of cotton fibers with the superior insulating properties of phenolic resin, resulting in a robust and long-lasting insulation solution. The secret lies in the meticulous manufacturing process, where cotton fabric is carefully impregnated with phenolic resin and subjected to controlled heat and pressure. This treatment creates a dense, cross-linked structure that resists moisture, heat, and electrical breakdown, ensuring unparalleled longevity in even the most demanding electrical applications.

The Composition and Manufacturing Process of Electrical Insulation Phenolic Resin Cotton Fabric

Raw Materials and Their Properties

The foundation of electrical insulation phenolic resin cotton fabric lies in its carefully selected raw materials. High-quality cotton fabric serves as the base, providing excellent tensile strength and flexibility. The cotton fibers are meticulously woven to create a uniform substrate that ensures consistent insulation properties throughout the material.

Phenolic resin, a thermosetting polymer, is the key component that imparts exceptional electrical insulation properties to the fabric. This resin is synthesized through the condensation of phenol and formaldehyde, resulting in a highly cross-linked structure upon curing. The choice of phenolic resin is crucial due to its outstanding heat resistance, dimensional stability, and excellent dielectric strength.

Impregnation Techniques

The impregnation process is a critical step in manufacturing electrical insulation phenolic resin cotton fabric. It involves saturating the cotton fabric with liquid phenolic resin using advanced techniques such as vacuum impregnation or pressure impregnation. These methods ensure thorough penetration of the resin into the fabric's fibers, eliminating air pockets and creating a homogeneous composite material.

The impregnation process is carefully controlled to achieve the optimal resin-to-fabric ratio, which directly influences the final product's electrical and mechanical properties. Precise control over temperature, pressure, and duration during impregnation is essential to maintain consistency and quality across production batches.

Curing and Post-Processing

After impregnation, the resin-saturated fabric undergoes a curing process. This involves subjecting the material to elevated temperatures and pressures in specialized ovens or presses. During curing, the phenolic resin undergoes a chemical reaction, forming a three-dimensional network of cross-linked polymer chains. This transformation results in a hard, infusible material with superior electrical insulation properties.

Post-processing steps may include surface treatments, such as calendering or coating, to enhance specific characteristics like surface smoothness or chemical resistance. These additional processes further contribute to the fabric's durability and performance in various electrical applications.

Factors Contributing to the Durability of Electrical Insulation Phenolic Resin Cotton Fabric

Chemical Resistance

One of the key factors contributing to the durability of electrical insulation phenolic resin cotton fabric is its exceptional chemical resistance. The cured phenolic resin forms a protective barrier that shields the underlying cotton fibers from chemical attack. This resistance is particularly important in industrial environments where the insulation material may be exposed to various solvents, oils, or corrosive substances.

The chemical stability of phenolic resin is attributed to its aromatic structure and high degree of cross-linking. These characteristics make it resistant to degradation by organic solvents, weak acids, and alkaline solutions. As a result, the insulation fabric maintains its integrity and electrical properties even when subjected to harsh chemical environments, ensuring long-term reliability in diverse applications.

Thermal Stability

Thermal stability is another crucial factor that contributes to the durability of electrical insulation phenolic resin cotton fabric. The phenolic resin component exhibits excellent heat resistance, maintaining its structural integrity and electrical insulation properties at elevated temperatures. This thermal stability is essential in electrical applications where heat generation is inevitable.

The cured phenolic resin has a high glass transition temperature and low thermal expansion coefficient, which minimizes dimensional changes and thermal stress in the material. Additionally, the cotton fabric substrate provides thermal insulation, further enhancing the overall heat resistance of the composite. These combined properties enable the insulation fabric to withstand prolonged exposure to high temperatures without significant degradation or loss of performance.

Mechanical Strength and Dimensional Stability

The durability of electrical insulation phenolic resin cotton fabric is further enhanced by its impressive mechanical strength and dimensional stability. The synergistic combination of cotton fibers and cured phenolic resin results in a composite material with excellent tensile strength, compressive strength, and impact resistance.

The cotton fabric provides a reinforcing effect, distributing mechanical stresses throughout the material and preventing localized failure. The phenolic resin matrix, with its rigid cross-linked structure, contributes to the overall stiffness and dimensional stability of the composite. This stability is crucial in maintaining consistent insulation gaps and preventing deformation under mechanical loads or thermal cycling, ensuring reliable long-term performance in electrical systems.

Applications and Future Developments in Electrical Insulation Phenolic Resin Cotton Fabric

Current Industrial Applications

Electrical insulation phenolic resin cotton fabric finds extensive use in various industrial applications due to its exceptional durability and insulation properties. In the power generation sector, it is employed in the construction of high-voltage transformers, where it serves as a reliable insulating material between windings. The fabric's ability to withstand high temperatures and electrical stress makes it ideal for this demanding application.

In the automotive industry, this composite material is utilized in the manufacturing of electrical components such as starter motors, alternators, and ignition systems. Its resistance to oil, fuel, and other automotive fluids, combined with excellent electrical insulation, ensures long-lasting performance in harsh under-hood environments.

Emerging Technologies and Innovations

As technology advances, new applications for electrical insulation phenolic resin cotton fabric continue to emerge. In the field of renewable energy, this material is being explored for use in wind turbine generators, where its durability and insulation properties can contribute to increased efficiency and reliability of power generation systems.

Innovations in nanotechnology are also being applied to enhance the properties of this composite material. The incorporation of nanoparticles, such as silica or aluminum oxide, into the phenolic resin matrix can further improve thermal conductivity, mechanical strength, and electrical insulation properties. These advancements open up new possibilities for the use of electrical insulation phenolic resin cotton fabric in next-generation electronic devices and high-performance electrical systems.

Sustainability and Environmental Considerations

As global focus shifts towards sustainability, efforts are being made to improve the environmental profile of electrical insulation phenolic resin cotton fabric. Research is underway to develop bio-based phenolic resins derived from renewable resources, such as lignin or tannins, as alternatives to traditional petroleum-based resins. These eco-friendly options aim to reduce the carbon footprint of the material while maintaining its superior performance characteristics.

Additionally, end-of-life considerations are gaining importance. Investigations into recycling and upcycling methods for this composite material are ongoing, with the goal of minimizing waste and promoting a circular economy approach in the electrical insulation industry. These sustainability initiatives are expected to play a crucial role in shaping the future development and applications of electrical insulation phenolic resin cotton fabric.

Conclusion

The exceptional durability of electrical insulation phenolic resin cotton fabric is the result of a carefully engineered combination of materials and manufacturing processes. Its unique composition, chemical resistance, thermal stability, and mechanical strength contribute to its long-lasting performance in diverse electrical applications. As technology advances and sustainability becomes increasingly important, this versatile material continues to evolve, promising even greater durability and efficiency in future electrical insulation solutions. The ongoing research and development in this field ensure that electrical insulation phenolic resin cotton fabric will remain at the forefront of insulation technology for years to come.
