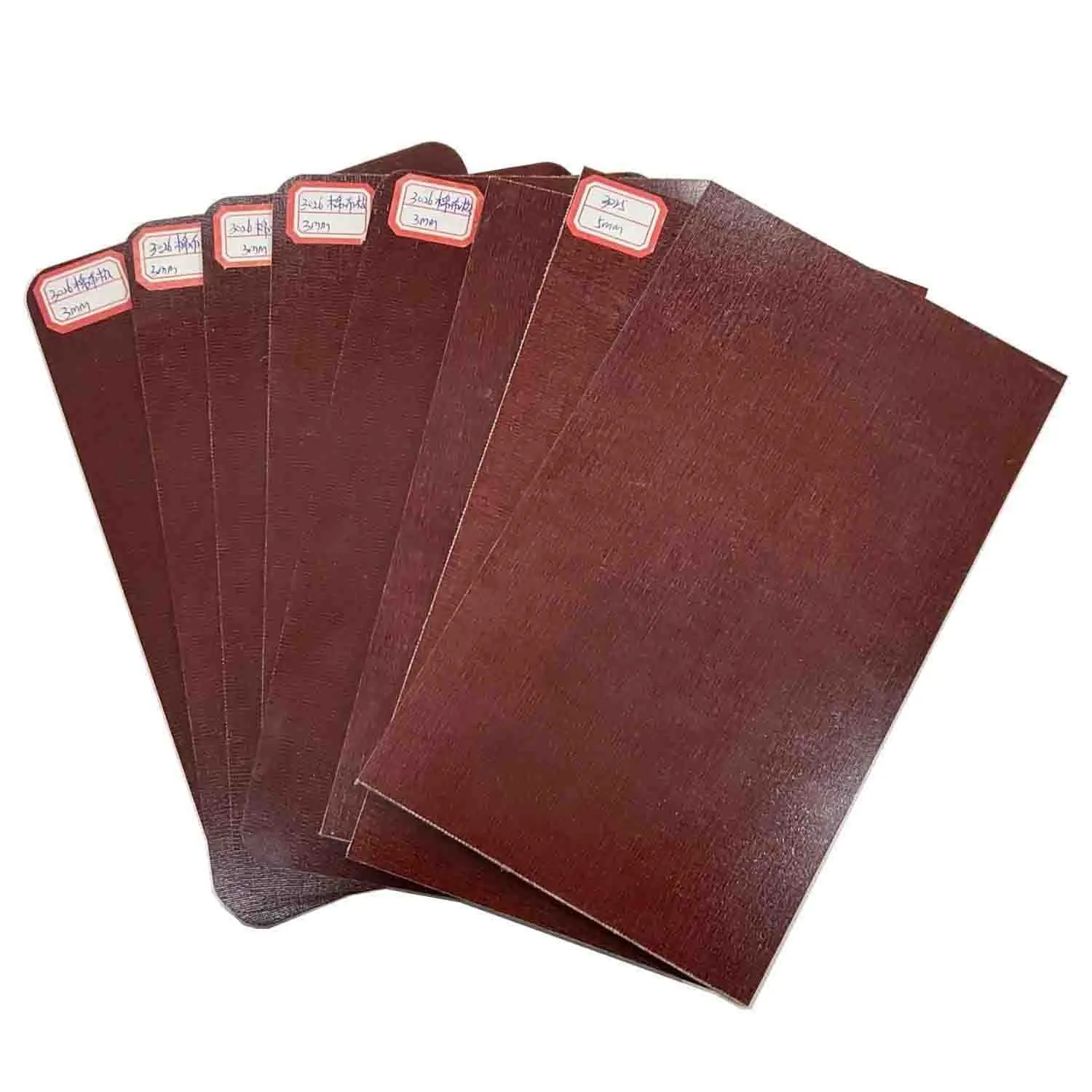

Key Properties of Electrical Insulation Phenolic Resin Cotton Fabric

Electrical insulation phenolic resin cotton fabric is a crucial component in various electrical applications, prized for its exceptional insulating properties and durability. This advanced material combines the strength of cotton fabric with the electrical resistance of phenolic resin, resulting in a versatile and reliable insulator. The key properties of this material include excellent dielectric strength, low moisture absorption, high thermal resistance, and outstanding mechanical stability. These characteristics make it an ideal choice for transformers, motors, generators, and other high-voltage equipment. Understanding the unique properties of electrical insulation phenolic resin cotton fabric is essential for engineers and manufacturers seeking to enhance the performance and longevity of their electrical systems.

Composition and Manufacturing Process

Raw Materials and Their Roles

The production of electrical insulation phenolic resin cotton fabric involves a carefully orchestrated blend of materials. Cotton fabric serves as the base, providing strength and flexibility. Phenolic resin, derived from phenol and formaldehyde, acts as the binding agent and primary insulator. Additives such as flame retardants and plasticizers may be incorporated to enhance specific properties. The selection of high-quality raw materials is paramount to ensure the final product meets rigorous industry standards.

Impregnation Techniques

The manufacturing process hinges on the effective impregnation of the cotton fabric with phenolic resin. This is typically achieved through a vacuum pressure impregnation (VPI) process. The fabric is first dried to remove moisture, then placed in a vacuum chamber where the resin is introduced. The vacuum ensures thorough penetration of the resin into the fabric's fibers. Pressure may be applied to further enhance resin distribution. This meticulous process is crucial for achieving uniform insulation properties throughout the material.

Curing and Finishing

After impregnation, the fabric undergoes a curing process. This involves carefully controlled heating to initiate the polymerization of the phenolic resin. The curing temperature and duration are critical factors that influence the final properties of the material. Once cured, the fabric may undergo additional treatments such as calendering to achieve the desired thickness and surface finish. Quality control measures, including dielectric strength tests and dimensional checks, are performed to ensure the material meets specifications.

Electrical Properties and Performance

Dielectric Strength and Breakdown Voltage

One of the most significant properties of electrical insulation phenolic resin cotton fabric is its high dielectric strength. This parameter measures the material's ability to withstand electric fields without breaking down. Typical values range from 15 to 20 kV/mm, depending on the specific formulation and thickness. The breakdown voltage, which indicates the point at which the material fails as an insulator, is equally impressive. These properties are crucial for applications involving high-voltage equipment, where maintaining insulation integrity is paramount for safety and performance.

Volume and Surface Resistivity

The resistivity of electrical insulation phenolic resin cotton fabric is another key factor in its performance. Volume resistivity, which measures the material's resistance to current flow through its bulk, typically exceeds 10^12 ohm-cm. Surface resistivity, important for preventing current leakage across the material's surface, is similarly high. These properties ensure that the material effectively prevents current flow in both through-thickness and surface directions, maintaining its insulating function under various conditions.

Frequency Dependence and Loss Factor

The electrical properties of electrical insulation phenolic resin cotton fabric exhibit some frequency dependence, which is an important consideration for AC applications. The dielectric constant and loss factor tend to increase slightly with frequency, though the effect is less pronounced than in some other insulating materials. The low loss factor of this material, typically below 0.05, ensures minimal energy dissipation in high-frequency applications. This characteristic makes it particularly suitable for use in transformers and other equipment operating at power frequencies.

Thermal and Mechanical Characteristics

Heat Resistance and Thermal Conductivity

Electrical insulation phenolic resin cotton fabric boasts excellent thermal properties, crucial for its performance in high-temperature environments. It maintains its insulating properties at temperatures up to 130°C for continuous operation, with short-term exposure capabilities reaching 180°C. The material's low thermal conductivity, typically around 0.2 W/m·K, ensures effective heat insulation. This combination of heat resistance and insulation makes it ideal for applications where electrical components generate significant heat during operation.

Dimensional Stability and Moisture Absorption

The dimensional stability of electrical insulation phenolic resin cotton fabric is a key attribute that contributes to its reliability in electrical systems. The material exhibits minimal shrinkage or expansion under varying temperature and humidity conditions. Its low moisture absorption rate, usually less than 2% by weight, further enhances its dimensional stability and electrical properties. This resistance to moisture intrusion is particularly valuable in environments where humidity fluctuations could compromise less robust insulating materials.

Mechanical Strength and Flexibility

Despite its primary role as an electrical insulator, phenolic resin cotton fabric also possesses admirable mechanical properties. The material offers good tensile strength, typically ranging from 60 to 100 MPa, depending on the specific formulation. Its flexibility allows it to conform to complex shapes without cracking or losing its insulating properties. This combination of strength and flexibility makes it suitable for applications where the insulating material may be subjected to mechanical stress during assembly or operation.

Conclusion

Electrical insulation phenolic resin cotton fabric stands out as a versatile and reliable material for a wide range of electrical applications. Its exceptional dielectric strength, coupled with excellent thermal and mechanical properties, makes it an indispensable component in modern electrical systems. The material's ability to maintain its insulating properties under diverse environmental conditions ensures long-term performance and safety. As the demand for efficient and durable electrical insulation continues to grow, phenolic resin cotton fabric remains at the forefront of insulation technology, offering a balanced combination of electrical, thermal, and mechanical properties that few other materials can match.

Contact Us

For more information about our high-quality electrical insulation phenolic resin cotton fabric and how it can benefit your specific application, please don't hesitate to contact us. Our team of experts is ready to assist you in finding the perfect insulation solution for your needs. Reach out to us at info@jhd-material.com to discuss your requirements or to request a sample.
