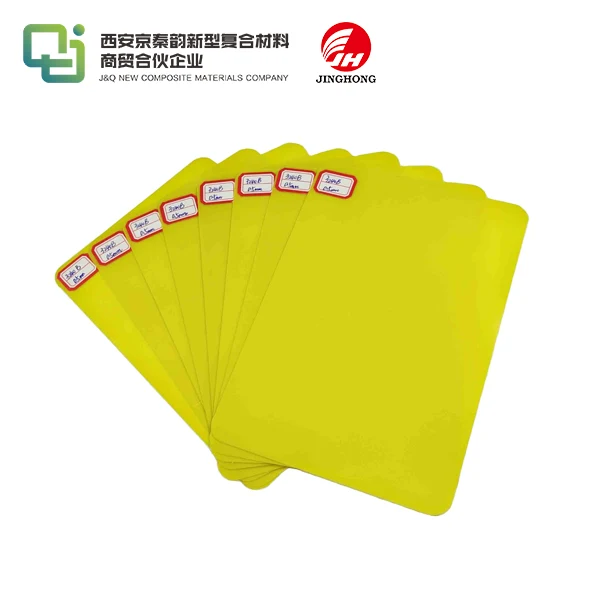

3240 Epoxy Phenolic Glass Cloth Laminated Sheet
Brand: Hongda
Materials: Epoxy Resin, Phenolic Resin
Nature Color: Yellow
Thickness: 0.3mm --- 100mm
Size: 1020mm*2020mm (Regular)
Packaging: Regular packing, Protect by Pallet
Productivity: 13000 Tons per year
Transportation: Ocean, Land, Air
Payment:T/T
MOQ:500KG
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
3240 Epoxy Phenolic Glass Cloth Laminated Sheet Production Description
The way to produce 3240 Epoxy Phenolic Glass Cloth Laminated Sheet is using continuous alkali-free cloth impregnated with an epoxy resin binder and using phenolic resin as curing agent under heat and pressure. It has tough outer skins that improve the surface wear characteristics and prolong life of carrier sheets.
3240 Epoxy Phenolic Glass Cloth Laminated Sheet Application
3240 Epoxy Phenolic Glass Cloth Laminated Sheet can be machined, punched, drilled, milled, swan, sanded, sheared or routed. Assembly by bonding, metal screws or rivets are also possible. Also, it can be used as injection machine, motor, PCB, ICT fixture, table grinding pad.

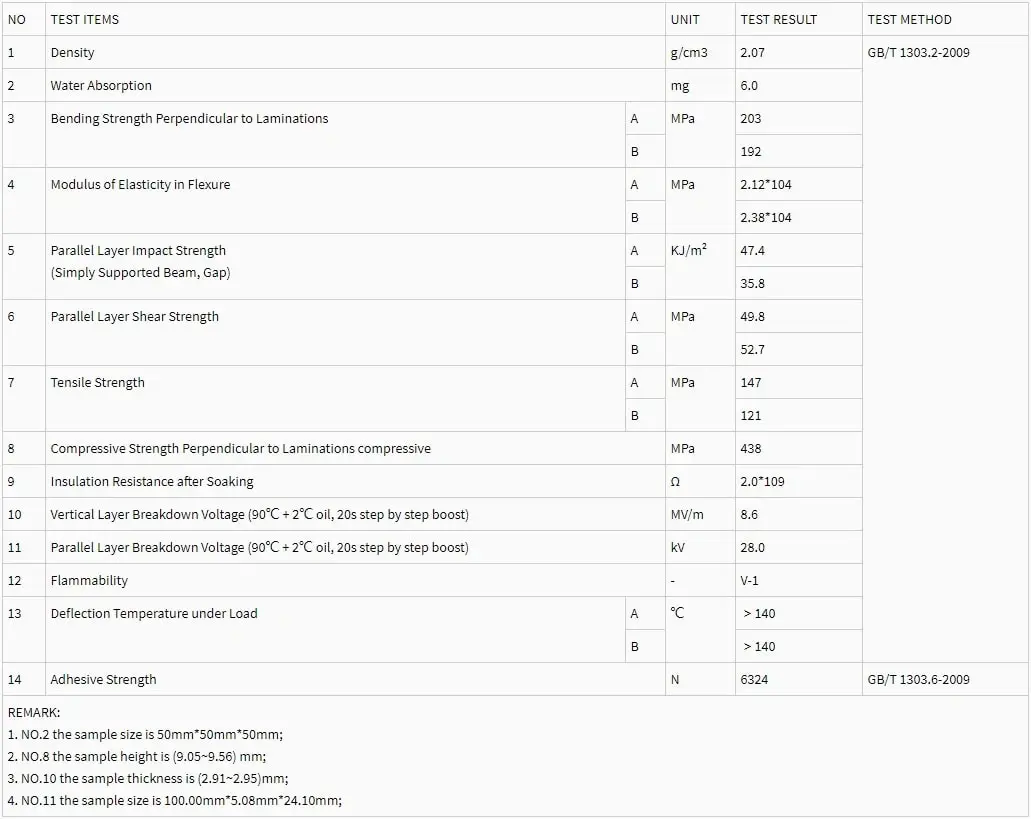

Technical Data for 3240 GradeB
|
|
|
|

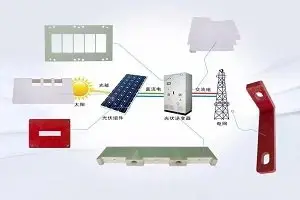

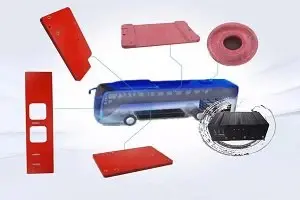

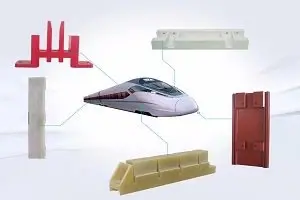

| Rail Transit Industry | Wind Power Industry | Solar Industry |
It can be machined to various shapes as insulation parts in which the mechanical and electrical properties is required.

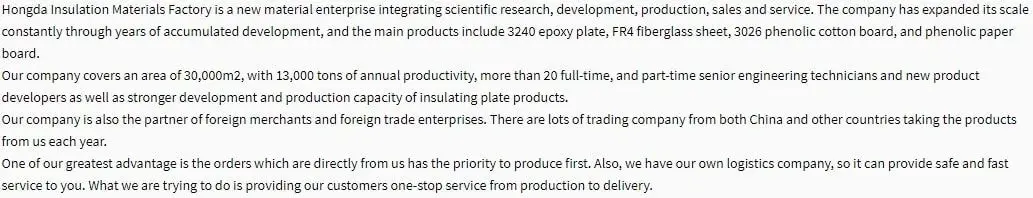

Factory

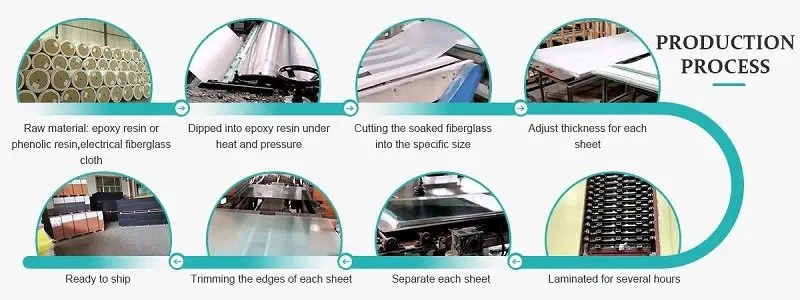

Production Process
|
|

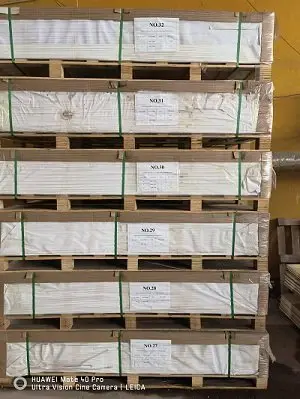

Packaging and Shipping
Regular packing, Protect by Pallet
