Intrinsic conductivity testing of FR4 materials for aerospace applications

In the ever-evolving aerospace industry, the demand for high-performance materials continues to grow. FR4, a glass-reinforced epoxy laminate material, has become a cornerstone in aerospace applications due to its exceptional electrical and mechanical properties. However, to ensure the reliability and safety of aerospace components, rigorous testing methods are essential. One such critical evaluation is the intrinsic conductivity testing of FR4 materials. This comprehensive guide will delve into the intricacies of intrinsic conductivity testing for FR4 materials specifically tailored for aerospace applications. We'll explore the significance of this testing process, the methodologies employed, and the impact it has on the overall performance and safety of aerospace systems.

Understanding FR4 Materials in Aerospace Applications

Composition and Properties of FR4

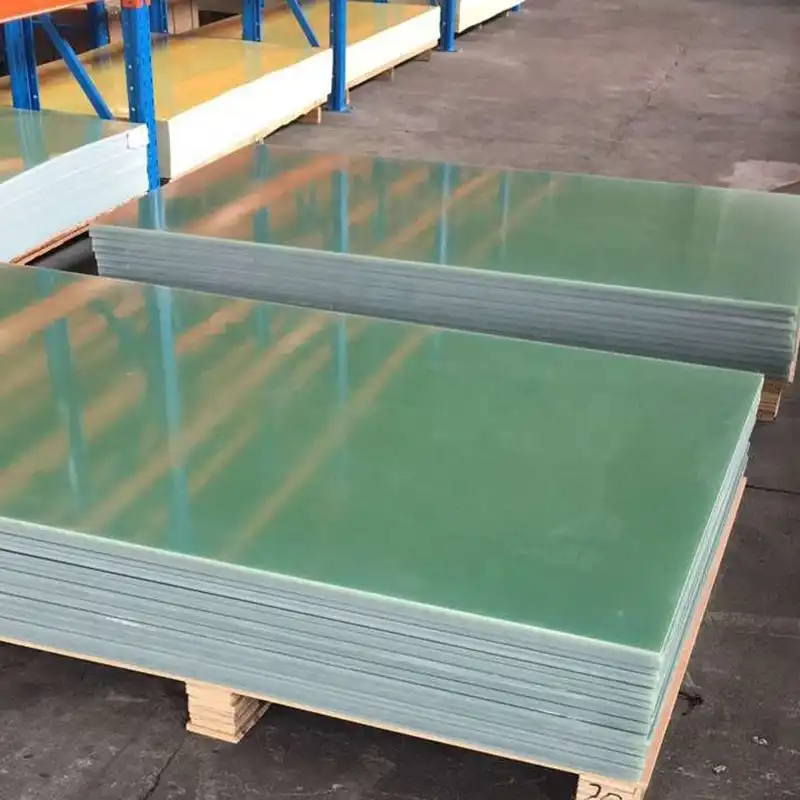

FR4, short for Flame Retardant 4, is a composite material consisting of woven fiberglass cloth impregnated with an epoxy resin binder. This unique composition endows FR4 with remarkable characteristics, including high strength-to-weight ratio, excellent electrical insulation properties, and flame resistance. These attributes make FR4 an ideal candidate for various aerospace applications, ranging from printed circuit boards (PCBs) to structural components.

Aerospace Industry Requirements

The aerospace industry imposes stringent requirements on materials used in aircraft and spacecraft construction. FR4 materials must meet exacting standards for electrical performance, thermal stability, and mechanical strength. Furthermore, they must withstand extreme environmental conditions, including temperature fluctuations, humidity, and vibration. Intrinsic conductivity testing plays a pivotal role in ensuring that FR4 materials meet these demanding specifications.

Importance of Electrical Properties

In aerospace applications, the electrical properties of FR4 materials are of paramount importance. These properties directly influence the performance and reliability of electronic systems onboard aircraft and spacecraft. Intrinsic conductivity, in particular, affects signal integrity, electromagnetic interference (EMI) shielding, and overall system performance. Therefore, accurate testing and characterization of intrinsic conductivity are crucial for designing and manufacturing aerospace-grade FR4 components.

Intrinsic Conductivity Testing Methodologies

Four-Point Probe Method

The four-point probe method is a widely adopted technique for measuring the intrinsic conductivity of FR4 materials. This method involves placing four equally spaced probes in contact with the material's surface. A known current is applied through the outer probes, while the voltage drop is measured across the inner probes. By utilizing this configuration, the influence of contact resistance is minimized, resulting in more accurate measurements of the material's intrinsic conductivity.

Van der Pauw Technique

Another prevalent method for intrinsic conductivity testing is the Van der Pauw technique. This approach is particularly useful for samples with arbitrary shapes and sizes. The technique involves applying current and measuring voltage across different combinations of four contacts placed at the corners of the sample. By employing specific mathematical formulas, the intrinsic conductivity can be calculated from these measurements. The Van der Pauw technique is highly valued for its versatility and ability to provide accurate results for complex geometries often encountered in aerospace components.

Eddy Current Testing

Eddy current testing is a non-destructive evaluation method that can be employed to assess the intrinsic conductivity of FR4 materials. This technique utilizes electromagnetic induction to induce eddy currents within the material. By analyzing the interaction between these currents and the material, valuable information about its electrical properties, including intrinsic conductivity, can be obtained. Eddy current testing is particularly advantageous for in-situ inspections and quality control processes in aerospace manufacturing.

Challenges and Considerations in Intrinsic Conductivity Testing

Environmental Factors

When conducting intrinsic conductivity tests on FR4 materials for aerospace applications, it is crucial to consider the impact of environmental factors. Temperature fluctuations, humidity levels, and atmospheric pressure can significantly influence the measurement results. To ensure accurate and reproducible data, testing environments must be carefully controlled and standardized. Additionally, aerospace-grade FR4 materials should be evaluated under conditions that simulate the extreme environments encountered during flight operations.

Sample Preparation and Handling

Proper sample preparation and handling are essential for obtaining reliable intrinsic conductivity measurements. FR4 materials used in aerospace applications often have complex structures and may require specialized preparation techniques. Surface cleanliness, flatness, and uniformity are critical factors that can affect the accuracy of conductivity measurements. Implementing standardized procedures for sample preparation and handling helps minimize variability and ensures consistency across different testing sessions.

Measurement Accuracy and Precision

Achieving high levels of measurement accuracy and precision is paramount in intrinsic conductivity testing for aerospace-grade FR4 materials. The aerospace industry demands tight tolerances and exceptional reliability, necessitating precise characterization of material properties. Calibration of testing equipment, implementation of error compensation techniques, and utilization of statistical analysis methods are essential for enhancing measurement accuracy and precision. Regular verification and validation of testing procedures help maintain the integrity of the results obtained.

Conclusion

Intrinsic conductivity testing of FR4 materials plays a crucial role in ensuring the safety, reliability, and performance of aerospace applications. By employing advanced testing methodologies and addressing the unique challenges associated with aerospace-grade materials, manufacturers can deliver FR4 components that meet the stringent requirements of the industry. As aerospace technology continues to advance, the importance of accurate and reliable intrinsic conductivity testing will only grow, driving innovation in both materials science and testing techniques.
