Insulation properties of 3240 epoxy sheet
2025-01-20 17:04:55

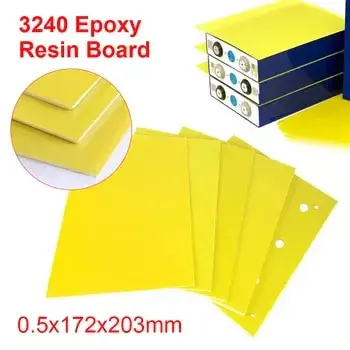

3240 epoxy sheet is a high-performance insulating material widely used in electrical and electronic applications. Its exceptional insulation properties stem from its unique composition and manufacturing process. This epoxy-based laminate offers superior dielectric strength, low moisture absorption, and excellent thermal resistance. These characteristics make it an ideal choice for applications requiring reliable electrical insulation in various environments. The 3240 epoxy sheet's ability to maintain its insulating properties under diverse conditions, including high temperatures and humid environments, has made it a preferred choice for manufacturers of electrical components, circuit boards, and insulating parts across industries.
Composition and Manufacturing of 3240 Epoxy Sheet
Raw Materials and Formulation
The 3240 epoxy sheet is crafted from a carefully selected blend of epoxy resins and glass fiber reinforcement. The epoxy matrix is typically composed of bisphenol A epoxy resin, which provides excellent electrical insulation properties and mechanical strength. Hardeners and catalysts are added to the resin to initiate and control the curing process. The glass fiber reinforcement, usually in the form of woven glass fabric, enhances the sheet's mechanical properties and dimensional stability.
Manufacturing Process
The production of 3240 epoxy sheet involves a sophisticated manufacturing process known as prepreg layup and hot-press molding. Initially, the glass fabric is impregnated with the epoxy resin mixture to create prepregs. These prepregs are then stacked in multiple layers to achieve the desired thickness. The layered structure is subsequently subjected to heat and pressure in a hydraulic press. This process ensures uniform resin distribution, eliminates air pockets, and promotes cross-linking of the epoxy molecules, resulting in a dense, void-free laminate with superior insulation properties.
Quality Control Measures
Rigorous quality control measures are implemented throughout the manufacturing process to ensure consistency and reliability of the 3240 epoxy sheet. These include precise control of resin formulation, careful monitoring of prepreg impregnation, and strict adherence to curing parameters. Post-production testing involves evaluation of electrical, mechanical, and thermal properties to verify compliance with industry standards and specifications.
Electrical Insulation Characteristics of 3240 Epoxy Sheet
Dielectric Strength
One of the most critical electrical insulation properties of 3240 epoxy sheet is its high dielectric strength. This parameter quantifies the maximum electric field that the material can withstand without breakdown. The 3240 epoxy sheet typically exhibits a dielectric strength exceeding 20 kV/mm, making it suitable for high-voltage applications. This exceptional dielectric strength is attributed to the dense, cross-linked structure of the epoxy matrix and the uniform distribution of glass fiber reinforcement.
Volume and Surface Resistivity
The 3240 epoxy sheet boasts impressive volume and surface resistivity values, further enhancing its insulation capabilities. Volume resistivity, which measures the material's resistance to current flow through its bulk, often exceeds 10^14 ohm-cm for 3240 epoxy sheet. Surface resistivity, indicating the material's ability to prevent current flow across its surface, is typically in the range of 10^13 to 10^15 ohms. These high resistivity values ensure minimal current leakage and contribute to the sheet's overall insulation performance.
Dissipation Factor and Dielectric Constant
The dissipation factor and dielectric constant are crucial parameters that influence the 3240 epoxy sheet's behavior in alternating electric fields. The dissipation factor, also known as the loss tangent, is a measure of the energy lost in the dielectric material. For 3240 epoxy sheet, this value is typically low, often less than 0.02 at 1 MHz, indicating minimal energy loss. The dielectric constant, which represents the material's ability to store electrical energy, usually ranges between 4.5 and 5.5 for 3240 epoxy sheet. These properties make it suitable for high-frequency applications where low signal loss is essential.
Thermal and Environmental Resistance of 3240 Epoxy Sheet
Temperature Resistance
The 3240 epoxy sheet exhibits exceptional thermal stability, maintaining its insulation properties over a wide temperature range. It typically has a glass transition temperature (Tg) above 130°C, indicating its ability to retain mechanical and electrical properties at elevated temperatures. This high temperature resistance makes it suitable for applications in harsh environments, such as automotive under-hood components or industrial control systems. The sheet's low coefficient of thermal expansion further contributes to its dimensional stability under temperature fluctuations.
Moisture Absorption Characteristics
Low moisture absorption is a crucial attribute of 3240 epoxy sheet, ensuring the retention of its insulation properties in humid environments. The material typically exhibits water absorption of less than 0.1% when immersed for 24 hours at room temperature. This low moisture uptake is achieved through the dense, cross-linked structure of the epoxy matrix and the hydrophobic nature of the glass fiber reinforcement. The minimal moisture absorption helps prevent degradation of electrical properties and reduces the risk of delamination or blistering in high-humidity conditions.
Chemical Resistance
The 3240 epoxy sheet demonstrates excellent resistance to a wide range of chemicals, including oils, solvents, and mild acids. This chemical inertness is particularly beneficial in applications where the insulating material may come into contact with various substances. The sheet's resistance to chemical attack helps maintain its electrical and mechanical properties over extended periods, even in challenging industrial environments. However, it's important to note that prolonged exposure to strong acids or bases may affect the material's performance, and specific chemical compatibility should be verified for each application.
Conclusion
The insulation properties of 3240 epoxy sheet make it an invaluable material in the realm of electrical and electronic applications. Its high dielectric strength, excellent resistivity, and low dissipation factor ensure reliable electrical insulation across diverse operating conditions. The material's thermal stability and resistance to moisture and chemicals further enhance its versatility and longevity. As industries continue to demand high-performance insulating materials, the 3240 epoxy sheet stands out as a robust solution, capable of meeting the stringent requirements of modern electrical and electronic systems.
