How Strong is 3240 Epoxy Phenolic Glass Cloth Laminated Sheet?
2025-03-24 16:44:48

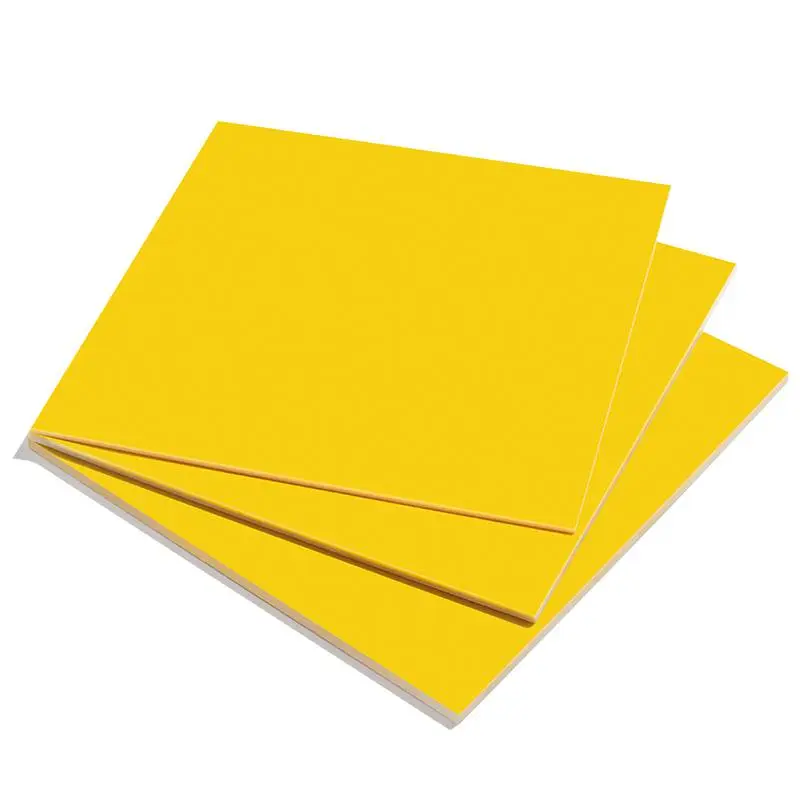

3240 epoxy phenolic glass cloth laminated sheet is renowned for its exceptional strength and durability. This high-performance material boasts impressive mechanical properties, with a tensile strength ranging from 300 to 400 MPa and a flexural strength of 400 to 500 MPa. Its robust nature stems from the combination of epoxy resin, phenolic compounds, and reinforcing glass cloth layers. The sheet's strength is further enhanced by its excellent resistance to heat, chemicals, and electrical insulation. These characteristics make it an ideal choice for applications requiring high structural integrity and reliability, such as electrical insulation, mechanical components, and aerospace parts.
Composition and Manufacturing Process of 3240 Epoxy Phenolic Glass Cloth Laminated Sheet
Raw Materials and Their Contributions
The 3240 epoxy phenolic glass cloth laminated sheet is composed of carefully selected raw materials that contribute to its remarkable strength. The primary components include:
- Epoxy resin: Provides excellent adhesion and chemical resistance
- Phenolic compounds: Enhance heat resistance and dimensional stability
- Glass cloth: Reinforces the structure and improves mechanical properties
This unique combination of materials results in a synergistic effect, yielding a product with superior strength and performance characteristics.
Manufacturing Techniques
The production of 3240 epoxy phenolic glass cloth laminated sheet involves a sophisticated manufacturing process that ensures optimal strength and quality. Key steps include:
- Impregnation of glass cloth with epoxy phenolic resin
- Layering of impregnated cloth to achieve desired thickness
- Application of heat and pressure to cure the resin
- Controlled cooling to prevent internal stresses
These precise manufacturing techniques contribute to the sheet's exceptional strength and uniform properties throughout its structure.
Quality Control Measures
To maintain the high strength and reliability of 3240 epoxy phenolic glass cloth laminated sheet, rigorous quality control measures are implemented throughout the production process. These include:
- Raw material testing and verification
- In-process monitoring of temperature and pressure
- Post-production mechanical and electrical testing
- Dimensional accuracy checks
These stringent quality control procedures ensure that each sheet meets or exceeds the required strength specifications.
Mechanical Properties and Strength Characteristics
Tensile Strength and Elongation
The 3240 epoxy phenolic glass cloth laminated sheet boasts remarkable tensile strength, typically between 300 and 400 MPa, ensuring excellent durability under stress. Alongside this strength, it exhibits a low elongation at break of around 1.5% to 2.5%, meaning it resists stretching and deformation. These characteristics make it highly reliable for demanding applications, offering stability and mechanical integrity in electrical insulation, structural components, and other high-performance uses.
Flexural and Compressive Strength
The 3240 epoxy phenolic glass cloth laminated sheet exhibits outstanding flexural strength, typically between 400 and 500 MPa, allowing it to endure substantial bending forces without cracking or breaking. Additionally, it offers impressive compressive strength, ranging from 300 to 400 MPa, ensuring excellent resistance to crushing under heavy loads. These properties make it a reliable choice for applications requiring both rigidity and durability in high-stress environments.
Impact Resistance and Toughness
Despite its high strength, the 3240 epoxy phenolic glass cloth laminated sheet also offers excellent impact resistance and toughness, making it well-suited for demanding applications. Its ability to absorb and dissipate energy from sudden impacts enhances its durability and prevents structural failure. With an Izod impact strength typically between 10 and 15 kJ/m², the material effectively withstands shocks and mechanical stresses, ensuring long-term reliability in harsh operating conditions.
Applications Leveraging the Strength of 3240 Epoxy Phenolic Glass Cloth Laminated Sheet
Electrical and Electronics Industry
The exceptional strength and electrical insulation properties of 3240 epoxy phenolic glass cloth laminated sheet make it an invaluable material in the electrical and electronics industry. Some key applications include:
- High-voltage switchgear components
- Transformer insulation
- Printed circuit board substrates
- Electrical machine parts
In these applications, the material's strength ensures long-term reliability and safety in demanding electrical environments.
Aerospace and Defense Sector
The aerospace and defense industries rely on the strength and performance of 3240 epoxy phenolic glass cloth laminated sheet for various critical components:
- Aircraft structural parts
- Radome construction
- Missile components
- Satellite structures
The material's high strength-to-weight ratio and resistance to extreme conditions make it ideal for these demanding applications.
Industrial Machinery and Equipment
The strength and durability of 3240 epoxy phenolic glass cloth laminated sheet are also utilized in various industrial machinery and equipment:
- Pump and valve components
- Bearings and bushings
- Gears and sprockets
- Conveyor system parts
In these applications, the material's strength contributes to increased equipment longevity and reduced maintenance requirements.
Conclusion
3240 epoxy phenolic glass cloth laminated sheet stands out as a remarkably strong and versatile material. Its impressive mechanical properties, including high tensile and flexural strength, make it an ideal choice for applications demanding structural integrity and reliability. The sheet's strength is a result of its carefully engineered composition and meticulous manufacturing process. From electrical insulation to aerospace components, this material continues to prove its worth across various industries, offering a combination of strength, durability, and performance that few other materials can match.
Contact Us
To learn more about 3240 epoxy phenolic glass cloth laminated sheet and how it can benefit your specific application, please contact us at info@jhd-material.com. Our team of experts, with over 20 years of experience in producing and selling insulating sheets, is ready to provide you with tailored solutions and exceptional service.
