How Electrical Insulation Epoxy Board FR4 Fiberglass Sheet Enhances Safety in Electrical Systems?

2025-03-20 16:52:08

Electrical insulation epoxy board FR4 fiberglass sheet significantly enhances safety in electrical systems through its exceptional insulating properties, mechanical strength, and fire resistance. This versatile material acts as a robust barrier against electrical current flow, preventing short circuits and electrical leakage. Its high dielectric strength and low moisture absorption ensure consistent performance in various environmental conditions. The flame-retardant characteristics of FR4 fiberglass sheet provide an additional layer of safety, reducing the risk of fire propagation in electrical equipment. By incorporating this advanced insulation material, manufacturers can design more reliable and secure electrical systems, ultimately safeguarding both equipment and users from potential electrical hazards.

Composition and Properties of Electrical Insulation Epoxy Board FR4 Fiberglass Sheet

Raw Materials and Manufacturing Process

Electrical insulation epoxy resin fiberglass sheet FR4 is a composite material crafted from a combination of epoxy resin and woven glass fabric. The manufacturing process involves impregnating multiple layers of glass cloth with epoxy resin, followed by heat curing under pressure. This results in a robust and uniform sheet with superior electrical and mechanical properties.

Electrical Properties

FR4 fiberglass sheet boasts exceptional electrical insulation characteristics. It exhibits high dielectric strength, typically ranging from 20 to 50 kV/mm, which enables it to withstand substantial voltage gradients without breakdown. The material also possesses low dielectric constants and dissipation factors, minimizing signal loss and distortion in high-frequency applications.

Mechanical and Thermal Properties

Beyond its electrical prowess, electrical insulation epoxy board FR4 fiberglass sheet offers impressive mechanical strength and thermal stability. It maintains its structural integrity across a wide temperature range, from -65°C to 130°C. The material's low coefficient of thermal expansion ensures dimensional stability, crucial for precise electrical connections and component mounting.

Safety Enhancements in Electrical Systems

Prevention of Electrical Arcing and Flashover

Electrical insulation epoxy resin fiberglass sheet FR4 significantly enhances safety by preventing electrical arcing and flashover. With its high dielectric strength, it acts as a robust barrier against voltage breakdown, even in demanding high-stress environments. This makes it an essential material in switchgear, transformers, and other high-voltage equipment, where uncontrolled arcing can lead to severe damage, system failures, or even fire hazards. Its reliability ensures long-term protection and stability in critical electrical applications.

Mitigation of Electrical Tracking and Creepage

FR4 fiberglass sheet plays a crucial role in preventing electrical tracking and creepage, ensuring long-term insulation performance. Its dense, non-porous surface resists conductive path formation caused by moisture, dust, or other contaminants. By minimizing these risks, FR4 helps extend the lifespan of electrical components, reducing maintenance needs and preventing insulation failures that could lead to short circuits, system malfunctions, or safety hazards in electrical applications.

Fire Retardancy and Smoke Suppression

The "FR" in FR4 stands for flame retardant, highlighting one of its key safety advantages. This electrical insulation epoxy board FR4 fiberglass sheet is designed to self-extinguish when exposed to flames, preventing fire from spreading within electrical systems. Additionally, it produces minimal smoke and low toxicity during combustion, reducing the risk of impaired visibility and harmful inhalation in emergency situations. These properties make FR4 a reliable choice for enhancing fire safety in various electrical and industrial applications.

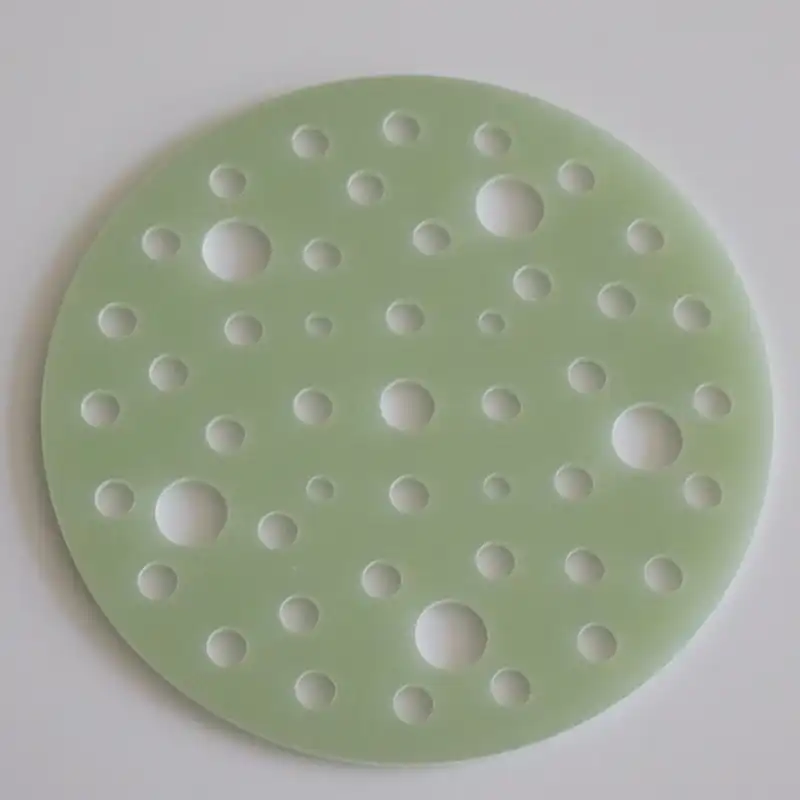

electrical insulation epoxy board FR4 fiberglass sheet

Applications and Best Practices

Printed Circuit Boards (PCBs)

Electrical insulation epoxy resin fiberglass sheet FR4 is widely used as a base material for PCBs due to its outstanding electrical insulation, mechanical strength, and thermal resistance. Its excellent dimensional stability ensures minimal expansion or contraction under varying temperatures, making it ideal for precision circuit layouts. Additionally, FR4 is easy to machine, allowing for complex designs without compromising durability. In PCB applications, it enhances safety by preventing short circuits and ensuring reliable performance in diverse operating conditions.

Electrical Enclosures and Panels

Electrical insulation epoxy resin fiberglass sheet FR4 is an ideal material for manufacturing electrical enclosures and panels due to its exceptional mechanical strength and fire-retardant properties. It provides reliable protection for electrical components, reducing the risk of damage from impact or environmental factors. Additionally, its fire-resistant nature helps contain potential electrical faults, minimizing the spread of fire and enhancing overall safety. This makes FR4 a preferred choice in industries where durability, insulation, and fire safety are critical.

Insulation in High-Voltage Equipment

In high-voltage equipment like transformers and switchgear, FR4 fiberglass sheet serves as a vital insulating material, ensuring operational safety and reliability. Its excellent dielectric strength and resistance to partial discharge help prevent electrical breakdowns, protecting critical components from voltage stress. Additionally, its durability and thermal stability make it well-suited for harsh operating conditions, reducing maintenance needs and enhancing the long-term performance of power distribution systems.

Conclusion

Electrical insulation epoxy board FR4 fiberglass sheet stands as a cornerstone in enhancing the safety of modern electrical systems. Its unique combination of electrical, mechanical, and fire-retardant properties addresses multiple safety concerns simultaneously. By preventing electrical breakdowns, resisting fire propagation, and maintaining structural integrity under diverse conditions, FR4 fiberglass sheet contributes significantly to the reliability and safety of electrical equipment across various industries. As electrical systems continue to evolve and face new challenges, the role of advanced insulation materials like FR4 in safeguarding both equipment and users remains paramount.
