How does 3021 phenolic paper compare to other types of phenolic sheets?

When considering insulating materials, phenolic sheets are a popular choice for their high performance and durability. Among these, the 3021 phenolic paper sheet stands out due to its unique properties. But how does it compare to other types of phenolic sheets? The 3021 phenolic paper sheet offers excellent electrical insulation, mechanical strength, and affordability, making it an ideal choice for many industrial applications. While other phenolic sheets may offer specialized features like higher heat resistance or moisture resistance, the 3021 phenolic paper sheet strikes a balance between performance and cost, making it highly versatile across various industries.

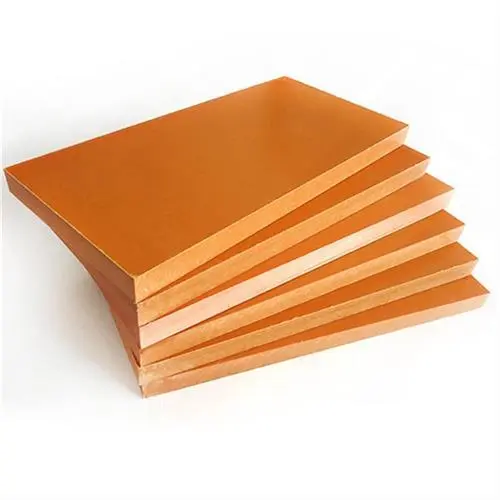

What Is 3021 Phenolic Paper Sheet?

Composition and Manufacturing Process

The 3021 phenolic paper sheet is a laminate created by impregnating kraft paper with phenolic resin and then pressing it under high heat and pressure. This process gives it a robust structure with high mechanical strength and dimensional stability. The key element here is the phenolic resin, which provides exceptional thermal resistance and insulating properties. When compared to other phenolic sheets like the 3721 or 3821 types, the 3021 sheet is composed of less expensive materials, which makes it a cost-effective solution for many industries.

The manufacturing process of 3021 phenolic sheets also allows for various thicknesses and sizes, making it adaptable to specific industrial needs. This versatility is a significant advantage, especially for manufacturers who need custom solutions for different applications.

Key Properties of 3021 Phenolic Paper Sheet

One of the defining features of 3021 phenolic paper sheet is its high electrical insulation. This makes it a go-to material for electrical insulators, circuit boards, and switchboards. It is rated for low-voltage applications and is commonly used in dry conditions. Another important characteristic is its mechanical toughness, which allows it to withstand physical stress without deforming or breaking.

Compared to other phenolic sheets, the 3021 type typically has a lower moisture resistance, which limits its use in environments with high humidity or exposure to water. However, its cost-effectiveness makes it a preferred material for applications where those factors aren't crucial.

Areas of Application

The 3021 phenolic paper sheet is primarily used in applications that require reliable electrical insulation and mechanical strength. It is widely used in the electronics industry, especially for components like switchgear, transformers, and insulating parts in electrical appliances. It is also found in the automotive industry, where it serves as an insulator and structural component. While it may not have the extreme heat resistance of some other phenolic sheets, its superior balance of properties makes it a versatile material for a broad range of industrial applications.

How Does 3021 Phenolic Paper Compare to Other Types of Phenolic Sheets?

3721 Phenolic Cotton Cloth Laminate

Another popular type of phenolic sheet is the 3721 phenolic cotton cloth laminate. While the 3021 phenolic paper sheet is primarily made from paper, the 3721 sheet is reinforced with cotton cloth. This gives the 3721 sheet a higher tensile strength and better impact resistance than the 3021. It also has improved dimensional stability under stress, making it suitable for more demanding mechanical applications.

However, the 3721 phenolic sheet is typically more expensive due to the more complex materials and manufacturing processes involved. It also has less electrical insulation capability compared to the 3021 sheet, making it less ideal for applications where electrical performance is the primary concern.

3821 Phenolic Glass Cloth Laminate

The 3821 phenolic glass cloth laminate is another type of phenolic sheet that offers enhanced properties. Reinforced with glass cloth, this sheet provides superior heat resistance and mechanical strength when compared to both the 3021 and 3721 types. It is often used in high-performance environments, such as aerospace and industrial machinery, where extreme temperatures and mechanical stress are common.

While the 3821 phenolic sheet outperforms the 3021 in terms of heat and mechanical resistance, it comes at a significantly higher cost. Additionally, its electrical insulation properties are not as strong as those of 3021, which makes the latter a better choice for applications focused on electrical performance.

Water-Resistant Phenolic Sheets

For environments exposed to moisture, water-resistant phenolic sheets are available. These sheets have been specially treated to resist moisture absorption, making them ideal for applications in humid or wet environments. However, these sheets tend to be more expensive and are not as widely used as standard phenolic sheets like the 3021.

Compared to these water-resistant variants, the 3021 phenolic paper sheet is not recommended for high-humidity environments. However, in dry conditions,the 3021 phenolic paper sheet excels in terms of electrical insulation and cost efficiency. Its limitation in moisture resistance means it is best suited for controlled environments where exposure to water or humidity is minimal. If your application does not involve frequent exposure to moisture, the 3021 phenolic sheet is an ideal choice due to its overall balance of performance and affordability.

Benefits of Using 3021 Phenolic Paper Sheet

Cost Efficiency

One of the most significant advantages of the 3021 phenolic paper sheet compared to other phenolic sheets is its cost efficiency. The materials used in its production, primarily paper and phenolic resin, are more affordable than those used in other types of laminated sheets like cotton cloth or glass fabric. This makes the 3021 sheet a popular choice for manufacturers seeking high-quality insulating materials without exceeding their budget.

Despite its lower cost, the 3021 sheet still offers excellent electrical insulation and mechanical properties, making it a valuable option for industries that need reliable, cost-effective solutions. This affordability does not come at the expense of performance, as it still meets the rigorous standards required for many industrial applications.

High Electrical Insulation

The electrical insulation properties of the 3021 phenolic paper sheet are one of its most notable features. It can handle low-voltage electrical environments, which makes it ideal for applications such as switchboards, transformers, and electrical insulators. Its ability to resist electrical currents ensures that it can be safely used in electronic devices and systems, offering protection against electrical hazards.

Compared to other phenolic sheets, such as the 3721 or the 3821, the 3021 excels in this specific area, making it the preferred material for electronics and electrical systems where insulation is the top priority. The low dielectric loss of the 3021 ensures that it can maintain its insulating properties over time, even under continuous use.

Versatility Across Industries

The 3021 phenolic paper sheet finds applications across a wide range of industries. From electronics to automotive and machinery, its combination of mechanical strength and electrical insulation makes it an essential material for many industrial purposes. It is commonly used in electrical components, gaskets, spacers, and support structures where reliability and durability are critical.

Furthermore, its adaptability in terms of thickness and size means that it can be customized to fit specific needs, making the 3021 sheet a versatile option for manufacturers and engineers alike. While other phenolic sheets may be preferred for niche applications requiring extreme thermal or mechanical resistance, the 3021 sheet remains a versatile general-purpose material that can meet the demands of various sectors.

Conclusion

The 3021 phenolic paper sheet is a highly versatile, cost-efficient, and reliable insulating material that balances performance with affordability. While it may not offer the same level of heat resistance or mechanical strength as some of the more specialized phenolic sheets, it excels in electrical insulation and mechanical durability, making it an optimal choice for a wide range of industrial uses. Whether you're working in electronics, automotive, or general manufacturing, the 3021 phenolic paper sheet is a material that offers a solid performance at a reasonable price.
