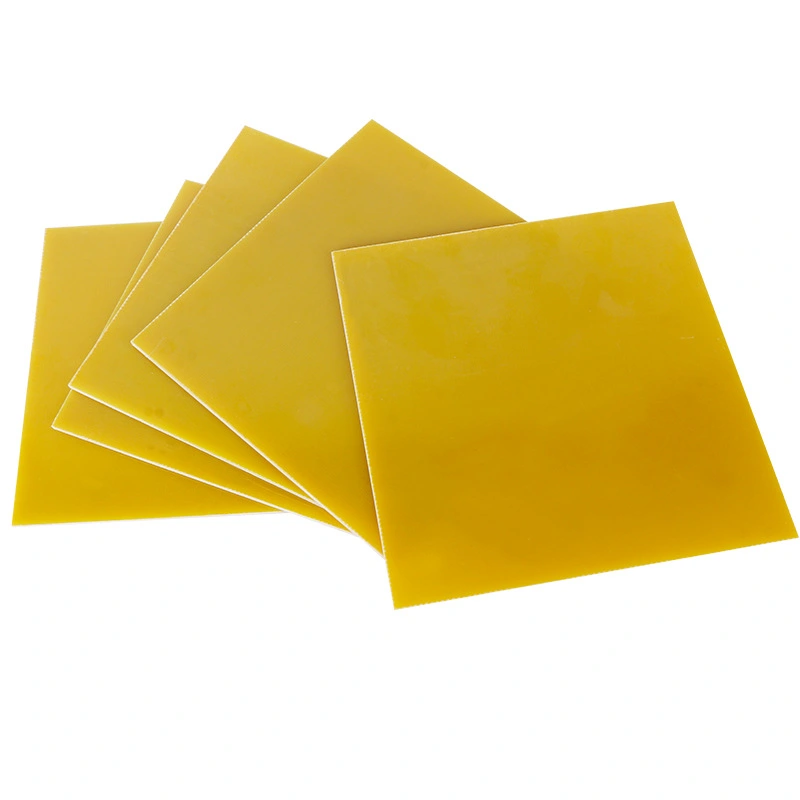

How Do 3240 Epoxy Sheets Compare to Other Insulating Materials?

In the field of electrical insulation, selecting the right material is crucial for ensuring the performance and longevity of electronic devices and components. Among the various options available, 3240 epoxy sheets have garnered attention for their exceptional properties. But how do these sheets stack up against other insulating materials? This blog explores the comparative advantages and disadvantages of 3240 epoxy sheets in the context of electrical insulation.

What Are the Electrical Insulation Properties of 3240 Epoxy Sheets?

When evaluating insulating materials, one of the primary factors to consider is their electrical insulation properties. This section examines the electrical insulation characteristics of 3240 epoxy sheets and compares them with other commonly used insulating materials such as mica, PTFE (Polytetrafluoroethylene), and silicone.

Dielectric Strength

3240 epoxy sheets are known for their high dielectric strength, which measures their ability to withstand electric fields without breaking down. With a dielectric strength typically ranging from 20 to 30 kV/mm, 3240 epoxy sheets can handle high-voltage applications with ease. In comparison, mica has a dielectric strength of about 12 kV/mm, while PTFE and silicone have dielectric strengths around 60 kV/mm and 20 kV/mm, respectively. While PTFE offers higher dielectric strength, 3240 epoxy sheets strike a balance between strength and other properties, making them versatile for various applications.

Electrical Insulation

The electrical insulation capability of 3240 epoxy sheets is further enhanced by their low dielectric constant, which ranges between 4 and 5. This property minimizes energy loss and heat generation, making them suitable for high-frequency applications. In contrast, mica has a dielectric constant of about 6, PTFE around 2.1, and silicone between 3.2 and 3.5. The low dielectric constant of 3240 epoxy sheets ensures efficient performance, particularly in environments where energy efficiency is paramount.

Resistance to Electrical Tracking

Electrical tracking can significantly impair the performance and safety of insulating materials. 3240 epoxy sheets exhibit excellent resistance to electrical tracking, thanks to their robust chemical composition. Mica, on the other hand, offers good resistance but is more prone to flaking and degradation over time. PTFE and silicone also provide good resistance to electrical tracking, with PTFE excelling due to its non-stick properties. However, the overall balance of mechanical and thermal properties in 3240 epoxy sheets gives them an edge in many applications.

How Do 3240 Epoxy Sheets Perform Mechanically Compared to Other Materials?

The mechanical properties of insulating materials are crucial for their durability and performance under physical stress. This section explores the mechanical strength, flexibility, and impact resistance of 3240 epoxy sheets compared to mica, PTFE, and silicone.

Tensile and Flexural Strength

3240 epoxy sheets boast impressive tensile and flexural strength, with tensile strength values typically around 300 MPa and flexural strength up to 450 MPa. These properties make them highly resistant to deformation and breakage under stress. Mica sheets, while strong, have lower tensile and flexural strengths, often limited to about 150 MPa. PTFE offers tensile strength around 20-40 MPa and flexural strength up to 55 MPa, while silicone ranges between 7-11 MPa for tensile strength and 20-30 MPa for flexural strength. The superior mechanical strength of 3240 epoxy sheets makes them ideal for applications requiring robust and reliable materials.

Impact Resistance

Impact resistance is another critical factor for insulating materials used in environments subject to mechanical shocks and vibrations. 3240 epoxy sheets are designed to withstand significant impact without cracking or breaking. Mica, while reasonably impact-resistant, can become brittle over time, especially under thermal stress. PTFE has excellent impact resistance but can deform under prolonged stress. Silicone, known for its flexibility, also offers good impact resistance but may not provide the same level of rigidity and structural integrity as 3240 epoxy sheets.

Dimensional Stability

Dimensional stability under varying temperatures and mechanical loads is essential for maintaining the integrity of insulating materials. 3240 epoxy sheets exhibit excellent dimensional stability, with minimal expansion or contraction in response to temperature changes. Mica also performs well in this regard but can degrade over time. PTFE has high thermal stability but can creep under constant load. Silicone offers good stability but may not retain its shape under extreme mechanical stress. The combination of thermal and mechanical stability in 3240 epoxy sheets makes them a reliable choice for demanding applications.

How Do 3240 Epoxy Sheets Compare in Thermal Performance?

Thermal performance is a key consideration for insulating materials, particularly in high-temperature environments. This section evaluates the thermal conductivity, stability, and resistance to thermal degradation of 3240 epoxy sheets compared to mica, PTFE, and silicone.

Thermal Conductivity

Thermal conductivity determines how effectively a material can transfer heat. 3240 epoxy sheets have moderate thermal conductivity, typically around 0.3 W/m·K, which allows for efficient heat dissipation while maintaining insulation properties. Mica has a thermal conductivity of about 0.7 W/m·K, making it slightly more conductive but less effective as an insulator. PTFE and silicone, with thermal conductivities of approximately 0.25 W/m·K and 0.2 W/m·K, respectively, are better insulators but may not dissipate heat as effectively in certain applications.

Thermal Stability

The ability to maintain performance at high temperatures is crucial for many insulating materials. 3240 epoxy sheets are designed to operate efficiently at temperatures up to 180°C, with some variants capable of withstanding even higher temperatures. Mica can handle temperatures up to 600°C, making it suitable for extreme conditions. PTFE operates well up to 260°C, while silicone can withstand temperatures ranging from -60°C to 230°C. While mica excels in extreme heat, the overall balance of thermal and mechanical properties in 3240 epoxy sheets makes them versatile for a wide range of applications.

Resistance to Thermal Degradation

Thermal degradation can compromise the performance and longevity of insulating materials. 3240 epoxy sheets exhibit excellent resistance to thermal degradation, maintaining their structural and electrical properties even after prolonged exposure to high temperatures. Mica, while highly resistant to thermal degradation, can become brittle and lose mechanical integrity over time. PTFE and silicone also offer good resistance to thermal degradation but may experience some changes in mechanical properties under extreme conditions. The balanced performance of 3240 epoxy sheets ensures long-term reliability and durability in various thermal environments.

Conclusion

3240 epoxy sheets offer a compelling combination of electrical insulation, mechanical strength, and thermal stability that makes them a versatile and reliable choice for various applications. Compared to other insulating materials like mica, PTFE, and silicone, 3240 epoxy sheets provide a balanced performance that addresses the diverse needs of modern industries. Whether used in high-voltage electrical systems, structural components, or high-temperature environments, 3240 epoxy sheets deliver the performance and durability required to meet the challenges of today’s technological demands.
