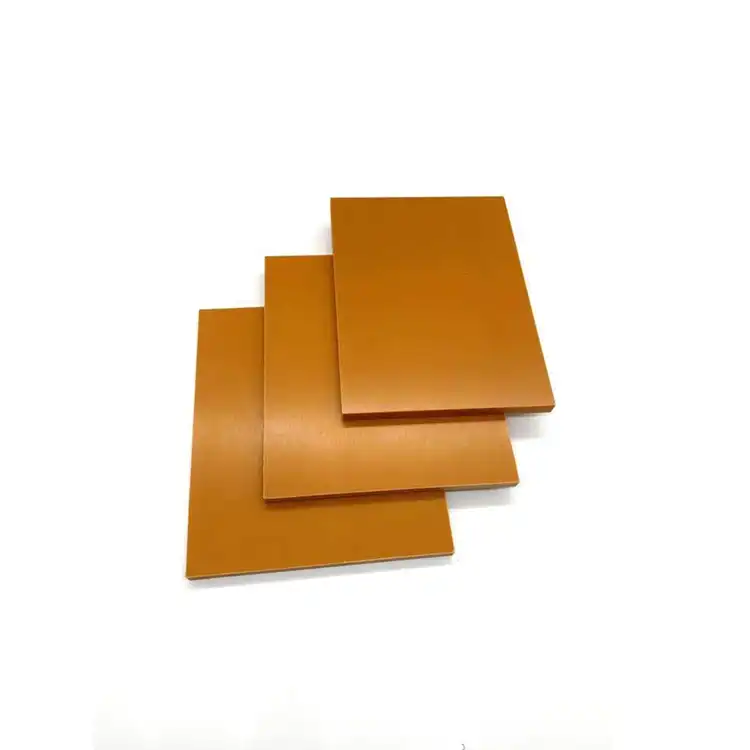

What Is Phenolic Paper Laminate?

In both consumer and business contexts, phenolic paper laminate, sometimes referred to as phenolic paper-based laminate, is a composite material that is widely utilized.This material is widely recognized for its strong mechanical qualities, superior electrical insulation, and resistance to heat and chemicals.This article will look at the qualities, applications, and advantages of phenolic paper laminate over other materials.

How Is Phenolic Paper Laminate Manufactured?

Layers of paper are coated with phenolic resin and subjected to heat and pressure to create a rigid, long-lasting material in the phenolic paper laminate manufacturing process. The only way to obtain the laminate's desired properties is in this manner.

Process of Impregnation The impregnation of the paper with phenolic resin is the first step in the production of phenolic paper laminates. The sheets of paper are submerged in a solution of phenolic resin to ensure that the resin completely covers the paper's fibers.

Depending on the desired properties of the finished laminate, various types of paper can be used during the impregnation process. Kraft paper, which is known for its high mechanical strength, and extraordinary protecting paper, which has unimaginable electrical insurance properties, are two of the most common choices.

The laminate's performance characteristics are largely determined by the resin's formulation. When heated, the resin, which is typically a thermosetting polymer, will become hard and rigid as a result of a chemical reaction. The resin's resistance to chemicals and flame retardancy can be improved with additives.

Lamination includes impregnating resin-saturated paper sheets, drying to remove excess solvent, and layering paper sheets to the desired thickness. After that, these layers are heated and pressed by an overlaying press.

Heat and Pressure The phenolic resin cures when heat and pressure are applied, resulting in strong cross-links between the paper fibers. As a result, the laminate is more long-lasting, stable, and cohesive. Temperature and strain limits need to be carefully controlled in order to guarantee the best layer holding and restoration.

Depending on their intended application, phenolic paper laminates can be produced in a variety of thicknesses and configurations. Although thicker laminates are more durable and have greater mechanical strength, thinner laminates are lighter and more flexible.

Post-Handling The phenolic paper cover might go through extra post-handling ventures after the overlay interaction to accomplish the ideal aspects and surface completion.

Using tools for woodworking or metalworking, the laminate sheets can be cut and machined into specific shapes and sizes. Due to their adaptability, custom parts can be made to meet specific requirements.

Surface Treatments Surface treatments such as sanding, polishing, or coating can enhance the laminate's performance and appearance. A protective coating can increase chemical resistance, while a polished surface can improve aesthetics and reduce friction.

What Are the Key Properties of Phenolic Paper Laminate?

Phenolic paper laminate is suitable for a wide range of applications due to a number of key characteristics. Choosing the right material for a given application is made easier when these properties are understood.

Electrical Insulation The excellent electrical insulation capabilities of phenolic paper laminate are one of the most important properties.

Dielectric Strength which has a high dielectric strength, which indicates that it can withstand substantial electrical stress without deteriorating. Because of this quality, it is ideally suited for use in electronic and electrical components where reliable insulation is essential.

Low Conductivity The material's low electrical conductivity makes it more suitable for use as an insulator. It stops the flow of electricity, preventing short circuits and other electrical failures in systems and components.

Mechanical Strength The impressive mechanical strength of it contributes to its durability and dependability.

Tensile and flexural strength The product's tensile and flexural strength guarantee that it will not crack or break under mechanical stress or strain. Because of this, structural components and support systems can rely on it as a material.

Impact Resistant The laminate's ability to withstand impacts and shocks by absorbing and dissipating energy reduces the likelihood of damage. This quality is especially important in situations where the material may be handled rough or physically.

Resistance to Heat and Chemicals Phenolic paper laminate performs better in challenging environments due to its resistance to heat and chemicals.

Heat Resistant The material is suitable for heat-related applications because it can withstand high temperatures without deteriorating. Electrical components and industrial settings that require thermal stability most benefit from this property.

Chemical Resistantness A wide range of chemicals, including acids, alkalis, and solvents, can't harm the product. In harsh chemical environments, the material's integrity and performance are guaranteed by this resistance.

Layered Steadiness

Phenolic paper cover displays magnificent layered steadiness, meaning it holds its shape and size under changing natural circumstances.

Low Water Absorption In humid or wet conditions, the material's low water absorption rate prevents swelling and distortion. In outdoor or moist environments, components' accuracy and dependability must be maintained by this property.

Stability Over Time which resists warping, shrinking, and other dimensional changes over time. Throughout the material's service life, this long-term stability ensures consistent performance and dependability.

What Are the Applications of Phenolic Paper Laminate?

Phenolic paper laminate has a wide range of applications due to its distinctive properties.

Phenolic paper covers are widely used in electrical and electronic industries due to their excellent protection properties.

Printed Circuit Boards (PCBs) which is frequently utilized as the base for printed circuit boards (PCBs). It is an essential component in electronic devices because of its electrical insulation properties, which ensure reliable performance and prevent short circuits.

Panels for Switchgear and Insulation This material provides good insulation and structural support for panels for switchgear and insulation. Because of its protection from electrical pressure and high temperatures, it is great for these applications.

The product mechanical strength and thermal stability are utilized in numerous automotive and aerospace components.

Engine Components For example, which is required for the mechanical strength and heat resistance of seals and gaskets. Its ability to withstand heat stress ensures that even in difficult conditions, it will function reliably.

The product is used in airplane interiors due to its lightness, strength, and fire resistance, making aerospace applications safer and more effective. The material's performance benefits components like interior panels and overhead compartments.

Phenolic paper overlay is utilized in various modern applications because of its solidness and synthetic obstruction.

Machinery and Equipment The mechanical strength, chemical and heat resistance, and chemical and heat resistance of the material are crucial to the construction of machinery and equipment. It is a sturdy material for components like gears and bearings.

Chemical Processing Plants Phenolic paper laminate is used in chemical processing plants' containment and insulation systems. Its resistance to forceful synthetics ensures safe and compelling activities in these challenging conditions.

Products for the Consumer Market which is also utilized in a variety of consumer goods, where it is highly prized for its functional and aesthetic qualities.

Furniture and Embellishing Things Because of its alluring appearance and solidness, this material is used in the development of furniture and beautifying things. Cabinetry, countertops, and other home furnishings frequently incorporate laminates with decorative finishes.

Due to its strength and light weight, which is used in sporting goods. The material's performance qualities are beneficial to protective gear and equipment parts.

Why Choose Phenolic Paper Laminate Over Other Materials?

Phenolic paper laminate offers several advantages over other materials, making it a preferred choice for many applications.

Cost-Effectiveness

The product is a cost-effective material, offering high performance at a reasonable price.

Affordable Manufacturing
The manufacturing process for it is relatively simple and cost-efficient, making it an affordable option for large-scale production. This affordability supports its widespread use in various industries.

Long Service Life
The material's durability and resistance to wear and tear contribute to a long service life, reducing the need for frequent replacements. This longevity offers both economic and environmental benefits.

Versatility

The versatility of product allows it to be used in a wide range of applications, providing flexibility and adaptability.

Customization Options
It can be customized with various fillers, additives, and surface treatments to enhance specific properties. This customization enables the material to meet the unique requirements of different applications.

Compatibility with Modern Technologies
The material's compatibility with modern manufacturing technologies, such as CNC machining and molding, ensures that it can be efficiently produced and integrated into contemporary applications.

Environmental Considerations

It offers environmental benefits through its long lifespan and potential for recycling and repurposing.

Sustainable Use
While not biodegradable, the long service life of the product reduces waste and the need for frequent replacements. Efforts to recycle and repurpose the material are increasing, further enhancing its environmental profile.

Recycling Initiatives
Recycling and repurposing initiatives for the products are gaining traction, reducing waste and promoting sustainability. These efforts help to minimize the environmental footprint of phenolic paper laminate production and use.

Conclusion

Phenolic paper laminate is a versatile and reliable material with excellent electrical insulation, mechanical strength, thermal and chemical resistance, and dimensional stability. Its wide range of applications, from electrical and electronics to automotive, aerospace, industrial, and consumer products, highlights its importance in modern engineering and manufacturing. The cost-effectiveness, versatility, and environmental considerations further enhance its appeal, making phenolic paper laminate a preferred choice for many applications.

References

1. **Understanding Phenolic Laminates**. (n.d.). Retrieved from [Science Direct](https://www.sciencedirect.com/topics/materials-science/phenolic-laminate)
