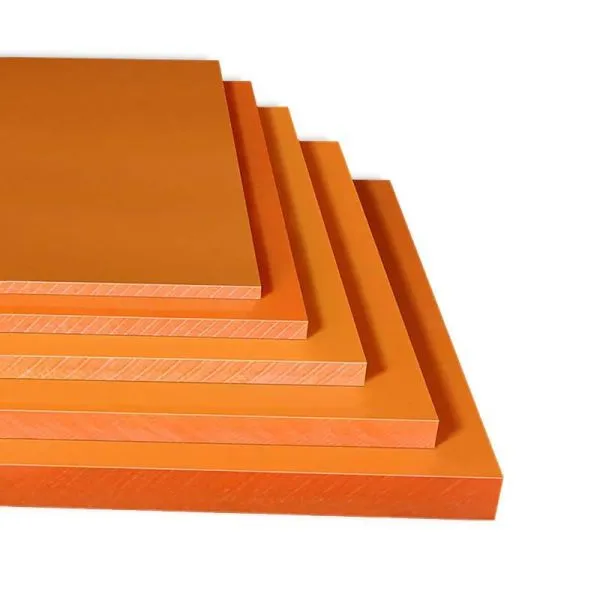

What is Bakelite Sheet?

Bakelite sheet is a versatile and durable thermosetting plastic material widely used in various industrial applications. Composed of phenol-formaldehyde resin, Bakelite sheets are renowned for their excellent electrical insulation properties, heat resistance, and mechanical strength. These synthetic polymer sheets are manufactured through a process of heat and pressure application, resulting in a hard, rigid, and non-conductive material. Bakelite sheets come in various grades and thicknesses, catering to diverse needs across industries such as electrical, automotive, aerospace, and manufacturing. Their unique combination of properties makes them indispensable in the production of electrical components, circuit boards, and high-performance mechanical parts.

Properties and Characteristics of Bakelite Sheet

Chemical Composition and Structure

Bakelite sheets are formed from phenol-formaldehyde resins, a class of synthetic polymers. The chemical reaction between phenol and formaldehyde creates a cross-linked structure, resulting in a thermoset material. This unique molecular arrangement contributes to Bakelite's exceptional properties, including its resistance to heat, chemicals, and electrical current.

The cross-linked structure of Bakelite sheets provides them with remarkable dimensional stability. Unlike thermoplastics, Bakelite maintains its shape and properties even when exposed to high temperatures. This stability is crucial in applications where consistent performance under varying conditions is essential.

Physical Properties

Bakelite sheets exhibit a range of physical properties that make them suitable for diverse applications. They possess high compressive strength, allowing them to withstand significant mechanical stress without deformation. The material's low thermal expansion coefficient ensures minimal dimensional changes in response to temperature fluctuations.

The density of Bakelite sheets typically ranges from 1.3 to 1.4 g/cm³, making them relatively lightweight yet sturdy. Their smooth surface finish and ability to be machined with precision contribute to their popularity in manufacturing processes. Bakelite sheets also demonstrate excellent resistance to wear and abrasion, extending the lifespan of components made from this material.

Electrical and Thermal Properties

One of the most notable characteristics of Bakelite sheets is their superior electrical insulation properties. They exhibit high dielectric strength, low dielectric constant, and excellent volume resistivity. These attributes make Bakelite sheets ideal for use in electrical and electronic applications, where preventing current flow and maintaining signal integrity are paramount.

Thermally, Bakelite sheets showcase impressive heat resistance. They can withstand continuous exposure to temperatures up to 125°C (257°F) without significant degradation. This thermal stability, combined with their low thermal conductivity, makes them valuable in applications requiring both electrical insulation and heat resistance.

Applications of Bakelite Sheet

Electrical and Electronics Industry

In the electrical and electronics sector, Bakelite sheets play a crucial role in the fabrication of various components. They serve as excellent substrates for printed circuit boards (PCBs), providing a stable and insulating base for electronic circuits. The material's high dielectric strength makes it suitable for creating insulating barriers in transformers, switchgear, and other high-voltage equipment.

Bakelite sheets are also utilized in the production of electrical panels, terminal blocks, and insulating bushings. Their ability to withstand electrical arcing and maintain their properties under high-frequency conditions makes them invaluable in the design of reliable electrical systems.

Automotive and Aerospace Industries

The automotive industry benefits from the unique properties of Bakelite sheets in various applications. They are used in the manufacturing of brake pads, clutch facings, and transmission components. The material's heat resistance and low coefficient of friction make it ideal for these high-stress, high-temperature environments.

In aerospace applications, Bakelite sheets find use in the construction of interior panels, electrical connectors, and insulating components. Their lightweight nature, combined with excellent mechanical and electrical properties, contributes to the overall efficiency and safety of aircraft systems.

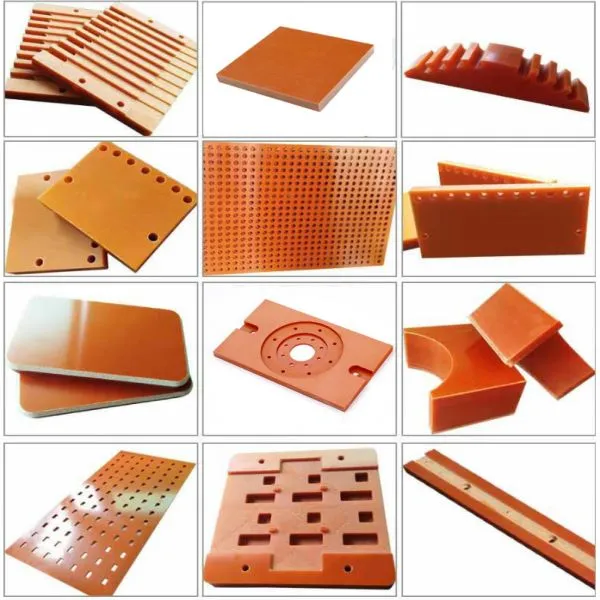

Industrial and Manufacturing Applications

Bakelite sheets are extensively used in industrial machinery and manufacturing processes. They serve as excellent materials for creating jigs, fixtures, and tooling components due to their dimensional stability and machining capabilities. In the chemical industry, Bakelite's resistance to corrosive substances makes it suitable for lining tanks and piping systems.

The material's heat-resistant properties also make it valuable in the production of welding fixtures and heat shields. Bakelite sheets are employed in the manufacturing of gears, bearings, and other mechanical components that require high strength and wear resistance.

Manufacturing Process and Grades of Bakelite Sheet

Production Techniques

The manufacturing process of Bakelite sheets involves several stages, beginning with the preparation of the phenol-formaldehyde resin. This resin is typically combined with fillers, such as wood flour or glass fibers, to enhance specific properties. The mixture is then spread evenly onto a carrier material, often a cotton or glass fabric.

The impregnated sheets undergo a carefully controlled curing process involving heat and pressure. This stage initiates the cross-linking reaction, transforming the resin into its final, thermoset state. Multiple layers may be pressed together to achieve the desired thickness and properties. The sheets are then cooled and post-cured to ensure complete polymerization and optimal performance characteristics.

Available Grades and Classifications

Bakelite sheets are available in various grades, each tailored to specific applications and performance requirements. The most common classifications include:

- Grade XX: Unfilled phenolic sheets with excellent electrical properties and machinability.

- Grade XXX: Cotton fabric-reinforced phenolic sheets offering improved mechanical strength.

- Grade C: Paper-based phenolic sheets suitable for general-purpose applications.

- Grade CE: Glass fabric-reinforced phenolic sheets with enhanced electrical and mechanical properties.

- Grade LE: Linen-based phenolic sheets combining good machinability with mechanical strength.

Each grade offers a unique combination of properties, allowing manufacturers to select the most appropriate material for their specific needs. Factors such as electrical insulation requirements, mechanical stress, operating temperature, and chemical exposure influence the choice of Bakelite sheet grade.

Quality Control and Testing

Ensuring the consistent quality of Bakelite sheets is crucial for their reliable performance in various applications. Manufacturers employ rigorous quality control measures throughout the production process. These include:

- Raw material testing to verify the composition and purity of the phenol-formaldehyde resin and fillers.

- In-process monitoring of temperature, pressure, and curing time to maintain consistent cross-linking.

- Dimensional checks to ensure sheets meet specified thickness and flatness tolerances.

- Electrical property testing, including dielectric strength and volume resistivity measurements.

- Mechanical property evaluations, such as flexural strength, impact resistance, and hardness tests.

- Thermal analysis to confirm heat resistance and dimensional stability at elevated temperatures.

These quality control measures, combined with adherence to industry standards and specifications, ensure that Bakelite sheets meet the exacting requirements of their intended applications.

Conclusion

Bakelite sheets have proven to be an indispensable material in various industries due to their exceptional electrical, thermal, and mechanical properties. Their versatility, durability, and reliability make them a preferred choice for applications ranging from electrical insulation to high-performance mechanical components. As technology advances, the demand for materials with superior insulating properties and thermal stability continues to grow, ensuring that Bakelite sheets remain relevant in modern manufacturing and engineering practices. Understanding the properties, applications, and manufacturing processes of Bakelite sheets is essential for professionals seeking to leverage this versatile material in their designs and productions.
