Maximizing Performance with FR4 Epoxy Fiberglass Laminate Sheets in Electronics

Want to know the secret to maximizing performance in your electronics projects? Look no further than FR4 epoxy fiberglass laminate sheets. These versatile materials are the backbone of high-performing electronic applications, offering unparalleled durability, thermal resistance, and electrical insulation. By choosing FR4, you ensure your circuit boards and insulating components can withstand extreme conditions while maintaining optimal functionality. Their robust mechanical strength and flame-retardant properties make them indispensable in industries ranging from aerospace to consumer electronics. Ready to elevate your designs? Harness the power of FR4 epoxy fiberglass laminate sheets to achieve superior performance, longevity, and reliability in your electronic systems, setting your products apart in a competitive global market.

Understanding the Power of FR4 Epoxy Fiberglass Laminate Sheets

What Makes FR4 a Game-Changer in Electronics?

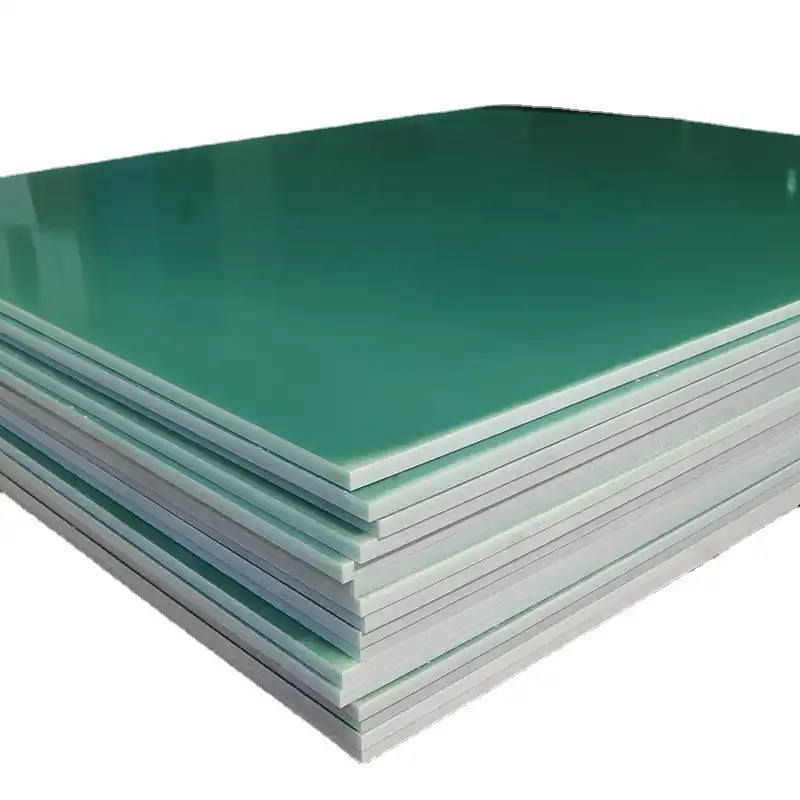

FR4 epoxy fiberglass laminate sheets are not just another material - they're a cornerstone of modern electronics. Composed of woven fiberglass cloth impregnated with an epoxy resin, FR4 is renowned for its exceptional electrical insulation properties. This makes it an ideal substrate for printed circuit boards (PCBs), ensuring signals flow without interference. Beyond insulation, FR4 boasts impressive mechanical strength, allowing it to endure physical stress without compromising integrity. Its ability to resist moisture and chemicals further enhances its appeal, especially in harsh environments. Manufacturers globally rely on this material to create reliable, high-performance electronic components, making it a linchpin in cutting-edge technology.

The Science Behind FR4's Superior Properties

Diving into the nitty-gritty, FR4 epoxy fiberglass laminate sheet's prowess stems from its unique composition. The fiberglass core provides tensile strength, while the epoxy resin adds rigidity and thermal stability. This synergy results in a material that can operate at temperatures up to 130°C without degrading, crucial for electronics that generate significant heat. Additionally, FR4's low dielectric constant ensures minimal signal loss, a vital attribute for high-frequency applications. Its flame-retardant nature, denoted by the "FR" in its name, complies with stringent safety standards, reducing fire risks in electronic assemblies. This blend of attributes positions FR4 as a material of choice for engineers aiming to push performance boundaries.

Why FR4 Outshines Other Insulating Materials?

When pitted against alternatives like phenolic laminates or polyimide, FR4 epoxy fiberglass laminate sheets often emerge victorious. Phenolic materials, while cost-effective, lack the thermal endurance and insulation quality of FR4, making them unsuitable for high-stakes applications. Polyimide, on the other hand, excels in extreme temperatures but comes with a heftier price tag, often unnecessary for standard electronics. FR4 strikes a balance, offering robust performance at a reasonable cost. Its versatility allows it to be machined, drilled, and layered with copper, facilitating complex PCB designs. This adaptability, combined with its proven track record, cements FR4's dominance in the realm of insulating materials.

Applications of FR4 Epoxy Fiberglass Laminate Sheets in Electronics

Powering High-Performance PCBs

Printed circuit boards are the heart of electronic devices, and FR4 epoxy fiberglass laminate sheets are the lifeblood that keeps them beating. As the substrate for PCBs, FR4 provides a stable foundation for mounting components and etching circuits. Its low dielectric loss ensures signal integrity, crucial for devices operating at high frequencies, such as smartphones and radar systems. The material's dimensional stability prevents warping during soldering, ensuring long-term reliability. Manufacturers worldwide leverage FR4 to craft PCBs that power everything from medical devices to industrial machinery, highlighting its indispensable role in electronics innovation.

Enhancing Safety in Consumer Electronics

Safety is paramount in consumer electronics, and FR4 epoxy fiberglass laminate sheet delivers. Its flame-retardant properties make it a go-to choice for devices like laptops, televisions, and gaming consoles, where fire hazards must be minimized. The material's ability to resist thermal degradation ensures that even under prolonged use, the risk of overheating is curtailed. Additionally, FR4's chemical resistance protects against corrosion, extending the lifespan of devices exposed to humid or corrosive environments. By incorporating FR4 epoxy fiberglass laminate sheets, manufacturers can offer consumers products that are not only high-performing but also safe and durable, fostering trust and brand loyalty.

Supporting Aerospace and Industrial Applications

Beyond consumer goods, FR4 shines in demanding sectors like aerospace and industrial automation. In aerospace, where weight, strength, and reliability are critical, FR4's lightweight yet sturdy nature makes it ideal for avionics and satellite systems. Its ability to withstand vibration and thermal cycling ensures consistent performance in the stratosphere. In industrial settings, FR4 is used in control panels, motor drives, and robotics, where it endures mechanical stress and electrical surges. These applications underscore FR4's versatility, proving it can meet the rigorous demands of specialized industries while maintaining cost-effectiveness, a hallmark of its global appeal.

Optimizing Your Use of FR4 Epoxy Fiberglass Laminate Sheets

Selecting the Right Grade for Your Needs

Not all FR4 epoxy fiberglass laminate sheets are created equal. Variants exist to cater to specific requirements, such as high-temperature grades for extreme conditions or halogen-free options for eco-conscious applications. When selecting FR4, consider factors like operating temperature, electrical demands, and environmental exposure. Standard FR4 suits most general-purpose electronics, but specialized grades may be necessary for niche applications, such as high-voltage transformers or green technology. Consulting with a seasoned supplier can help you pinpoint the exact grade that aligns with your project's goals, ensuring optimal performance without overspending.

Best Practices for Fabrication and Assembly

To unlock the full potential of FR4 epoxy fiberglass laminate sheet, meticulous fabrication is key. During machining, use carbide tools to prevent delamination, as FR4's fiberglass component can be abrasive. Maintain precise drilling parameters to avoid micro-cracks, which could compromise insulation. When laminating with copper, ensure thorough cleaning to eliminate contaminants that might affect adhesion. Temperature control during soldering is also critical - excessive heat can degrade the epoxy, weakening the material. By adhering to these practices, you can maximize the durability and efficacy of FR4 epoxy fiberglass laminate sheets, ensuring your electronic assemblies perform flawlessly over their lifespan.

Partnering with a Trusted Supplier for Quality Assurance

Quality is non-negotiable when it comes to FR4, and partnering with a reputable supplier is essential. A supplier with decades of experience, like one with over 20 years in producing insulating sheets and a decade in global trade, can offer unparalleled expertise. Such a partner not only provides high-grade materials but also offers insights into optimizing their use. Look for suppliers with a track record of collaborating with diverse industries, as this indicates their ability to deliver tailored solutions. By choosing a supplier committed to excellence, you gain access to premium FR4 epoxy fiberglass laminate sheets that elevate your products' performance and reliability.

Conclusion

FR4 epoxy fiberglass laminate sheets are a linchpin in achieving peak performance in electronics, offering a blend of durability, safety, and versatility. From powering PCBs to enhancing safety in consumer devices and supporting aerospace innovations, FR4 proves its mettle across industries. By selecting the right grade, adhering to fabrication best practices, and partnering with a trusted supplier, you can harness its full potential. Ready to elevate your electronic designs? Embrace FR4 to ensure your products stand out in a competitive global market, delivering reliability and excellence.
