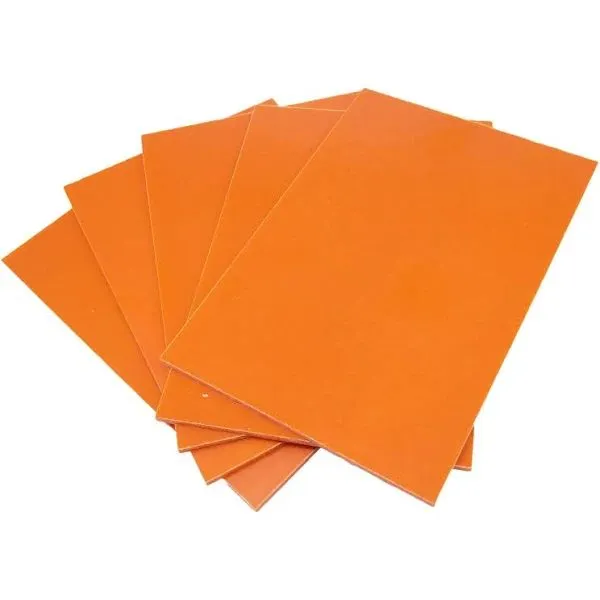

What is 3021 phenolic paper sheet used for?

3021 phenolic paper sheet is a versatile and robust insulating material widely used in various industries due to its exceptional electrical and mechanical properties. This high-performance laminate is primarily utilized in electrical and electronic applications, serving as an excellent insulator in transformers, motors, and switchgear. Its remarkable heat resistance and dimensional stability make it ideal for use in high-temperature environments, such as in the manufacturing of printed circuit boards and automotive components. Additionally, 3021 phenolic paper sheet finds applications in the aerospace industry, where its lightweight nature and durability are highly valued. The material's low moisture absorption and excellent machinability further expand its use in industrial machinery and equipment insulation.

Composition and Manufacturing Process of 3021 Phenolic Paper Sheet

Raw Materials and Their Properties

3021 phenolic paper sheet is composed of carefully selected raw materials that contribute to its exceptional performance. The primary components include:

- Phenolic resin: This synthetic polymer serves as the binding agent, providing the sheet with its characteristic strength and heat resistance.

- Cellulose paper: High-quality paper is used as the base material, offering excellent electrical insulation properties and dimensional stability.

- Additives: Various additives may be incorporated to enhance specific properties such as flame retardancy or UV resistance.

The combination of these materials results in a laminate that exhibits superior electrical insulation, mechanical strength, and thermal stability.

Production Techniques

The manufacturing process of 3021 phenolic paper sheet involves several intricate steps:

- Impregnation: The cellulose paper is thoroughly impregnated with phenolic resin, ensuring even distribution throughout the material.

- Layering: Multiple layers of impregnated paper are stacked to achieve the desired thickness and properties.

- Heat and pressure application: The layered material is subjected to controlled heat and pressure in a hydraulic press, causing the resin to cure and bond the layers together.

- Cooling and post-curing: The laminate is carefully cooled and may undergo additional heat treatment to optimize its properties.

- Finishing: The cured sheets are trimmed, sanded, and inspected for quality assurance.

This meticulous production process ensures the consistent quality and performance of 3021 phenolic paper sheet.

Quality Control Measures

To maintain the high standards expected of 3021 phenolic paper sheet, rigorous quality control measures are implemented throughout the manufacturing process:

- Raw material testing: Incoming materials are thoroughly tested to ensure they meet specified requirements.

- In-process monitoring: Key parameters such as temperature, pressure, and curing time are closely monitored and controlled.

- Physical property testing: Samples from each batch undergo tests for mechanical strength, electrical resistance, and dimensional stability.

- Thermal performance evaluation: The material's behavior under various temperature conditions is assessed to ensure it meets industry standards.

- Non-destructive testing: Techniques such as ultrasonic inspection may be employed to detect any internal defects or inconsistencies.

These comprehensive quality control measures guarantee that each sheet of 3021 phenolic paper meets the exacting standards required for its diverse applications.

Key Properties and Advantages of 3021 Phenolic Paper Sheet

Electrical Insulation Characteristics

3021 phenolic paper sheet boasts exceptional electrical insulation properties, making it a preferred choice in numerous electrical applications:

- High dielectric strength: The material effectively resists electrical breakdown, even under high voltage conditions.

- Low dielectric constant: This property ensures minimal energy loss in high-frequency applications.

- Volume and surface resistivity: 3021 phenolic paper sheet exhibits high resistance to current flow, both through its bulk and along its surface.

- Arc resistance: The material demonstrates excellent resistance to electrical arcing, enhancing safety in high-voltage environments.

These electrical properties contribute to the material's reliability and efficiency in various electrical systems and components.

Mechanical and Physical Properties

Beyond its electrical characteristics, 3021 phenolic paper sheet offers impressive mechanical and physical properties:

- High compressive strength: The material can withstand significant compressive loads without deformation.

- Excellent flexural strength: It resists bending and maintains its shape under stress.

- Low density: Despite its strength, 3021 phenolic paper sheet is relatively lightweight, making it suitable for applications where weight is a concern.

- Dimensional stability: The material maintains its dimensions across a wide range of temperatures and humidity levels.

- Low moisture absorption: This property ensures consistent performance even in damp environments.

- Good machinability: 3021 phenolic paper sheet can be easily cut, drilled, and shaped without compromising its integrity.

These mechanical and physical attributes contribute to the material's versatility and durability in various applications.

Thermal and Chemical Resistance

3021 phenolic paper sheet exhibits remarkable thermal and chemical resistance properties:

- High heat resistance: The material maintains its properties at elevated temperatures, typically up to 150°C (302°F) for continuous use.

- Low thermal expansion: This characteristic ensures dimensional stability even under fluctuating temperature conditions.

- Flame retardancy: Many grades of 3021 phenolic paper sheet are inherently flame-retardant, enhancing safety in electrical applications.

- Chemical resistance: The material demonstrates good resistance to a wide range of chemicals, oils, and solvents.

- Low outgassing: In high-vacuum or clean room environments, 3021 phenolic paper sheet exhibits minimal release of volatile compounds.

These thermal and chemical resistance properties expand the material's applicability in harsh and demanding environments.

Applications and Industries Utilizing 3021 Phenolic Paper Sheet

Electrical and Electronics Industry

The electrical and electronics industry is one of the primary consumers of 3021 phenolic paper sheet, utilizing its exceptional insulating properties in various applications:

- Transformer insulation: The material is used to insulate windings and cores in power and distribution transformers.

- Motor insulation: 3021 phenolic paper sheet serves as slot liners and phase insulators in electric motors.

- Switchgear components: It is employed in the manufacture of bushings, barriers, and other insulating parts in switchgear assemblies.

- Printed circuit boards: High-grade 3021 phenolic paper sheet is used as a base material for certain types of printed circuit boards.

- Electrical panels: The material is utilized in the construction of electrical panel boards and distribution boxes.

In these applications, the material's combination of electrical insulation, mechanical strength, and thermal stability proves invaluable.

Automotive and Transportation Sector

The automotive and transportation sector leverages the properties of 3021 phenolic paper sheet in various components and systems:

- Brake systems: The material is used in the manufacture of brake pads and linings due to its heat resistance and low wear characteristics.

- Electrical components: It serves as insulation in alternators, starters, and other electrical systems in vehicles.

- Underhood applications: 3021 phenolic paper sheet finds use in various under-the-hood components where heat resistance is crucial.

- Interior parts: Some interior components, such as dashboard supports or seat backs, may incorporate this material for its strength and lightweight nature.

- Railway applications: In trains and trams, the material is used for various insulating and structural components.

The material's ability to withstand harsh conditions and maintain its properties makes it well-suited for automotive and transportation applications.

Aerospace and Defense Applications

The aerospace and defense industries rely on 3021 phenolic paper sheet for its unique combination of properties:

- Aircraft interiors: The material is used in the construction of interior panels and structural components due to its flame retardancy and low smoke emission.

- Avionics insulation: It serves as insulation in various electronic systems and components in aircraft.

- Radome construction: Some aircraft radomes incorporate 3021 phenolic paper sheet for its electrical and mechanical properties.

- Missile components: The material finds applications in certain missile components where high-performance insulation is required.

- Military equipment: Various military electronic and communication devices utilize 3021 phenolic paper sheet for insulation and protection.

In these demanding applications, the material's reliability, lightweight nature, and resistance to extreme conditions are highly valued.

Conclusion

3021 phenolic paper sheet stands as a testament to the power of advanced materials in modern industry. Its unique combination of electrical insulation, mechanical strength, and thermal stability makes it an indispensable component in a wide array of applications. From its crucial role in electrical systems to its contributions to automotive safety and aerospace innovation, this versatile material continues to shape the landscape of technology and engineering. As industries evolve and new challenges emerge, the adaptability and reliability of 3021 phenolic paper sheet ensure its continued relevance in driving progress and enabling cutting-edge solutions across diverse sectors.
