What are the properties of FR4 Epoxy Fiberglass Board?

FR4 epoxy fiberglass board, also known as FR4 epoxy glass sheet, is a versatile and widely used material in various industries. Its unique properties make it an excellent choice for numerous applications, particularly in electronics and electrical engineering. In this comprehensive guide, we'll explore the key properties of FR4 epoxy fiberglass sheet and why it's such a popular choice among manufacturers and engineers worldwide.

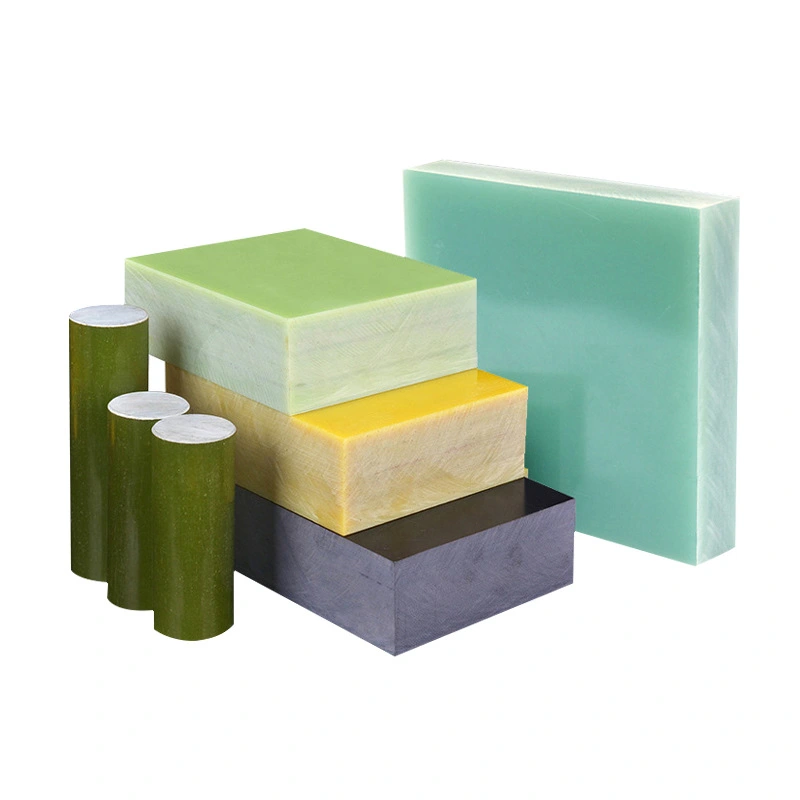

Physical Properties of FR4 Epoxy Fiberglass Board

Composition and Structure

FR4 epoxy fiberglass sheet is composed of woven fiberglass cloth impregnated with epoxy resin. This combination results in a robust and durable material that exhibits excellent mechanical and electrical properties. The fiberglass provides strength and stability, while the epoxy resin offers insulation and resistance to environmental factors.

Density and Weight

FR4 epoxy glass sheet has a relatively low density compared to many other materials used in similar applications. This characteristic makes it an ideal choice for applications where weight is a critical factor, such as in aerospace and portable electronics. The typical density of FR4 ranges from 1.80 to 1.90 g/cm³, allowing for lightweight yet sturdy constructions.

Dimensional Stability

One of the standout features of FR4 epoxy fiberglass sheet is its exceptional dimensional stability. This property ensures that the material maintains its shape and size under varying environmental conditions, including temperature fluctuations and humidity changes. This stability is crucial for maintaining the integrity of electronic components and circuits mounted on FR4 boards.

Electrical Properties of FR4 Epoxy Fiberglass Sheet

Dielectric Strength

FR4 epoxy fiberglass sheet boasts impressive dielectric strength, which is the maximum electric field the material can withstand without breaking down. This property is essential for insulation in high-voltage applications. The dielectric strength of FR4 typically ranges from 20 to 30 kV/mm, making it an excellent electrical insulator.

Dielectric Constant

The dielectric constant of FR4 epoxy glass sheet is another critical electrical property. It measures the material's ability to store electrical energy in an electric field. FR4 typically has a dielectric constant between 4.2 and 4.8 at 1 MHz, which provides a good balance between insulation and signal propagation for high-frequency applications.

Loss Tangent

The loss tangent, also known as dissipation factor, is a measure of the energy loss in the dielectric material. FR4 epoxy fiberglass board has a relatively low loss tangent, typically ranging from 0.02 to 0.03 at 1 MHz. This low value ensures minimal signal loss and heat generation in high-frequency circuits, making FR4 suitable for a wide range of electronic applications.

Thermal Properties of FR4 Epoxy Fiberglass Board

Heat Resistance

FR4 epoxy fiberglass sheet exhibits excellent heat resistance, making it suitable for use in high-temperature environments. The glass transition temperature (Tg) of FR4 typically ranges from 130°C to 180°C, depending on the specific formulation. This high Tg allows FR4 to maintain its mechanical and electrical properties even at elevated temperatures, ensuring reliable performance in demanding applications.

Thermal Conductivity

While FR4 epoxy glass sheet is primarily known for its electrical insulation properties, it also possesses moderate thermal conductivity. The thermal conductivity of FR4 is typically around 0.25 W/m·K. This value allows for some heat dissipation, which can be beneficial in certain electronic applications where thermal management is a concern.

Coefficient of Thermal Expansion

The coefficient of thermal expansion (CTE) is a crucial property for materials used in electronics, as it affects the reliability of solder joints and component connections. FR4 epoxy fiberglass sheet has a relatively low CTE, typically around 14-17 ppm/°C in the X and Y directions, and 50-70 ppm/°C in the Z direction. This low CTE helps minimize stress on components and connections during temperature cycling.

Mechanical Properties of FR4 Epoxy Fiberglass Sheet

Tensile Strength

FR4 epoxy fiberglass sheet exhibits high tensile strength, making it resistant to mechanical stress and deformation. The typical tensile strength of FR4 ranges from 280 to 340 MPa, depending on the specific grade and manufacturing process. This high strength ensures the durability and reliability of FR4 boards in various applications, from simple circuit boards to complex multilayer PCBs.

Flexural Strength

The flexural strength of FR4 epoxy glass sheet is another important mechanical property, particularly for applications where the material may be subjected to bending forces. FR4 typically has a flexural strength between 400 and 500 MPa, providing excellent resistance to bending and warping. This property is crucial for maintaining the flatness and structural integrity of PCBs during assembly and operation.

Impact Resistance

FR4 epoxy fiberglass sheet offers good impact resistance, which is essential for protecting electronic components from mechanical shocks and vibrations. The combination of strong fiberglass reinforcement and tough epoxy resin results in a material that can absorb and dissipate impact energy effectively. This property makes FR4 suitable for use in rugged electronics and applications exposed to harsh environmental conditions.

Chemical Properties of FR4 Epoxy Fiberglass Board

Chemical Resistance

FR4 epoxy fiberglass sheet demonstrates excellent resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This chemical resistance is crucial for protecting the integrity of electronic circuits and components in various operating environments. The epoxy resin matrix provides a barrier against chemical attack, ensuring the longevity and reliability of FR4-based products.

Moisture Absorption

While FR4 epoxy glass sheet has good overall moisture resistance, it can absorb some moisture over time. The typical moisture absorption rate for FR4 is around 0.1% to 0.3% by weight after 24 hours of immersion. This relatively low moisture absorption helps maintain the electrical and mechanical properties of FR4 boards in humid environments, but it's important to consider this factor in applications where moisture sensitivity is critical.

Flame Retardancy

One of the defining characteristics of FR4 epoxy fiberglass sheet is its flame retardancy, as indicated by the "FR" in its name. FR4 meets UL94 V-0 standards for flame retardancy, meaning it self-extinguishes within a short time after ignition and does not produce flaming drips. This property is essential for ensuring the safety of electronic devices and complying with various industry standards and regulations.

Conclusion

In conclusion, FR4 epoxy fiberglass sheet is a remarkable material with a unique combination of properties that make it indispensable in modern electronics and beyond. Its balanced blend of electrical, thermal, mechanical, and chemical properties ensures its continued relevance and widespread use across various industries. As technology advances, FR4 epoxy glass sheet continues to evolve, with manufacturers developing new grades and formulations to meet the ever-increasing demands of cutting-edge applications.

Contact Us

If you're looking for high-quality FR4 epoxy fiberglass board or need more information about this versatile material, don't hesitate to reach out to us. With over 20 years of experience in producing and selling insulating sheets and a decade of expertise in foreign trade, we're well-equipped to provide you with the perfect FR4 solutions for your needs. Contact us today at info@jhd-material.com to learn more about our products and how we can support your projects.
