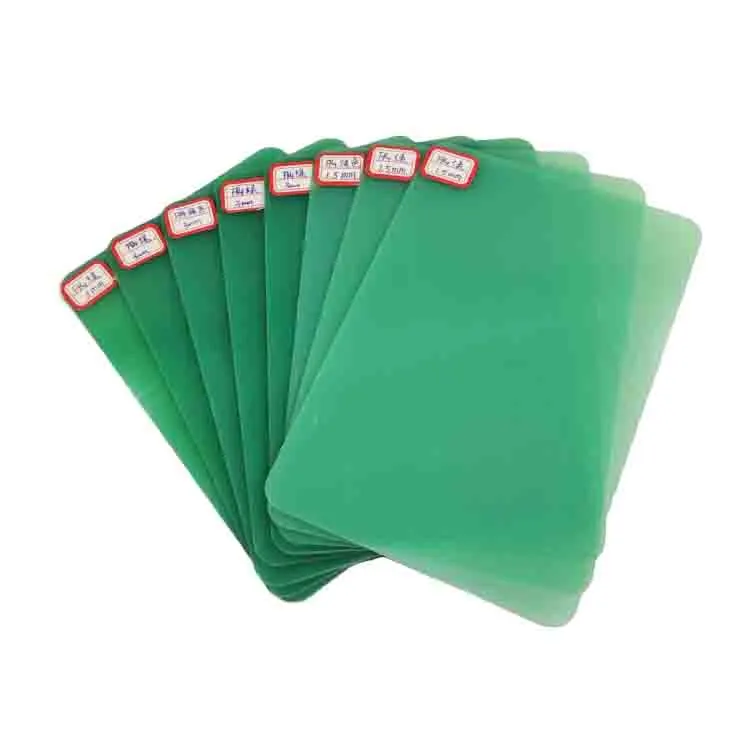

What are the advantages of using FR4 Epoxy Fiberglass Board?

In the world of electronic manufacturing and insulation materials, FR4 epoxy fiberglass board stands out as a versatile and reliable option. This high-performance composite material has gained widespread popularity across various industries due to its exceptional properties and numerous advantages. In this comprehensive guide, we'll delve into the benefits of using FR4 epoxy fiberglass sheet and explore why it has become the go-to choose for many applications.

Superior Electrical Properties

FR4 epoxy fiberglass sheet, also known as FR4 epoxy glass sheet, boasts remarkable electrical properties that make it an ideal choice for electronic applications. Let's examine the key electrical characteristics that set this material apart:

High Dielectric Strength

FR4 epoxy fiberglass sheet exhibits excellent dielectric strength, which is the maximum electric field the material can withstand without breaking down. This property ensures that the material can effectively insulate against high voltages, preventing electrical failures and short circuits in electronic devices.

Low Dielectric Constant

The low dielectric constant of FR4 epoxy glass sheet contributes to its superior performance in high-frequency applications. This characteristic reduces signal loss and crosstalk, making it an excellent choice for printed circuit boards (PCBs) and other electronic components that require precise signal transmission.

Excellent Electrical Insulation

FR4 epoxy fiberglass sheet provides outstanding electrical insulation, effectively preventing current leakage and maintaining the integrity of electrical circuits. This property is crucial in ensuring the safety and reliability of electronic devices, particularly in high-voltage applications.

Mechanical Strength and Durability

Beyond its electrical properties, FR4 epoxy fiberglass sheet offers exceptional mechanical strength and durability, making it suitable for a wide range of applications. Let's explore the mechanical advantages of this versatile material:

High Tensile Strength

FR4 epoxy glass sheet possesses remarkable tensile strength, allowing it to withstand significant mechanical stress without deforming or breaking. This property ensures the longevity and reliability of components made from this material, even in demanding environments.

Excellent Dimensional Stability

FR4 epoxy fiberglass sheet maintains its shape and dimensions under varying temperature and humidity conditions. This dimensional stability is crucial for applications that require precise tolerances, such as in the manufacture of PCBs and other electronic components.

Resistance to Warping and Bending

The composite nature of FR4 epoxy glass sheet provides excellent resistance to warping and bending, even when subjected to mechanical stress or temperature fluctuations. This characteristic ensures that components made from this material maintain their structural integrity over time.

Thermal and Chemical Resistance

FR4 epoxy fiberglass sheet exhibits remarkable resistance to both thermal and chemical factors, further enhancing its versatility and reliability. Let's examine these properties in detail:

High Heat Resistance

FR4 epoxy glass sheet can withstand high temperatures without significant degradation of its mechanical or electrical properties. This heat resistance makes it suitable for applications in environments with elevated temperatures, such as in automotive or industrial settings.

Flame Retardant Properties

The fact that FR4 has the letter "FR" in it means that it is "Flame Retardant," indicating that this material already possesses characteristics that make it resistant to fire. FR4 epoxy fiberglass sheet can self-smother when presented to fire, lessening the gamble of fire spread in electronic gadgets and upgrading in general safety.

Chemical Resistance

FR4 epoxy glass sheet demonstrates excellent resistance to a wide range of chemicals, including solvents, oils, and acids. This chemical resistance ensures the material's longevity and reliability in various industrial and manufacturing environments.

Versatility and Wide Range of Applications

The combination of electrical, mechanical, and thermal properties makes FR4 epoxy fiberglass sheet an incredibly versatile material suitable for numerous applications across different industries. Let's explore some of the key areas where this material excels:

Printed Circuit Boards (PCBs)

FR4 epoxy glass sheet is the most commonly used substrate material for PCBs. Its excellent electrical properties, dimensional stability, and ease of machining make it ideal for creating reliable and high-performance circuit boards for various electronic devices.

Electrical Insulation

FR4 epoxy fiberglass sheet is an excellent choice for electrical insulation in transformers, motors, and other electrical equipment due to its superior insulation properties. It increases these devices' safety and effectively protects them from electrical breakdown.

Structural Components

Due to its high mechanical strength and dimensional stability, FR4 epoxy glass sheet is often used in the manufacture of structural components for various industries, including aerospace, automotive, and industrial machinery.

Cost-Effectiveness and Manufacturing Advantages

FR4 epoxy fiberglass sheet not only offers excellent performance characteristics but also provides several cost-effective advantages in manufacturing processes. Let's examine these benefits:

Easy Machinability

FR4 epoxy glass sheet can be easily machined, drilled, and cut using standard tools and equipment. This ease of fabrication reduces manufacturing time and costs, making it a preferred choice for many applications.

Consistent Quality

The manufacturing process of FR4 epoxy fiberglass sheet ensures consistent quality and uniformity across batches. This reliability simplifies quality control processes and reduces the likelihood of defects in the final products.

Long-Term Cost Savings

While the initial cost of FR4 epoxy glass sheet may be higher compared to some alternatives, its durability and long-term performance often result in significant cost savings over the lifespan of the product. The material's resistance to degradation and its ability to withstand harsh environments contribute to reduced maintenance and replacement costs.

Environmental Considerations and Sustainability

As environmental concerns become increasingly important in manufacturing processes, FR4 epoxy fiberglass board offers several advantages in terms of sustainability and eco-friendliness:

Recyclability

Although FR4 epoxy glass sheet is not biodegradable, it can be recycled through specialized processes. Many manufacturers have implemented recycling programs to recover and reuse the valuable materials in FR4 boards, reducing waste and environmental impact.

Halogen-Free Options

In response to environmental concerns, halogen-free versions of FR4 epoxy fiberglass sheet have been developed. These alternatives offer similar performance characteristics while reducing the environmental impact associated with traditional FR4 materials.

Energy Efficiency

The excellent insulating properties of FR4 epoxy glass sheet contribute to improved energy efficiency in electronic devices. By reducing energy loss and improving signal integrity, FR4 boards can help create more energy-efficient products, aligning with global efforts to reduce energy consumption.

Conclusion

In conclusion, FR4 epoxy fiberglass sheet offers a wide array of advantages that make it an indispensable material in various industries. Its superior electrical properties, mechanical strength, thermal resistance, and versatility have established it as a go-to choice for manufacturers worldwide. As technology continues to advance, FR4 epoxy glass sheet remains at the forefront of innovation, adapting to new challenges and requirements in the ever-evolving landscape of electronic manufacturing and beyond.
