The composition and combination classification of insulating rods

Insulating rods play a crucial role in electrical systems, providing essential protection against current leakage and ensuring safe operation. These rods are composed of various materials and come in different combinations to suit diverse applications. The composition of insulating rods typically includes high-quality polymers such as epoxy resins, silicone rubber, or fiberglass-reinforced plastics. These materials offer excellent electrical insulation properties, mechanical strength, and durability. Insulating rods can be classified based on their composition and combination into several categories, including solid core rods, hollow core rods, composite rods, and multi-layer rods. Each type serves specific purposes in electrical insulation, from power transmission lines to industrial equipment, making them indispensable components in modern electrical engineering.

Material Composition of Insulating Rods

Polymer-Based Insulating Rods

Polymer-based insulating rods are widely utilized due to their superior electrical insulation properties and adaptability. These rods are typically manufactured using thermosetting or thermoplastic polymers, which offer excellent resistance to electrical breakdown and environmental factors. Epoxy resins, polyethylene, and polyurethane are common polymers used in the production of insulating rods. These materials provide a balance of electrical insulation, mechanical strength, and thermal stability, making them suitable for various applications in the electrical industry.

Ceramic Insulating Rods

Ceramic insulating rods offer exceptional heat resistance and electrical insulation properties, making them ideal for high-temperature applications. These rods are composed of materials such as alumina, steatite, or porcelain, which exhibit low electrical conductivity and high dielectric strength. Ceramic insulating rods are often used in extreme environments where polymer-based materials may not be suitable, such as in high-voltage transformers or furnace equipment. Their ability to withstand thermal shock and maintain insulation properties at elevated temperatures makes them invaluable in specialized electrical applications.

Composite Insulating Rods

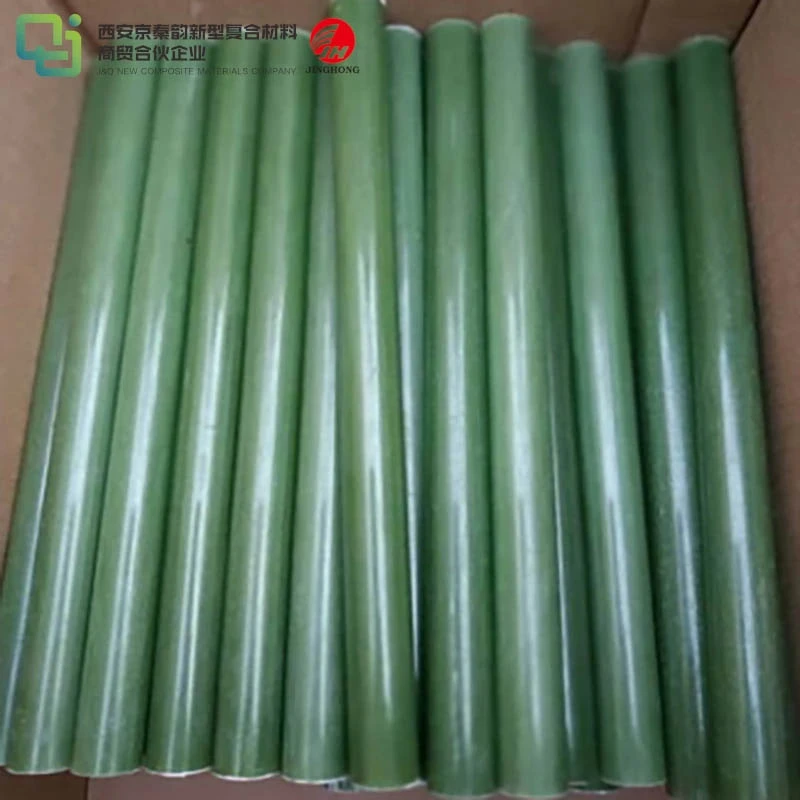

Composite insulating rods combine the advantages of multiple materials to achieve enhanced performance characteristics. These rods typically consist of a reinforcing fiber, such as fiberglass or carbon fiber, embedded in a polymer matrix. The resulting composite material offers superior mechanical strength, lightweight properties, and excellent electrical insulation. Fiberglass-reinforced plastic (FRP) rods are a popular example of composite insulating rods, widely used in power transmission and distribution systems. The synergistic combination of materials in composite rods allows for customized properties tailored to specific application requirements.

Structural Classifications of Insulating Rods

Solid Core Insulating Rods

Solid core insulating rods are characterized by their uniform composition throughout the entire cross-section. These rods are typically made from a single material, such as epoxy resin or silicone rubber, and offer consistent electrical and mechanical properties. Solid core rods are valued for their simplicity and reliability in applications where high insulation strength is required. They are commonly used in medium-voltage electrical equipment, switchgear, and as support structures in electrical assemblies. The solid construction ensures excellent resistance to moisture ingress and provides a robust insulation barrier.

Hollow Core Insulating Rods

Hollow core insulating rods feature a central cavity running through their length, offering a unique combination of lightweight design and insulation properties. These rods are often manufactured using advanced extrusion or pultrusion processes, allowing for precise control of the wall thickness and cavity dimensions. The hollow structure provides several advantages, including reduced weight, improved heat dissipation, and the potential for additional functionality. Hollow core rods find applications in high-voltage insulators, where their design allows for the integration of conductive elements or the use of gas-filled cavities to enhance insulation performance.

Multi-Layer Insulating Rods

Multi-layer insulating rods incorporate multiple materials or layers to achieve specific performance characteristics. These rods are designed with a core material surrounded by one or more insulating layers, each contributing to the overall insulation and mechanical properties. The layered structure allows for the optimization of different aspects, such as electrical resistance, mechanical strength, and environmental protection. Multi-layer rods are often used in high-stress applications, where the combination of materials can provide enhanced resistance to electrical tracking, UV radiation, and pollution. This structural classification offers great flexibility in tailoring insulating rods to meet complex requirements in modern electrical systems.

Application-Specific Combinations of Insulating Rods

High-Voltage Transmission Insulating Rods

High-voltage transmission insulating rods are engineered to withstand extreme electrical stresses and environmental conditions. These rods often combine composite materials with specialized coatings to ensure long-term reliability in power transmission systems. Fiberglass-reinforced polymer (FRP) rods with silicone rubber sheds are a common configuration, offering excellent mechanical strength and hydrophobicity. The combination of a strong core material with a weather-resistant outer layer provides optimal performance in high-voltage applications. These rods are crucial components in transmission line insulators, helping to maintain safe clearances and prevent flashovers in overhead power lines.

Industrial Equipment Insulating Rods

Insulating rods used in industrial equipment often require a balance of electrical insulation, mechanical durability, and chemical resistance. Combinations such as epoxy-impregnated fiberglass rods or ceramic-coated metal cores are frequently employed in this sector. These rods may incorporate additional features like flame-retardant additives or anti-tracking compounds to enhance their performance in harsh industrial environments. The versatility of these combinations allows for the creation of insulating rods that can withstand the rigors of industrial processes while maintaining reliable electrical isolation. Applications range from motor insulation to high-temperature furnace components, demonstrating the adaptability of insulating rod combinations.

Specialized Insulating Rod Combinations

Certain applications demand unique combinations of materials and structures in insulating rods. For instance, aerospace and defense industries may utilize advanced composite rods with embedded sensors or conductive layers for specific electrical and mechanical requirements. Another example is the use of nano-engineered insulating rods, which incorporate nanomaterials to enhance dielectric properties or introduce self-healing capabilities. These specialized combinations push the boundaries of traditional insulating rod design, offering innovative solutions for emerging technologies and extreme operating conditions. The development of such advanced insulating rod combinations continues to drive progress in electrical engineering and materials science.

Conclusion

The composition and combination classification of insulating rods encompasses a wide range of materials, structures, and applications. From polymer-based solid rods to advanced multi-layer composites, the diversity in insulating rod design reflects the complex demands of modern electrical systems. The continuous evolution of materials and manufacturing techniques enables the creation of insulating rods tailored to specific performance requirements. As electrical technologies advance, the importance of innovative insulating rod compositions and combinations will only grow, driving further research and development in this critical field of electrical engineering.
