How is Phenolic Cotton Sheet Produced?

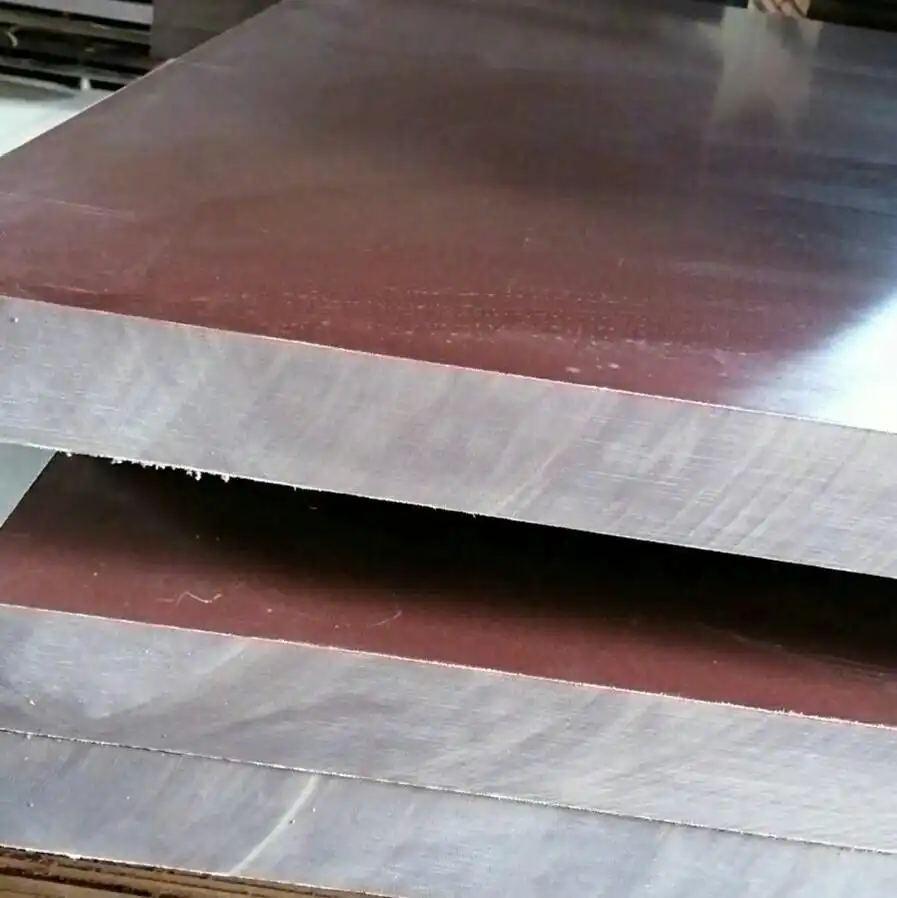

Phenolic cotton sheet production is a complex process that combines natural cotton fibers with phenolic resin to create a durable, heat-resistant material. The manufacturing begins by treating cotton fabric with phenolic resin, which is then cured under high temperature and pressure. This process transforms the cotton into a rigid, laminated sheet with excellent insulating properties. The sheets are then cut to size, sanded for smoothness, and undergo quality control checks. The result is a versatile product used in various industries for its electrical insulation, thermal resistance, and mechanical strength. The precise combination of materials and controlled manufacturing conditions ensures the phenolic cotton sheet meets stringent performance standards for industrial applications.

Raw Materials and Preparation

Selection of High-Quality Cotton Fabric

The production of phenolic cotton sheets begins with the careful selection of premium cotton fabric. Manufacturers prioritize cotton with long, strong fibers to ensure the final product's durability and consistency. The cotton undergoes rigorous quality checks, including fiber length analysis and impurity assessment. This meticulous selection process is crucial as it directly impacts the sheet's structural integrity and insulating properties.

Phenolic Resin Formulation

Parallel to cotton selection, the phenolic resin is formulated. This synthetic polymer, derived from phenol and formaldehyde, is the key to the sheet's remarkable properties. Chemists carefully adjust the resin's composition, considering factors such as viscosity, cure time, and final hardness. The resin's quality significantly influences the sheet's heat resistance, electrical insulation, and overall performance in demanding industrial environments.

Pre-treatment of Cotton Fabric

Before impregnation, the cotton fabric undergoes a pre-treatment phase. This involves cleaning the fabric to remove any residual oils, waxes, or contaminants that could interfere with resin absorption. Some manufacturers employ a caustic soda treatment to enhance the cotton's receptivity to the phenolic resin. This step is vital for achieving uniform resin distribution throughout the fabric, ensuring consistent properties across the entire sheet, which is crucial for producing a high-quality phenolic cotton sheet.

Impregnation and Curing Process

Resin Impregnation Techniques

The heart of phenolic cotton sheet production lies in the impregnation process. Advanced machinery is used to saturate the pre-treated cotton fabric with the phenolic resin. This can be achieved through various methods, including dip coating, roller application, or pressure impregnation. The goal is to achieve complete and uniform penetration of the resin into the cotton fibers. Manufacturers closely monitor resin viscosity and temperature to optimize penetration and eliminate air pockets that could compromise the sheet's integrity.

Controlled Drying and B-Staging

Following impregnation, the resin-soaked fabric enters a controlled drying phase. This step, often referred to as B-staging, partially cures the resin while maintaining its flexibility. Specialized ovens with precise temperature and humidity controls are employed. The fabric passes through these ovens at carefully calculated speeds, allowing for gradual moisture removal and initial resin polymerization. This intermediate stage is crucial for achieving the right balance between resin flow and retention in subsequent processing steps.

High-Pressure Lamination

The B-staged sheets are then stacked in multiple layers and subjected to high-pressure lamination. This process typically occurs in large hydraulic presses capable of exerting immense pressure while simultaneously applying heat. The combination of heat and pressure causes the resin to flow and fully cure, bonding the cotton layers into a single, rigid phenolic cotton sheet. The exact pressure, temperature, and duration are carefully controlled to achieve the desired thickness, density, and physical properties of the final phenolic cotton sheet product.

Final Processing and Quality Control

Cutting and Shaping

Once the laminated sheets emerge from the press, they undergo a series of finishing operations. Precision cutting equipment, often computer-controlled, trims the sheets to standard sizes or custom dimensions as per client specifications. Some applications may require intricate shapes or cutouts, which are achieved using advanced CNC machinery. The cutting process demands extreme precision to maintain tight tolerances and ensure the sheets fit perfectly in their intended applications.

Surface Treatment and Finishing

The cut sheets then proceed to surface treatment. Industrial sanders smooth the surfaces, removing any irregularities and achieving the desired thickness uniformity. Some manufacturers apply additional surface treatments, such as anti-static coatings or flame-retardant additives, to enhance specific properties. These treatments are carefully selected based on the sheet's intended use, whether it's for electrical insulation, high-temperature applications, or mechanical components.

Rigorous Quality Assurance

The final stage in phenolic cotton sheet production involves comprehensive quality control measures. Each sheet undergoes a battery of tests to ensure it meets or exceeds industry standards. These tests may include dielectric strength measurements, flame resistance assessments, and mechanical stress evaluations. Advanced imaging techniques, such as ultrasonic scanning, may be employed to detect any internal flaws or delaminations. Only sheets that pass all quality checks are approved for packaging and distribution, ensuring that customers receive products of the highest reliability and performance.

Conclusion

The production of phenolic cotton sheets is a sophisticated process that blends traditional materials with modern manufacturing techniques. From the careful selection of raw materials to the precise control of curing conditions, each step is crucial in creating a product that excels in electrical insulation, thermal resistance, and mechanical strength. As industries continue to demand high-performance materials, the production methods for phenolic cotton sheets evolve, incorporating new technologies and quality control measures. This ensures that the final product consistently meets the exacting standards required for critical applications across various sectors.
