How FR4 Glass Epoxy Sheet Improves Product Durability?

FR4 glass epoxy sheet significantly enhances product durability through its exceptional combination of mechanical strength, thermal resistance, and electrical insulation properties. This versatile material, composed of woven fiberglass cloth impregnated with epoxy resin, provides a robust foundation for various applications. Its ability to withstand high temperatures, resist moisture absorption, and maintain dimensional stability under stress contributes to extended product lifespans. By incorporating FR4 glass epoxy sheet into designs, manufacturers can create more resilient and long-lasting products capable of enduring harsh environments and frequent use, ultimately improving overall product reliability and performance across diverse industries.

Composition and Properties of FR4 Glass Epoxy Sheet

Material Composition

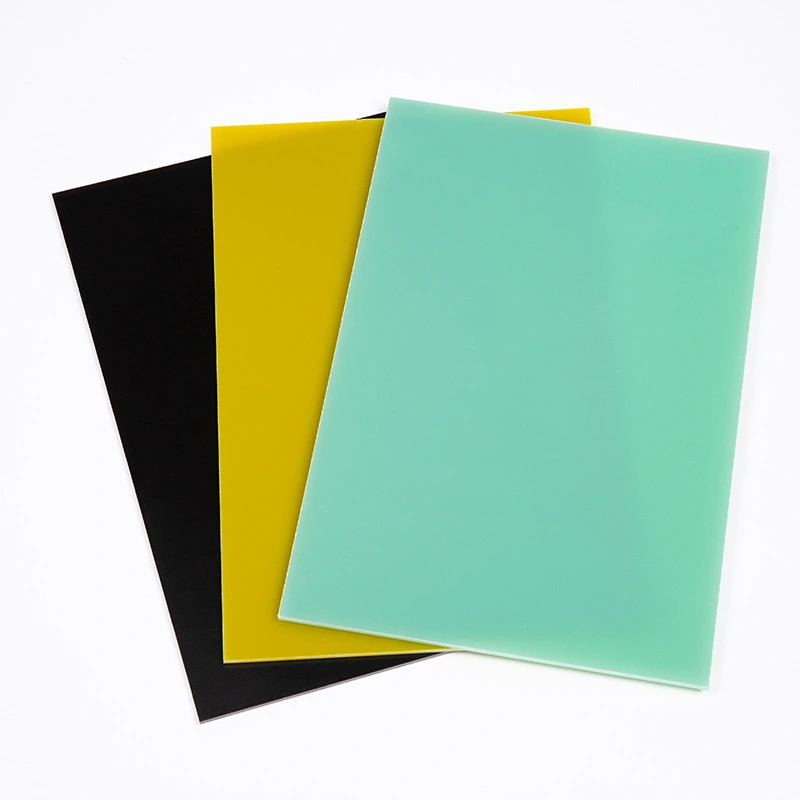

FR4 glass epoxy sheet is a composite material consisting of woven fiberglass cloth reinforced with epoxy resin. The fiberglass provides strength and stability, while the epoxy resin acts as a binding agent and contributes to the material's insulating properties. This unique composition results in a lightweight yet durable material that offers excellent mechanical and electrical characteristics.

Mechanical Properties

The mechanical properties of FR4 glass epoxy sheet are crucial to its ability to improve product durability. It boasts high tensile strength, allowing it to withstand significant stress without deformation or failure. The material also exhibits impressive flexural strength, enabling it to resist bending and maintain its shape under load. Additionally, FR4 glass epoxy sheet possesses excellent impact resistance, protecting products from damage due to sudden shocks or impacts.

Thermal and Electrical Properties

FR4 glass epoxy sheet excels in both thermal and electrical performance. It maintains its structural integrity across a wide temperature range, making it suitable for applications exposed to extreme heat or cold. The material's low thermal expansion coefficient ensures dimensional stability, preventing warping or distortion in fluctuating temperatures. Electrically, FR4 glass epoxy sheet offers superior insulation properties, with high dielectric strength and low dielectric constant, making it an ideal choice for electronic and electrical applications where reliability is paramount.

Applications of FR4 Glass Epoxy Sheet in Various Industries

Electronics and Telecommunications

In the electronics and telecommunications sectors, FR4 glass epoxy sheet plays a pivotal role in enhancing product durability. It serves as the primary material for printed circuit boards (PCBs), providing a stable and reliable substrate for electronic components. The material's excellent electrical insulation properties and resistance to thermal stress ensure that electronic devices remain functional and durable, even in challenging operating conditions. FR4 glass epoxy sheet also finds applications in antenna substrates, where its low signal loss characteristics contribute to improved performance and longevity of communication equipment.

Aerospace and Aviation

The aerospace and aviation industries rely heavily on FR4 glass epoxy sheet to improve the durability of critical components. Its high strength-to-weight ratio makes it an ideal material for aircraft interior panels, reducing overall weight while maintaining structural integrity. FR4 glass epoxy sheet is also used in the construction of radomes, protecting sensitive radar equipment from environmental factors without compromising signal transmission. The material's flame-retardant properties further enhance safety in these high-stakes applications, contributing to the overall durability and reliability of aerospace products.

Automotive and Transportation

In the automotive and transportation sectors, FR4 glass epoxy sheet enhances product durability by providing robust solutions for various components. It is utilized in the manufacture of instrument panels, where its dimensional stability and resistance to vibration ensure long-lasting performance. The material's electrical insulation properties make it suitable for housing sensitive electronic control units, protecting them from interference and environmental factors. FR4 glass epoxy sheet also finds applications in electric vehicle battery enclosures, where its combination of strength, lightweight properties, and thermal management capabilities contribute to improved battery performance and longevity.

Advantages of FR4 Glass Epoxy Sheet in Enhancing Product Durability

Chemical Resistance

One of the key advantages of FR4 glass epoxy sheet in improving product durability is its exceptional chemical resistance. The material demonstrates remarkable resilience against a wide range of chemicals, including acids, alkalis, and organic solvents. This resistance prevents degradation and corrosion, ensuring that products maintain their integrity even when exposed to harsh chemical environments. In industrial applications, where exposure to corrosive substances is common, FR4 glass epoxy sheet provides a protective barrier that significantly extends the lifespan of equipment and components.

Moisture Resistance

FR4 glass epoxy sheet exhibits excellent moisture resistance, a critical factor in enhancing product durability. The material's low water absorption rate prevents the ingress of moisture, which can lead to dimensional changes, electrical property degradation, and potential failure in many applications. This characteristic is particularly valuable in high-humidity environments or applications where water exposure is a concern. By effectively resisting moisture, FR4 glass epoxy sheet helps maintain the structural and functional integrity of products over time, reducing the risk of water-related damage and extending operational life.

Fire Retardancy

The fire-retardant properties of FR4 glass epoxy sheet significantly contribute to product durability and safety. The material is engineered to self-extinguish when exposed to flame, minimizing the risk of fire spread and potential damage to surrounding components. This inherent fire resistance not only enhances the safety of products but also improves their ability to withstand accidental fire exposure without catastrophic failure. In applications where fire safety is crucial, such as in aerospace or public transportation, the use of FR4 glass epoxy sheet ensures that products meet stringent safety standards while maintaining long-term durability.

Conclusion

FR4 glass epoxy sheet stands out as a superior material for enhancing product durability across various industries. Its unique combination of mechanical strength, thermal stability, and electrical insulation properties makes it an invaluable asset in the design and manufacture of long-lasting, reliable products. From electronics to aerospace, automotive to industrial applications, FR4 glass epoxy sheet consistently delivers improved performance and extended product lifespans. By leveraging the material's resistance to chemicals, moisture, and fire, manufacturers can create products that withstand challenging environments and maintain their integrity over time, ultimately leading to increased customer satisfaction and reduced lifecycle costs.
