How do you Cut and Machine 3026 Phenolic Laminated Cotton Sheet?

Cutting and machining 3026 phenolic laminated cotton sheet requires precision and the right techniques. To achieve optimal results, use sharp carbide-tipped tools and maintain a slow, steady feed rate. Start by scoring the sheet along the desired cut line to prevent chipping. For straight cuts, employ a table saw with a fine-toothed blade. Curved cuts can be achieved using a jigsaw or router. When drilling, use a backing board to prevent splintering and operate at a moderate speed. For milling operations, utilize climb cutting to minimize edge chipping. Always wear appropriate safety gear and work in a well-ventilated area due to the dust generated during cutting and machining processes.

Understanding 3026 Phenolic Laminated Cotton Sheet

Composition and Properties

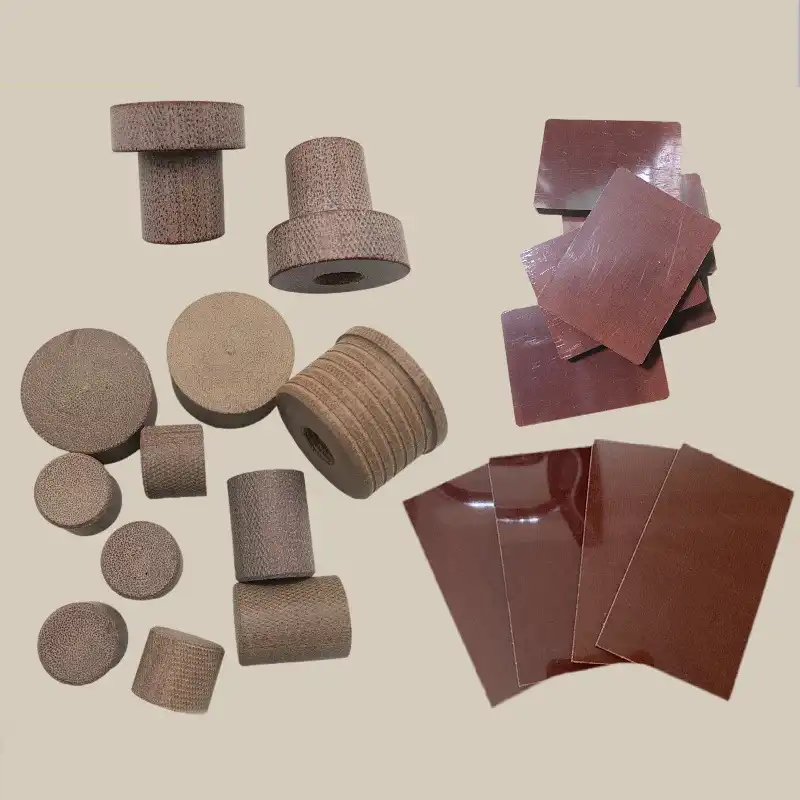

3026 phenolic laminated cotton sheet, also known as phenolic cotton fabric laminate sheet, is a high-performance composite material. It consists of layers of cotton fabric impregnated with phenolic resin and compressed under high pressure and temperature. This process results in a dense, durable material with excellent electrical insulation properties, mechanical strength, and dimensional stability.

The phenolic resin used in the manufacturing process provides the sheet with its characteristic amber color and contributes to its resistance to heat, chemicals, and moisture. The cotton fabric reinforcement enhances the material's tensile strength and impact resistance, making it suitable for a wide range of applications in electrical and mechanical engineering.

Applications in Industry

3026 phenolic cotton sheet finds extensive use in various industrial sectors due to its unique combination of properties. In the electrical industry, it serves as an excellent insulator for switchgear, transformers, and motor components. The automotive sector utilizes this material for gaskets, washers, and insulating parts in engines and electrical systems.

The aerospace industry relies on 3026 phenolic laminated cotton sheet for its lightweight yet strong properties, incorporating it into structural components and insulation panels. Additionally, the material's machinability makes it ideal for creating custom parts in the manufacturing sector, such as gears, bearings, and bushings.

Advantages over Other Materials

Compared to other engineering materials, 3026 phenolic cotton sheet offers several distinct advantages. Its superior electrical insulation properties make it preferable to metals in many applications. Unlike some plastics, it maintains its mechanical properties at elevated temperatures, ensuring reliability in demanding environments.

The material's low moisture absorption rate contributes to its dimensional stability, outperforming many wood-based products. Furthermore, its resistance to chemicals and solvents makes it suitable for use in corrosive environments where other materials might degrade. The combination of these properties, along with its ease of machining, positions 3026 phenolic laminated cotton sheet as a versatile and cost-effective solution for many engineering challenges.

Cutting Techniques for 3026 Phenolic Cotton Sheet

Preparing for the Cutting Process

Before cutting 3026 phenolic cotton sheet, proper preparation is crucial to ensure safety and achieve optimal results. Begin by inspecting the sheet for any defects or irregularities that might affect the cutting process. Clean the surface thoroughly to remove any dust or debris that could interfere with the cut quality.

Next, mark the cutting lines clearly using a sharp pencil or scribe. For complex shapes, consider creating a template to guide your cuts. Ensure your work area is well-lit and free from clutter. Set up dust collection systems to manage the fine particles generated during cutting. Lastly, don personal protective equipment, including safety glasses, a dust mask, and hearing protection if using power tools.

Tools and Equipment for Cutting

Selecting the appropriate tools is essential for achieving clean, precise cuts in 3026 phenolic laminated cotton sheet. For straight cuts, a table saw equipped with a carbide-tipped blade designed for composites works well. The blade should have a high tooth count to minimize chipping and produce a smooth edge.

For curved cuts or intricate shapes, a jigsaw with a fine-toothed blade is ideal. Alternatively, a CNC router can provide exceptional precision for complex geometries. When making small cuts or trimming edges, a utility knife or hand saw with fine teeth can be effective. For larger projects, consider investing in a panel saw or vertical saw designed specifically for sheet materials.

Step-by-Step Cutting Procedure

To cut 3026 phenolic cotton sheet effectively, follow these steps:

- Secure the sheet firmly to prevent movement during cutting. Use clamps or a vacuum table for larger pieces.

- If using a power saw, set the blade to protrude only slightly beyond the thickness of the sheet to minimize chipping.

- Begin the cut slowly, allowing the blade to reach full speed before advancing into the material.

- Maintain a steady, moderate feed rate throughout the cut. Forcing the tool can result in overheating and poor edge quality.

- For circular cuts, start with a pilot hole and gradually expand the cut using a jigsaw or router.

- After cutting, smooth any rough edges using fine-grit sandpaper or a file.

Remember to periodically check your tools for wear and replace them as needed to maintain cut quality. By following these procedures, you can achieve clean, precise cuts in 3026 phenolic laminated cotton sheet, ensuring the best results for your project.

Machining Techniques for 3026 Phenolic Cotton Sheet

Drilling and Boring

Drilling and boring operations on 3026 phenolic cotton sheet require attention to detail to achieve clean, accurate holes. Use sharp, high-speed steel or carbide-tipped drill bits designed for composite materials. To prevent splintering, place a backing board beneath the sheet and use a slow to moderate spindle speed with steady pressure.

For larger holes, consider using a step drill or hole saw. When boring, use a sharp tool and take light cuts to minimize stress on the material. Always clear chips frequently to prevent overheating and ensure a smooth finish. If precision is critical, consider using a drill press or CNC machine for consistent results.

Milling and Routing

Milling and routing phenolic cotton fabric laminate sheet allows for the creation of complex shapes and profiles. Use carbide-tipped end mills or router bits with a high flute count to reduce the likelihood of chipping. Set the spindle speed moderately high and maintain a slow feed rate to achieve a clean cut.

When possible, employ climb milling techniques to minimize edge chipping. For deep cuts, consider making multiple passes, gradually increasing the depth with each pass. Use compressed air or a vacuum system to clear chips and prevent heat buildup. If working with a CNC machine, optimize your toolpaths to reduce tool wear and improve surface finish.

Finishing and Edge Treatment

After machining, proper finishing enhances both the appearance and functionality of 3026 phenolic cotton sheet components. Start by deburring any sharp edges using a fine file or deburring tool. For a smooth surface finish, progress through increasingly finer grits of sandpaper, starting at around 220 grit and finishing with 600 grit or higher.

To achieve a polished edge, use a buffing wheel with a fine polishing compound. For chamfered or rounded edges, a router with the appropriate bit can create a consistent profile. In applications where moisture resistance is crucial, consider sealing the edges with a compatible epoxy or phenolic resin to prevent moisture ingress.

By employing these machining techniques, you can transform 3026 phenolic laminated cotton sheet into precise, high-quality components suitable for a wide range of industrial applications. Remember to always prioritize safety and follow manufacturer recommendations for tool selection and machining parameters.

Conclusion

Mastering the art of cutting and machining 3026 phenolic laminated cotton sheet opens up a world of possibilities in industrial applications. By understanding the material's unique properties and employing the right techniques, you can achieve precise, high-quality results. Remember to prioritize safety, use appropriate tools, and maintain proper cutting and machining parameters. With practice and attention to detail, you'll be able to harness the full potential of this versatile material, creating components that meet the most demanding specifications in electrical, mechanical, and aerospace engineering.

Contact Us

Ready to explore the possibilities of 3026 phenolic laminated cotton sheet for your next project? Our team of experts is here to assist you with product selection, cutting and machining advice, and custom solutions. Contact us today at info@jhd-material.com to learn more about how our high-quality insulating sheets can benefit your application.
