Heat transfer enhancement in MOSFET mounted on different FR4 substrates by thermal transient measurement

In the realm of electronic device manufacturing, thermal management plays a crucial role in ensuring optimal performance and longevity. This is particularly true for Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), which are ubiquitous in modern electronics. Understanding and enhancing heat transfer in these components is vital for manufacturers and engineers alike. In this comprehensive exploration, we'll delve into the intricacies of heat transfer enhancement in MOSFETs mounted on various FR4 substrates, utilizing thermal transient measurement techniques.

Understanding MOSFET Thermal Characteristics

MOSFET Structure and Heat Generation

MOSFETs are semiconductor devices that control the flow of electrical current in electronic circuits. Their structure consists of three main terminals: source, drain, and gate. During operation, MOSFETs generate heat due to power dissipation, primarily in the channel region between the source and drain. This heat generation can significantly impact the device's performance and reliability if not properly managed.

Importance of Thermal Management in MOSFETs

Effective thermal management is paramount for MOSFET operation. Excessive heat can lead to various issues, including decreased efficiency, reduced lifespan, and even catastrophic failure. By implementing proper heat dissipation techniques, manufacturers can ensure optimal MOSFET performance and extend the device's operational life.

Role of Substrates in Heat Dissipation

The substrate on which a MOSFET is mounted plays a significant role in heat dissipation. FR4, a common substrate material in the electronics industry, is known for its electrical insulation properties. However, its thermal conductivity is relatively low compared to other materials. Understanding how different FR4 substrates affect heat transfer is crucial for optimizing MOSFET thermal performance.

Thermal Transient Measurement Techniques

Principles of Thermal Transient Measurement

Thermal transient measurement is a powerful technique for analyzing heat transfer in electronic components. It involves applying a known power pulse to the device and measuring the resulting temperature change over time. This method provides valuable insights into the thermal behavior of MOSFETs and their mounting substrates.

Equipment and Setup for Thermal Transient Measurements

Conducting thermal transient measurements requires specialized equipment, including high-precision temperature sensors, power supplies, and data acquisition systems. The MOSFET is typically mounted on the FR4 substrate under test and connected to the measurement apparatus. Careful setup and calibration are essential for obtaining accurate results.

Data Analysis and Interpretation

The data obtained from thermal transient measurements can be analyzed to extract various thermal parameters, such as thermal resistance and capacitance. These parameters provide a quantitative measure of the heat transfer capabilities of the MOSFET and substrate combination. Advanced software tools are often employed to process and interpret the measurement data effectively.

Comparing Heat Transfer in Different FR4 Substrates

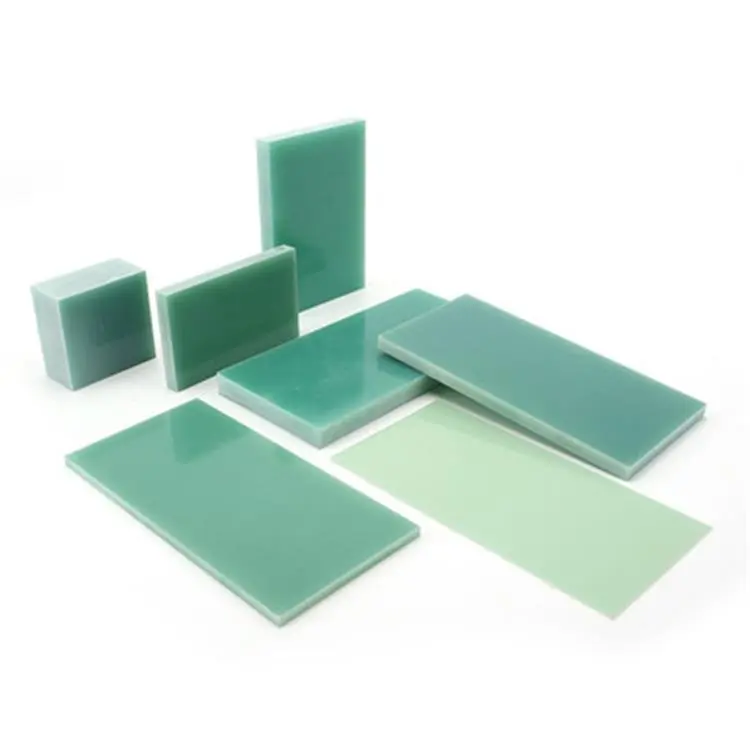

Variations in FR4 Substrate Composition

FR4 substrates can vary in composition, thickness, and manufacturing processes. These variations can significantly impact their thermal properties. Some FR4 substrates may incorporate additives or fillers to enhance thermal conductivity, while others may focus on optimizing electrical performance. Understanding these differences is crucial when selecting the most appropriate substrate for MOSFET applications.

Impact of Substrate Thickness on Heat Dissipation

The thickness of the FR4 substrate plays a vital role in heat transfer. Thicker substrates generally offer better mechanical stability but may impede heat dissipation due to increased thermal resistance. Conversely, thinner substrates can facilitate more efficient heat transfer but may compromise structural integrity. Finding the optimal balance between these factors is essential for maximizing MOSFET performance.

Surface Finish and Its Effect on Thermal Performance

The surface finish of FR4 substrates can significantly influence heat transfer. Different surface treatments, such as copper cladding or specialized coatings, can alter the thermal interface between the MOSFET and the substrate. Optimizing this interface is crucial for enhancing overall heat dissipation and improving device reliability.

Strategies for Enhancing Heat Transfer in MOSFET-FR4 Systems

Thermal Vias and Their Implementation

One effective method for improving heat transfer in MOSFET-FR4 systems is the use of thermal vias. These are small, plated through-holes that provide a low-resistance path for heat to flow from the MOSFET to the opposite side of the substrate. Properly designed and implemented thermal vias can significantly reduce the overall thermal resistance of the system.

Advanced Substrate Materials and Composites

While FR4 remains a popular choice due to its cost-effectiveness and electrical properties, advanced substrate materials and composites are emerging as alternatives for high-performance applications. These materials often incorporate ceramics or metal-matrix composites to achieve superior thermal conductivity while maintaining desirable electrical characteristics.

Optimizing MOSFET Package Design

The design of the MOSFET package itself can greatly influence heat transfer. Manufacturers are continually developing new package designs that optimize thermal performance. Features such as exposed pads, improved die attach materials, and innovative lead frame designs can enhance heat dissipation and overall device efficiency.

Practical Considerations for Implementing Heat Transfer Enhancements

Cost-Benefit Analysis of Different Solutions

When considering heat transfer enhancements for MOSFET-FR4 systems, it's essential to evaluate the cost-effectiveness of various solutions. While some advanced materials or techniques may offer superior thermal performance, they may also come with significant cost implications. Conducting a thorough cost-benefit analysis helps in making informed decisions that balance performance improvements with economic feasibility.

Manufacturing Challenges and Solutions

Implementing certain heat transfer enhancement techniques may present manufacturing challenges. For instance, creating high-aspect-ratio thermal vias or working with advanced composite materials may require specialized equipment or processes. Addressing these challenges often involves collaboration between design engineers and manufacturing teams to develop feasible and scalable solutions.

Long-term Reliability Considerations

While improving heat transfer is crucial for immediate performance, long-term reliability must also be considered. Some enhancement techniques may introduce new failure modes or affect the overall lifespan of the device. Rigorous testing and reliability analysis are necessary to ensure that heat transfer improvements do not compromise the long-term durability of MOSFET-FR4 systems.

Conclusion

Enhancing heat transfer in MOSFETs mounted on FR4 substrates is a multifaceted challenge that requires a deep understanding of thermal dynamics, material properties, and manufacturing processes. By leveraging thermal transient measurement techniques and implementing innovative solutions such as optimized substrate designs, thermal vias, and advanced packaging, manufacturers can significantly improve the thermal performance of MOSFET-FR4 systems. As the demand for more efficient and reliable electronic devices continues to grow, ongoing research and development in this field will undoubtedly lead to further advancements in heat transfer enhancement strategies.
