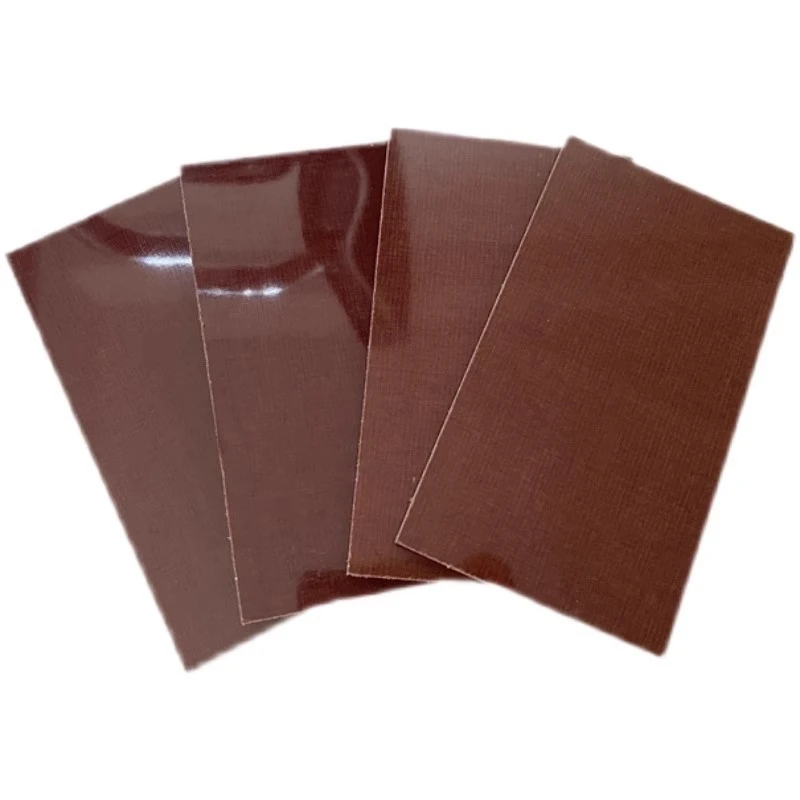

Classification and Grade of Phenolic Cotton Sheet

Phenolic cotton sheets are versatile insulating materials widely used in various industries due to their exceptional thermal and electrical properties. These sheets are classified based on their composition, manufacturing process, and intended applications. The grades of phenolic cotton sheets are determined by factors such as density, resin content, and mechanical strength. Understanding the classification and grades of phenolic cotton sheets is crucial for selecting the most suitable material for specific industrial needs, ensuring optimal performance and longevity in diverse environments ranging from electrical applications to high-temperature machinery insulation.

Types of Phenolic Cotton Sheets

Resin-Bonded Phenolic Cotton Sheets

Resin-bonded phenolic cotton sheets are crafted by impregnating cotton fabric with phenolic resin. This process results in a robust material with excellent electrical insulation properties. These sheets exhibit high mechanical strength and are resistant to moisture absorption. They are commonly used in electrical switchgear, transformers, and motor insulation applications. The resin content in these sheets can vary, affecting their overall performance characteristics.

Laminated Phenolic Cotton Sheets

Laminated phenolic cotton sheets are manufactured by layering multiple sheets of resin-impregnated cotton fabric and subjecting them to heat and pressure. This layering technique enhances the material's strength and dimensional stability. Laminated sheets are preferred in applications requiring superior mechanical properties and resistance to delamination. They find extensive use in heavy-duty electrical equipment and industrial machinery components.

Molded Phenolic Cotton Sheets

Molded phenolic cotton sheets are produced using a compression molding process. Cotton fibers are mixed with phenolic resin and molded into the desired shape under high pressure and temperature. This manufacturing method allows for the creation of complex shapes and customized designs. Molded sheets are often used in specialized applications where specific geometries or contours are required, such as in aerospace and automotive industries.

Grades of Phenolic Cotton Sheets

Standard Grade Phenolic Cotton Sheets

Standard grade phenolic cotton sheets are designed for general-purpose applications. They offer a balanced combination of electrical insulation properties and mechanical strength. These sheets typically have a resin content of 35-45% and a density range of 1.2-1.4 g/cm³. Standard grade sheets are suitable for use in low to medium voltage electrical systems and moderate temperature environments. They provide reliable performance in various industrial settings without the need for specialized characteristics.

High-Temperature Grade Phenolic Cotton Sheets

High-temperature grade phenolic cotton sheets are engineered to withstand elevated temperatures without compromising their insulation properties. These sheets are manufactured using specially formulated resins and undergo additional heat treatment during production. They can maintain their electrical and mechanical properties at temperatures up to 180°C (356°F). High-temperature grade sheets are indispensable in applications such as industrial ovens, furnace linings, and high-temperature machinery insulation where standard grades would degrade or fail.

Flame-Retardant Grade Phenolic Cotton Sheets

Flame-retardant grade phenolic cotton sheets are formulated with additives that enhance their fire-resistant properties. These sheets are designed to self-extinguish when exposed to flame and produce minimal smoke. They comply with stringent fire safety standards and are crucial in applications where fire hazards are a concern. Flame-retardant grades find extensive use in public transportation systems, aerospace components, and electrical enclosures in high-risk environments. The inclusion of flame-retardant additives does not significantly compromise the sheets' electrical or mechanical properties.

Performance Characteristics of Phenolic Cotton Sheets

Electrical Insulation Properties

Phenolic cotton sheets excel in electrical insulation, making them indispensable in the electrical and electronics industries. Their high dielectric strength, typically ranging from 15 to 20 kV/mm, ensures reliable insulation in various voltage applications. The material's low dielectric constant and dissipation factor contribute to minimal energy losses in alternating current systems. These properties remain stable across a wide range of frequencies, making phenolic cotton sheets suitable for both power and signal insulation applications.

Mechanical Strength and Durability

The mechanical properties of phenolic cotton sheets are a key factor in their widespread industrial use. These sheets exhibit high compressive strength, typically in the range of 150-200 MPa, allowing them to withstand significant loads without deformation. Their tensile strength, usually between 60-80 MPa, ensures resistance to tearing and stretching. The material's impact resistance and flexural strength contribute to its durability in dynamic environments. These mechanical characteristics make phenolic cotton sheets ideal for use in structural components and load-bearing applications in electrical and mechanical systems.

Chemical and Environmental Resistance

Phenolic cotton sheets demonstrate remarkable resistance to a wide range of chemicals and environmental factors. They are impervious to most oils, solvents, and weak acids, making them suitable for use in harsh industrial environments. The material's low moisture absorption rate, typically less than 2%, ensures dimensional stability and consistent electrical properties even in humid conditions. Phenolic cotton sheets also exhibit good resistance to fungal growth and microbial attack, contributing to their longevity in diverse applications. This chemical and environmental resilience makes them a preferred choice in outdoor electrical installations and chemical processing equipment.

Conclusion

The classification and grading of phenolic cotton sheets play a pivotal role in their selection and application across various industries. From standard grades suitable for general use to specialized high-temperature and flame-retardant varieties, these materials offer a spectrum of solutions for diverse insulation needs. Their exceptional electrical properties, mechanical strength, and resistance to environmental factors make them indispensable in modern industrial applications. As technology advances, the ongoing development of phenolic cotton sheets continues to expand their capabilities, ensuring their relevance in addressing future insulation challenges.
