Bakelite Sheets Properties & Applications for Industry

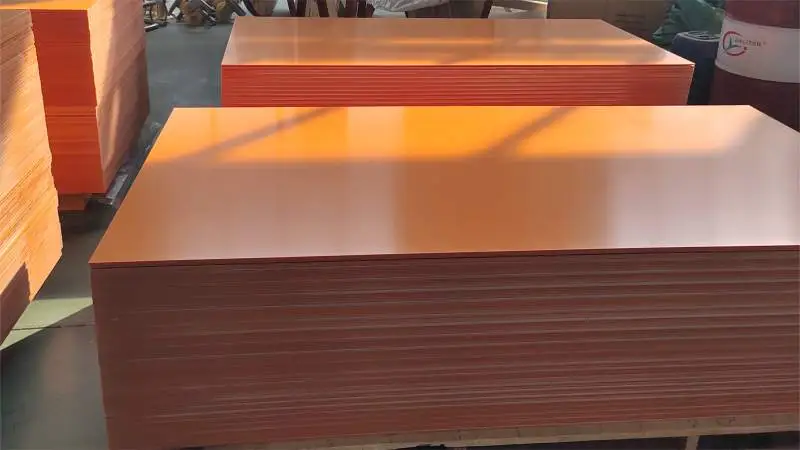

The industrial landscape leans on materials that survive punishing heat, relentless vibration, and unpredictable voltages. Bakelite sheet - a phenolic-based laminate first introduced more than one hundred years ago - still wins contracts because it pairs rugged mechanical strength with unwavering electrical insulation. Its cross-linked structure resists creep, warpage, and most common solvents, while a dense cellulose or woven glass core keeps weight low. This blend delivers repeatable performance in switchgear panels, jig bases, transformer spacers, and even contemporary CNC fixtures. In short, Bakelite sheet has matured from a vintage novelty into a precision-engineered ally for factories, laboratories, and energy grids.

Chemistry & Mechanics Behind Bakelite's Endurance

Phenolic Resin Network: The Molecular Scaffold

Bakelite arises when phenol meets formaldehyde under controlled heat and pressure, triggering a condensation reaction that locks molecules into a rigid three-dimensional lattice. Each bond is covalent, creating a thermoset architecture that will not re-melt. This labyrinth shrugs off thermal shock, sustains dielectric integrity above 200°C, and suppresses flame propagation. A carefully balanced catalyst package limits voids, so the finished sheet emerges with uniform density across its thickness.

Reinforcement Choices: Paper, Cotton, or Glass

The resin alone delivers hardness; reinforcement drives versatility. Paper-based grades yield excellent machinability and cost-effectiveness for terminal boards. Cotton fabric inserts raise impact strength and reduce chatter during drilling. For high-frequency or aviation circuits, woven glass reinforcement delivers minimal moisture uptake and higher comparative tracking index. By tailoring the core, producers fine-tune flexural modulus, density, and arc resistance without altering external dimensions.

Mechanical Attributes That Matter on the Factory Floor

- Compressive strength often exceeds 300 MPa, outclassing many engineered woods.

- Tensile strength remains stable in humid zones, because water absorption rarely tops 1.5 %.

- Dimensional deviation under 50 ppm/°C keeps gear housings aligned during sudden motor ramp-ups.

Machinists appreciate the crisp chip break and low tool wear, while maintenance teams value the sheet's self-extinguishing behavior during wiring faults.

Industrial Use Cases Elevating Performance

Power Distribution & Electrical Safety

Bakelite sheet's exceptional dielectric strength, often exceeding 12 kV/mm, makes it a critical component in circuit breakers, busbar supports, and arc chutes. This robust material effectively halts tracking currents, reducing the risk of flashovers in compact switchboards. Its low surface conductivity is key in helping global utilities comply with IEC 60601 clearance standards, eliminating the need for bulky air gaps. As a result, valuable cabinet space can be optimized for additional components like monitoring sensors, enhancing overall system efficiency and functionality.

Precision Tooling & Jigs

In CNC machining, cotton-phenolic sheets are increasingly used to create lightweight yet rigid sacrificial tables that effectively dampen vibration and minimize thermal drift, even during prolonged milling operations. Operators place replaceable pads on top, which can be quickly swapped out, ensuring maximum spindle uptime. Compared to aluminum, these phenolic fixtures significantly reduce crash inertia by up to 50%, offering better protection for the spindle bearings. This not only prevents potential damage during collisions but also extends the lifespan of critical components.

Transportation & Aerospace Components

Bakelite sheets are an ideal choice for industries like railways and aviation, where weight reduction and flame retardancy are critical. These materials not only meet EN 45545 and FAR 25.853 smoke-density standards but also allow for thinner, more efficient components without compromising strength. Their ability to withstand cyclic loads ensures durability in demanding environments, while their resistance to hydraulic fluids protects the integrity of parts near actuators and valves, maintaining optimal performance in harsh conditions.

Best Practices in Sourcing, Machining, and Sustainability

Selecting the Correct Grade for the Task

When selecting materials for demanding applications, it's crucial to consider operating temperature, voltage stress, and mechanical load. Paper phenolic grades perform well up to 120°C, offering reliable insulation, while glass-phenolic composites maintain their shape at temperatures nearing 260°C. To ensure compliance with regional standards, always verify UL file numbers and CTI ratings. Trusted suppliers also provide detailed information, such as lot-specific resin viscosities and batch cure graphs, ensuring consistent quality and performance for large-scale, global projects.

Machining Tips that Extend Tool Life

Carbide end mills with a neutral rake angle are ideal for reducing delamination during machining of Bakelite sheet, providing smoother cuts. While coolant isn't always necessary, using a mist of compressed air is often sufficient, as the resin naturally resists water infiltration. For tapping, thread-forming taps are preferred over cutting taps to prevent micro-cracks and maintain part integrity. Additionally, edge deburring with a nylon wheel helps seal fiber ends, which is especially crucial in coastal climates where moisture could cause wicking and affect the material's performance over time.

Circular Economy & End-of-Life Considerations

Thermosets, while resistant to remelting, offer sustainable solutions for waste management. Instead of sending off-cuts to landfill, controlled pyrolysis can recover calorific value for energy production. Additionally, powdered phenolic scrap can be repurposed in friction-material blends like brake pads, contributing to a circular economy. Forward-thinking manufacturing facilities are increasingly opting for formaldehyde-free phenolic variants, which not only reduce harmful volatile organic compounds (VOCs) during the curing process but also ensure safer end-use, promoting a healthier environment throughout the product lifecycle.

Conclusion

Bakelite sheet remains a cornerstone in modern industry due to its exceptional blend of electrical insulation, mechanical strength, and ease of machining. When carefully selected, it enhances power distribution systems, reduces tooling downtime, and ensures compliance with strict safety regulations. With a time-tested chemical composition and a wide range of reinforcement options, Bakelite continues to evolve with eco-friendly strategies, making it a reliable and sustainable material choice for industries that prioritize long-lasting performance and operational efficiency.

Contact Us

For more information about our high-quality Bakelite sheets and how they can benefit your industrial applications, please don't hesitate to contact us at info@jhd-material.com. Our team of experts is ready to assist you in finding the perfect Bakelite sheet solution for your specific needs.

References

1. ASTM D709 Standard Specification for Laminated Thermosetting Materials

2. IEC 60893-3-4: Specifications for Industrial Laminates - Phenolic Paper

3. UL 94 Tests for Flammability of Plastic Materials for Parts in Devices and Appliances

4. JIS C 2133 Phenolic Resin Laminated Sheets for Electrical Insulation

5. Journal of Applied Polymer Science, Thermal Degradation Pathways of Phenol-Formaldehyde Laminate Boards

6. Composite Structures Magazine, Advances in Glass-Phenolic Laminates for High-Voltage Insulation
