Are phenolic cotton laminated sheets available in different grades?

Yes, phenolic cotton laminated sheets are indeed available in various grades to suit different applications and requirements. These versatile materials, including the popular phenolic cotton cloth laminate sheet 3026, come in a range of grades that differ in their physical properties, performance characteristics, and intended uses. The grades typically vary based on factors such as resin content, cotton fabric quality, density, mechanical strength, electrical insulation properties, and heat resistance. This diversity allows manufacturers and end-users to select the most appropriate grade for their specific needs, whether it's for electrical insulation, mechanical applications, or high-temperature environments. Understanding these different grades is crucial for ensuring optimal performance and longevity in various industrial and commercial applications.

Understanding Phenolic Cotton Laminated Sheets and Their Grades

Composition and Manufacturing Process

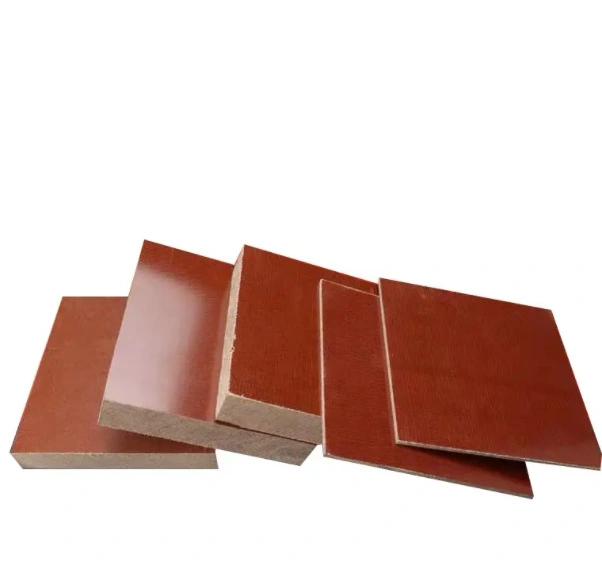

Phenolic cotton laminated sheets are composite materials made by impregnating layers of cotton fabric with phenolic resin. The manufacturing process involves carefully layering the resin-soaked cotton fabrics and subjecting them to heat and pressure. This process results in a dense, durable material with excellent electrical and mechanical properties.

The grade of the sheet is largely determined by the quality and type of cotton fabric used, as well as the resin formulation and the specific manufacturing parameters. Higher-grade sheets often use finer cotton fabrics and may undergo additional processing steps to enhance their properties.

Classification of Grades

Phenolic cotton laminated sheets are typically classified into grades based on their performance characteristics. Common classifications include:

- Electrical Grade: Optimized for electrical insulation properties

- Mechanical Grade: Designed for superior mechanical strength and durability

- Thermal Grade: Engineered to withstand high temperatures

- Chemical Grade: Resistant to various chemicals and solvents

Each of these categories may have further subdivisions, such as low, medium, and high-performance grades within the electrical classification.

Industry Standards and Specifications

Various industry standards govern the classification and testing of phenolic cotton laminated sheets. Organizations such as NEMA (National Electrical Manufacturers Association) and IEC (International Electrotechnical Commission) provide guidelines for grading these materials. For instance, the NEMA grade XX indicates a high-quality sheet with excellent electrical and mechanical properties, while NEMA C is a more economical grade suitable for less demanding applications.

Exploring Different Grades of Phenolic Cotton Laminated Sheets

Electrical Grade Sheets

Electrical grade phenolic cotton laminated sheets, including variants of the phenolic cotton cloth laminate sheet 3026, are designed primarily for their insulating properties. These grades are characterized by their high dielectric strength, low dielectric constant, and excellent arc resistance. They are commonly used in switchgear, transformer components, and other electrical equipment.

Within the electrical grade category, you might find sub-grades such as:

- Grade E: Basic electrical insulation properties

- Grade LE: Enhanced electrical properties with improved mechanical strength

- Grade HE: High-end electrical grade with superior insulation characteristics

Mechanical Grade Sheets

Mechanical grade phenolic cotton laminated sheets are engineered for applications requiring high strength, stiffness, and dimensional stability. These grades often have a higher resin content and may use specially treated cotton fabrics to enhance their mechanical properties.

Common sub-grades in the mechanical category include:

- Grade M: Standard mechanical grade for general-purpose applications

- Grade GM: Glass-mat reinforced grade for enhanced strength and impact resistance

- Grade HM: High-performance mechanical grade for demanding structural applications

Thermal Grade Sheets

Thermal grade phenolic cotton laminated sheets are formulated to withstand high temperatures and maintain their properties under thermal stress. These grades often incorporate special additives or modified resin formulations to enhance their heat resistance.

Thermal grades may be classified as:

- Grade T: Basic thermal grade for moderate temperature applications

- Grade HT: High-temperature grade for use in more extreme thermal environments

- Grade UHT: Ultra-high temperature grade for the most demanding thermal applications

Selecting the Right Grade for Your Application

Factors to Consider

Choosing the appropriate grade of phenolic cotton laminated sheet, such as the phenolic cotton cloth laminate sheet 3026, requires careful consideration of several factors:

- Operating Environment: Temperature, humidity, and exposure to chemicals or solvents

- Mechanical Requirements: Load-bearing capacity, impact resistance, and dimensional stability

- Electrical Properties: Dielectric strength, insulation resistance, and arc resistance

- Regulatory Compliance: Industry-specific standards and certifications

- Cost Considerations: Balance between performance and budget constraints

Application-Specific Grade Selection

Different applications may require specific grades of phenolic cotton laminated sheets:

- Electrical Switchgear: High-grade electrical sheets with excellent arc resistance

- Aerospace Components: Lightweight, high-strength mechanical grades

- Industrial Machinery: Durable mechanical grades with good machinability

- High-Temperature Processing Equipment: Thermal grades with excellent heat resistance

Customization and Special Grades

In some cases, standard grades may not meet all the requirements of a specific application. Many manufacturers offer customized grades of phenolic cotton laminated sheets, including specialized versions of the phenolic cotton cloth laminate sheet 3026. These custom grades can be tailored to meet unique combinations of electrical, mechanical, and thermal properties.

Customization options may include:

- Modified resin formulations for enhanced chemical resistance

- Incorporation of flame retardants for improved fire safety

- Addition of reinforcing materials for superior mechanical properties

- Surface treatments for improved adhesion or wear resistance

Conclusion

Phenolic cotton laminated sheets, including the versatile phenolic cotton cloth laminate sheet 3026, are indeed available in a wide range of grades to meet diverse industrial needs. From basic electrical insulation to high-performance mechanical and thermal applications, these materials offer a spectrum of properties that can be tailored to specific requirements. By understanding the different grades available and carefully considering the application requirements, engineers and designers can select the optimal phenolic cotton laminated sheet for their projects, ensuring reliable performance and longevity in various demanding environments.
