3d Metallic Epoxy

Featrues:

Epoxy resin JQ11-F can be cured under normal temperature, with the feature of low viscosity and good flowing property, natural defoaming, anti-yellow, high transparency, no ripple, bright in surface.

Application:

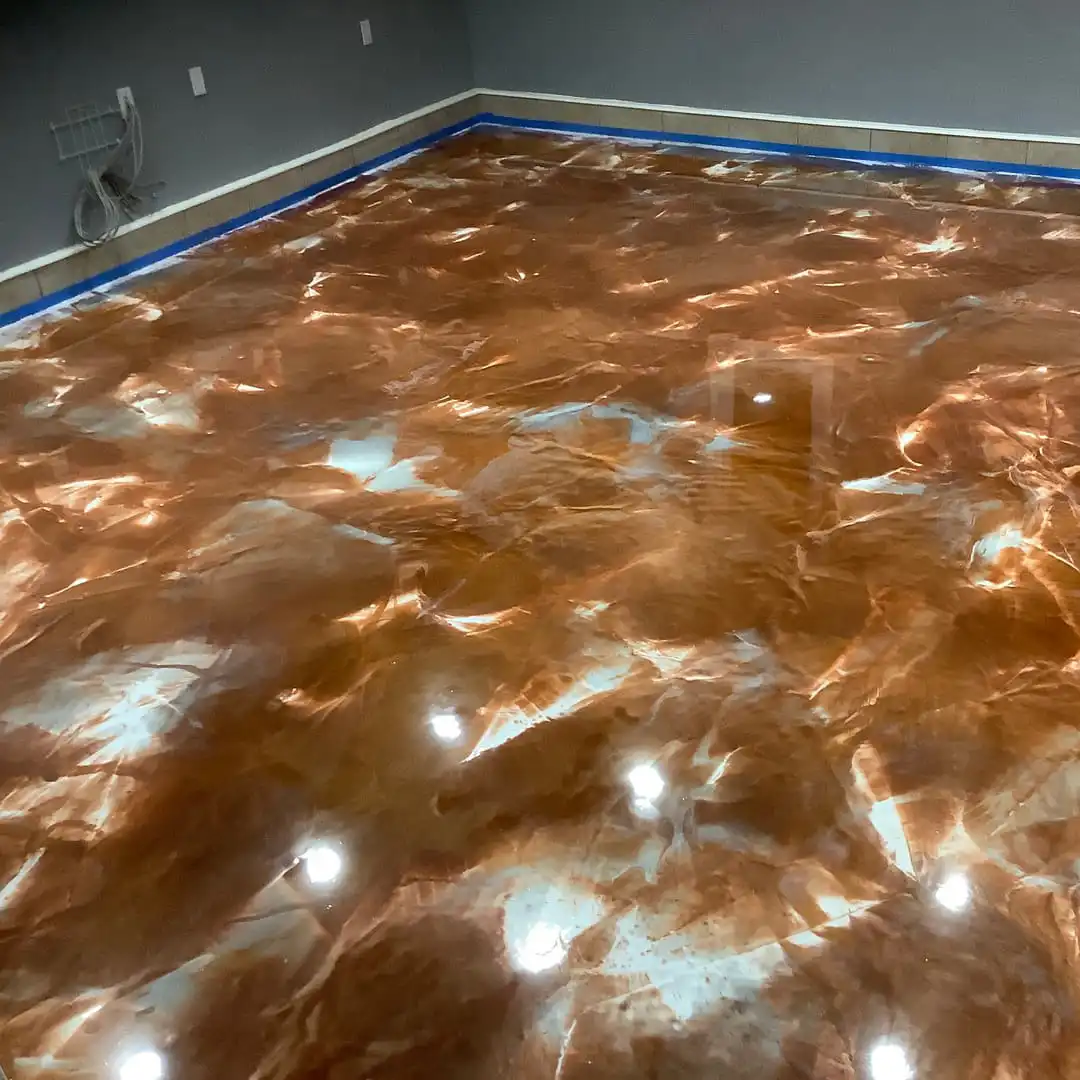

JQ11-F resin can be widely used for 3d or metallic floor, photo frame coating, crystal flooring coating, hand made jewelry, and mold filling, etc..

Product Details:

Properties before Hardening

Part	JQ11-FA	JQ1-FB
Color	Transparent	Transparent
Specific gravity	1.15	0.96
Viscosity (25℃)	2000-4000CPS	100CPS
Mixing ratio	A: B = 100:33(weight ratio)
Hardening conditions	25℃×8H to 10H or 55℃×1.5H(2g)
Usable time	25℃×40min(100g)



Operation

1.Weigh A and B glue according to the given weight ratio into the prepared cleaned container, fully mixed the mixture again the container wall by clockwise, place it along for 3 to 5 minutes, and then it can be used.

2.Take the glue according to the usable time and dosage of mixture to avoid wasting. When the temperature is below 15 ℃, please heat A glue to 30 ℃ first and then mix it to the B glue (A glue will be thicken in low temperature ); The glue must be sealed lid after use to avoid rejection caused by moisture absorption.

3.When the relative humidity is higher than 85%, the surface of the cured mixture will absorb moisture in the air, and form a layer of white mist in the surface, so when the relative humidity is higher than 85%, is not suitable for room temperature curing, suggest to use the heat curing.

Properties after Hardening

Hardness, shore D	>86
Withstand voltage, KV/mm	22
Flexural strength, Kg/mm2	75
Volume resistivity, Ohm3	1x1015
Surface resistance, Ohmm2	5X1015
Thermal conductivity, W/M.K	1.36
Induced electric loss, 1KHZ	0.42
Withstand high temperature, ℃	92
Moisture absorption, %	<0.15
Compressive strength, Kg/ mm2	8.4

Caution

1,The operating environment should be ventilative and should keep away from fire. Closely sealed after use.
2, Avoid eye contact, in case of contact, wash with plenty of water and get medical attention immediately.

3, If contact skin, wrap with clean cloth or paper, and wash it with water and soap.
4, Keep away from children.
5, Please take a trial before application to avoid usage mistake.

Storage And Shelf Life

1, Store at the temperature of 25°C or cool and dry place. Avoid from sunlight, high temperature or high humidity environment.

2, Use up as soon as possible when opened. It is strictly forbidden to expose to the air for a long time after it is opened to avoid affecting the quality of the products. The shelf life is six months in the room temperature of 25°C degree.



JQ11-F Epoxy is a new super clear epoxy that provides a clear, hard, glass-like surface on wood or concrete.The most advanced level of shine, gloss, reflectivity, clarity and depth, and it locks in those optical qualities forever.Our Commercial-grade epoxy is engineered specifically for Bar Tops, Tabletops & Countertops.



Factory Equipment

---

  Hebei Linyuan Fine Chemical Co., Ltd. was established in January 2017, and it was funded and constructed by Hebei JingHong Electronic Technology Co., Ltd and its subsidiary Hongda Insulation Material Factory which specialize in the production of 3240 Epoxy Resin Board, FR4 Fiberglass Sheet, Phenolic Cotton Cloth Laminate Sheet 3026, phenolic paper board and copper clad laminate.

  JingHong had a factory before in Xiong'an New District, Hebei, which produced E44 epoxy resin only. The production volume was small and part of it was used for its own. Therefore, there was not much sales in the market. Due to the wide applications of epoxy resin, China has become the world's largest producer and consumer of epoxy resins. In order to comply with the market trend, the company combined the company's own situation, withdrew from Xiong'an New Area, and built an epoxy resin factory with an annual output of 20,000 tons in Cangzhou. The project has been completed and put into production.

The project is designed with reference of Japan’s Toto Kasei technology. The current production of epoxy resins include E44, E51, etc., and varieties will be gradually added according to market demand in the future. The person who take in charge of the company said: At present, the epoxy resin production capacity is 20,000 tons. According to the actual market situation, the production capacity is going to expand to 100,000 tons.
