What material is FR4?

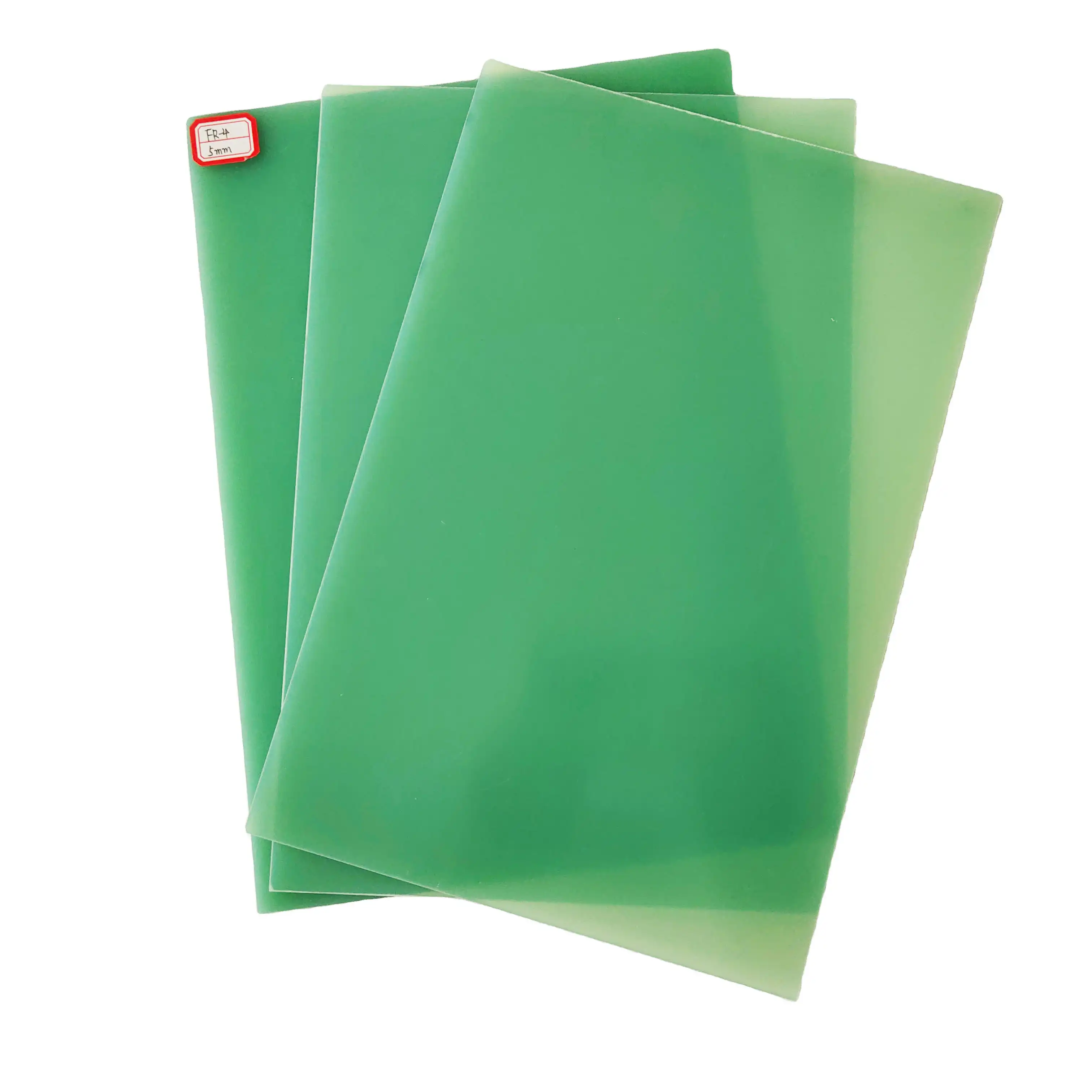

Introduction to FR4 Epoxy

FR4 epoxy is a type of material widely used in the manufacturing of printed circuit boards (PCBs). Its name comes from "Flame Retardant 4," demonstrating its fire-resistant properties. Due to its distinctive structure and properties, FR4 has become synonymous with performance and dependability in electronics and electrical engineering.

Why is FR4 used in PCBs?

FR4 Epoxy Board is chosen for PCBs primarily because of its excellent electrical insulation properties combined with good mechanical strength. This material gives a steady stage to electronic parts while guaranteeing that the electrical signs travel productively between them. Its flame-retardant nature likewise makes it more secure in the event of any electrical deficiencies, diminishing the gamble of fire.

Notwithstanding its electrical properties, FR4 is known for its moderateness and accessibility. PCB production in a variety of industries is made more cost-effective thanks to its consistent quality and ease of processing. Besides, FR4 can endure a large number of temperatures and natural circumstances, making it reasonable for different applications from buyer hardware to aviation frameworks.

What are the properties of FR4 epoxy?

FR4 epoxy is a composite material composed of a woven fiberglass cloth impregnated with an epoxy resin binder. This combination results in a laminate that exhibits several key properties:

1.Mechanical Strength: The remarkable mechanical strength of FR4 epoxy is one of its primary characteristics. The epoxy resin matrix's incorporation of woven fiberglass cloth significantly enhances the material's rigidity and tensile strength. This mechanical robustness is essential, particularly for supporting PCB-mounted components. The woven construction of the fiberglass gives a serious level of layered steadiness, guaranteeing that the sheets don't twist or disfigure under mechanical pressure. This trademark is especially significant during the get together cycle and keeping in mind that the gadgets are in activity, as it keeps up with the honesty and dependability of the circuit ways and associations.

2.Electrical Insulation: Electrical insulation is absolutely necessary in electronic applications to avoid short circuits and guarantee reliable performance. FR4 epoxy succeeds around here because of the great dielectric strength given by the epoxy gum grid. Dielectric strength alludes to the material's capacity to endure electric fields without separating. This property guarantees that the electrical signs stay confined inside their assigned ways, accordingly forestalling accidental flow stream between various pieces of the circuit. The high electrical resistivity of FR4 additionally adds to its adequacy as an encasing, making it ideal for intricate and high-thickness PCB plans where clear division of electrical pathways is pivotal.

3.Thermal Stability: Another critical property of FR4 epoxy is its excellent thermal stability. This material is engineered to retain its structural integrity and electrical properties across a wide range of temperatures. Whether exposed to sub-zero conditions or the high temperatures often encountered in electronic device operation, FR4 maintains consistent performance. This thermal resilience is crucial for ensuring that the electronic components continue to function correctly without degradation over time. Moreover, the low coefficient of thermal expansion in FR4 minimizes dimensional changes with temperature fluctuations, thereby preserving the alignment and connectivity of the circuit components.

4.Flame Retardancy: Inherent flame retardancy is another essential property of FR4 epoxy. Through the incorporation of specific additives in the epoxy resin, FR4 exhibits flame-retardant characteristics, meeting stringent safety standards in electronics manufacturing. This flame retardancy significantly enhances the safety and reliability of electronic products and helps mitigate fire risks associated with electrical components.

Understanding these properties helps designers and engineers optimize PCB layouts and select appropriate materials for specific applications based on performance requirements and environmental factors.

How is FR4 manufactured and processed?

The manufacturing process of FR4 Epoxy Board involves several steps to achieve the desired material properties and dimensions suitable for PCB fabrication:

1.Preparation of Substrates: The initial step in FR4 manufacturing involves preparing the substrates by impregnating thin layers of fiberglass cloth with epoxy resin. These impregnated layers are then stacked together to form a laminate structure. The combination of fiberglass reinforcement and epoxy resin binder is critical for imparting mechanical strength, electrical insulation, and thermal stability to the FR4 material.

2.Curing: Following substrate planning, the stacked layers go through a relieving interaction to security the gum and build up the fiberglass. Heat and pressure are applied to the material during curing, which ensures a strong and uniform bond between the resin matrix and the fiberglass reinforcement and facilitates the polymerization of the epoxy resin. The FR4 laminate must complete this step in order to attain the desired mechanical properties and dimensional stability.

3.Cutting and Shaping: When the FR4 cover has been restored, it is cut into explicit sizes and shapes as indicated by the necessities of the PCB plan. Accuracy cutting procedures, for example, CNC machining or laser slicing are utilized to accomplish precise aspects and mind boggling designs required for making circuit sheets. For electronic assemblies to function properly and fit properly, it is essential to be able to precisely cut and shape FR4.

4.Surface Treatment: After cutting and shaping, the FR4 laminate undergoes surface treatment processes to prepare it for PCB fabrication. This may involve etching the surface to create copper traces for electrical pathways or applying coatings to enhance solderability and protection against environmental factors. Surface treatment plays a crucial role in establishing the conductive pathways necessary for interconnecting electronic components on the PCB.

5.Quality Control: To evaluate the FR4 material's dimensional accuracy, electrical insulation properties, and overall dependability, stringent quality control measures are implemented throughout the manufacturing process. Different testing techniques, like mechanical testing, electrical testing, and visual review, are led to guarantee that the completed FR4 overlays fulfill industry guidelines and execution prerequisites. Quality control rehearses assist with distinguishing any imperfections or irregularities from the get-go in the assembling system, empowering restorative moves to be made to keep up with item quality.

By understanding the manufacturing process, PCB designers can make informed decisions about material specifications and ensure that the final product meets performance standards and regulatory requirements.

Conclusion

FR4 epoxy is a cornerstone material in the electronics industry, offering a balance of electrical performance, mechanical reliability, and safety. Its widespread adoption in PCB manufacturing underscores its importance in enabling technological advancements across various sectors. By delving into the properties, applications, and manufacturing of FR4, engineers and designers can leverage this versatile material to innovate and deliver robust electronic solutions.

References:

1. IPC Standards and Publications - IPC-4101, "Specification for Base Materials for Rigid and Multilayer Printed Boards"
2. "FR-4 Material Data Sheet" from a major PCB manufacturer like Isola or Rogers Corporation
3. "Understanding FR-4 PCBs" article from PCBWay
4. "FR-4 PCB Material Properties and Uses" from Sierra Circuits
5. "Designing with FR4" guide from Altium
6. "Introduction to PCB Substrates" from IEEE Xplore
7. "The Role of FR4 in PCB Manufacturing" from All About Circuits
8. "Advantages and Disadvantages of FR4 PCBs" from Electronics Hub
9. "Comparison of PCB Substrates" research article from MDPI
10. "PCB Material Selection for High-Frequency Applications" from RF Globalnet
