What Makes FR4 Glass Epoxy Sheet Stand Out in the Market?

2025-03-19 17:25:04

FR4 glass epoxy sheet has emerged as a standout material in the insulation industry, captivating manufacturers and engineers alike with its exceptional properties. This versatile composite combines the strength of woven glass fabric with the thermal resistance of epoxy resin, resulting in a product that excels in electrical insulation, mechanical stability, and fire retardancy. Its ability to maintain its properties across a wide range of temperatures and environments has made it indispensable in various applications, from printed circuit boards to aerospace components. The FR4 glass epoxy sheet's remarkable balance of performance, durability, and cost-effectiveness has solidified its position as a market leader, outshining traditional materials and setting new standards in the realm of insulation technology.

Superior Electrical and Mechanical Properties of FR4 Glass Epoxy Sheet

Exceptional Dielectric Strength

FR4 glass epoxy sheet boasts an impressive dielectric strength, which is a crucial factor in its widespread adoption. This property allows the material to withstand high voltage differentials without breaking down, making it an ideal choice for electrical insulation in demanding applications. The sheet's ability to maintain its dielectric properties even in adverse conditions contributes significantly to its reliability and longevity in various electrical systems.

Robust Mechanical Stability

The glass fabric reinforcement in FR4 sheets imparts exceptional mechanical stability to the material. This translates to high tensile strength, excellent dimensional stability, and remarkable resistance to warping and bending. These characteristics ensure that FR4 glass epoxy sheets maintain their structural integrity even under significant mechanical stress, making them suitable for applications where reliability is paramount.

Low Water Absorption

FR4 glass epoxy sheets exhibit remarkably low water absorption rates, a property that sets them apart from many other insulating materials. This characteristic is particularly valuable in environments where moisture could compromise the performance of electrical components. The low water absorption ensures that the material maintains its electrical and mechanical properties even in humid conditions, enhancing its versatility and reliability across various applications.

Thermal Performance and Fire Retardancy of FR4 Glass Epoxy Sheet

Excellent Thermal Resistance

FR4 glass epoxy sheets demonstrate exceptional thermal resistance, maintaining their properties across a wide temperature range. This thermal stability is crucial in applications where temperature fluctuations are common, such as in automotive or aerospace industries. The material's ability to withstand high temperatures without significant degradation contributes to the longevity and reliability of components manufactured using FR4 sheets.

Inherent Fire Retardancy

One of the most distinguishing features of FR4 glass epoxy sheets is their inherent fire retardancy. The "FR" in FR4 stands for "Flame Retardant," indicating that the material has been engineered to resist ignition and slow the spread of flames. This property is not a surface treatment but is intrinsic to the material's composition, ensuring consistent fire protection throughout the sheet's lifespan. The fire-retardant nature of FR4 sheets makes them indispensable in applications where safety is a primary concern.

Low Thermal Expansion

FR4 glass epoxy sheets exhibit a low coefficient of thermal expansion, which is a critical property in many high-precision applications. This characteristic ensures that the material maintains its dimensions and shape even when subjected to temperature changes, preventing warping or distortion that could affect the performance of sensitive electronic components or mechanical assemblies. The stability of FR4 sheets across temperature ranges contributes to their reliability and precision in various industrial applications.

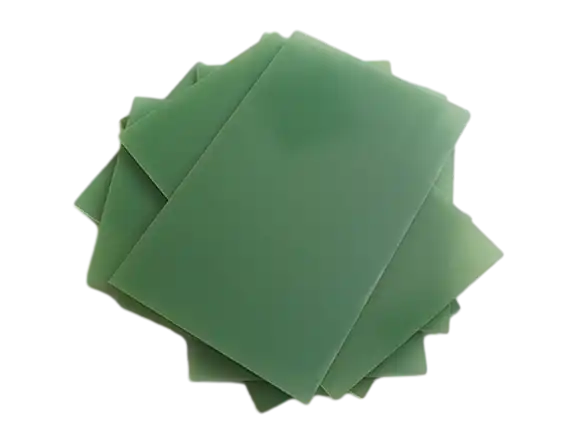

FR4 glass epoxy sheet

Versatility and Cost-Effectiveness of FR4 Glass Epoxy Sheet

Wide Range of Applications

The unique combination of properties exhibited by FR4 glass epoxy sheets makes them suitable for a diverse array of applications. From printed circuit boards in electronics to structural components in aerospace, FR4 sheets have found their way into numerous industries. Their versatility extends to applications in renewable energy, such as wind turbine blades, where their mechanical strength and electrical insulation properties are highly valued. This adaptability across different sectors has significantly contributed to the material's market dominance.

Excellent Machinability

FR4 glass epoxy sheets offer excellent machinability, allowing for precise cutting, drilling, and shaping without compromising the material's integrity. This property facilitates the creation of complex geometries and intricate designs, expanding the possibilities for manufacturers and designers. The ease of machining FR4 sheets contributes to reduced production times and costs, making it an attractive option for both large-scale manufacturing and custom projects.

Cost-Effective Performance

While FR4 glass epoxy sheets may have a higher initial cost compared to some traditional materials, their overall cost-effectiveness becomes apparent when considering their long-term performance and durability. The material's resistance to environmental factors, mechanical stress, and electrical breakdown results in fewer replacements and maintenance requirements over time. This longevity, combined with the material's versatility, often translates to a lower total cost of ownership for products and systems utilizing FR4 sheets, making them an economically sound choice for many applications.

Conclusion

FR4 glass epoxy sheet has rightfully earned its position as a market leader in the insulation industry. Its unparalleled combination of electrical insulation, mechanical strength, fire retardancy, and thermal stability sets it apart from conventional materials. The versatility of FR4 sheets, coupled with their excellent machinability and cost-effectiveness, makes them an invaluable asset across various sectors. As industries continue to evolve and demand higher performance standards, FR4 glass epoxy sheets remain at the forefront, driving innovation and reliability in countless applications.

Contact Us

To learn more about our high-quality FR4 glass epoxy sheets and how they can benefit your projects, please don't hesitate to reach out to us. Our team of experts is ready to assist you with detailed information and tailored solutions. Contact us today at info@jhd-material.com and discover the exceptional performance of our FR4 glass epoxy sheets.
