What is Black Durostone Pallet for Wave Soldering and Reflow Soldering?

Understanding Black Durostone Pallets

Composition and Properties

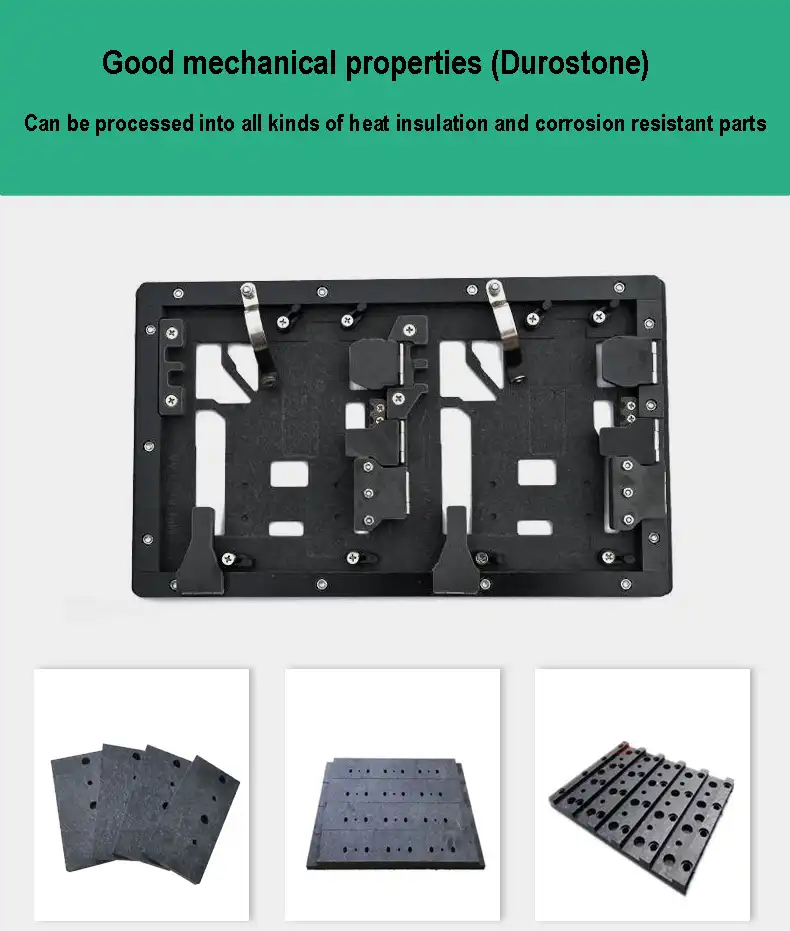

Black Durostone Pallets are crafted from a high-performance composite material known as Durostone. This material is a blend of epoxy resin and woven glass fabric, resulting in a robust and heat-resistant product. The black color is not merely aesthetic; it serves a functional purpose by enhancing heat absorption and distribution during the soldering process.

The unique composition of Durostone gives these pallets exceptional properties. They boast remarkable dimensional stability, even when exposed to extreme temperatures. This stability is crucial in maintaining the precise positioning of components during soldering. Additionally, Durostone pallets exhibit excellent electrical insulation properties, preventing any unwanted conductivity that could interfere with the soldering process.

Design Features

Black Durostone Pallets are meticulously designed to cater to the specific needs of wave and reflow soldering. They typically feature a series of carefully positioned holes or cutouts. These openings serve multiple purposes: they allow for the passage of solder during wave soldering, facilitate heat transfer in reflow soldering, and can accommodate various component shapes and sizes.

The surface of these pallets is often textured or coated to prevent components from sliding or shifting during the soldering process. This attention to detail ensures that each component remains in its designated position, leading to consistent and high-quality solder joints.

Durability and Longevity

One of the most appealing aspects of Black Durostone Pallets is their exceptional durability. These pallets can withstand repeated exposure to high temperatures without warping, degrading, or losing their dimensional stability. This resilience translates to a long operational life, making them a cost-effective solution for electronics manufacturers.

The robust nature of Durostone also means these pallets are resistant to chemical solvents commonly used in electronics manufacturing. This resistance not only extends the life of the pallets but also prevents contamination of the soldering process, ensuring consistently high-quality results.

Applications in Wave Soldering

The Wave Soldering Process

Wave soldering is a bulk soldering process used to affix electronic components to printed circuit boards (PCBs) on a large scale. In this process, a PCB is passed over a wave of molten solder, which adheres to exposed metal areas, creating electrical connections. Black Durostone Pallets play a pivotal role in this process by serving as carriers for the PCBs.

The pallet's design allows it to securely hold the PCB while protecting areas that should not come into contact with solder. The strategic placement of holes in the pallet permits the solder wave to reach only the desired areas of the PCB, ensuring precise and controlled soldering.

Benefits in Wave Soldering

The use of Black Durostone Pallets in wave soldering offers several advantages. Their heat-resistant properties allow them to withstand the high temperatures of molten solder without warping or degrading. This stability ensures that the PCBs remain perfectly flat and properly aligned throughout the soldering process, resulting in consistent and reliable solder joints.

Moreover, the pallets' excellent thermal management properties help in maintaining an optimal temperature profile during soldering. This temperature control is crucial for achieving high-quality solder connections and minimizing defects such as cold joints or excessive solder bridging.

Customization for Different PCB Sizes

Black Durostone Pallets can be customized to accommodate various PCB sizes and configurations. This adaptability makes them suitable for a wide range of electronics manufacturing applications, from small consumer electronics to large industrial equipment. The ability to create custom pallet designs allows manufacturers to optimize their wave soldering process for specific product lines, enhancing efficiency and quality.

Applications in Reflow Soldering

The Reflow Soldering Process

Reflow soldering is another crucial technique in electronics assembly, particularly for surface-mount components. In this process, solder paste is applied to the PCB, components are placed, and the entire assembly is heated to melt the solder, creating electrical connections. Black Durostone Pallets serve as essential fixtures in reflow ovens, supporting the PCBs throughout the heating cycle.

The pallets' role in reflow soldering is to ensure even heat distribution and maintain the planarity of the PCB. This is critical for achieving consistent solder joints across all components, especially in densely populated boards with fine-pitch components.

Thermal Management in Reflow Soldering

One of the key advantages of using Black Durostone Pallets in reflow soldering is their excellent thermal management capabilities. The material's properties allow for efficient heat transfer, ensuring that the PCB and components reach the required temperatures uniformly. This uniform heating is crucial for proper solder melting and formation of reliable connections.

The black color of the pallets also contributes to their thermal performance. Dark surfaces are better at absorbing and radiating heat, which helps in maintaining consistent temperatures throughout the reflow process. This characteristic is particularly beneficial in controlling the heating and cooling rates, which are critical factors in achieving high-quality solder joints.

Preventing Warpage and Component Shifting

During the reflow process, PCBs can be susceptible to warpage due to thermal stress. Black Durostone Pallets help mitigate this issue by providing a stable, flat surface that supports the entire PCB. The pallet's dimensional stability at high temperatures ensures that the PCB remains flat throughout the heating and cooling cycles, preventing warpage that could lead to solder joint failures or component misalignment.

Additionally, the textured or coated surface of the pallets helps prevent components from shifting during the reflow process. This is particularly important for maintaining the precise positioning of fine-pitch and ball grid array (BGA) components, where even slight movements can result in solder defects.

Advantages of Black Durostone Pallets

Enhanced Production Efficiency

The use of Black Durostone Pallets significantly enhances production efficiency in electronics manufacturing. Their durability allows for continuous use in high-volume production environments, reducing downtime associated with pallet replacement or maintenance. The pallets' ability to maintain dimensional stability ensures consistent results, minimizing the need for rework and improving overall throughput.

Furthermore, the customizable nature of these pallets enables manufacturers to optimize their soldering processes for specific product lines. This tailored approach can lead to faster production cycles and reduced setup times when switching between different PCB designs.

Improved Quality Control

Quality control is paramount in electronics manufacturing, and Black Durostone Pallets contribute significantly to maintaining high standards. By ensuring consistent positioning of PCBs and components throughout the soldering process, these pallets help reduce variations in solder joint quality. This consistency leads to fewer defects and a higher yield of functional products.

The pallets' role in thermal management also contributes to quality improvement. By facilitating uniform heating and cooling, they help prevent issues such as cold solder joints or excessive solder bridging, which can compromise the reliability of electronic assemblies.

Cost-Effectiveness

While the initial investment in Black Durostone Pallets may be higher compared to some alternatives, their long-term cost-effectiveness is compelling. The exceptional durability of these pallets means they can withstand thousands of soldering cycles without degradation, reducing the frequency of replacement and associated costs.

Moreover, the improved production efficiency and quality control facilitated by these pallets can lead to significant cost savings over time. Reduced rework, fewer defects, and increased throughput all contribute to a lower overall production cost per unit, making Black Durostone Pallets a smart investment for electronics manufacturers.

Conclusion

Black Durostone Pallets have emerged as indispensable tools in the realm of electronics manufacturing, particularly in wave and reflow soldering processes. Their unique combination of heat resistance, dimensional stability, and customizability makes them ideal for ensuring high-quality, efficient production of electronic components. As the electronics industry continues to evolve, with demands for higher precision and reliability, the role of these specialized pallets is likely to grow even more significant. Their contribution to enhancing production efficiency, improving quality control, and reducing overall manufacturing costs underscores their importance in modern electronics assembly.
