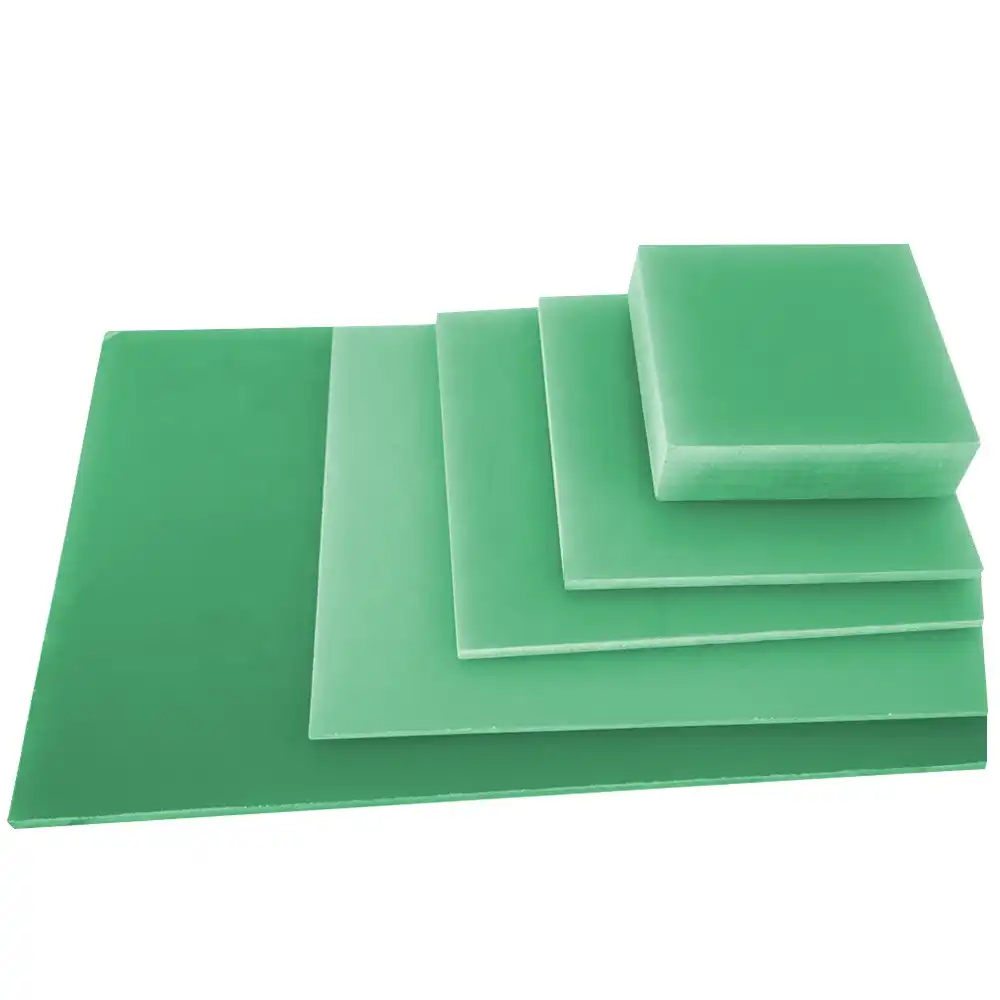

What are the uses of G10 FR4 sheets?

G10 FR4 sheets are versatile materials that have found their way into various industries due to their exceptional properties. If you've ever wondered about the applications of these remarkable sheets, you're in the right place. In this blog, we'll explore the many uses of G10 FR4 sheets and why they've become a go-to material for numerous applications.

Electrical and Electronic Applications of G10 FR4 Sheets

One of the primaries uses of G10 FR4 sheets is in the electrical and electronic industry. The material's excellent electrical insulation properties make it a popular choice for various applications, including:

Printed Circuit Boards (PCBs)

One of the primary applications of G10 FR4 sheets is as the base material for PCBs. G10 FR4 sheets offer excellent electrical insulation, which is crucial for preventing short circuits and ensuring proper signal transmission. The material's dimensional stability also ensures that PCBs maintain their shape and integrity during the manufacturing process and throughout their operational life. Additionally, G10 FR4's durability under mechanical stress and its resistance to environmental factors such as humidity and temperature fluctuations make it a reliable choice for high-performance and long-lasting PCBs.

Electrical Panels

G10 FR4 sheets are widely used in the construction of electrical panels and switchgear. The insulating properties of G10 FR4 ensure that electrical components are isolated from each other, preventing accidental short circuits and enhancing the overall safety of the electrical system. Moreover, G10 FR4 is flame-retardant, which is a critical feature for electrical panels that may be exposed to high voltage and potential overheating. The material's resistance to fire helps in minimizing the risk of electrical fires, making G10 FR4 an ideal choice for applications where safety and compliance with fire safety standards are paramount.

Terminal Blocks

The strength and insulating properties of G10 FR4 ensure that terminal blocks can handle high currents and voltages without compromising safety. The material's mechanical strength allows terminal blocks to withstand the stresses of repeated connections and disconnections, while its insulation properties prevent electrical leakage and ensure reliable connections. The durability of G10 FR4 ensures that terminal blocks maintain their performance and safety standards over time, even in demanding electrical environments.

Insulating Washers and Spacers

G10 FR4 sheets are often machined into these components due to their excellent insulating properties and mechanical strength. Insulating washers made from G10 FR4 help in distributing mechanical loads evenly while providing electrical insulation between conductive parts. Similarly, spacers made from G10 FR4 maintain the correct spacing between components, ensuring that electrical and thermal properties are optimized. The use of G10 FR4 for these components contributes to the overall reliability and efficiency of electrical assemblies.

Mechanical and Industrial Uses of G10 FR4 Sheets

Beyond electrical applications, G10 FR4 sheets find numerous uses in mechanical and industrial settings. Their high strength-to-weight ratio and excellent mechanical properties make them suitable for various structural and functional components:

Machine Parts

Components such as gears, shafts, and housings benefit from G10 FR4's robust mechanical properties, which provide durability and reliability under mechanical stress. The material's resistance to impact and abrasion makes it suitable for parts that experience frequent use and heavy loads. Additionally, its stability and precision in machining ensure that parts maintain their shape and performance over time, reducing the need for frequent replacements and maintenance.

Gears and Bearings

G10 FR4's high tensile strength and rigidity make it suitable for gears that need to handle substantial loads without deforming or breaking. Low friction coefficient contributes to the efficient operation of bearings, reducing wear and tear on moving parts and extending the lifespan of mechanical systems. The ability to create gears and bearings with tight tolerances ensures smooth and reliable operation in applications ranging from industrial machinery to aerospace components.

Tooling and Fixtures

G10 FR4's resistance to deformation ensures that fixtures and tools remain effective and consistent, contributing to higher production quality and efficiency. Whether used in jigs, clamps, or molds, G10 FR4 provides the necessary rigidity and stability for effective manufacturing operations.

Structural Components

G10 FR4 sheet's exceptional strength-to-weight ratio allows for the design of components that are both robust and less burdensome, contributing to overall performance and fuel efficiency. Applications include structural panels, reinforcements, and supports that need to withstand mechanical stresses while keeping the weight to a minimum. G10 FR4's durability and impact resistance make it a preferred choice for components exposed to harsh operating conditions.

Insulation Panels

G10 FR4 provides reliable insulation to protect sensitive components and ensure safe operation. The material's thermal insulation properties help in managing heat dissipation, while its electrical insulation capabilities prevent short circuits and electrical failures. G10 FR4's stability under temperature fluctuations further enhances its suitability for use in insulation panels across diverse industrial applications.

Specialized Applications of G10 FR4 Sheets

G10 FR4 sheets also find their way into more specialized applications, leveraging their unique combination of properties:

Cryogenic Applications

G10 FR4 sheets provide reliable performance in cryogenic environments, making them ideal for components in cryogenic storage tanks, insulation panels, and other equipment used in the liquefaction and storage of gases like nitrogen and helium. Their ability to resist thermal contraction ensures that parts remain functional and accurate even in the harshest cryogenic environments.

Medical Devices

G10 FR4 sheet's biocompatibility ensures that it does not cause adverse reactions when in contact with human tissue, which is crucial for components used in medical devices that come into direct or indirect contact with the body. Additionally, G10 FR4 sheets can be sterilized using common methods such as autoclaving, which is essential for maintaining hygiene and safety in medical applications.

Sport and Leisure Equipment

G10 FR4's resistance to impact and wear ensures that sporting goods maintain their performance and appearance even under rigorous use. Additionally, its lightweight nature helps in creating equipment that is easier to handle and maneuver, enhancing the user experience in sports and recreational activities.

Marine Applications

G10 FR4's durability in saltwater and its resistance to degradation from chemicals ensure that marine components remain functional and reliable over time, even when exposed to harsh conditions. G10 FR4's stability and resistance to environmental factors help in maintaining the integrity and longevity of marine equipment, contributing to safer and more efficient maritime operations.

Conclusion

In conclusion, G10 FR4 sheets have proven to be incredibly versatile materials with applications spanning from electronics to specialized industrial uses. Their unique combination of electrical insulation, mechanical strength, flame retardancy, and dimensional stability makes them invaluable in numerous industries.

For more information about G10 FR4 sheets and how they can benefit your projects, don't hesitate to reach out to us at info@jhd-material.com. Our team is ready to assist you in finding the perfect solution for your requirements.

References

1. G10 FR4 Material Specifications and Applications. Manufacturer Data Sheet.

2. G10 and FR4: Understanding the Benefits and Applications. Materials Science and Engineering Journal.

3. Cryogenic Material Selection: An Overview of G10 FR4. Journal Cryogenic Engineering.

4. G10 FR4 in Medical Device Manufacturing. Biomedical Materials and Devices Review.

5. Applications of G10 FR4 in Marine and Aerospace Industries. International Journal of Industrial Applications.
