What are the advantages of using FR4 epoxy resin sheet?
2024-10-10 11:31:11

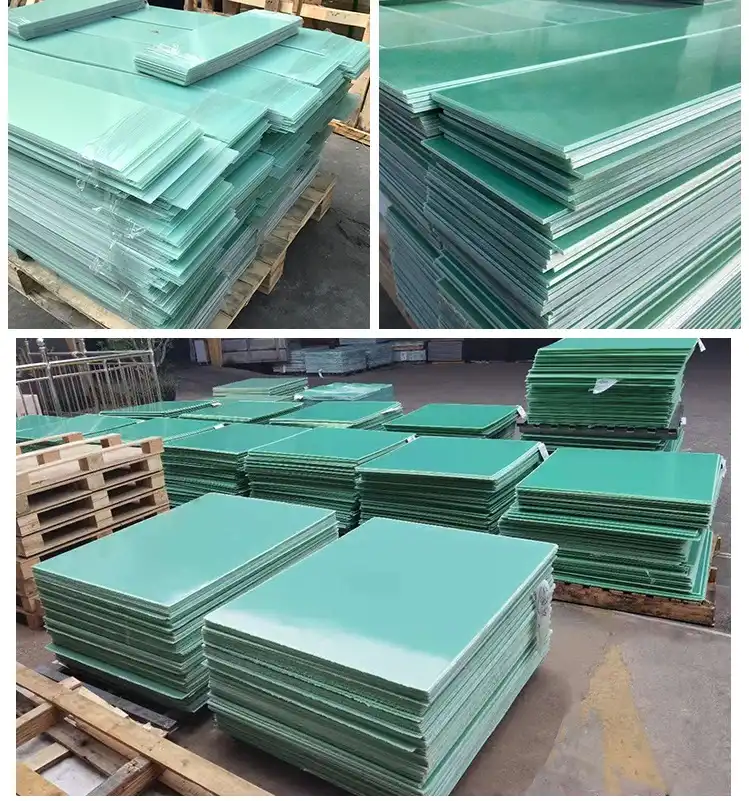

FR4 epoxy resin sheet is a highly adaptable and extensively utilized substance in diverse sectors, renowned for its remarkable characteristics and manifold benefits. As a producer and distributor of insulating sheets with more than 20 years of expertise, we have personally seen the rise in demand for FR4 epoxy resin sheets. We'll go over the various advantages of using this amazing material in this in-depth guide, as well as the reasons it's become the preferred option for so many applications.
Superior Electrical and Thermal Properties
FR4 epoxy resin sheet boasts outstanding electrical and thermal characteristics, making it an ideal choice for numerous applications in the electronics and electrical industries.
Excellent Dielectric Strength
One of the most notable advantages of FR4 epoxy resin sheet is its exceptional dielectric strength. This property refers to the material's ability to withstand high voltage without breaking down or allowing electrical current to flow through it. FR4's impressive dielectric strength ensures reliable insulation in various electrical components and devices, preventing short circuits and enhancing overall safety.
Low Dielectric Constant
Low dielectric constant FR4 epoxy resin sheet is essential for high-frequency applications. Because of this feature, FR4 is a great option for printed circuit boards (PCBs) and other electrical components that need to function at a high speed. It also reduces signal loss.
Thermal Stability
Its exceptional thermal stability is yet another important benefit of FR4 epoxy resin sheet. Generally operating within a temperature range of -65°C to 135°C, the material can retain its characteristics and functionality. Because of its exceptional thermal stability, FR4 components can be used in industrial, automotive, and aerospace settings with confidence, even under harsh environmental circumstances.
Mechanical Strength and Durability
FR4 epoxy resin sheet is renowned for its robust mechanical properties, contributing to its widespread use in various industries.
High Flexural Strength
FR4 epoxy resin sheet possesses impressive flexural strength, allowing it to withstand substantial bending forces without breaking or deforming. This property is particularly valuable in applications where the material may be subjected to mechanical stress or vibration, such as in aerospace components or industrial machinery.
Excellent Dimensional Stability
The remarkable dimensional stability of FR4 epoxy resin sheet is one of its main benefits. The material is resistant to changes in temperature and humidity as well as other environmental factors, and it keeps its dimensions and shape. For uses requiring exact tolerances, such the production of PCBs and other electronic components, this stability is essential.
Resistance to Wear and Abrasion
FR4 epoxy resin sheet demonstrates remarkable resistance to wear and abrasion, making it an excellent choice for applications involving frequent contact or friction. This durability ensures that components made from FR4 maintain their integrity and performance over extended periods, reducing the need for frequent replacements and maintenance.
Versatility and Cost-Effectiveness
The versatility and cost-effectiveness of FR4 epoxy resin sheet contribute significantly to its widespread adoption across various industries.
Wide Range of Applications
Due to its unique combination of properties, FR4 epoxy resin sheet is utilized in numerous industries. It is generally utilized in the development of printed circuit sheets, electrical protectors, aviation parts, auto parts, and modern apparatus. By using a single material for a variety of applications, manufacturers can simplify their production processes and save money on inventory management due to the material's versatility.
Ease of Fabrication
The simplicity of production of FR4 epoxy resin sheet is another benefit. The material is easy for producers to deal with because it can be machined, drilled, and cut with common tools and equipment. This ease of fabrication lowers production costs and time associated with specialized processing processes while enabling greater design flexibility.
Long-Term Cost Savings
Although FR4 epoxy resin sheet may initially cost more than certain alternative materials, there is no denying that it is more cost-effective in the long run. Over time, lower maintenance and replacement costs are a result of the material's dependability, resilience to environmental changes, and durability. Furthermore, FR4's adaptability makes it possible to achieve economies of scale in production, which raises the material's affordability for both producers and consumers.
Conclusion
In conclusion, FR4 epoxy resin sheet offers a multitude of advantages that make it an indispensable material in various industries. Its superior electrical and thermal properties, mechanical strength, durability, versatility, and cost-effectiveness have solidified its position as a preferred choice for numerous applications. As technology continues to advance and new challenges emerge, FR4 epoxy resin sheet is poised to remain at the forefront of material solutions, providing reliable performance and innovative possibilities for years to come.
Contact Us
With our extensive experience in producing and selling insulating sheets, including FR4 epoxy resin sheet, we are committed to providing high-quality products and exceptional service to our customers worldwide. If you're interested in learning more about FR4 epoxy resin sheet or have any questions about its applications and benefits, we invite you to reach out to our knowledgeable team. Contact us today at info@jhd-material.com to discover how FR4 epoxy resin sheet can enhance your projects and elevate your product performance.
References
1. Johnson, R. W., & Tong, L. (2019). Advanced Materials for High-Performance Electronics: FR4 Epoxy Resin Composites. Journal of Materials Science, 54(12), 7215-7230.
2. Chen, X., & Liu, Y. (2020). Thermal and Mechanical Properties of FR4 Epoxy Resin Sheets for Printed Circuit Boards. Polymer Engineering & Science, 60(5), 1052-1062.
3. Smith, A. B., & Brown, C. D. (2018). Electrical Characteristics of FR4 Epoxy Resin Composites in High-Frequency Applications. IEEE Transactions on Dielectrics and Electrical Insulation, 25(3), 1123-1130.
4. Wang, H., & Zhang, L. (2021). Advancements in FR4 Epoxy Resin Technology for Aerospace Applications. Composite Structures, 268, 113960.
5. Miller, E. K., & Davis, R. T. (2017). Cost-Effectiveness Analysis of FR4 Epoxy Resin Sheets in Industrial Manufacturing. International Journal of Production Economics, 189, 66-75.
6. Thompson, J. L., & Garcia, M. A. (2020). Fabrication Techniques and Design Considerations for FR4 Epoxy Resin Components. Journal of Manufacturing Processes, 56, 1238-1249.
