Understanding FR4 Epoxy Fiberglass Laminate Sheets: Properties and Applications

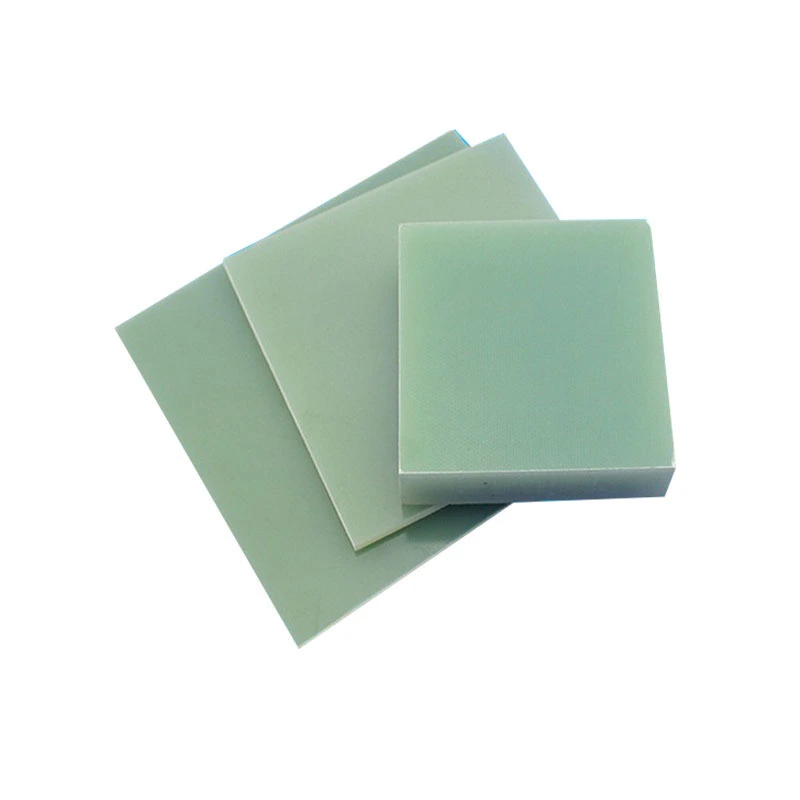

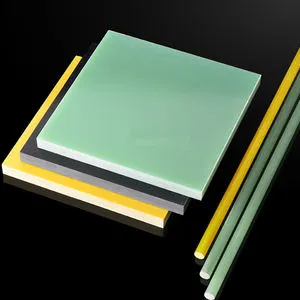

FR4 epoxy fiberglass laminate sheets are versatile composite materials widely used in the electronics industry. These sheets combine the strength of fiberglass with the insulating properties of epoxy resin, resulting in a robust and reliable substrate for printed circuit boards (PCBs) and other applications. FR4 laminates offer excellent electrical insulation, thermal stability, and mechanical strength, making them indispensable in various electronic devices and industrial applications. This article delves into the properties, manufacturing process, and diverse applications of FR4 epoxy fiberglass laminate sheets, providing valuable insights for engineers, manufacturers, and anyone interested in this crucial material in modern electronics.

Composition and Manufacturing of FR4 Epoxy Fiberglass Laminate Sheets

Raw Materials and Their Roles

FR4 epoxy fiberglass laminate sheets are composed of two primary components: fiberglass cloth and epoxy resin. The fiberglass cloth serves as the reinforcement, providing strength and dimensional stability to the laminate. Epoxy resin, on the other hand, acts as the matrix, binding the fiberglass layers together and imparting the material with its electrical insulation properties. The combination of these materials results in a composite that exhibits superior mechanical and electrical characteristics.

Manufacturing Process

The production of FR4 epoxy fiberglass laminate sheets involves a multi-step process. Initially, fiberglass cloth is impregnated with epoxy resin in a controlled environment. The impregnated cloth is then partially cured to create what is known as prepreg. Multiple layers of prepreg are stacked together and subjected to heat and pressure in a lamination press. This process fully cures the epoxy resin, resulting in a solid, uniform sheet. The sheets are then trimmed to the desired dimensions and undergo quality control tests to ensure they meet industry standards.

Quality Control and Standards

FR4 laminates must adhere to strict quality standards to ensure consistency and reliability in electronic applications. Various tests are conducted to verify the material's properties, including dielectric strength, flame retardancy, and thermal stability. The National Electrical Manufacturers Association (NEMA) and the International Electrotechnical Commission (IEC) have established guidelines for FR4 materials, which manufacturers must follow to ensure their products meet industry requirements.

Properties and Characteristics of FR4 Epoxy Fiberglass Laminate Sheets

Electrical Properties

FR4 epoxy fiberglass laminate sheets possess excellent electrical insulation properties, making them ideal for use in electronic circuits. They exhibit high dielectric strength, low dielectric constant, and low dissipation factor. These characteristics ensure minimal signal loss and interference in high-frequency applications. The material's ability to maintain its electrical properties over a wide range of temperatures and humidity levels contributes to its reliability in diverse operating conditions.

Mechanical Properties

The combination of fiberglass reinforcement and epoxy resin results in FR4 epoxy fiberglass laminate sheet with impressive mechanical strength. They demonstrate high flexural and tensile strength, excellent dimensional stability, and good resistance to warping and twisting. These properties ensure that PCBs and other components made from FR4 can withstand the stresses of manufacturing processes, assembly, and operation without compromising their integrity.

Thermal Properties

FR4 epoxy fiberglass laminate sheets exhibit good thermal stability and flame retardancy. They can withstand high temperatures without significant degradation of their mechanical or electrical properties. The material's low coefficient of thermal expansion helps minimize stress on components during temperature fluctuations. Additionally, FR4 laminates are designed to be self-extinguishing, meeting various flame retardancy standards crucial for safety in electronic devices.

Applications and Future Trends in FR4 Epoxy Fiberglass Laminate Sheets

Primary Applications in Electronics

The most common application of FR4 epoxy fiberglass laminate sheets is in the production of printed circuit boards (PCBs). These laminates serve as the substrate upon which conductive tracks and components are mounted, forming the backbone of electronic devices. FR4 is used in a wide range of PCBs, from simple single-layer boards to complex multilayer designs found in computers, smartphones, and other sophisticated electronic equipment. The material's properties make it suitable for both through-hole and surface-mount technology applications.

Industrial and Specialty Applications

Beyond PCBs, FR4 epoxy fiberglass laminate sheets find use in various industrial and specialty applications. They are employed in the manufacture of electrical insulation components, such as switchgear insulators and transformer bushings. The material's mechanical strength and flame-retardant properties make it suitable for structural components in aerospace and automotive industries. FR4 laminates are also used in the production of antenna substrates, radomes, and other high-frequency applications where their electrical properties are advantageous.

Emerging Trends and Future Developments

As technology continues to advance, the demands placed on FR4 epoxy fiberglass laminate sheets are evolving. There is a growing trend towards thinner, lighter, and more environmentally friendly materials. Manufacturers are developing FR4 variants with improved thermal management capabilities to address the increasing power densities in modern electronics. Research is also focused on enhancing the material's performance at higher frequencies to support 5G and other emerging technologies. Additionally, efforts are being made to develop more sustainable production methods and explore bio-based alternatives to traditional epoxy resins, aligning with global sustainability goals.

Conclusion

FR4 epoxy fiberglass laminate sheets remain a cornerstone material in the electronics industry, offering a unique combination of electrical, mechanical, and thermal properties. Their versatility and reliability have made them indispensable in a wide range of applications, from everyday consumer electronics to specialized industrial equipment. As technology continues to evolve, FR4 laminates are adapting to meet new challenges, ensuring their relevance in the future of electronics manufacturing. Understanding the properties and applications of FR4 epoxy fiberglass laminate sheets is crucial for professionals in the electronics and manufacturing sectors, enabling them to make informed decisions in product design and development.
