Top Benefits of Using Heat Resistant Epoxy Resin Board FR4 in Industrial Applications

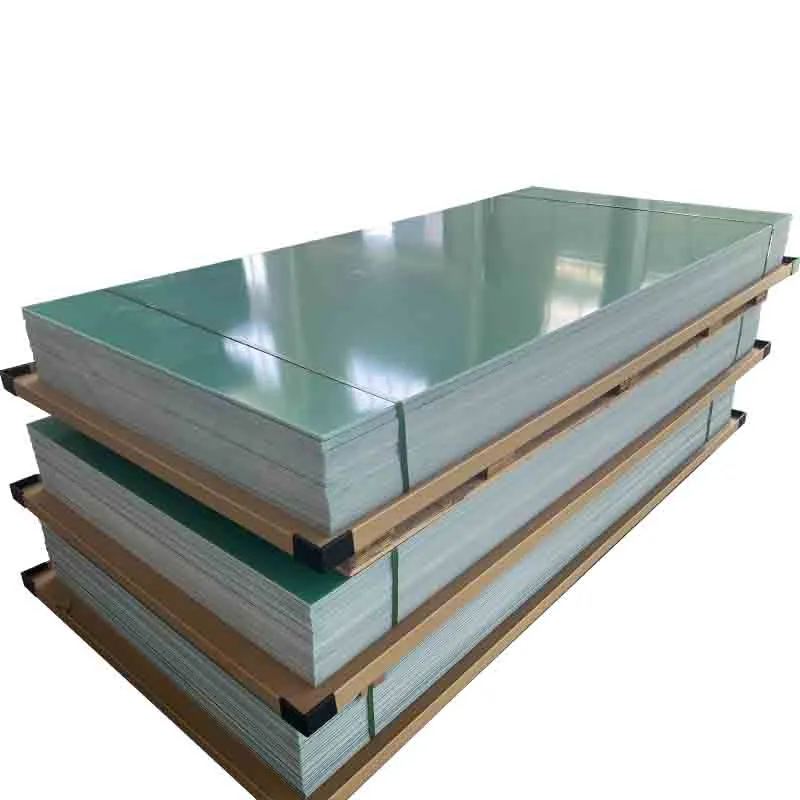

Heat resistant epoxy resin board FR4, also known as FR4 epoxy sheet or FR4 epoxy board, offers numerous advantages in industrial applications. This versatile material combines exceptional thermal resistance with outstanding mechanical and electrical properties, making it an indispensable component in various sectors. The primary benefits of using FR4 in industrial settings include its superior heat resistance, excellent electrical insulation, remarkable mechanical strength, and exceptional dimensional stability. These properties make FR4 epoxy boards ideal for use in printed circuit boards, electrical insulation, and high-temperature applications across industries such as electronics, aerospace, automotive, and telecommunications.

Thermal Performance and Durability of FR4 Epoxy Boards

Heat Resistance Properties of FR4

FR4 epoxy boards are known for their impressive heat resistance, which allows them to maintain stability and functionality even at elevated temperatures. The material's glass transition temperature (Tg), typically between 130°C and 180°C, ensures that it retains its shape and strength under thermal stress. This characteristic makes FR4 ideal for use in industries where components are exposed to high heat, such as in electronics, automotive, and industrial equipment. Its durability in such conditions is key to the longevity and reliability of products in demanding environments.

Thermal Conductivity and Insulation

FR4 epoxy boards are widely used in electronics and industrial applications due to their balanced thermal properties. With thermal conductivity ranging from 0.25 to 0.4 W/mK, they effectively manage heat dissipation without compromising insulation. This makes them suitable for environments where moderate heat transfer is necessary while still maintaining thermal resistance. The ability of FR4 to strike a balance between insulating and conductive properties ensures that components stay within safe operating temperatures, enhancing both performance and durability in devices and machinery.

Long-term Thermal Stability

One of the key advantages of FR4 epoxy boards is their exceptional long-term thermal stability. These materials can endure prolonged exposure to high temperatures without compromising their mechanical or electrical properties. This resilience ensures that components and systems using FR4 maintain consistent performance even under thermal stress. As a result, FR4 is particularly well-suited for applications in harsh environments, such as power electronics, automotive systems, and industrial machinery, where reliability and longevity are critical. This thermal stability also reduces the risk of failure, making FR4 a preferred choice for demanding applications.

Electrical and Mechanical Properties of Heat Resistant FR4 Epoxy Sheets

Dielectric Strength and Insulation Resistance

FR4 epoxy sheets are known for their outstanding dielectric strength, which typically ranges from 20 to 80 kV/mm, depending on factors like thickness and formulation. This superior property makes FR4 an ideal choice for high-voltage applications, effectively preventing electrical breakdown and current leakage. In addition, FR4 offers excellent insulation resistance, often surpassing 10^6 megohms, which further solidifies its role in a variety of electrical and electronic applications where reliable insulation is crucial. This combination of properties ensures its use in critical components like circuit boards and transformers.

Mechanical Strength and Rigidity

Heat-resistant epoxy resin board FR4 is renowned for its exceptional mechanical properties, including high tensile strength, flexural strength, and impact resistance. With a tensile strength ranging from 280 to 320 MPa and flexural strength reaching up to 480 MPa, FR4 provides robust support in demanding applications. These qualities make it an excellent choice for industries like aerospace and automotive, where materials must endure mechanical stress, vibration, and temperature variations. Its durability ensures long-lasting performance and reliability in critical structural components.

Dimensional Stability and Low Coefficient of Thermal Expansion

FR4 epoxy sheets are known for their exceptional dimensional stability, maintaining consistent shape and size across a broad temperature range. With a low coefficient of thermal expansion (CTE) typically ranging from 11 to 15 ppm/°C in the x-y plane, they perform reliably under thermal cycling. This stability makes FR4 a preferred material for applications requiring high precision, such as in electronics, aerospace, and automotive industries, where maintaining dimensional accuracy is crucial to overall performance and reliability in various environments.

Applications and Advantages of FR4 Epoxy Board in Various Industries

Electronics and Printed Circuit Boards

The electronics industry extensively utilizes FR4 epoxy boards as the base material for printed circuit boards (PCBs). The combination of excellent electrical insulation, thermal resistance, and mechanical strength makes FR4 an ideal substrate for PCBs in various applications, from consumer electronics to industrial control systems. The flame-retardant properties of FR4 also contribute to the safety and reliability of electronic devices.

Aerospace and Defense Applications

In the aerospace and defense sectors, heat resistant epoxy resin board FR4 finds applications in structural components, electrical insulation, and radar systems. The material's high strength-to-weight ratio, thermal stability, and resistance to environmental factors make it suitable for use in aircraft, satellites, and military equipment. FR4 epoxy sheets also contribute to weight reduction in aerospace applications, improving fuel efficiency and overall performance.

Industrial Machinery and Equipment

FR4 epoxy boards play a crucial role in various industrial machinery and equipment applications. Their excellent electrical insulation properties make them suitable for use in high-voltage switchgear, motor insulation, and transformer components. The thermal resistance of FR4 also allows for its use in industrial ovens, furnaces, and other high-temperature environments where maintaining structural integrity is essential.

Conclusion

Heat resistant epoxy resin board FR4 offers a unique combination of thermal, electrical, and mechanical properties that make it an invaluable material in numerous industrial applications. Its superior heat resistance, excellent electrical insulation, and remarkable mechanical strength contribute to enhanced performance, reliability, and safety across various sectors. As industries continue to demand materials capable of withstanding extreme conditions, FR4 epoxy boards remain at the forefront of innovation, providing solutions to complex engineering challenges and enabling the development of cutting-edge technologies.
