The use of insulated epoxy tube need to pay attention to the problem!

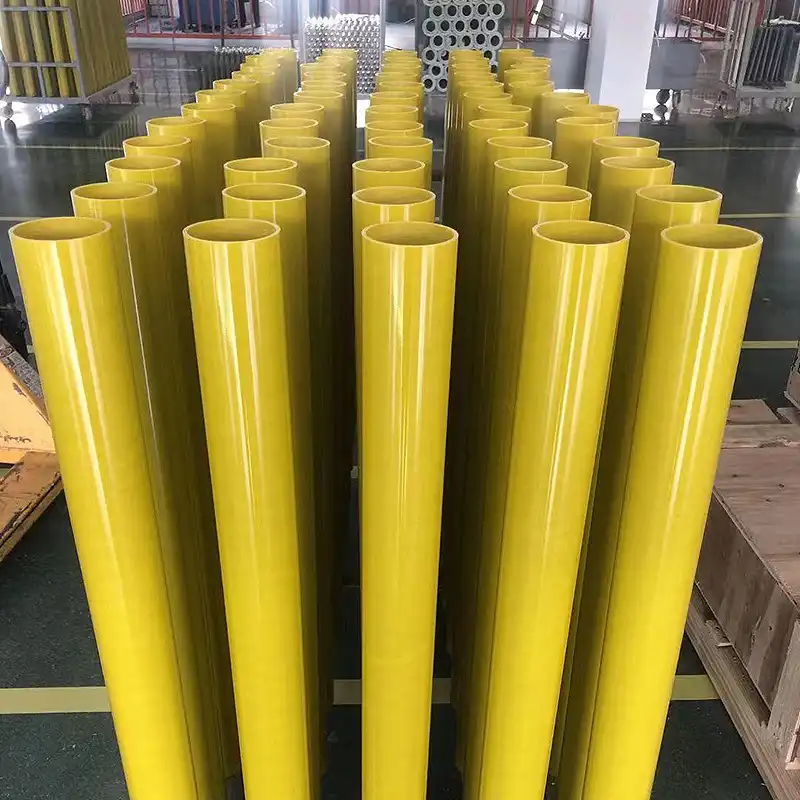

Insulated epoxy tubes are crucial components in various industrial applications, offering excellent electrical insulation and mechanical strength. However, their proper use requires careful consideration of several factors to ensure optimal performance and longevity. Key aspects to consider include temperature limitations, chemical compatibility, moisture resistance, and proper installation techniques. Users must also be aware of potential degradation over time due to environmental factors and stress. By understanding these critical issues and implementing appropriate precautions, engineers and technicians can maximize the effectiveness of insulated epoxy tubes while minimizing the risk of failures or safety hazards in their electrical systems.

Material Properties and Selection Considerations

Chemical Composition and Characteristics

Insulated epoxy tubes are composed of a complex blend of resins, hardeners, and fillers. The specific formulation determines the tube's electrical, mechanical, and thermal properties. Epoxy resins provide excellent adhesion and chemical resistance, while hardeners contribute to the curing process and final strength. Fillers, such as silica or glass fibers, enhance mechanical properties and reduce thermal expansion.

Temperature Range and Thermal Stability

One of the most critical factors in selecting insulated epoxy tubes is their temperature range. Different formulations offer varying degrees of heat resistance, with some capable of withstanding temperatures up to 200°C or higher. However, prolonged exposure to temperatures near the upper limit can lead to gradual degradation of the material's properties. It's essential to choose a tube with a temperature rating that exceeds the expected operating conditions by a suitable margin.

Electrical Insulation Properties

The dielectric strength of insulated epoxy tubes is a key consideration for electrical applications. This property measures the material's ability to withstand electric fields without breakdown. Factors such as tube thickness, surface contamination, and environmental conditions can affect the actual insulation performance. Engineers must select tubes with appropriate dielectric strength ratings for their specific voltage requirements, incorporating safety factors to account for potential variations in operating conditions.

Installation and Handling Precautions

Proper Cutting and Machining Techniques

When customizing insulated epoxy tubes for specific applications, proper cutting and machining techniques are crucial. The use of high-speed, fine-toothed saws or specialized cutting tools is recommended to prevent chipping or cracking. Cooling fluids may be necessary during machining to prevent heat buildup, which could alter the material's properties. After cutting, edges should be carefully deburred to maintain insulation integrity and prevent stress concentration points.

Surface Preparation and Cleaning

Before installation, the surfaces of insulated epoxy tubes must be thoroughly cleaned and prepared. Any contaminants, such as oils, dust, or moisture, can compromise the tube's electrical insulation properties and interfere with adhesive bonding if used. Appropriate solvents or cleaning agents should be selected based on the specific epoxy formulation to avoid damaging the material. In some cases, light abrasion of the surface may be necessary to improve adhesion or to remove any oxidation layer that may have formed during storage.

Proper Storage and Handling

Insulated epoxy tubes require careful storage and handling to maintain their properties. They should be stored in a cool, dry environment away from direct sunlight and sources of heat or moisture. Proper packaging or protective coverings can prevent surface contamination and physical damage. When transporting or manipulating the tubes, care must be taken to avoid impacts or excessive bending that could lead to microcracks or internal stress. For large or heavy tubes, appropriate lifting equipment should be used to prevent damage and ensure worker safety.

Performance Monitoring and Maintenance

Regular Inspection Protocols

Implementing a systematic inspection regimen is crucial for ensuring the continued performance of insulated epoxy tubes. Visual inspections should be conducted periodically to check for signs of physical damage, discoloration, or surface degradation. More advanced techniques, such as ultrasonic testing or thermography, can be employed to detect internal defects or hot spots that may indicate insulation breakdown. The frequency of inspections should be based on the application's criticality and the operating environment's severity.

Environmental Stress Factors

Insulated epoxy tubes are susceptible to various environmental stressors that can affect their long-term performance. Ultraviolet radiation can cause surface degradation and color changes, potentially leading to reduced mechanical strength. Chemical exposure, particularly to solvents or aggressive substances, can result in swelling, softening, or embrittlement of the epoxy material. High humidity or direct water contact can lead to moisture absorption, which may alter the tube's electrical properties or cause dimensional changes. Understanding these factors is essential for implementing appropriate protective measures and scheduling maintenance activities.

Repair and Replacement Strategies

Despite best practices in selection and maintenance, insulated epoxy tubes may eventually require repair or replacement. Minor surface damage can often be addressed using specialized epoxy repair compounds, ensuring proper surface preparation and curing conditions. For more significant damage or when the tube's integrity is compromised, complete replacement may be necessary. When replacing tubes, it's important to reassess the application requirements, as advances in material technology may offer improved performance or durability compared to the original installation.

Conclusion

The proper use of insulated epoxy tubes demands a comprehensive understanding of their properties, installation requirements, and maintenance needs. By carefully considering material selection, implementing proper handling and installation techniques, and maintaining a robust inspection and maintenance program, users can significantly enhance the reliability and longevity of their electrical systems. As technology continues to evolve, staying informed about the latest developments in insulated epoxy tube materials and application techniques will be crucial for optimizing performance and ensuring safety in diverse industrial environments.
