The Role of FR4 Glass Epoxy Sheet in High-Frequency PCBs

FR4 glass epoxy sheet plays a pivotal role in high-frequency printed circuit boards (PCBs), serving as the foundation for advanced electronic devices. This versatile material combines fiberglass cloth with epoxy resin, offering exceptional electrical insulation and mechanical strength. In high-frequency applications, FR4 glass epoxy sheets provide low signal loss, consistent dielectric properties, and thermal stability. These characteristics make FR4 an ideal substrate for PCBs operating in the gigahertz range, enabling the development of cutting-edge telecommunications equipment, radar systems, and high-speed computing devices. The material's reliability and performance in demanding environments have solidified its position as a cornerstone in modern electronics manufacturing.

Composition and Properties of FR4 Glass Epoxy Sheet

Chemical Composition

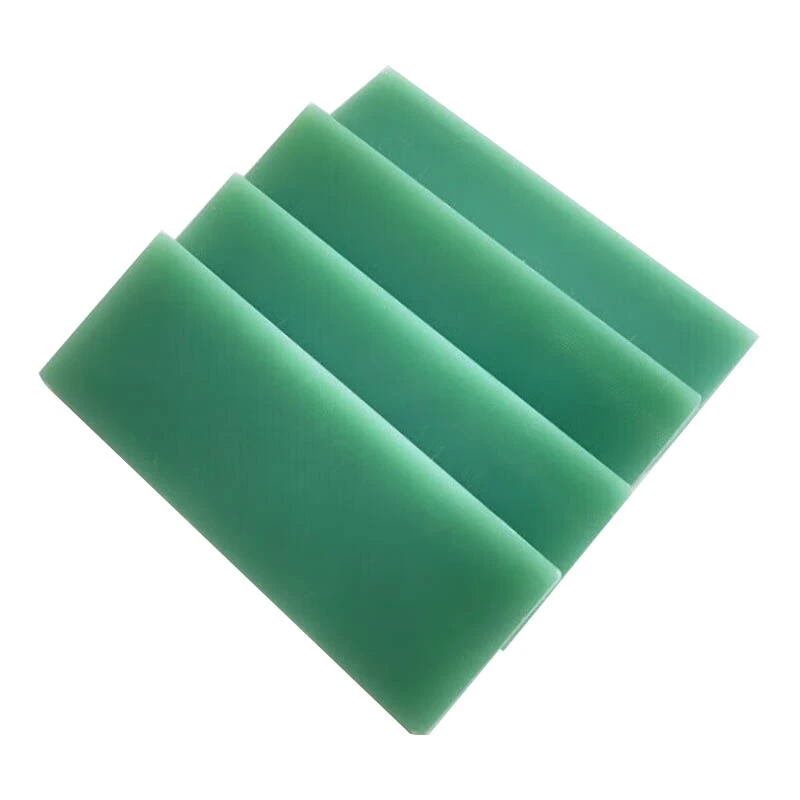

FR4 glass epoxy sheet is a composite material comprising woven fiberglass cloth impregnated with epoxy resin. The fiberglass provides structural integrity, while the epoxy resin acts as a binding agent and electrical insulator. This unique combination results in a material with exceptional mechanical and electrical properties, making it ideal for use in high-frequency PCBs.

Electrical Properties

The electrical characteristics of FR4 glass epoxy sheet are crucial for its application in high-frequency PCBs. It boasts a high dielectric strength, typically ranging from 20 to 80 kV/mm, which prevents electrical breakdown under intense electromagnetic fields. The material's dielectric constant, usually between 4.2 and 4.8, ensures consistent signal propagation across the board. Additionally, FR4's low dissipation factor minimizes signal loss, making it suitable for high-frequency applications.

Mechanical and Thermal Properties

FR4 glass epoxy sheet exhibits remarkable mechanical strength and thermal stability. Its flexural strength can exceed 500 MPa, allowing it to withstand the rigors of manufacturing processes and operational stress. The material's coefficient of thermal expansion (CTE) is relatively low, typically around 50-70 ppm/°C in the x and y directions, which helps maintain dimensional stability under varying temperatures. FR4 also demonstrates excellent heat resistance, with a glass transition temperature (Tg) that can range from 130°C to 180°C, depending on the specific formulation.

FR4 Glass Epoxy Sheet in High-Frequency PCB Design

Signal Integrity Considerations

In high-frequency PCB design, maintaining signal integrity is paramount. FR4 glass epoxy sheet contributes significantly to this aspect by providing a stable substrate with consistent electrical properties. The material's low dielectric loss tangent helps minimize signal attenuation, especially at frequencies up to several gigahertz. However, designers must consider the potential for increased losses at ultra-high frequencies and implement appropriate mitigation strategies, such as using specialized high-frequency laminates for critical signal paths.

Impedance Control

Impedance control is crucial in high-frequency PCB design to ensure proper signal transmission and minimize reflections. FR4 glass epoxy sheet's consistent dielectric properties allow for precise calculation and control of trace impedances. Designers can adjust trace width, thickness, and spacing relative to ground planes to achieve the desired impedance, typically 50 or 75 ohms for high-frequency applications. The stability of FR4's dielectric constant across a wide frequency range facilitates accurate impedance matching throughout the board.

Thermal Management

Effective thermal management is essential in high-frequency PCBs, where increased power densities can lead to significant heat generation. FR4 glass epoxy sheet, while not an excellent thermal conductor, provides a stable platform for implementing various thermal management solutions. Designers can incorporate copper planes, thermal vias, and other heat-dissipation techniques to manage temperatures effectively. The material's relatively high glass transition temperature allows for reliable operation in demanding thermal environments, ensuring the longevity and performance of high-frequency circuits.

Advancements and Alternatives in High-Frequency PCB Materials

High-Speed FR4 Variants

As the demand for higher frequency applications grows, manufacturers have developed specialized FR4 variants optimized for high-speed and high-frequency performance. These materials often feature modified resin systems and glass weaves that offer lower dielectric constants and dissipation factors compared to standard FR4. Some high-speed FR4 variants can support frequencies up to 10 GHz or higher, bridging the gap between traditional FR4 and more exotic high-frequency laminates.

Alternative High-Frequency Laminates

For applications requiring performance beyond the capabilities of FR4 glass epoxy sheet and its variants, a range of alternative high-frequency laminates is available. Materials such as PTFE (polytetrafluoroethylene), ceramic-filled hydrocarbon resins, and liquid crystal polymers offer superior electrical properties at extremely high frequencies. These materials typically feature lower dielectric constants, reduced loss tangents, and improved thermal characteristics, enabling their use in millimeter-wave and microwave applications. However, they often come at a higher cost and may require specialized manufacturing processes.

Future Trends in PCB Materials

The future of high-frequency PCB materials is likely to see continued innovation driven by the demands of emerging technologies such as 5G, Internet of Things (IoT), and autonomous vehicles. Research is ongoing into novel composite materials that combine the cost-effectiveness and ease of manufacture of FR4 with the high-frequency performance of more advanced laminates. Additionally, developments in nanomaterials and engineered substrates promise to push the boundaries of what's possible in high-frequency PCB design, potentially leading to new paradigms in electronic system integration and performance.

Conclusion

FR4 glass epoxy sheet remains a cornerstone in high-frequency PCB manufacturing, offering a balanced combination of electrical performance, mechanical strength, and cost-effectiveness. Its role in enabling the development of advanced electronic systems cannot be overstated. As technology continues to evolve, FR4 and its variants adapt to meet the challenges of higher frequencies and greater complexity. While alternative materials emerge for specialized applications, the versatility and reliability of FR4 ensure its continued relevance in the ever-expanding landscape of high-frequency electronics.
